Jiujie Machine
1 / 5
| Model NO. | 100t/24h |
| Type | Flour Mill |
| Application | Flour, Wheat |
| Voltage | 380V |
| Appearance | Vertical |
| Press Materials | Wheat |
| Press Series | Second |
| Condition | New |
| Customized | Customized |
| Product Name | 100tpd Wheat Flour Mill Machine |
| Machine Capacity | 100t/24h |
| Raw Material | Wheat |
| Final Production | Super White Wheat Flour, Semolina, Bran |
| Machine Pipes | Stainless Steel |
| Roller Mill | Pneumatic Roller Mill |
| Sifter | Double Section Sifter / Plansifter |
| Damper | Auto Damper |
| Destoner | Gravity Classification Destoner |
| Filter | Impulse Dust Filter |
| Processing Line | Cleaning to Milling to Sifting to Packing |
| Package Size | 65.00cm * 40.00cm * 40.00cm |
| Gross Weight | 55.000kg |
| Transport Package | Sea Transportation |
| Origin / HS Code | China / 8437800000 |

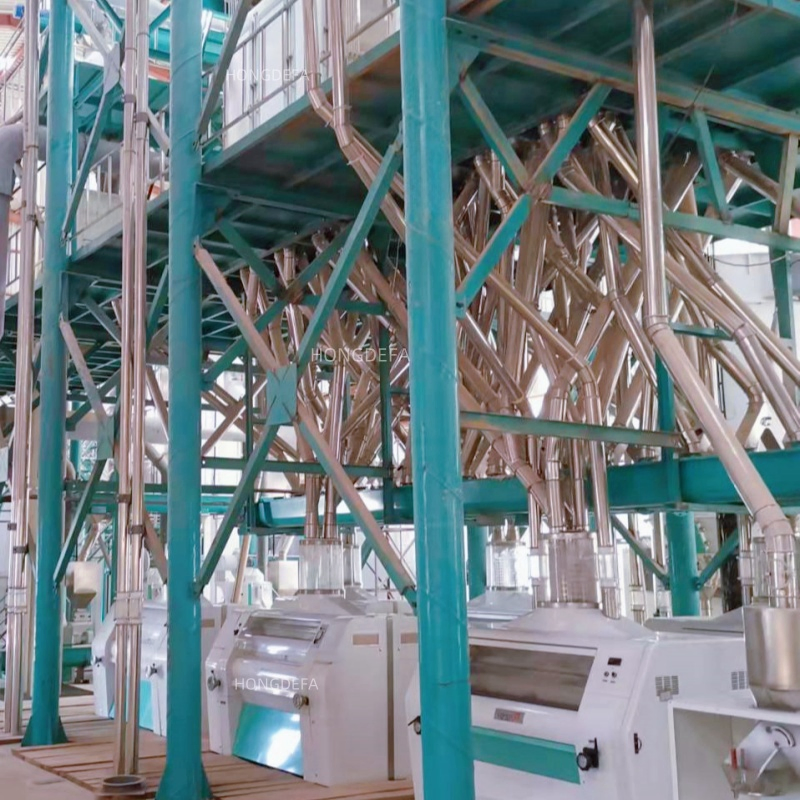

Industrial Complete 100TPD Wheat Flour Mill Machine Description:
| Specification Item | Details |
|---|---|
| Wheat flour mill machine capacity | 100 tons per 24 hours |
| Total length of the roller | 12000mm |
| Flour extraction |
To produce standard flour: 75-82% To produce grade 2 flour: 72-75% To produce grade 1 flour: 65-70% |
| Power supply | 381 KW |
| Dimension of the factory | 42000×12000×12000mm (Tripod structure) |
| Container | 40'×6 |
| Installing time | Three months |

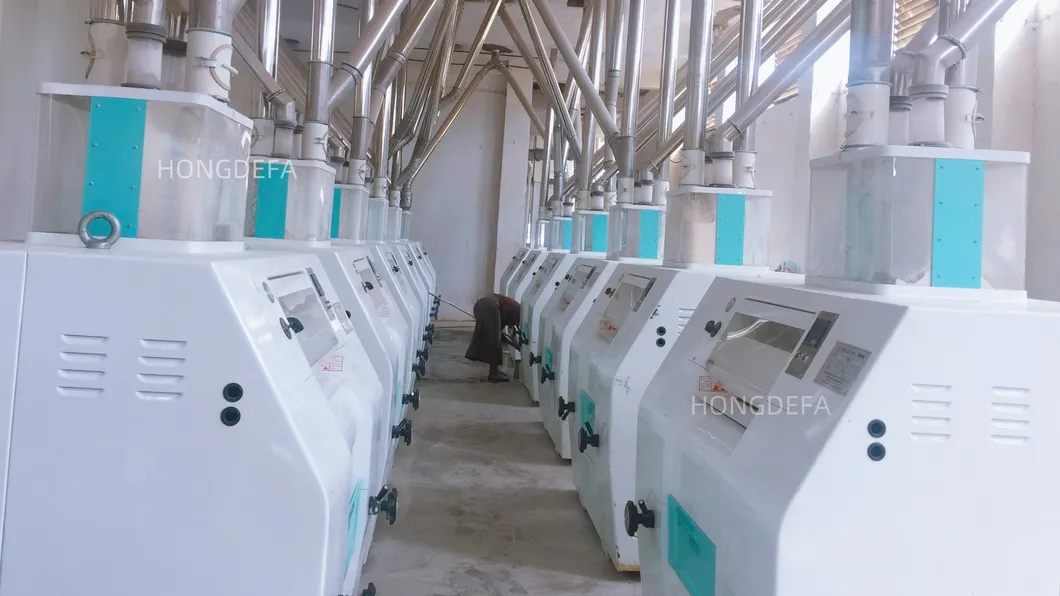

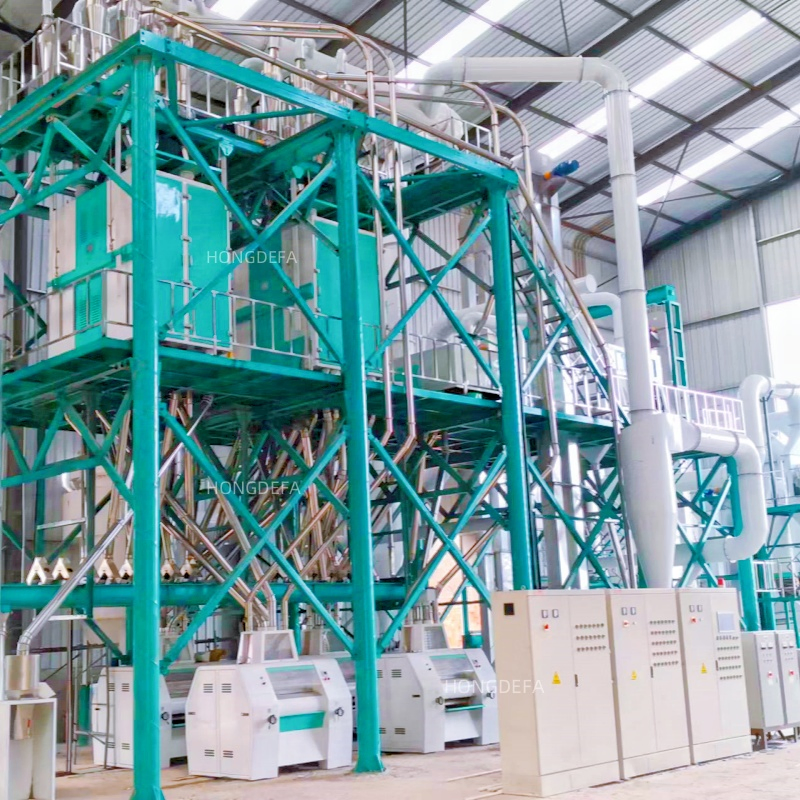

Industrial line wheat flour mill machine complete plant of 100t/24h with advanced technology.

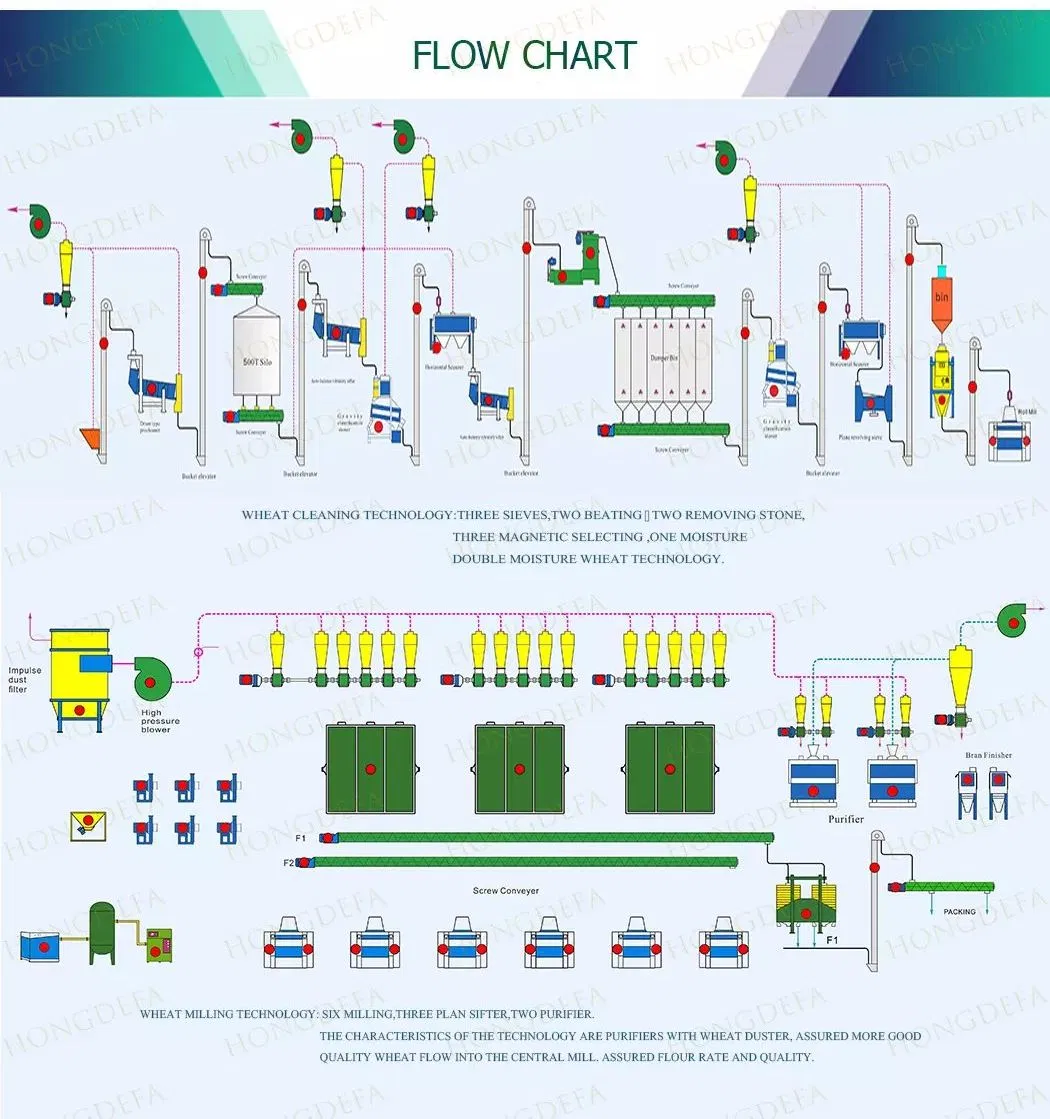

It's a complete plant from cleaning to milling to packing.
Cleaning Part: To clean out the middle and small impurities from raw grain such as dust, sand, stone, magnetic material, poorly diseased wheat kernels and so on. It includes hitting, sieving, stones removal, magnetic materials separating and dampening. It is good for the next part.
Milling Part: After finishing cleaning, wheat falls into the milling machine. At first, extract much of the scratch, particles, and dunst with good quality from wheat, graded them according to particles' size and quality then flowing into the purifier. At the same time, the scratch system separates the hull and endosperm. That can get pure particles and dunst, then make into top grade flour by the reduction system. For the second grade particles and endosperm will mill by the relevant reduction system to get bran flour. The milling flow can be divided into different systems: Break system, Scratch system, Purifier system, Reduction system, Air transportation system, and packing system.
Packing Part: The packing system function is weighing and sewing.
Final Production Capabilities: This wheat flour mill machine can produce different size wheat flour, semolina, and bran, suitable for bread, biscuits, cakes, etc.

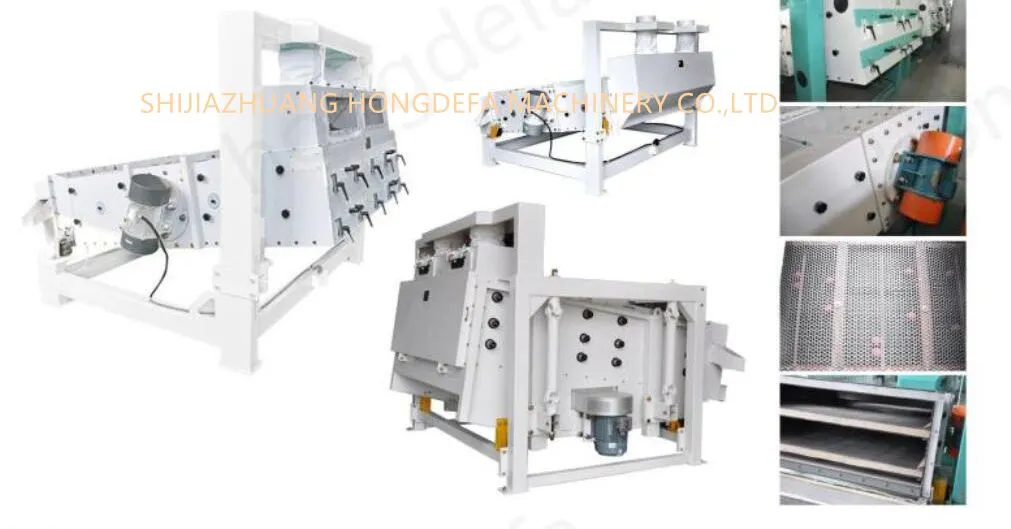

Vibrating sieve is a sifting machine with high speed. When the sieve body is driven by two sides vibrating motors, wheat flows into the first sieve surface through the feeding entrance, and large impurities on the upper sieve are discharged to the hopper. Another material comes into the second sieve surface for continual sifting. On this surface, the wheat and small impurities are separated from each other. Finally, lighter impurities are discharged by the suction pipes. This machine features high capacity without jamming.

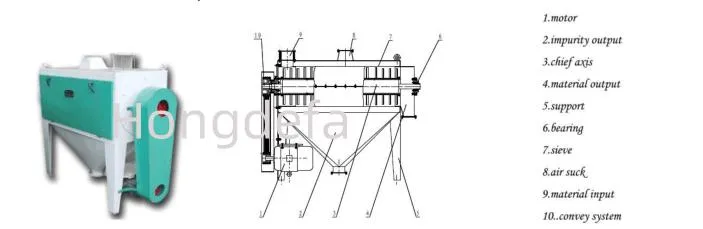

Although most impurities are removed by the vibrating sieve, the beating brusher further cleans the grain by removing dust, wheat hairs, insect eggs, etc. Using high-speed rotating metal plates to beat the wheat inside, the friction separates impurities from the wheat husk. Mud, cinder, and worm-eaten wheat smaller than wheat are crashed and removed by the sieves and blowers.

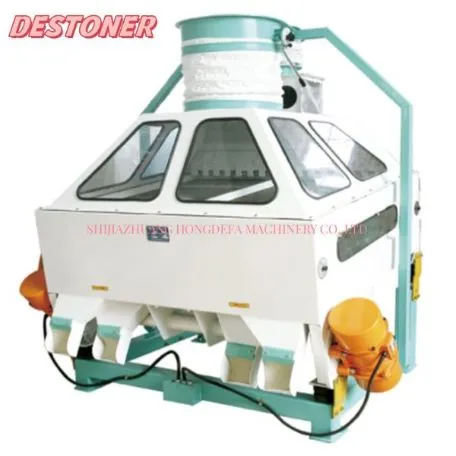

According to the difference in gravity between wheat and stones, the destoner utilizes air dynamics and sieve movement to classify the raw material. The wheat and stones move in different directions on the sieve, effectively separating stones from the wheat.

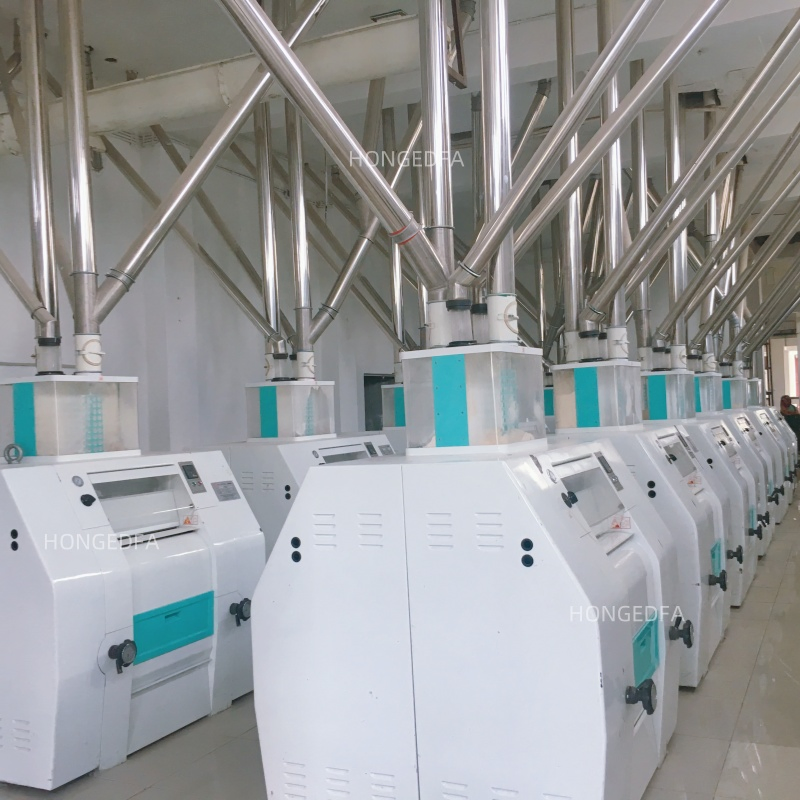

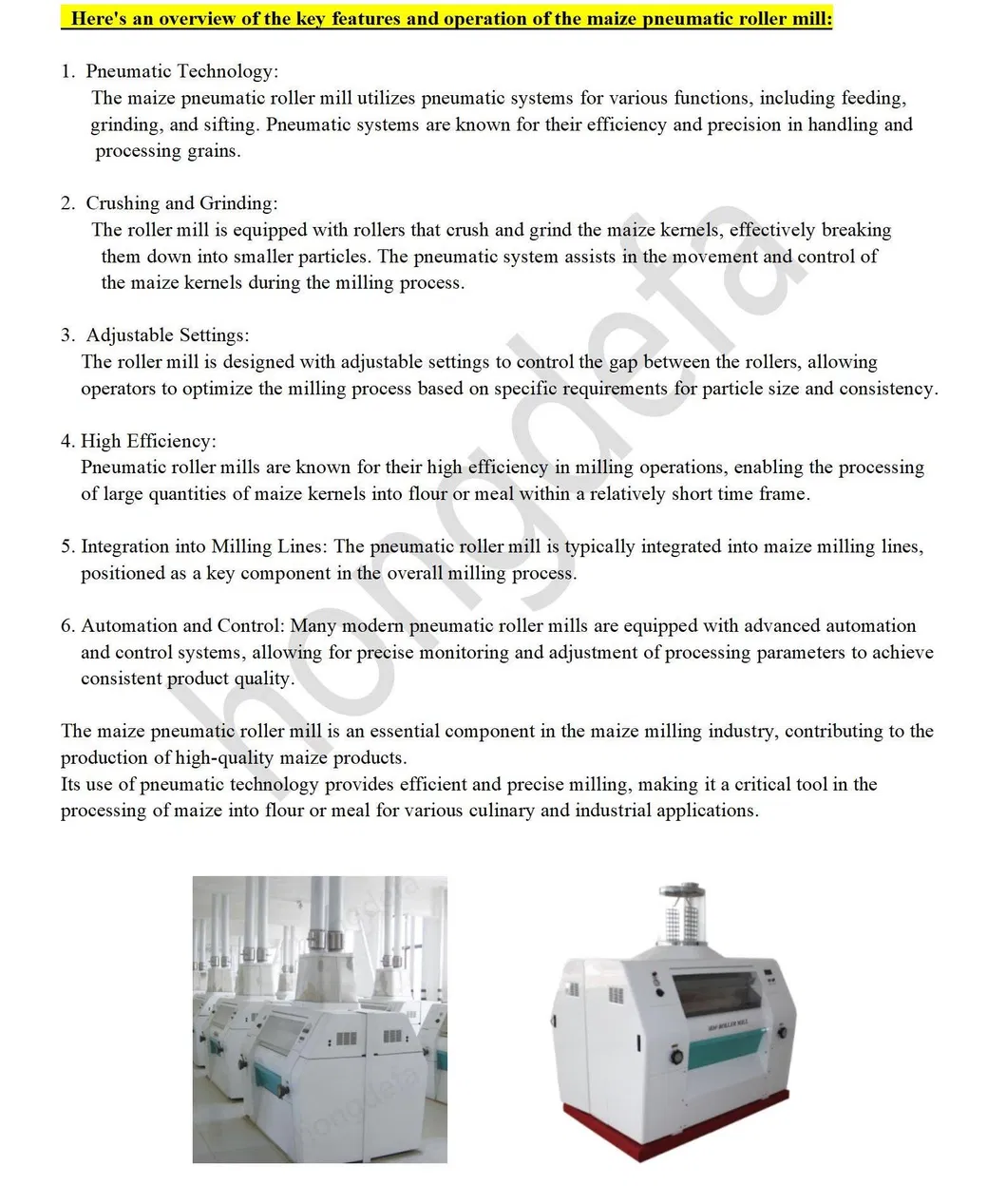

Easy to operate with a longer service life. The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls, ensuring residue-free operations.

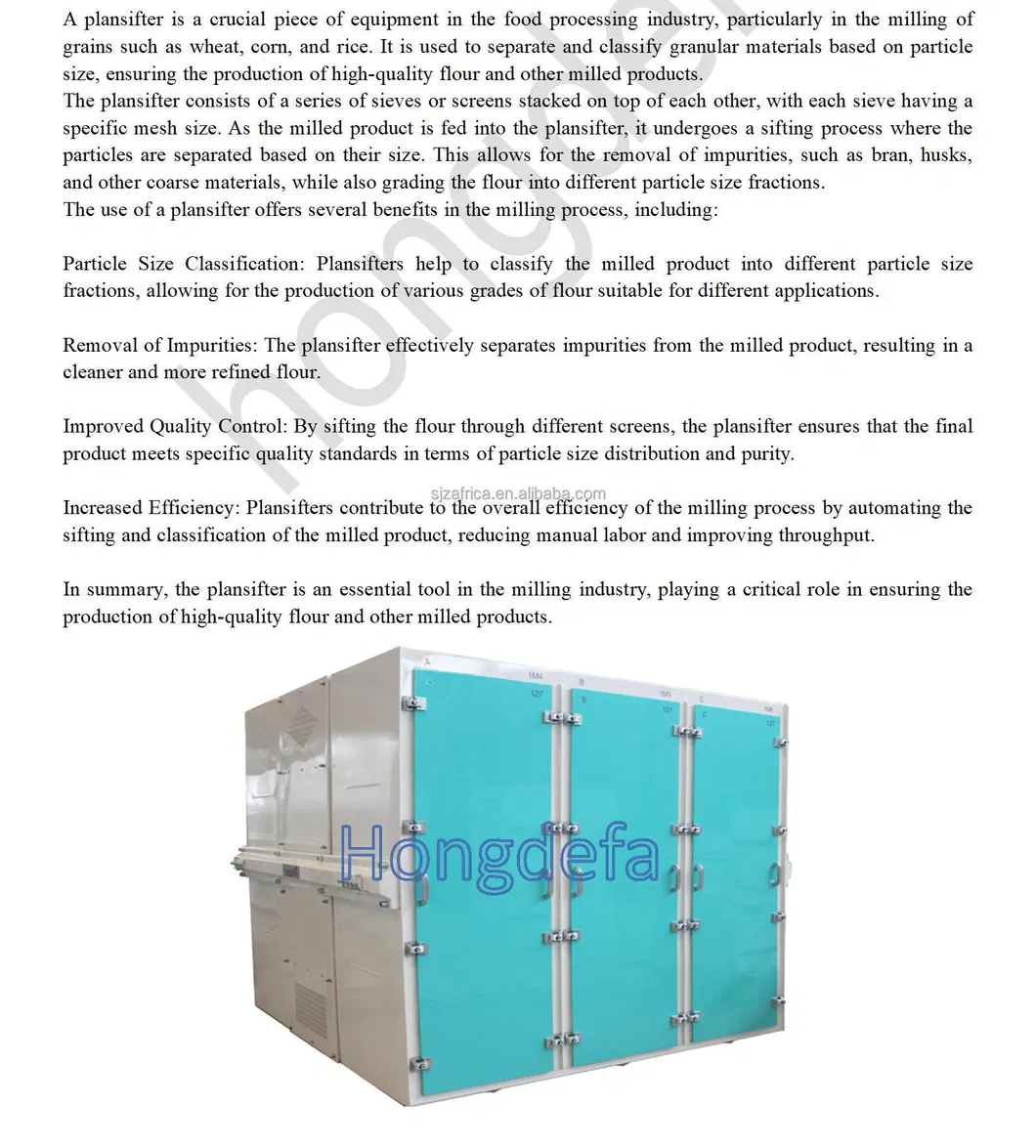

High quality plansifter designed to sift and grade different flour streams according to customer preferences and market demands.

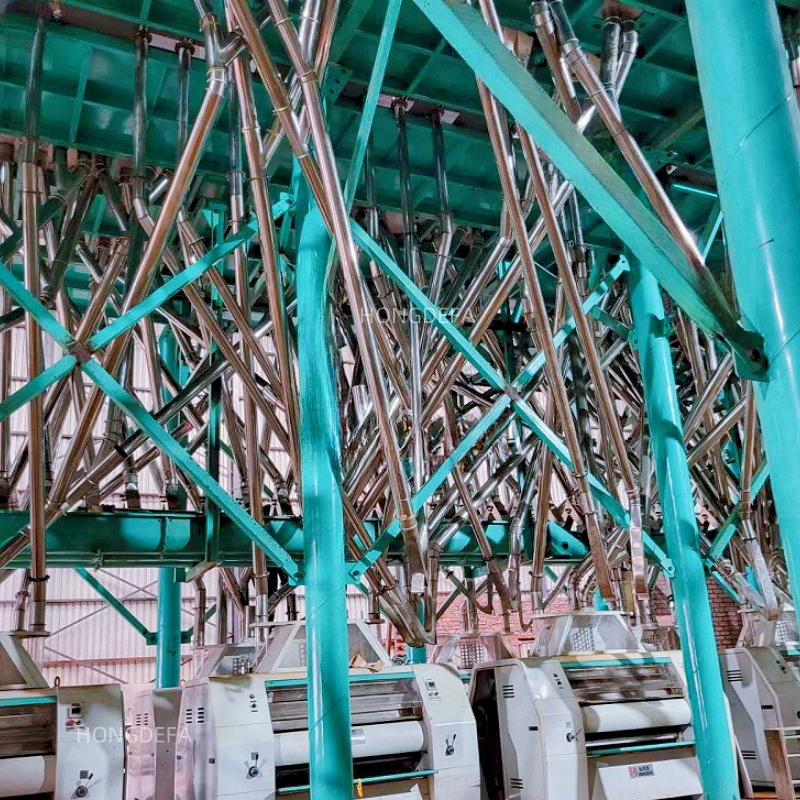

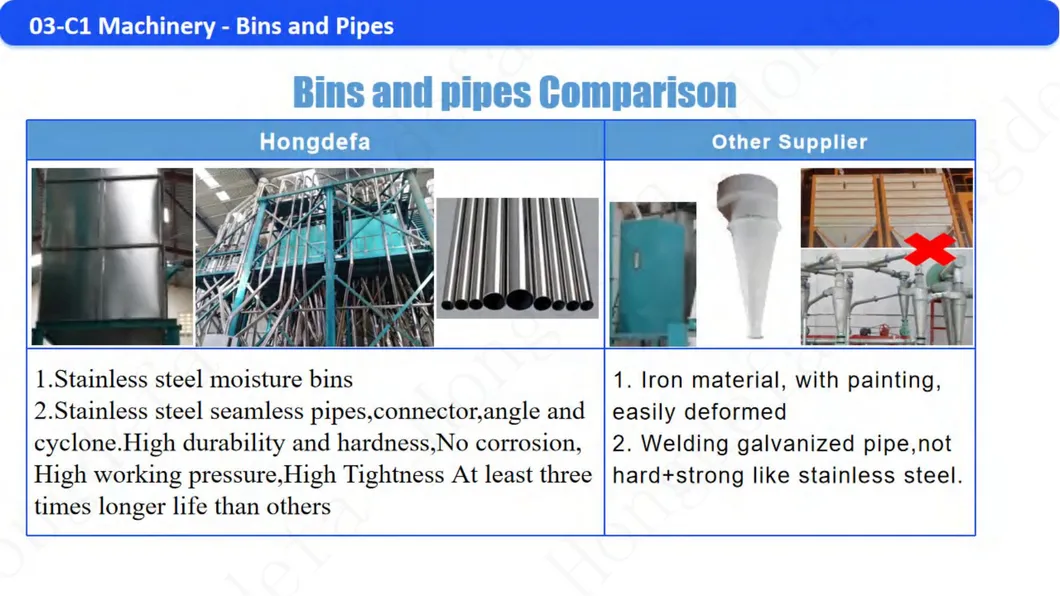

For the milling section, stainless steel pipes are used, providing three times the lifetime of standard galvanized steel pipes.

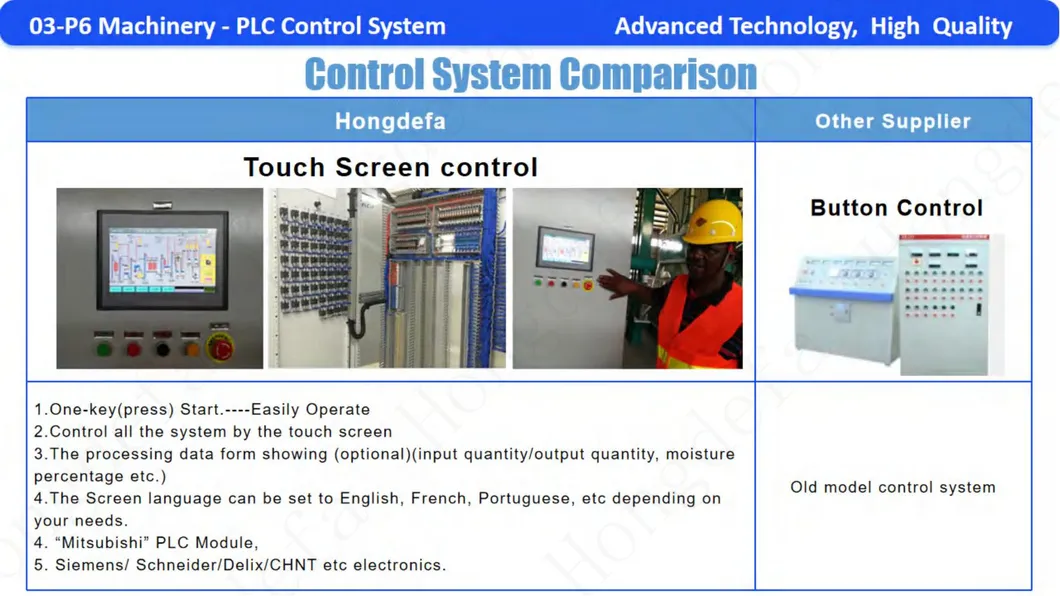

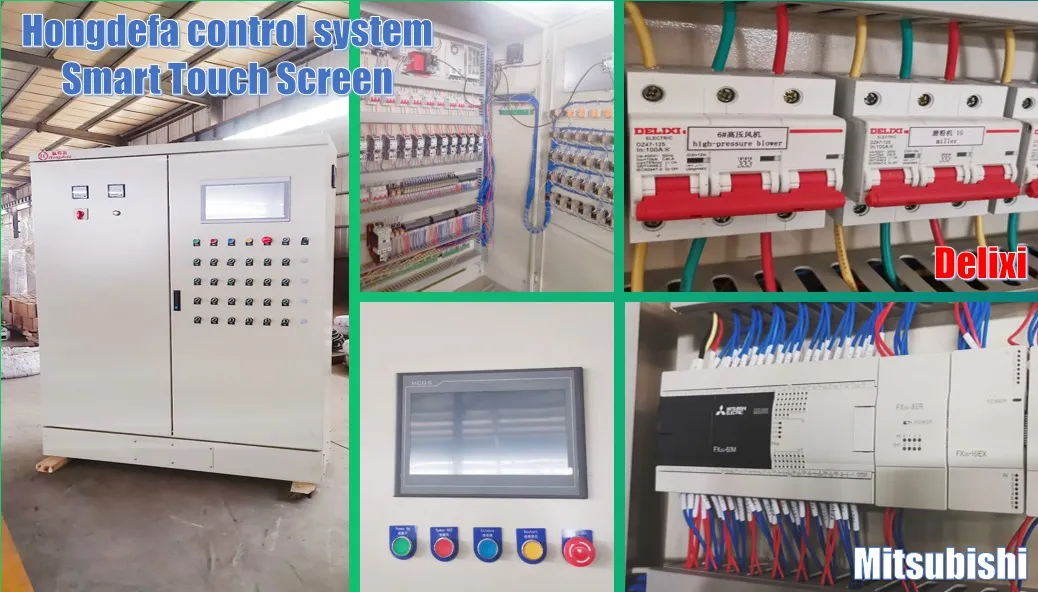

PLC touch screen control system manages the entire production line with an easy one-key start interface.

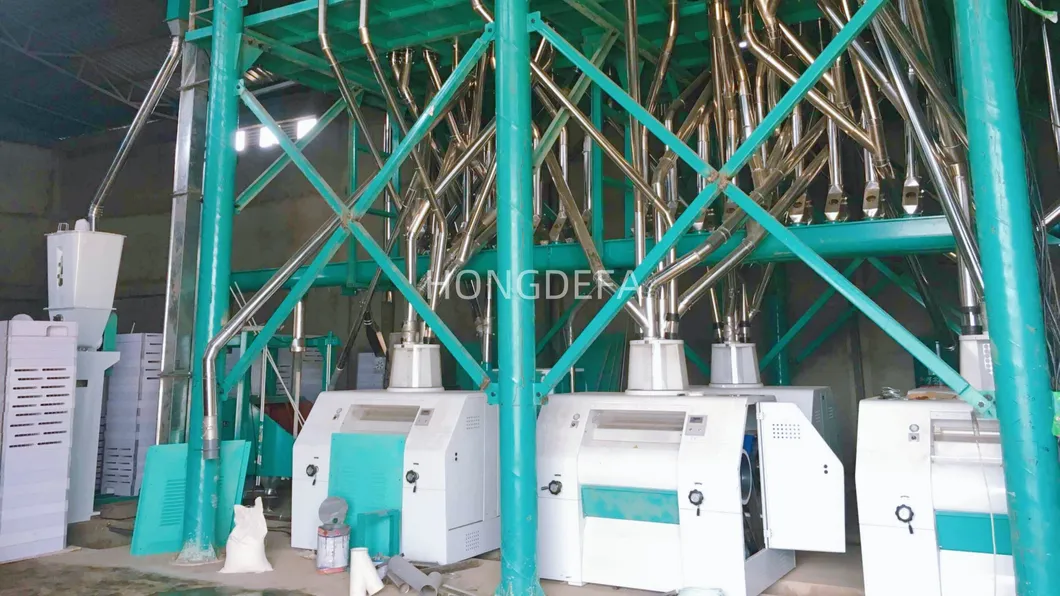

Many different capacity wheat flour mill machines have been successfully installed across various countries, including 100T in Ethiopia, 120T in Zimbabwe, and 300T in Afghanistan.
| Capacity | Country Installed |
|---|---|
| 5t, 10t, 20t, 30t flour mill wheat milling plant | Kenya, Zambia, DR Congo, Angola, Mozambique, Zimbabwe, Ethiopia |
| 50t flour mill wheat milling plant | Kenya, Zambia, Zimbabwe, DR Congo, Mozambique, Cameroon |
| 100t, 150t wheat flour mill machine | Kenya, Zambia, Ethiopia, Zimbabwe, Egypt, Argentina |
| 300t wheat milling machine | Zambia, Zimbabwe, Egypt |

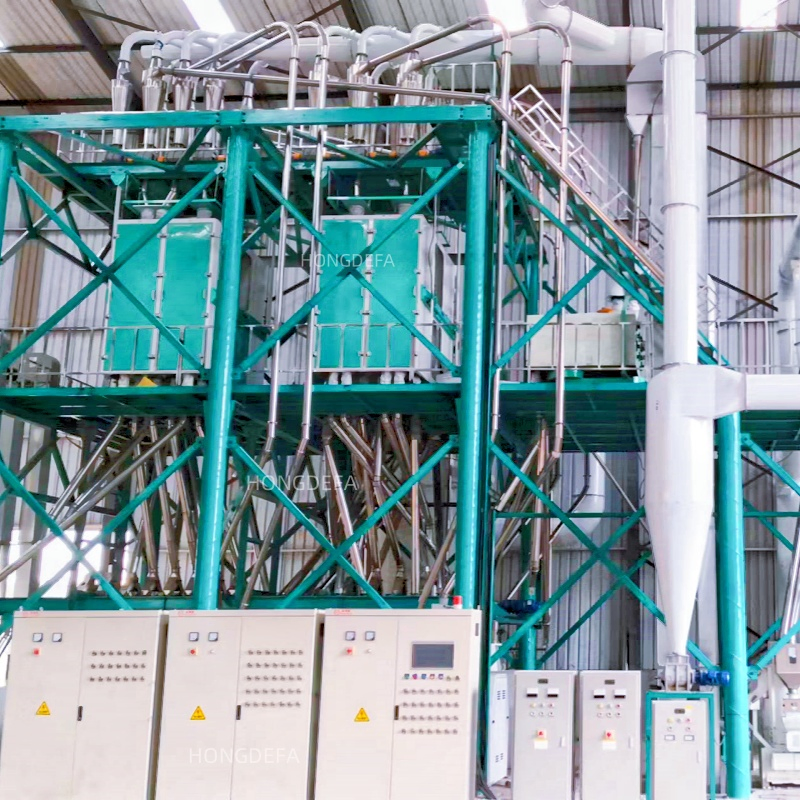

Double-layer steel structure design with high configurations, operating as a complete plant from cleaning, milling, sifting to packing. Equipped with stainless steel pipes and cyclones, touch screen control, and advanced technology.
Running successfully with European standard pneumatic roller mill, high quality plansifter, and stainless steel cyclones and pipes in the milling section.

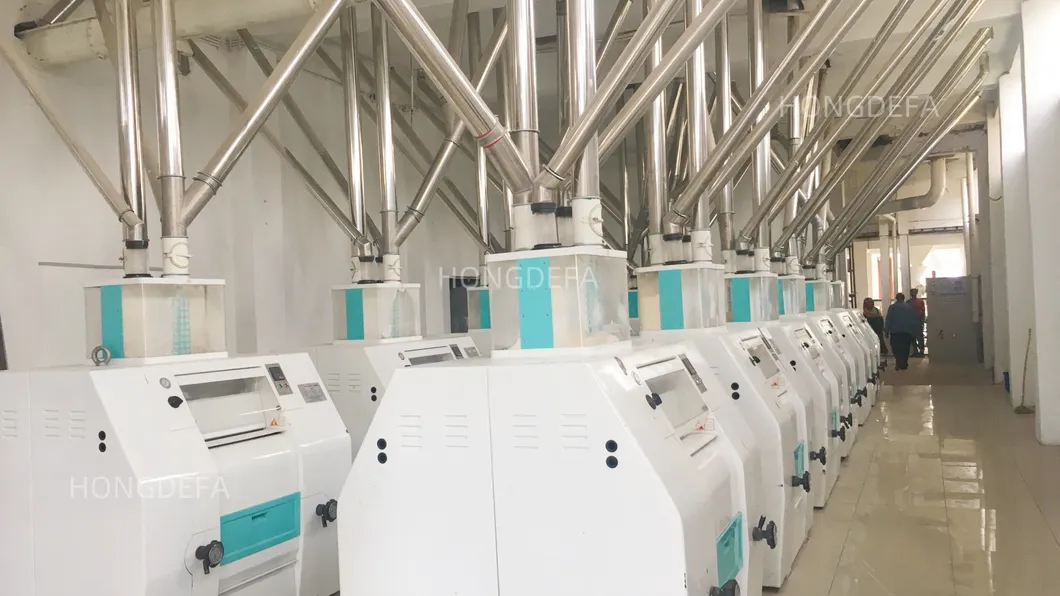

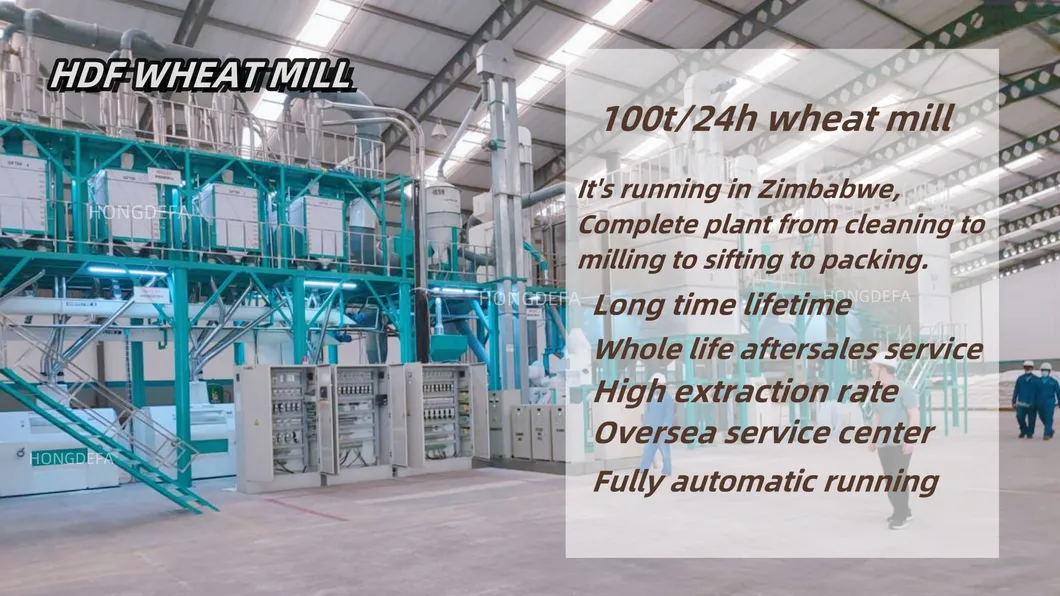

120T Wheat Flour Mill Machine in Zimbabwe (High quality plansifter, PLC touch screen control system)

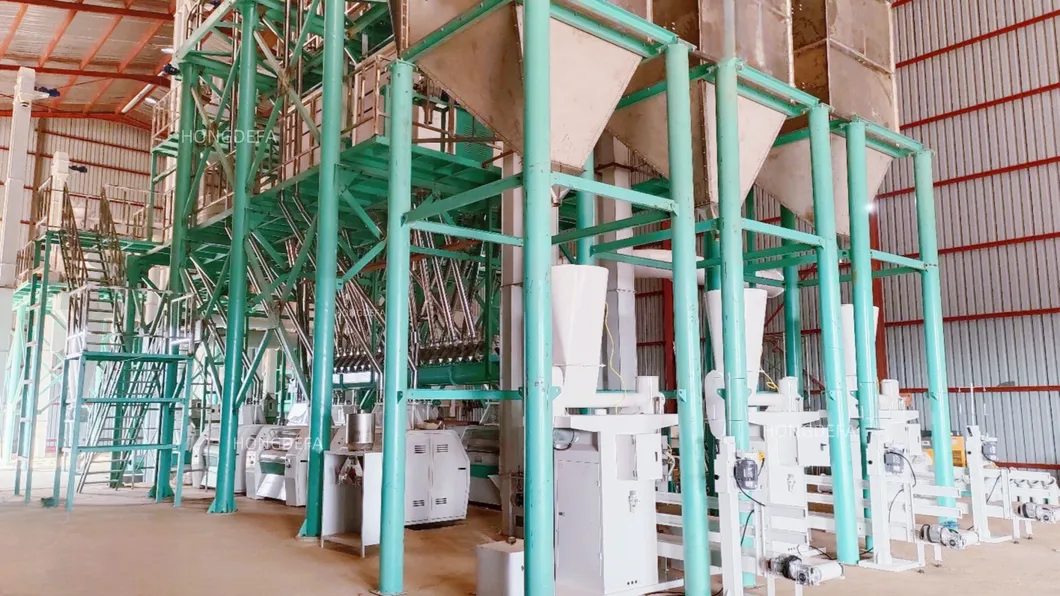

200T Wheat Flour Mill Machine (Steel structure design, high quality complete plant)
Six-floor complete plant built with floor structure design.
A professional pre-sale and after-sales service system supports projects across various regions including Ethiopia, Zambia, Uganda, Kenya, Zimbabwe, Angola, Tanzania, Nigeria, and more.
Overseas Support: Two service centers in Africa (Zambia and Ethiopia) along with 8 local agents (Senegal, Nigeria, Ghana, DR Congo, South Africa, Zimbabwe, Kenya, Egypt) offer localized services.
A professional manufacture of maize mill machines and wheat flour mill machines, providing high quality machines of different capacities and designs according to client needs. Adopting European technology, South African maize processing, and Chinese wheat processing techniques, we construct unique and innovative wheat flour mill and maize mill plants.
If you are interested in our wheat flour mill machine, please contact us freely.
