Chili/Spice/Sugar/Salt/Herb/Coffee Grinder Turmeric Mill Cassava/Rice Flour Mill Milling Machine Grain/Soybean/Garlic Powder Grinding Machine

1 / 5

Chili/Spice/Sugar/Salt/Herb/Coffee Grinder Turmeric Mill Cassava/Rice Flour Mill Milling Machine Grain/Soybean/Garlic Powder Grinding Machine

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Overview
Specification
After Sales Service
Company Profile
FAQ

Overview

Basic Info.

Model NO.	FS320C
Type	Flour Mill
Application	Flour, All, Beans, Wheat, Starch, Rice flour
Voltage	as Your Country Need
Appearance	Horizontal
Press Materials	Dry or Wet Material
Press Series	10-120mesh
Condition	New
Customized	Customized
Capacity	50-300kg/H
Powder Size	10-120mesh
Main Spindle Speed	5200r/Min
Grinding Room Diameter	430mm
Finishing Product	Powder or Paste
Motor	Copper Wire Motor
Power	7.5kw
Fan Power	1.1kw
Fan Motor	Casting Iron or Stainless Steel
Features	with Cyclone
Color	Stainless Steel Raw Color
Inputting	Hopper or Self Suction
Outputting	Design as Customer Needs
Inner Part	Pin Mill
Screens	2 PCS Freely
Transport Package	Exporting Package
Specification	stainless steel
Origin	China
HS Code	8479820090
Production Capacity	25 Sets/Month

Packaging & Delivery

Package Size	240.00cm * 900.00cm * 230.00cm
Package Gross Weight	400.000kg

Product Description

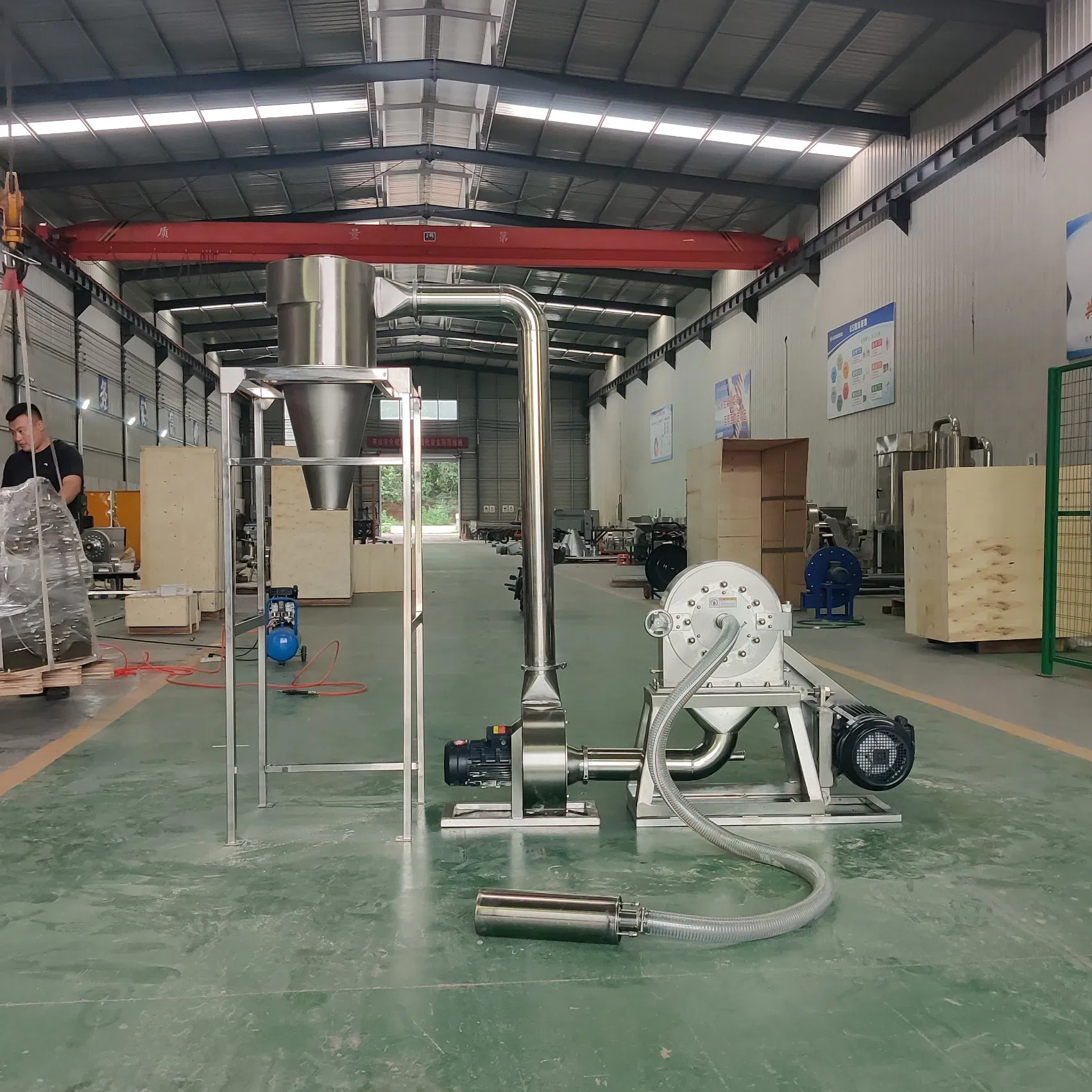

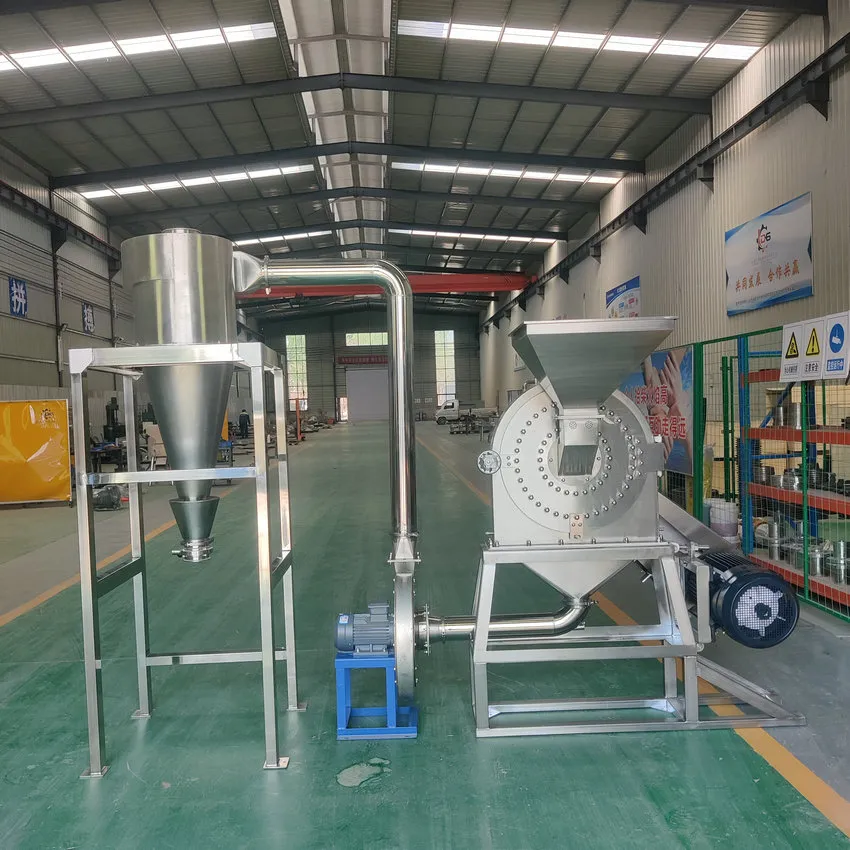

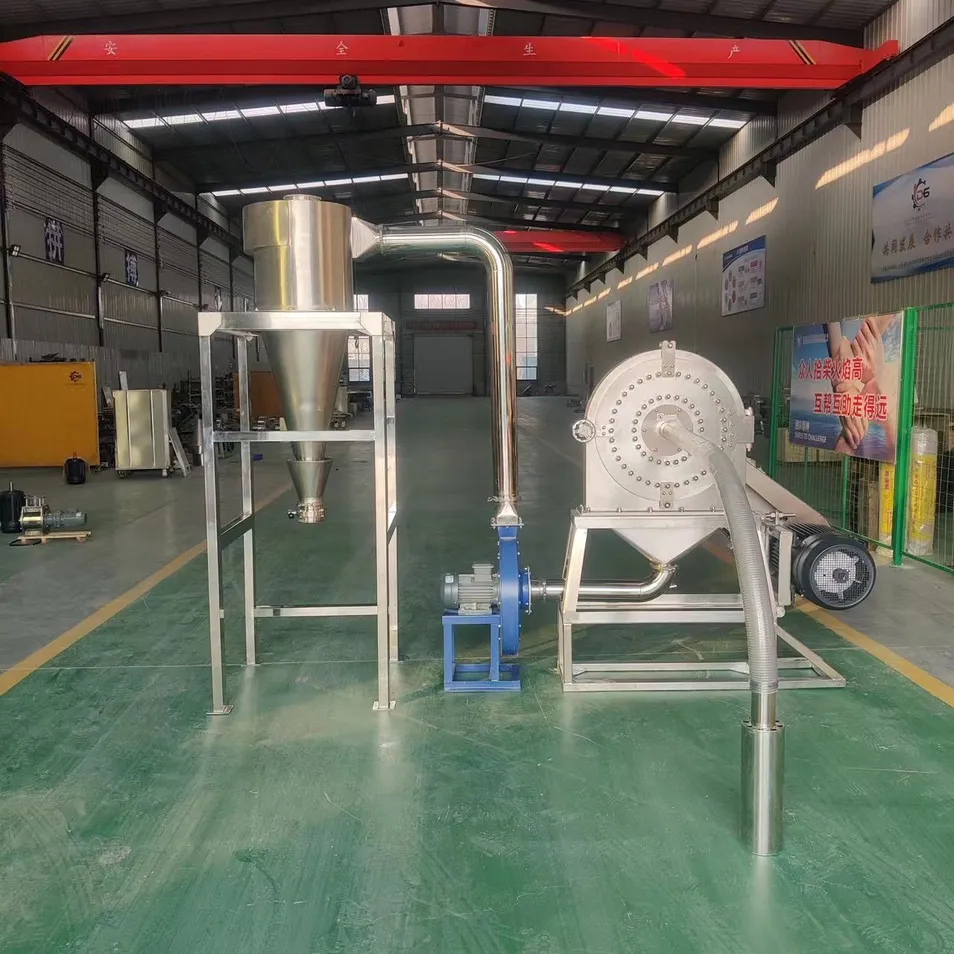

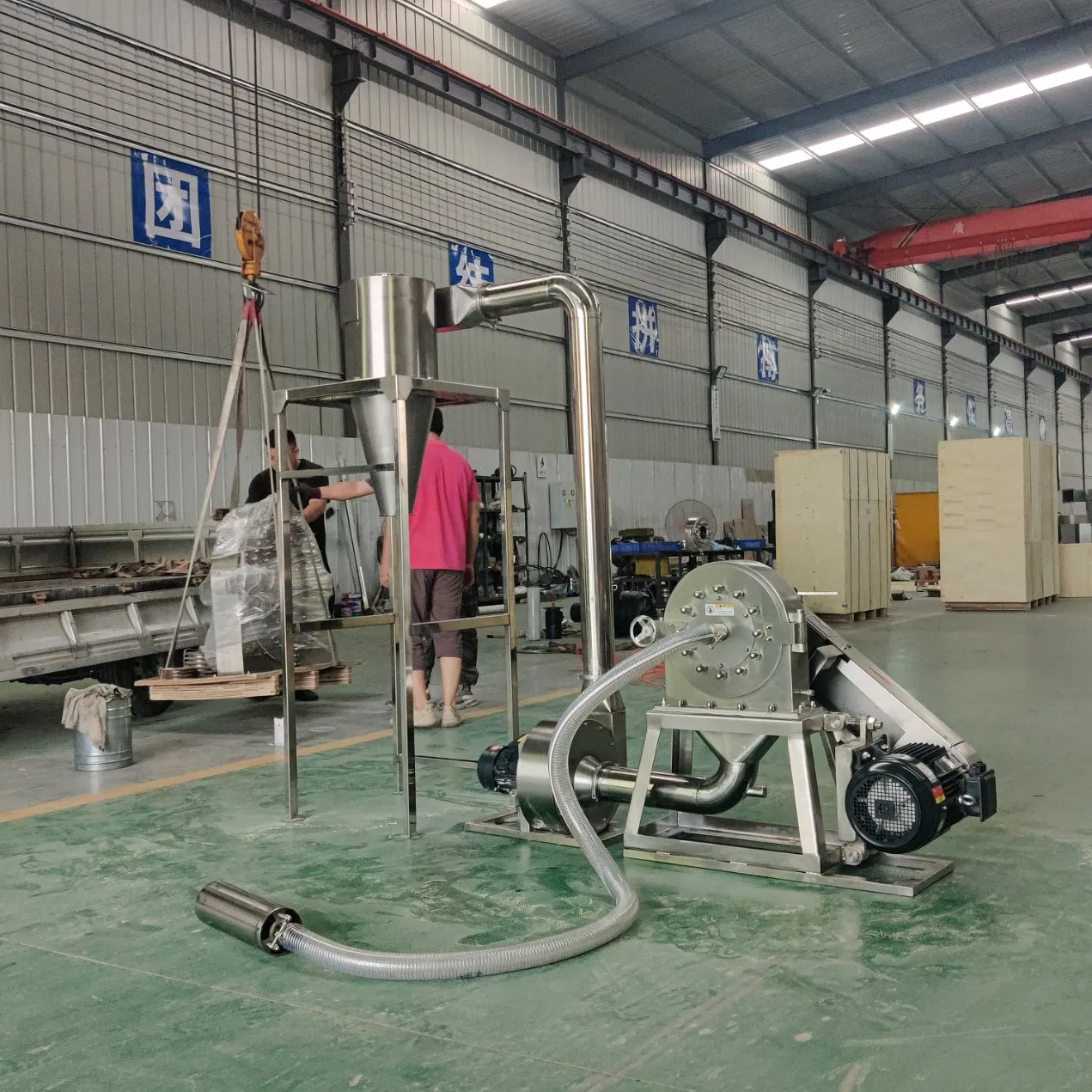

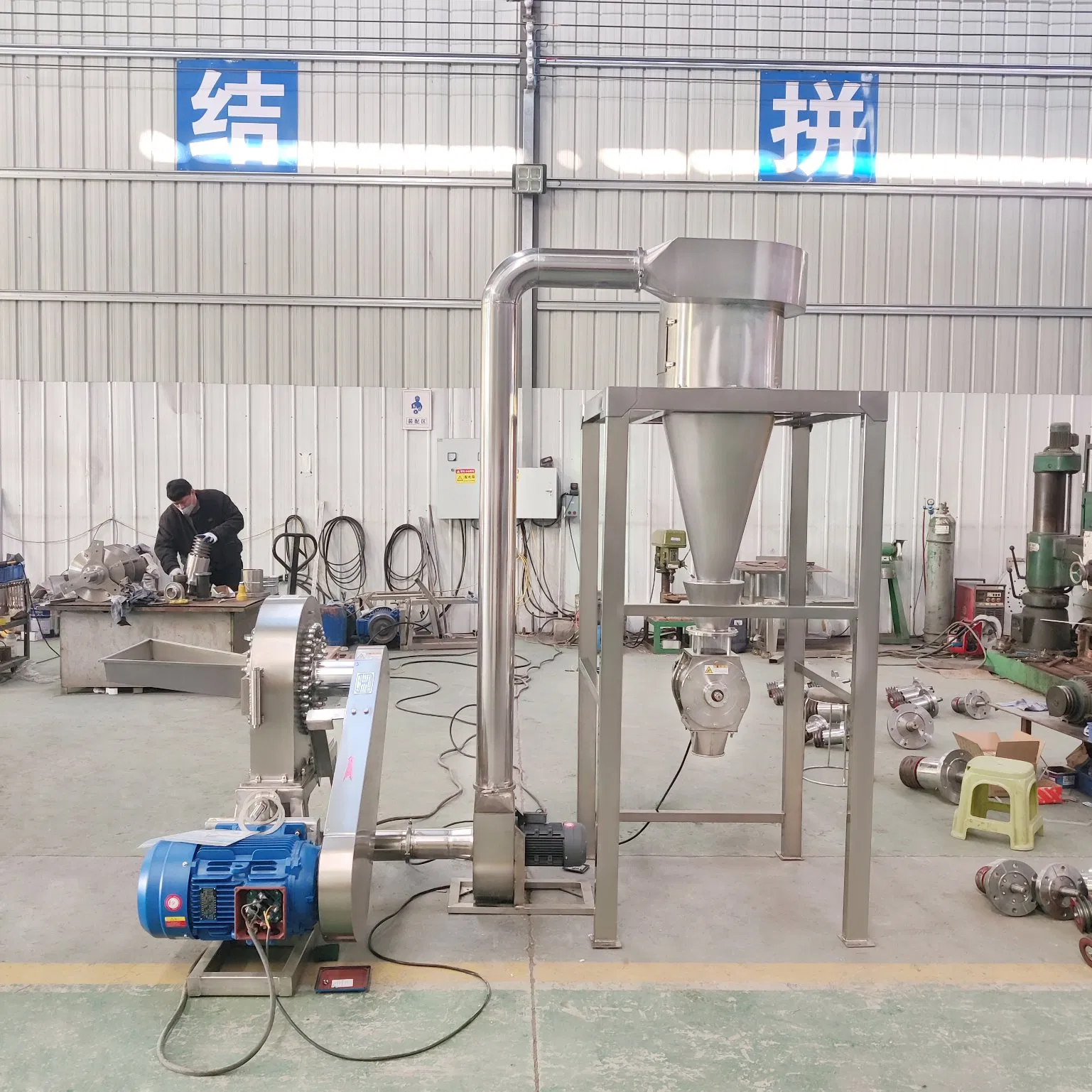

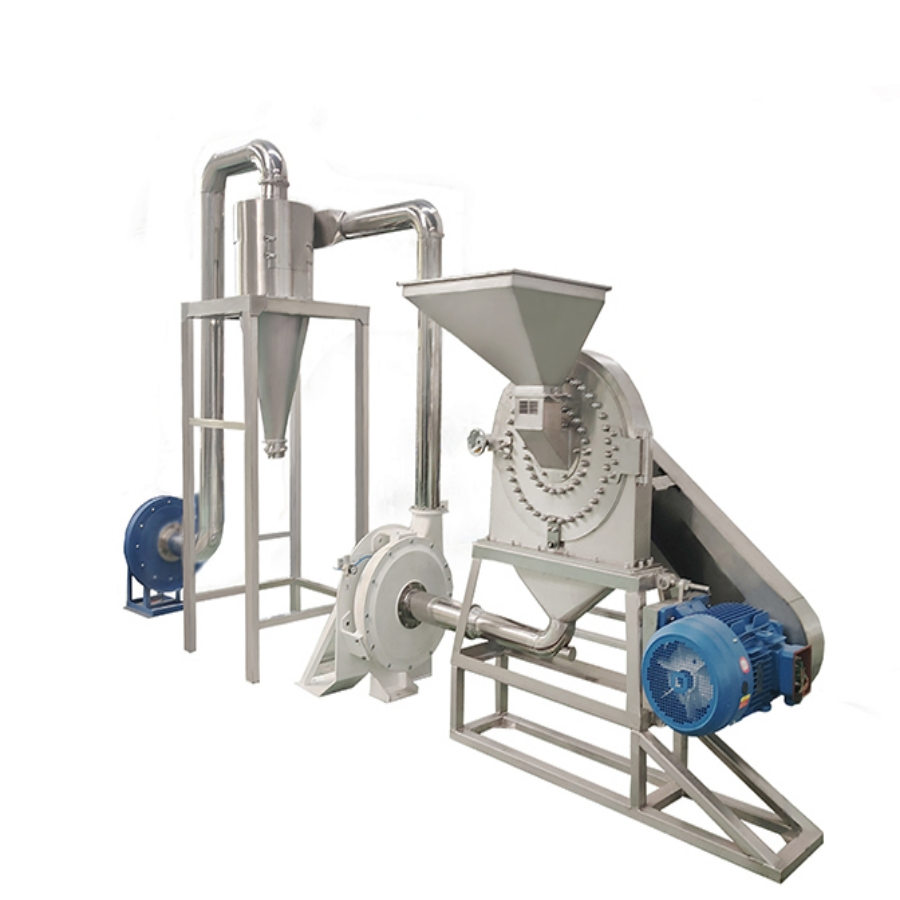

Production of stainless steel grinder

A. The stainless steel disc grinder can crush grains, medicinal herbs, seasonings, and chemical raw materials, with a wide range of applications.

B. Stainless steel disc grinder crushes various grains, including wheat, corn, black beans, soybeans, mung beans, Job's tears, dehydrated purple potatoes, carrots, yams, goji berries, red dates, etc. It can be crushed as fine as flour to make nutritious breakfast powder, meal substitute powder, etc.

C. The stainless steel toothed disc crusher is widely used with high crushing efficiency and is equipped with Cyclone dust removal to avoid the generation of dust during the crushing process.

Summary of the Main Advantages:

Hygienic and Safe: Rust-proof and non-contaminating, complying with food and pharmaceutical industry standards.
Corrosion Resistance: Capable of processing materials with some moisture, oil, or acidity/alkalinity.
Easy to Clean: Smooth surfaces with no dead corners, allowing for thorough cleaning and preventing cross-contamination.
High Durability: The stainless steel material offers good wear resistance and a long service life.
Integrated Cyclone: Makes the finished product discharge more quickly and minimizes dust generation.

Specification

Applications

Herbal Processing: Crushing plant/animal-based medicinal materials for powders, capsule fillers, or extractions.
Pharmaceutical Intermediates: Grinding intermediate products to facilitate blending, tableting, or packaging.
Spice and Condiment: Crushing Sichuan pepper, star anise, black pepper, and dried chili into fine powders.
Grain and Legume: Pulverizing rice, soybeans, mung beans, oats, etc., into various flour mesh sizes.
Medicinal Food: Processing ginseng, astragalus, goji berries, red dates, and Chinese yam.
Sugar and Salt: Grinding crystal rock sugar, bulk brown sugar, and coarse sea salt into refined powders.
Fruit & Vegetable: Pulverizing dehydrated produce into natural pigments or nutritional additives.
Tea Grinding: Crushing tea leaves into fine powder for matcha production or food additives.

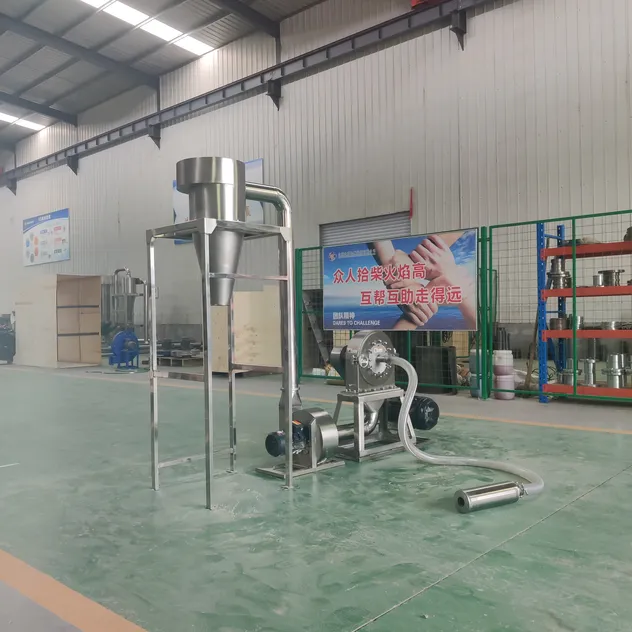

Right elevation

Left elevation

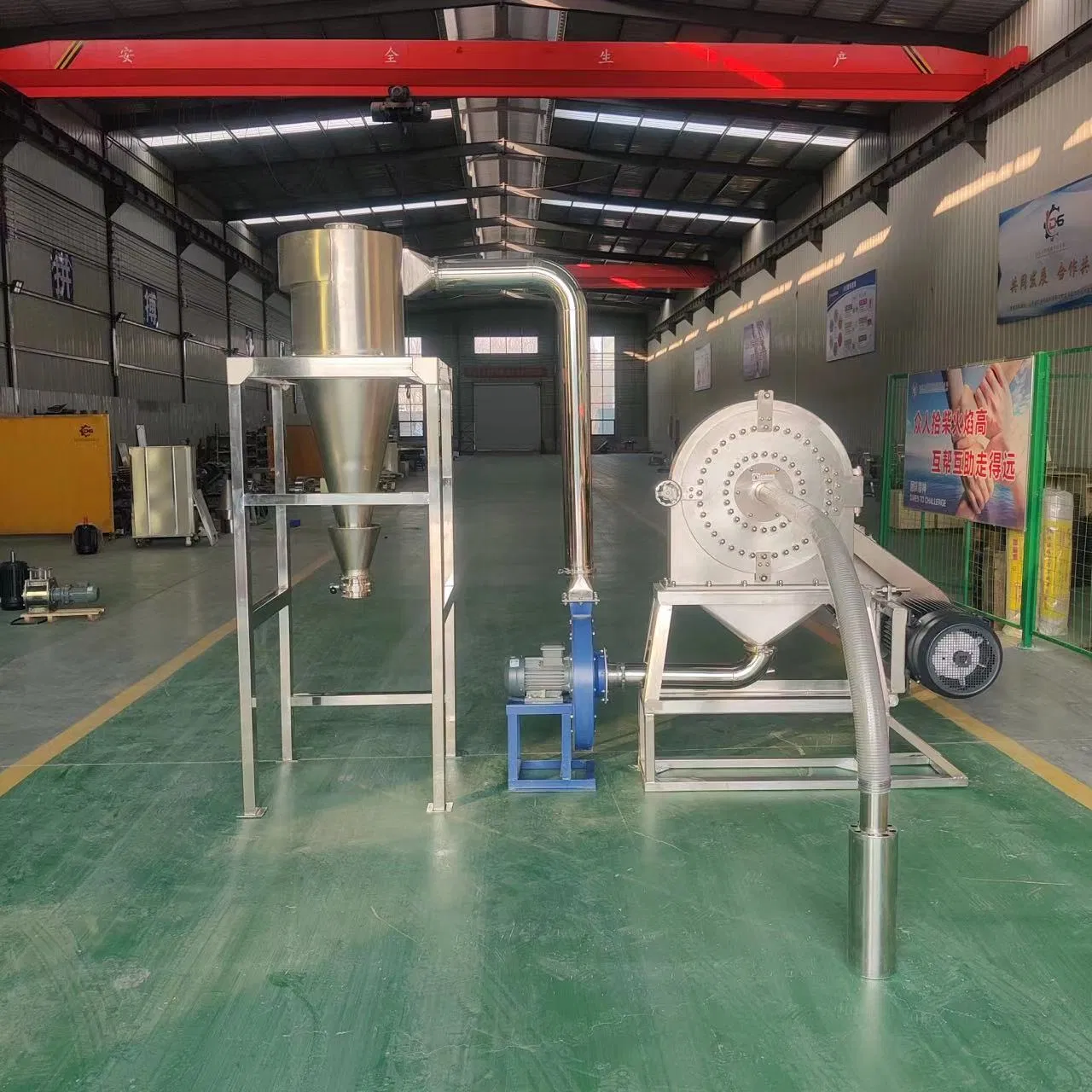

Front elevation

Technical Specifications

(Custom configurations available upon request.)

Model	FS160	FS230	FS320	FS450	FS600	FS800
Power (kW)	2.2	4	7.5	11	22	30
Fan Power (kW)	0.55	0.75	1.1	1.5	2.2	3
Capacity (kg/h)	10-120	30-200	50-300	100-500	500-1000	1000-2000
Rotor Disc Dia (mm)	160	230	320	450	600	800
Main Spindle Speed (r/min)	7000	5800	5200	3800	2200	1800
Mesh Range	10-120mesh	10-120mesh	10-120mesh	10-120mesh	10-120mesh	10-120mesh

Drawings & Dimensions

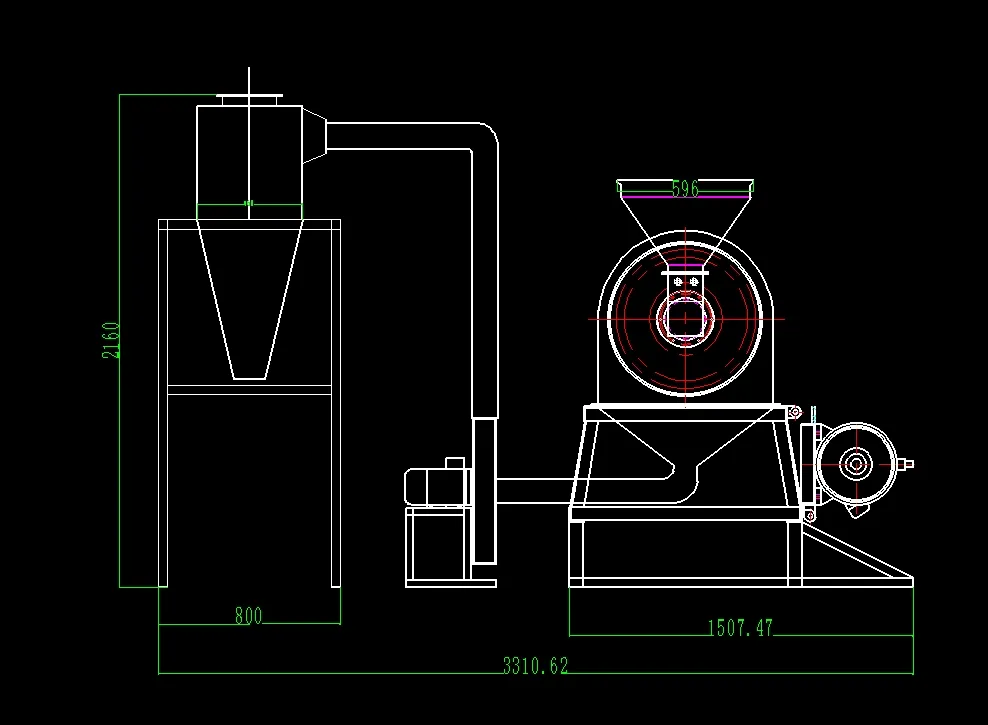

Detailed CAD drawings and dimensional diagrams are available for download upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements. Below is the FS600 model layout dimension reference:

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage available up to 36 months.
Spare Parts Support: 24/7 technical assistance and prompt spare parts supply.
Training: Comprehensive remote operation and maintenance training programs.

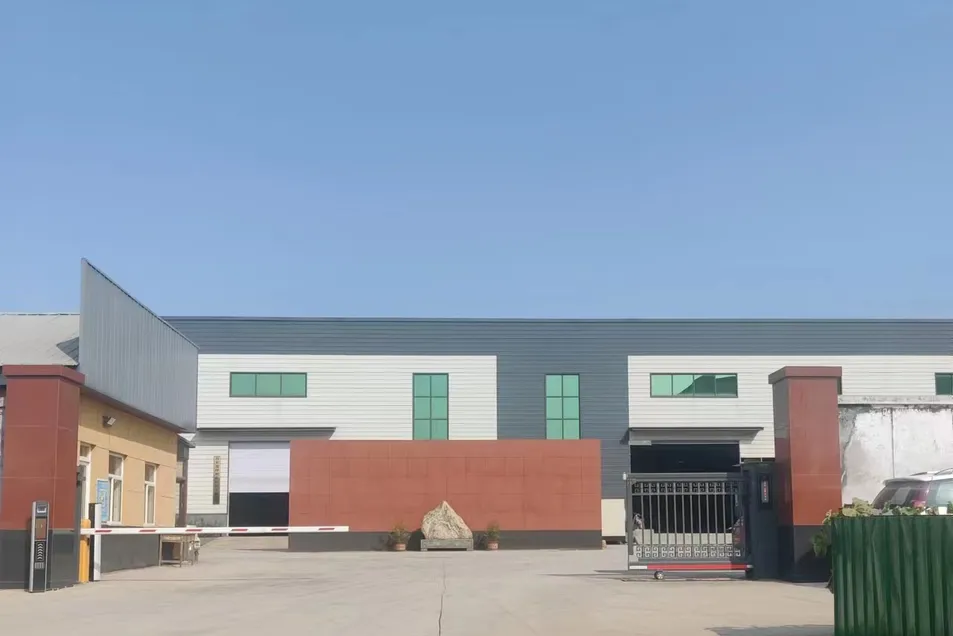

Company Profile

Why Choose Us?

OEM/ODM capabilities designed to meet custom specifications.
Competitive factory-direct pricing & bulk discounts.
Fast shipping and comprehensive customs clearance support.
Integrated production line designs and full facility solutions.
Responsive global customer support.
Built with genuine premium stainless steel rather than cast iron coatings.

Other Products Available

Hammer mills
Stainless steel crushers
Roller mills
Pulse dust collection grinders
Industrial refrigeration equipment
Wood crushing machinery

Frequently Asked Questions

Q: What's the lead time for standard and customized orders?

A: Standard models are ready for shipment in 7-10 days. Customized units requiring specific adjustments take approximately 15 days to prepare.

Q: Do you provide after-sales service overseas?

A: Yes, we provide comprehensive remote support via high-definition video calls. We can guide your team through assembly, operation, troubleshooting, and maintenance seamlessly.

Q: Can I request customized technical configurations?

A: Absolutely. We can customize the voltage, dimensions, input configurations (such as standard hoppers or self-suction systems), and output ports according to your plant requirements.

Q: What documents do you provide for export?

A: We supply a complete export package, including commercial invoices, packing lists, bills of lading, and certificate declarations required for customs clearance.

Q: How do I place an order?

A: Please reach out to us with your requirements. We will provide a formal quotation, and you can confirm the order by issuing a purchase order (PO).

Q: What types of raw materials can be processed by this stainless steel grinder?

A: This machine can process dry or wet materials, including various grains (wheat, corn, soybeans), spices and seasonings (chili, pepper, garlic), sugar, salt, starches, and medical herbs.
