Product Description

Screening Small Wheat Corn Chia Quinoa Seed Grading Grain Gravity Separator Cleaning Machinery Cleaner Machine for Grains
Introduction
This machine is the latest developed new combined type grain seed selection machine. The machine adopts a dual drum elevator, effectively reducing material damage and increasing the dust removal efficiency of the dust collector.
The blow type specific gravity screen removes impurities cleanly, widens and lengthens the double layer vibrating screen, and comes standard with a rubber ball cleaning screen, which is in line with international trends. After the rubber ball vibrates, it will bounce off small impurities attached to the sieve hole, which plays a role in cleaning the sieve and ensuring the screening accuracy. This device has a complete machine control electric control cabinet, which is simple and convenient to operate, and is deeply loved and appreciated by the majority of users.
Technical Data
Model HLD-750 HLD-1500 HLD-3000
Size L×W×H 1600*1000*1860MM 2700*1700*2600MM 3500*1400*2600MM
Weight 185 KGS 400 KGS 820 KGS
Capacity 750 KGS/H 1500 KGS/H 3000 KGS/H
Cleaning rate ≥99% ≥99% ≥99%
Voltage 380V (220V/440V need customized) 50/60hz 3 phase
Power 2.2 KW 3.55 KW 5.95 KW
Machine Structure and Pictures
HLD-750

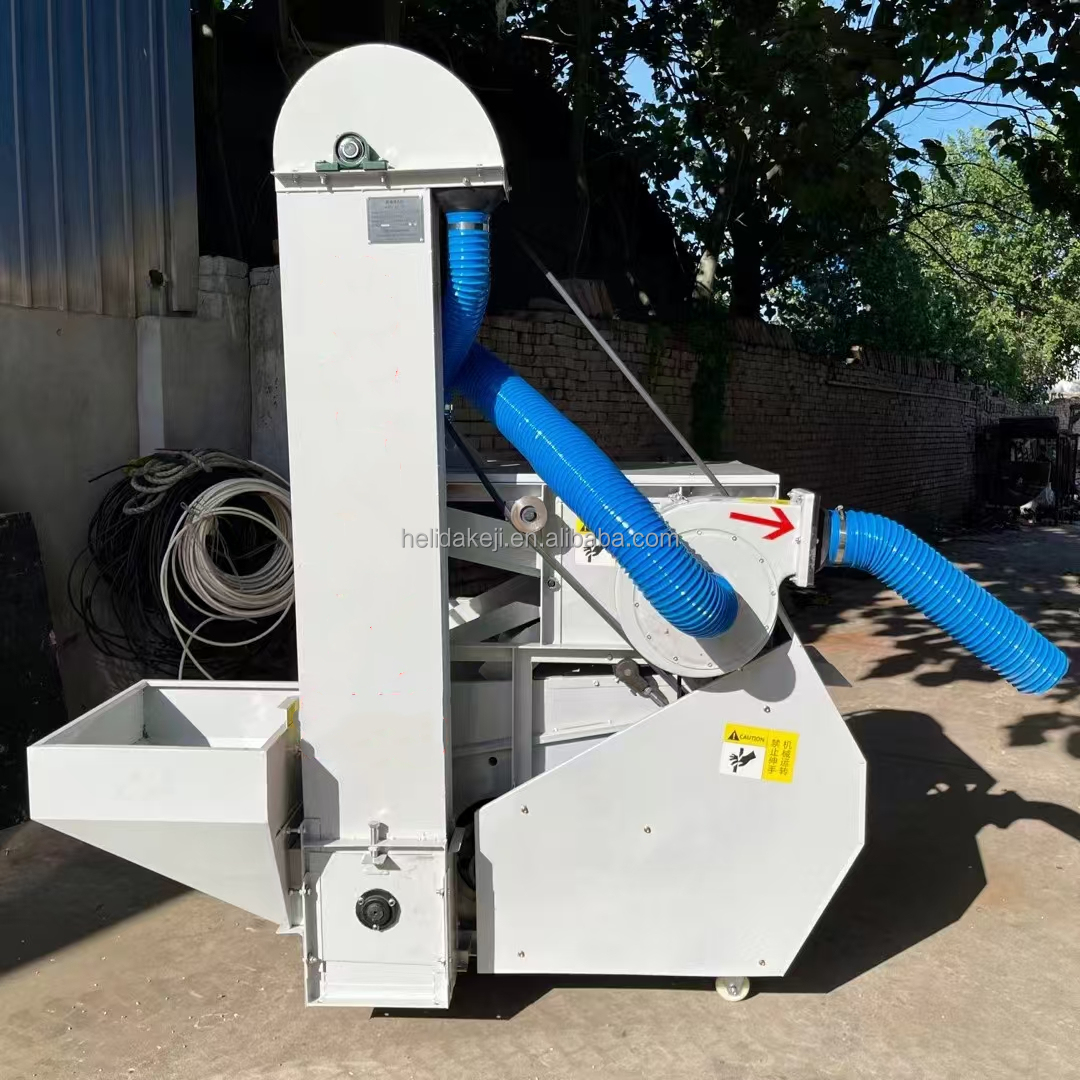

HLD-750 Grain Gravity Separator

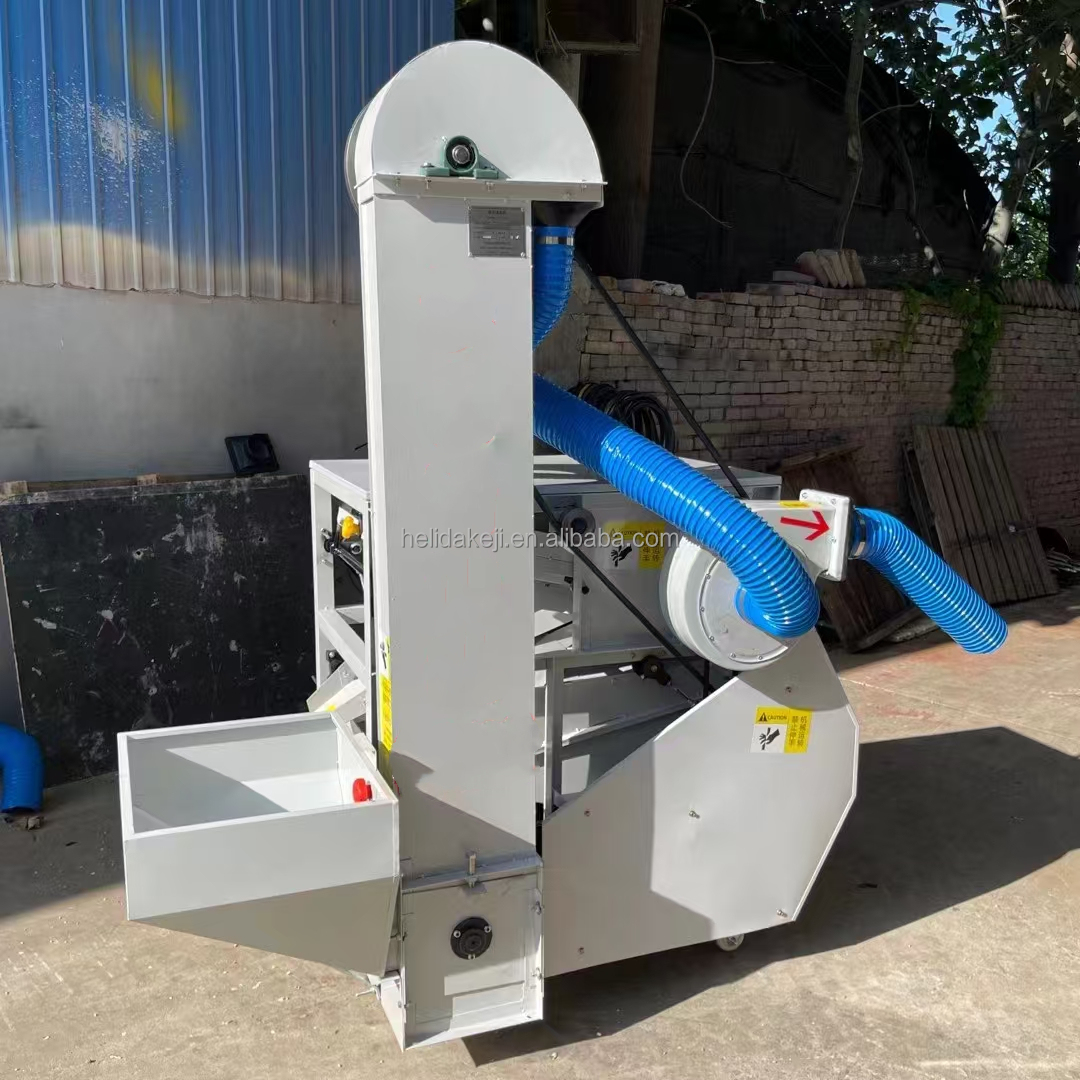

HLD-750 Seed Grading Cleaner

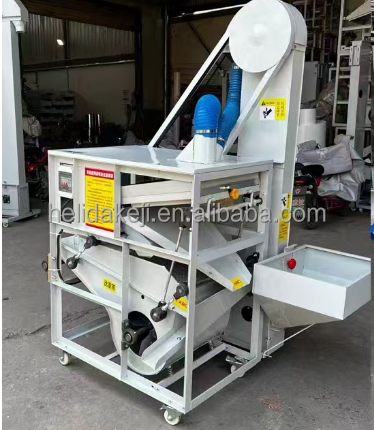

HLD-750 Detail Structure 1

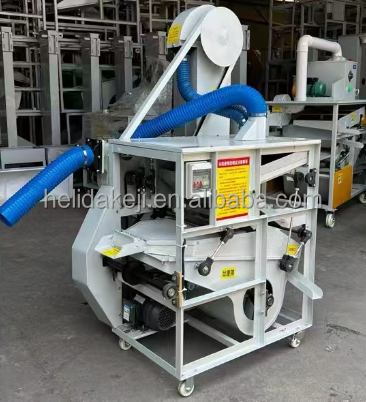

HLD-750 Detail Structure 2
HLD-1500

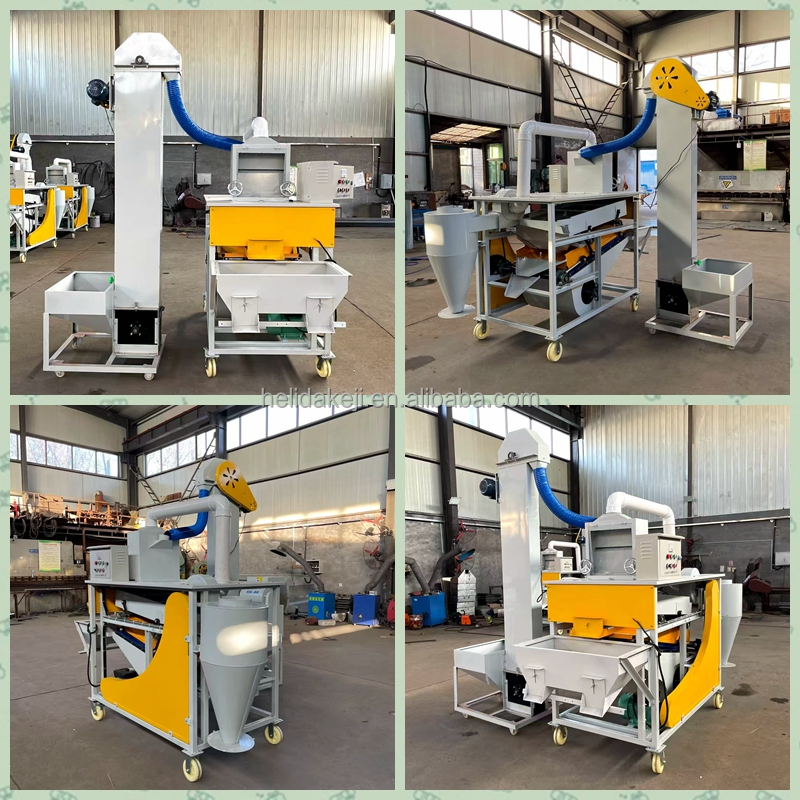

HLD-1500 Seed Gravity Separator
HLD-3000

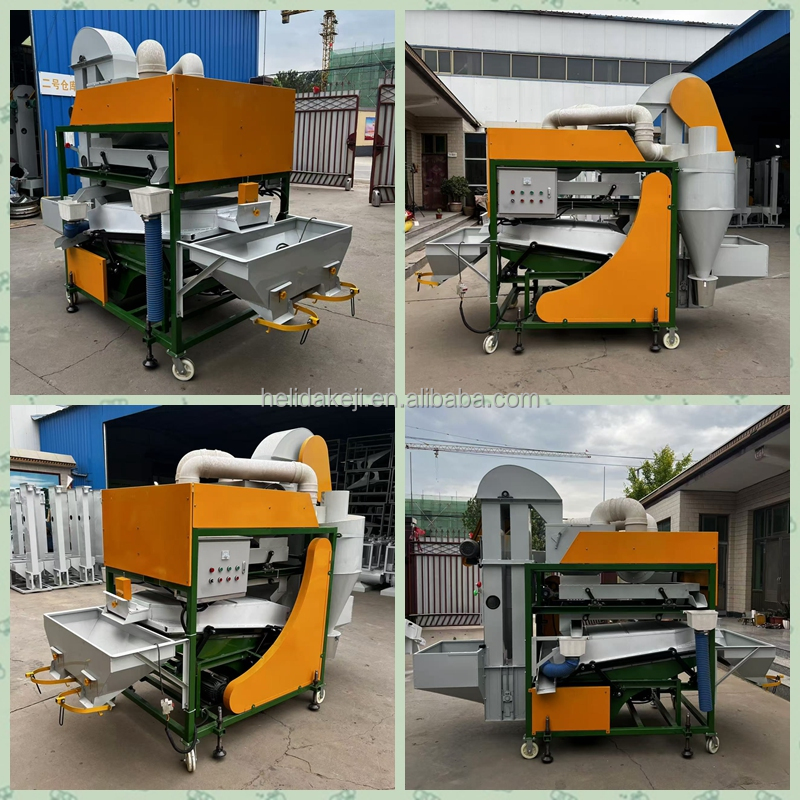

HLD-3000 Grain Gravity Cleaner
Factory Show
Real Manufacturer Factory
Factory Workshop Overview

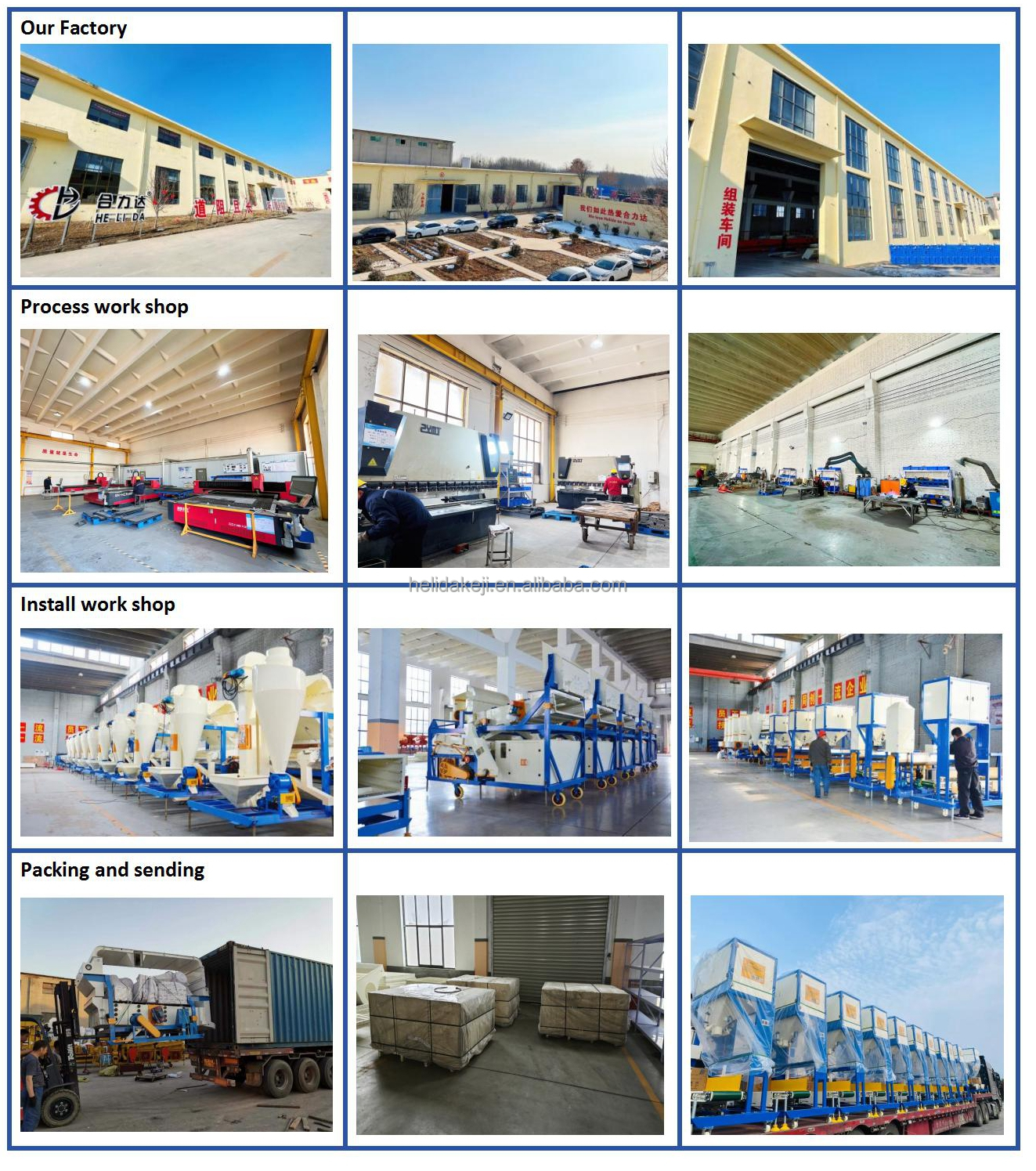

Factory Production Line
Frequently Asked Questions (FAQ)
What types of grains can this gravity separator process?
This gravity separator is designed for screening, cleaning, and grading small grains and seeds, including wheat, corn, chia, quinoa, and other seed materials.
What is the cleaning rate of the machinery?
All models (HLD-750, HLD-1500, HLD-3000) are engineered to achieve a high cleaning efficiency rate of ≥99%.
How does the rubber ball cleaning screen work?
The machine features a standard rubber ball cleaning screen. During vibration, the rubber balls bounce up and down to clear small impurities stuck in the sieve holes, maintaining high screening accuracy and preventing blockages.
What capacity options are available for this series?
We offer three models with different output capacities to meet varied processing needs: HLD-750 (750 KGS/H), HLD-1500 (1500 KGS/H), and HLD-3000 (3000 KGS/H).
Can the machine's voltage be customized?
Yes. While the standard power configuration is 380V 50/60Hz (3 phase), customization for 220V or 440V power requirements is available upon request.
How does the dual drum elevator design protect the materials?
The integrated dual drum elevator is specifically designed to reduce material damage during transport while simultaneously boosting the efficiency of the dust collector.
