Product Description

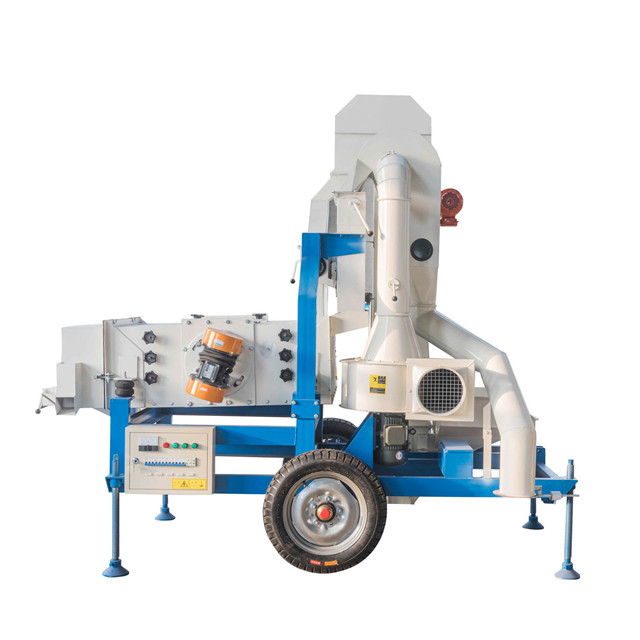

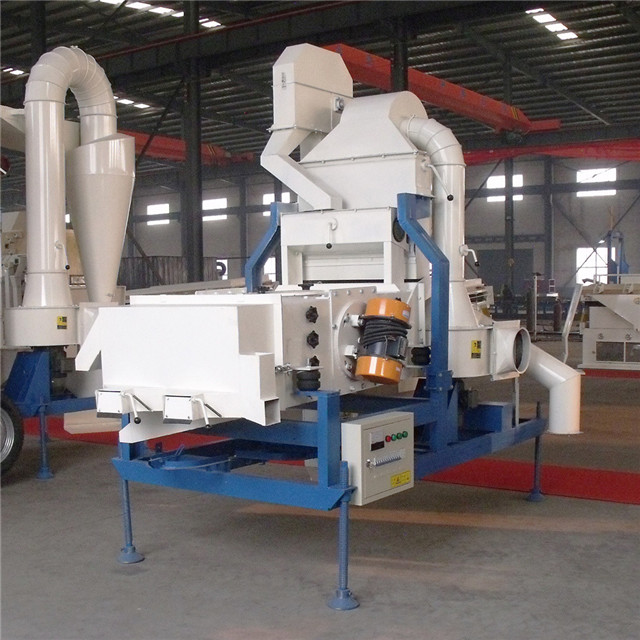

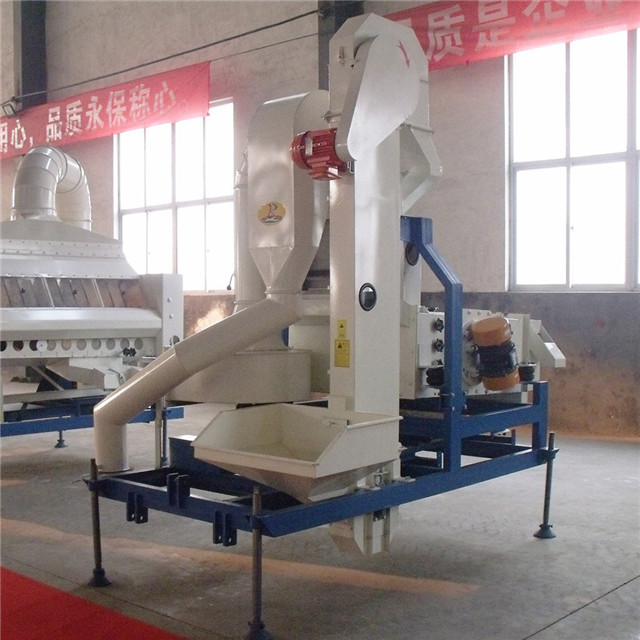

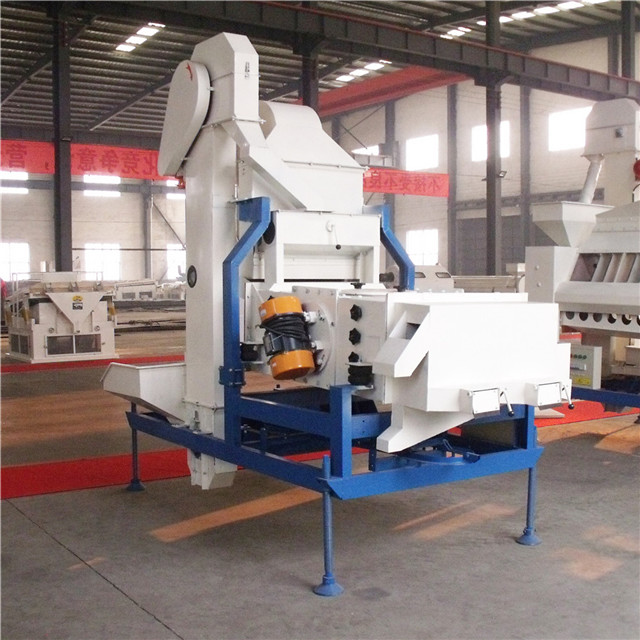

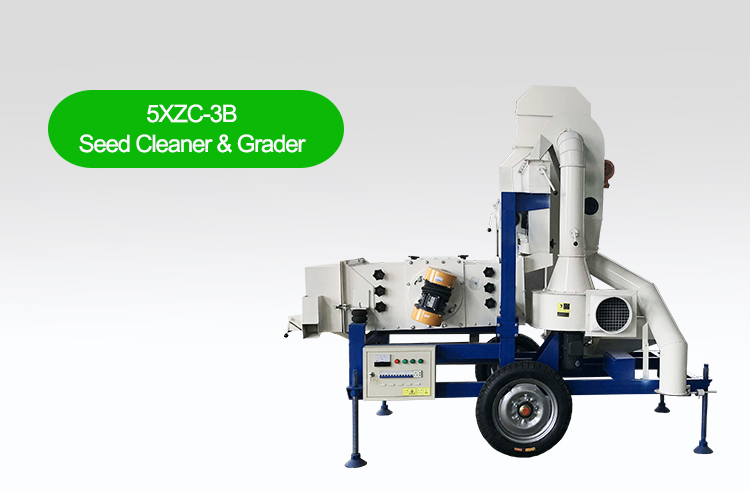

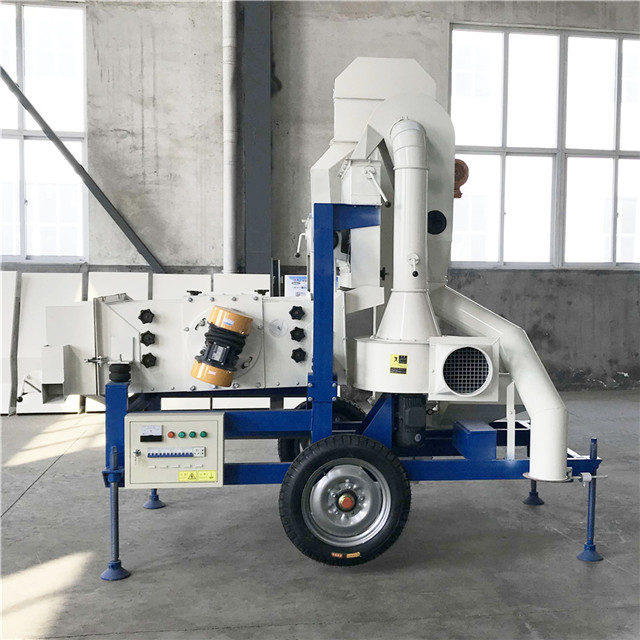

Feature of 5XZC-3B grain cleaning machine: The 5XZC-3B grain cleaning machine equipped with dust reducer is widely used for cleaning and grading seeds / grains.
Application of 5XZC-3B grain cleaning machine: The 5XZC-3B grain cleaning machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.
Working principle of 5XZC-3B grain cleaning machine: Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds. The sieves has Rubber Balls inside for the self-cleaning.
Specification of 5XZC-3B grain cleaning machine:
| Model No. |
Capacity (T/H) |
Power (kw) |
Weight (kg) |
Sieve Size |
Dimensions (mm) |
Remarks |
| 5XZC-3B |
3 |
4.25 |
1200 |
1250X800 |
3970X1800X2750 |
Grain cleaning and grading function |
| 5XZC-5B |
5 |
6.99 |
1500 |
2000X1000 |
4650X1900X3100 |
| 5XZC-5DH |
5 |
7.74 |
1600 |
2000X1000 |
4970X1900X3100 |
With cyclone dust separator |
| 5XZC-7.5D |
7.5 |
10.1 |
1700 |
2400x1250 |
5600X2000X3200 |
| 5XZC-15 |
10 |
10.5 |
1800 |
2400x1250 |
5600x2100x3200 |
| 5XAC-25 |
20 |
20.95 |
2900 |
2400x1800 |
5820x2650x3600 |
Double air cleaning system |
Frequently Asked Questions
Can one set of machine process many kinds of seeds?
Yes, you just need to purchase extra screens for different types of seeds.
What is the seed purity after processed by your machine?
If you install a complete seed processing line, the final seed purity can reach at least 99.9%.
Can you provide a customized solution according to my warehouse size and special requirements?
Yes, we can design custom processing line solutions tailored to your specific warehouse space and processing requirements.
Can the color of the machine be customized?
Normally the machine is powder-coated in white, but customized colors are accepted upon request.
What is the machine warranty period?
The standard warranty period is one year from the date the machine arrives at your destination seaport.
Will the machine get damaged during maritime transport?
No, the machinery is tightly secured inside the shipping container using belt fasteners, strong iron wires, and steel wedges to prevent movement.
