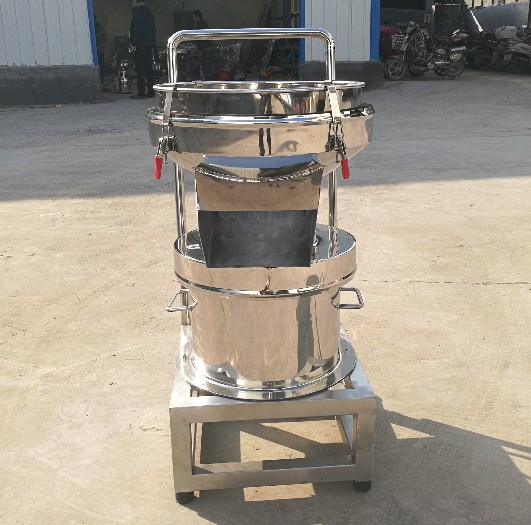

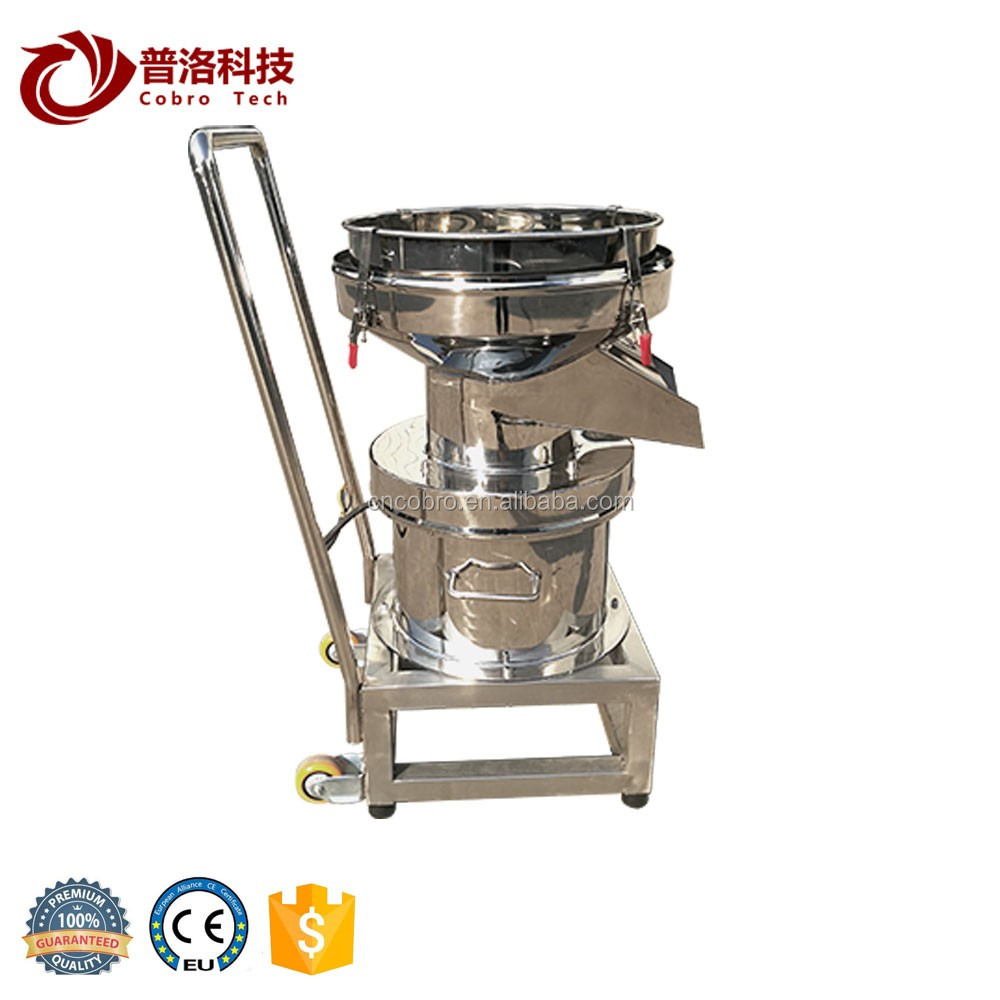

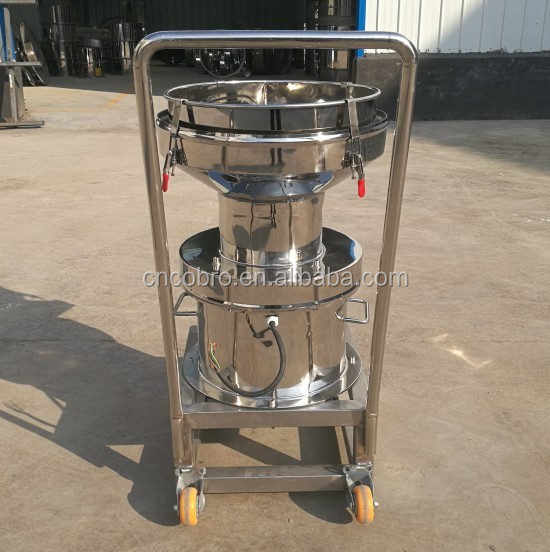

PL-450 type vibration filter is a new and highly-efficiency filtrate equipment. It can be widely used in the filtering and screening work of pasty and powder. The minimum size of the material to process can be 5 micron, and the maximum number of the mesh is 400. Mainly apply for the small process capacity industry, like ceramic, painting, dope, printing ink, pharmacy, food and etc. 450 type machine consists of machine body, vibrating motor, outlet hopper, sieve griddle, e-control device. The machine adopts a new vibration structure which is more stable, highly-efficient and easily handled. It features a good-look, reasonable structure, stable performance, and its griddle is easily handled, cleaned, and changed. Especially, it can satisfy the need of changeable location.
PL-450 series screen-filter is a highly-efficient, low noise, small volume screen and filtration machine which can be displaced easily. The process capacity of the spray-painting material whose bulk density is 1.1t can reach 1200KL/H, when the screen is of 325mesh. The process capacity of the flour is 700Kg/H, when the screen is of 30mesh. To the indoor paint, the process capacity is 1.5 cubic meter per hour with a screen of 250mesh.
| Model | Diameter (mm) | Frequency | Power | Power Supply | Mesh Size |
|---|---|---|---|---|---|
| PL-450 | 450 | 1450 rpm | 0.25 kw | 220V / 380V | 0.038 - 3 mm |
The PL-450 vibration filter is highly efficient for filtering and screening pasty materials and powders. It supports a minimum processing size of 5 microns and a maximum mesh capacity up to 400 mesh.

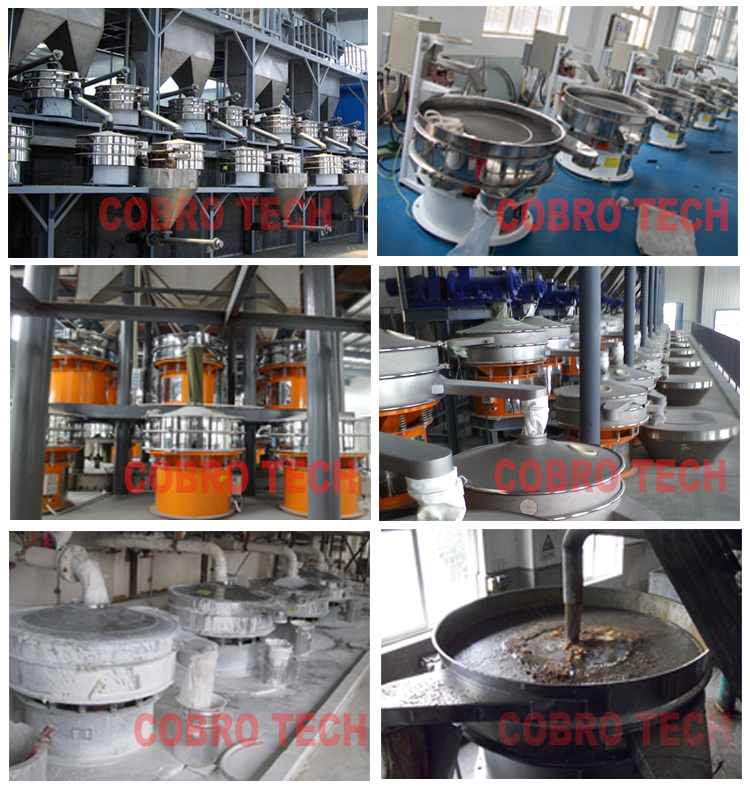

It is designed primarily for industries with small processing capacities, including ceramics, painting, dope, printing ink, pharmacy, food, metallurgy, mining, and wastewater treatment.
The capacity depends on the material: for spray-painting material (density 1.1t), it can reach 1200 KL/H with a 325 mesh screen; for flour, it processes 700 Kg/H with a 30 mesh screen; for indoor paint, it filters 1.5 cubic meters per hour with a 250 mesh screen.
Yes. The contact parts of the machine are made of high-quality 304 or 316L stainless steel as standard, ensuring sanitation and durability for food, cosmetics, and medicine processing.

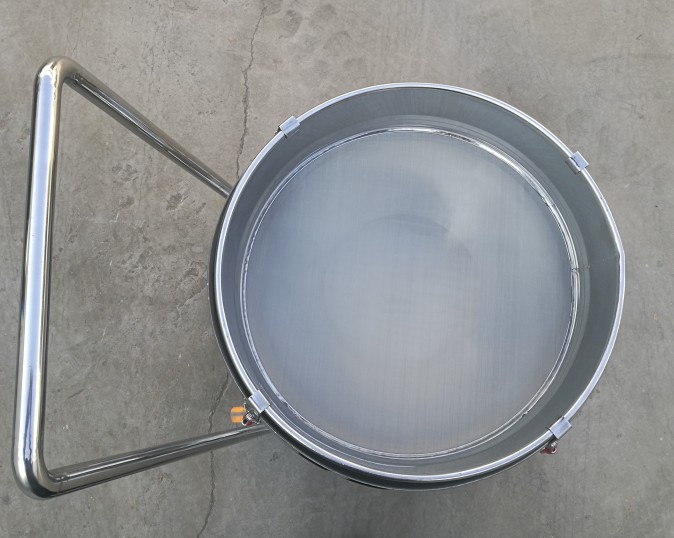

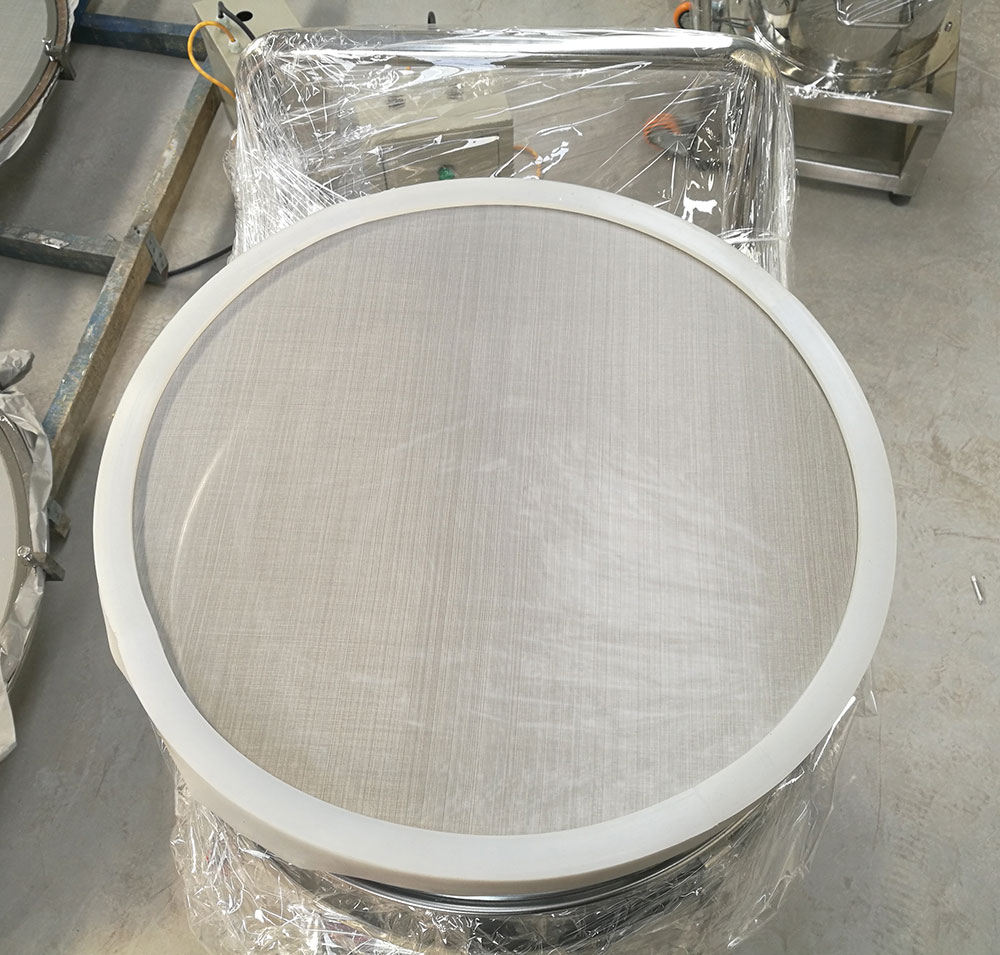

The design allows quick changing of mesh frames ranging from 25um to 25mm. The structure is built for easy handling, disassembly, cleaning, and maintenance.

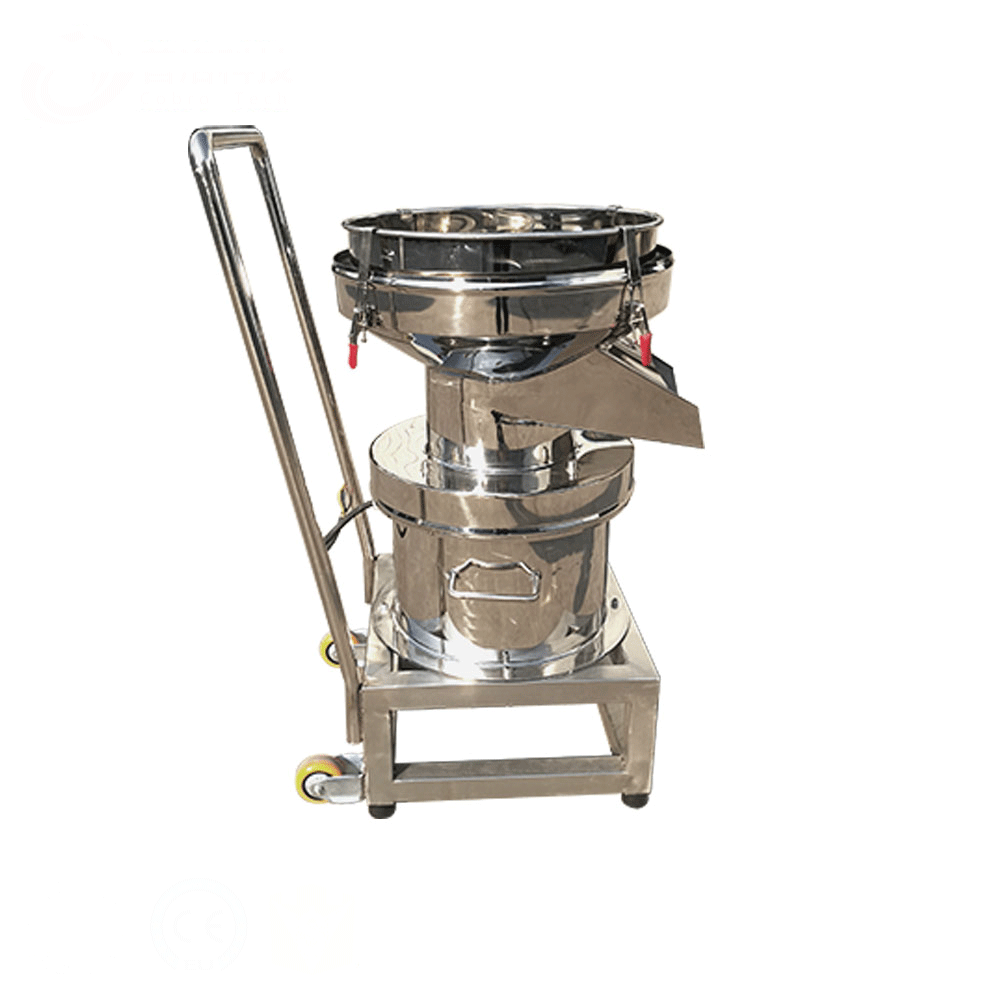

Yes, the machine features a lightweight and compact design that makes it easily displaceable to satisfy changeable processing locations.
