| Working speed | 4.5r/min, the error should not exceed ±0.5r/min |
| Temperature display resolution | 1 ℃ |
| Accuracy of temperature measurement | Level 0.5 ±1 word |
| Operating temperature adjustable range | Room temperature ~ 200 ℃ |
| Adjustable range of working pressure | (49-180)N, the error should not exceed ±10% |
| Standard operating temperature | 175 ℃; The actual error should not exceed 8 ℃ at 177 ℃ |
| Temperature safety | After the working time exceeds 2 hours, the shell temperature does not exceed 50 ℃. |
| Heating mechanism | The thermal insulation resistance value of the electric heating plate should be greater than 5 MΩ |
| Spring tension | 100N |
| Ambient temperature | The ambient temperature is 20 ± 10 ° C. There is no vibration, flammable or corrosive gas |

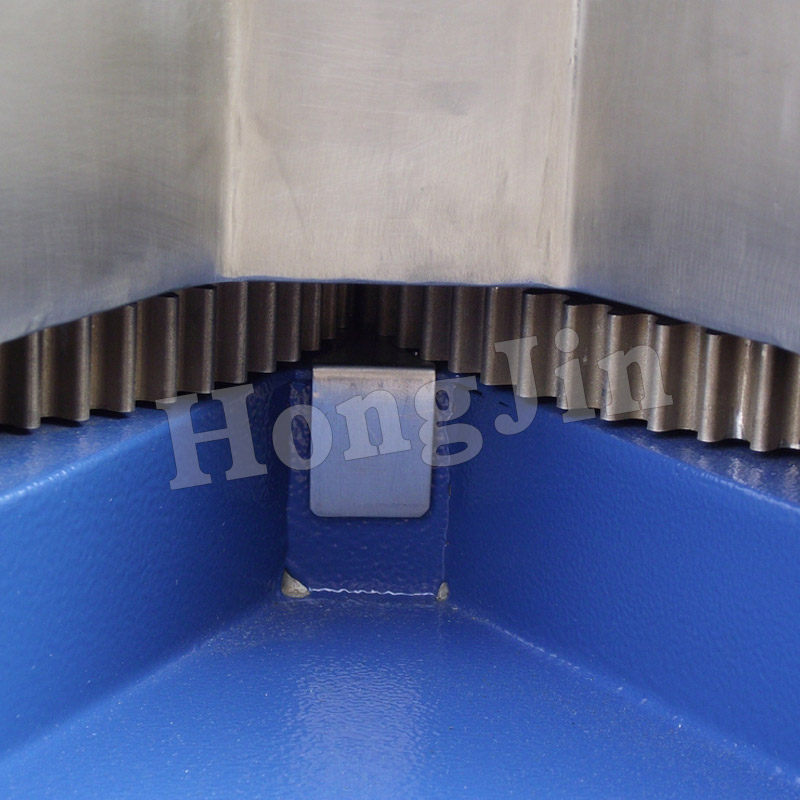

| Standard tooth type | a-tooth |
| Outside diameter of grooved wheel | 228.5 ± 0.5mm |
| Groove wheel thickness | 16 ± 1mm |
| Tooth number | 84 |
| Radius of the tooth apex | R1.5 ± 0.1mm |
| Radius of tooth circle | R2.0 ± 0.1mm |
| Full tooth height | 4.75 ± 0.05mm |
| Power supply | AC220V, 50Hz |

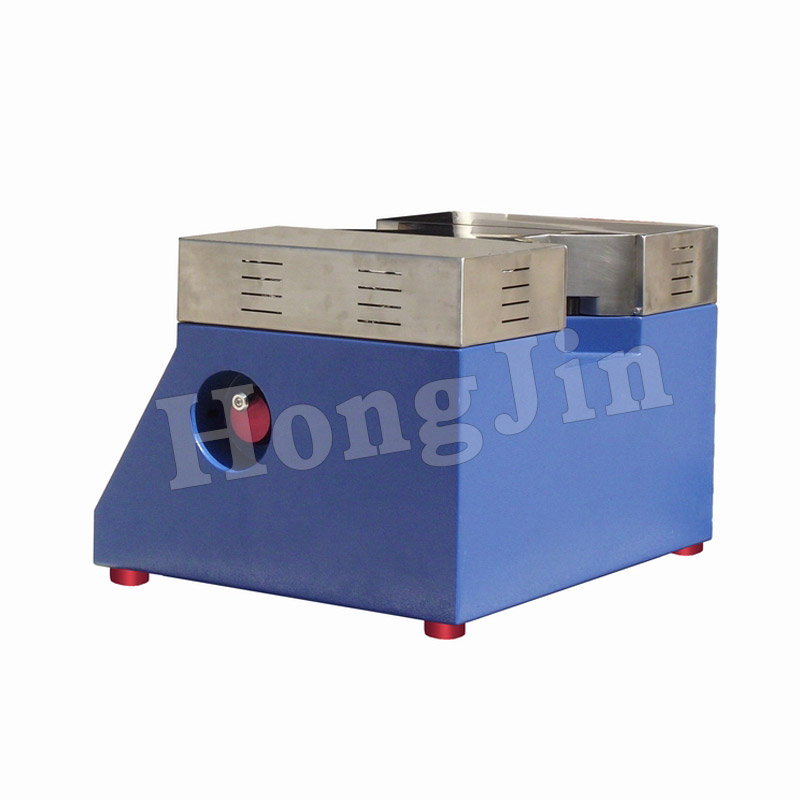

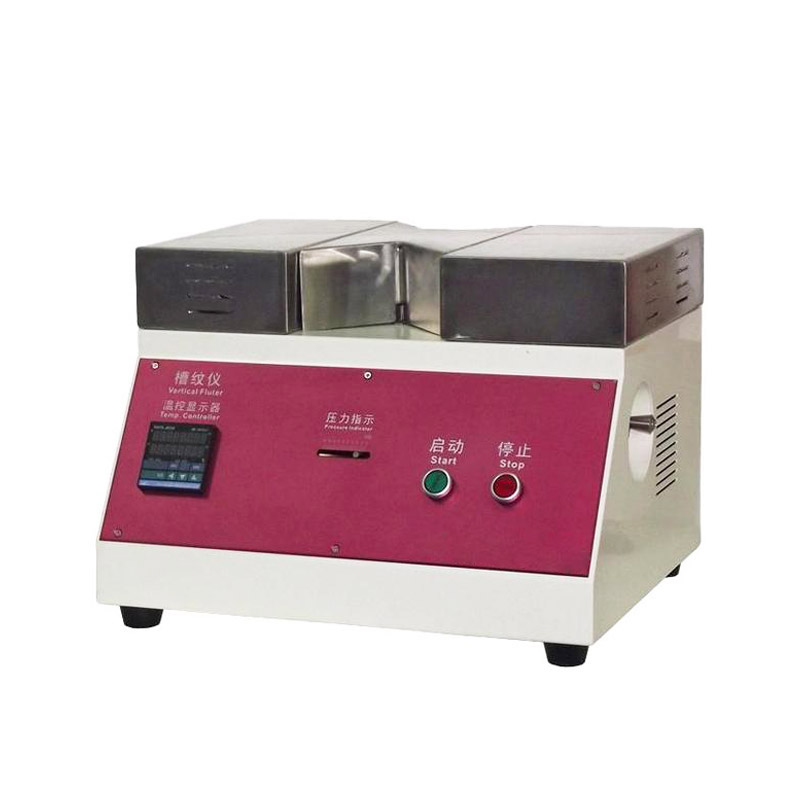

| Overall size/weight | 520 × 450 × 380mm / 55kg |
