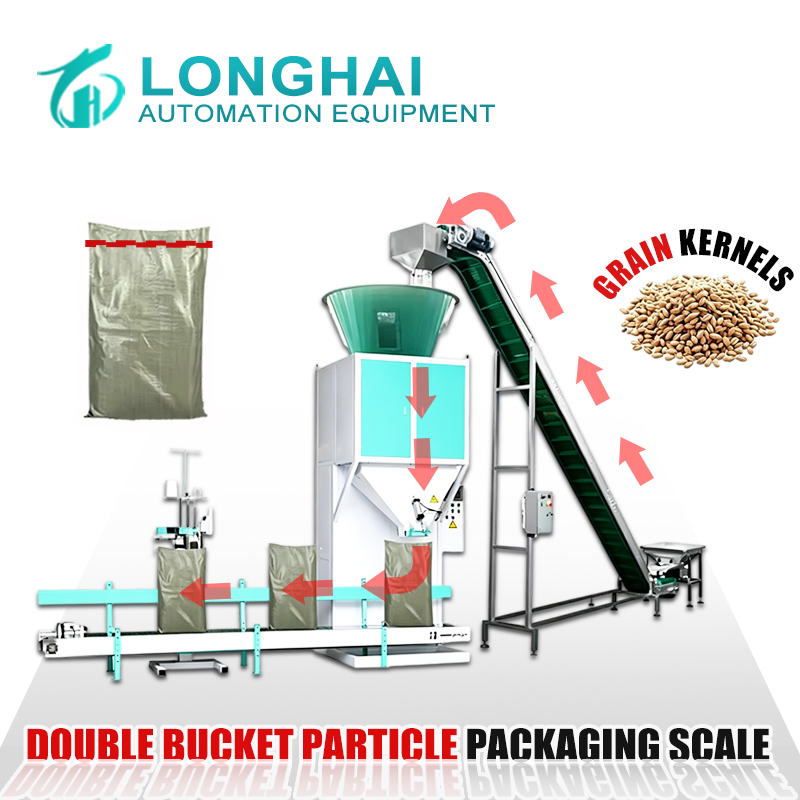

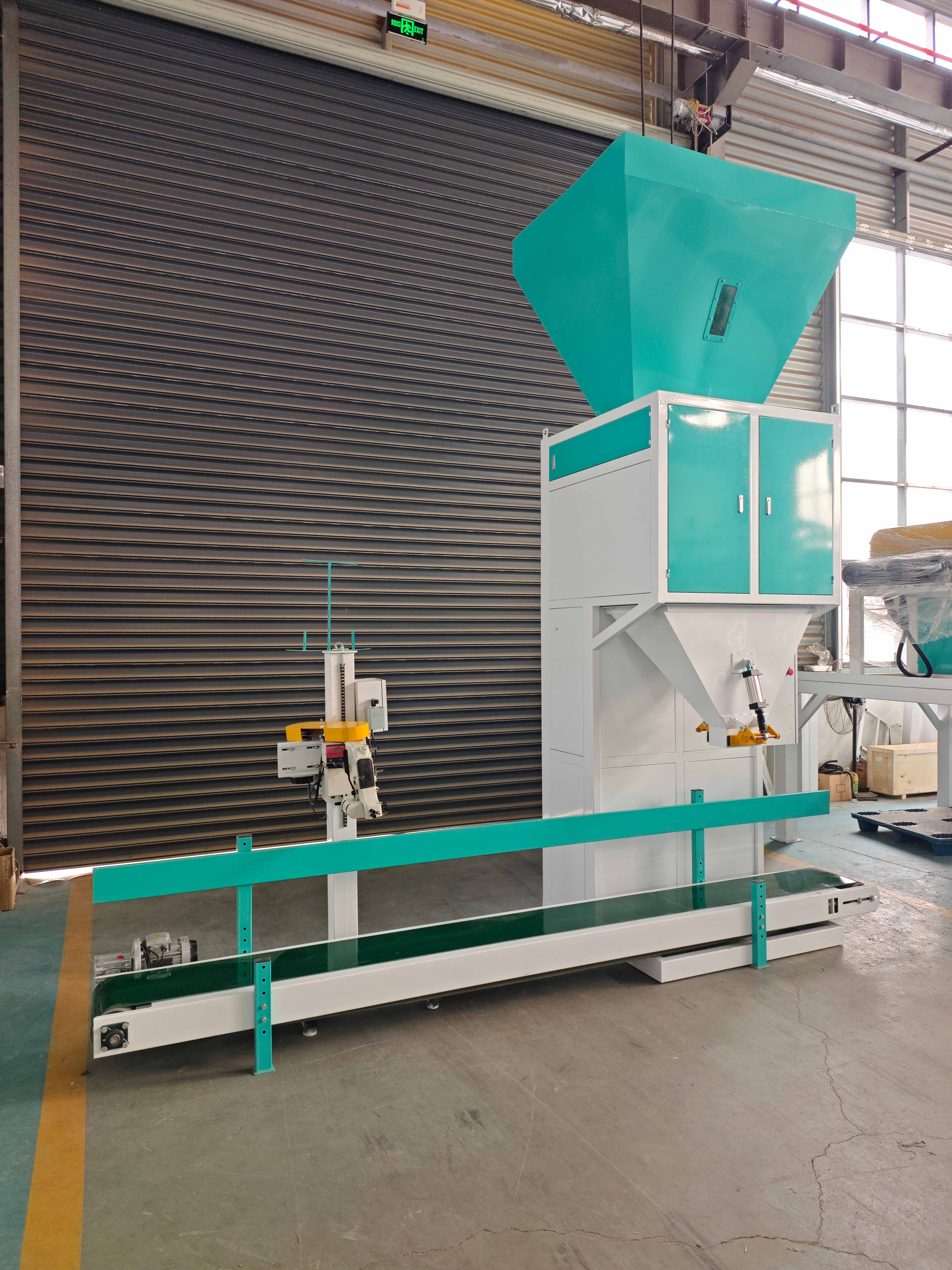

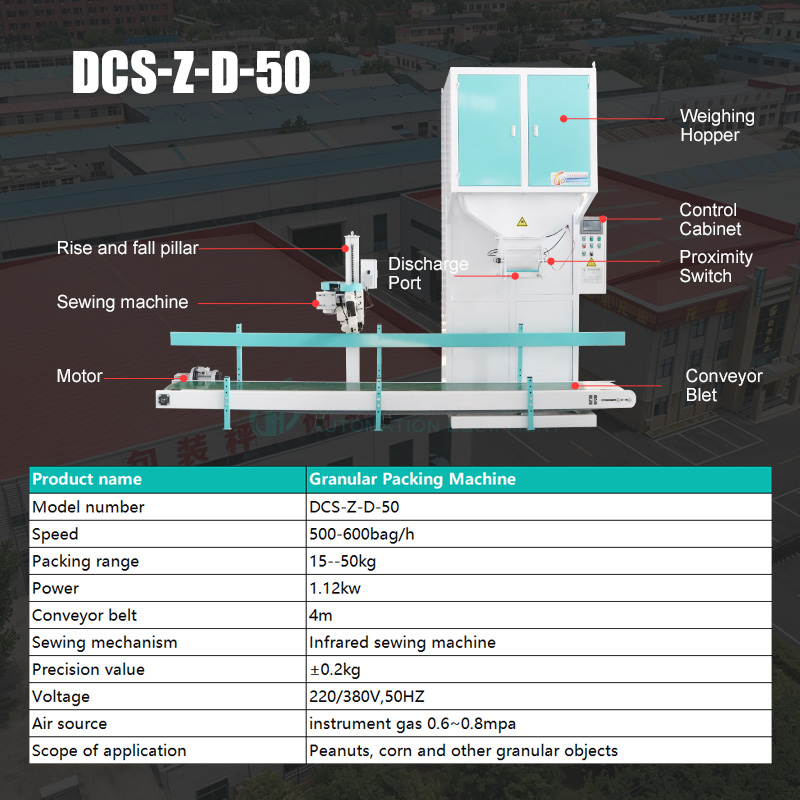

50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions
50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions
50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions
50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions
50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions
1 / 5
50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions
50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions
50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions
50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions
50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions

50kg Rice Bagging Machine Corn Wheat Grain Packing Scale With Weighing Filling Sealing/Sewing Functions

Send Inquiry

Product Description

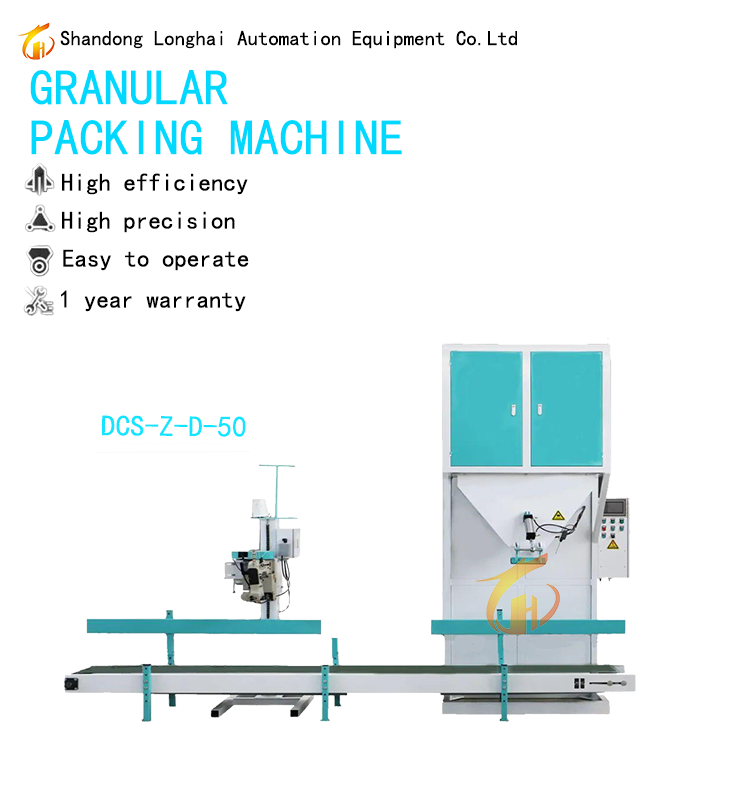

Scope of Application Banner
Scope of Application
Scope of Application details
Product Details

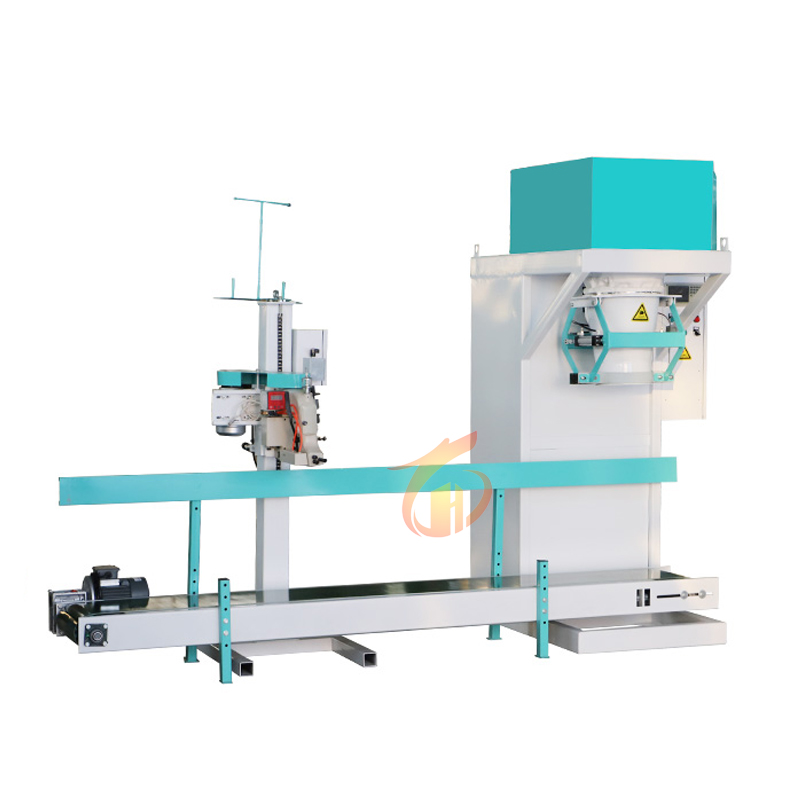

Product detail image 1

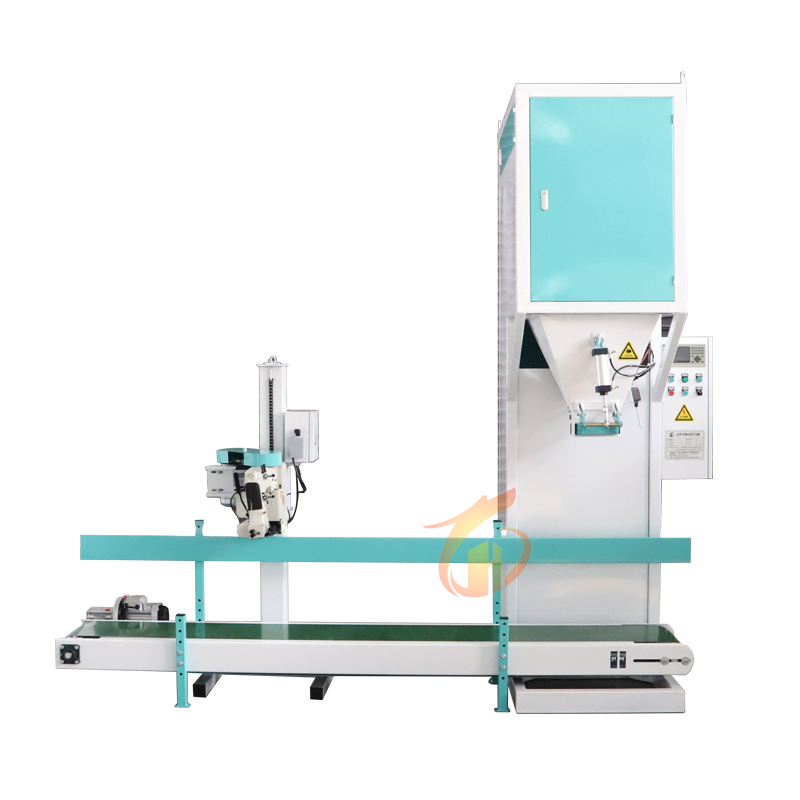

Product detail image 2

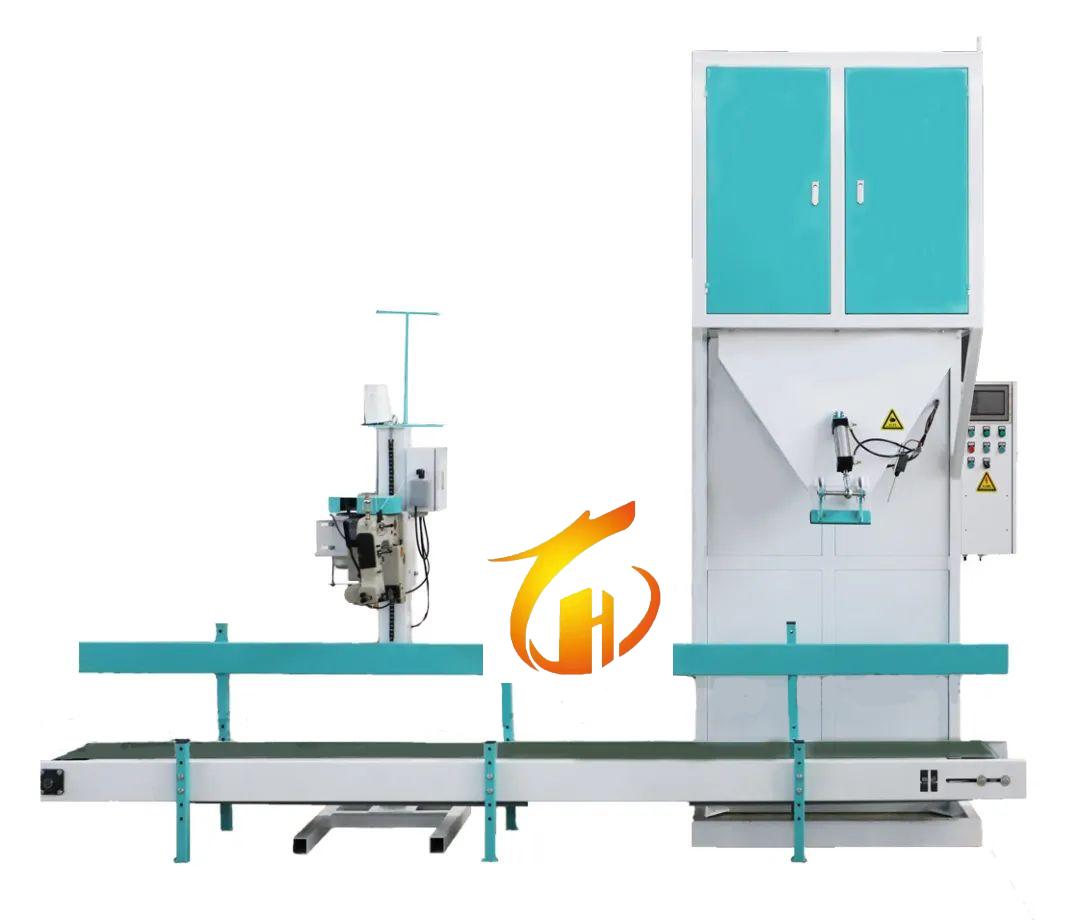

Product detail image 3
Model DCS-Z-W-50 DCS-Z-S-50 DCS-Z-D-50
Material SUS304 Contact parts SUS304 Contact parts SUS304 Contact parts
Packing Capacity 200-300bags/h 300-400bags/h 600-800bags/h
Weighing Range 25-50kg or Customized 25-50kg or Customized 25-50kg or Customized
Quantify Precision ±0.2% ±0.2% ±0.2%
Power Supply AC 220V/380V 50 HZ 1P/3P Customized AC 220V/380V 50 HZ 1P/3P Customized AC 220V/380V 50 HZ 1P/3P Customized
Air Source 0.4~0.6MPa 0.36m³/min 0.4~0.6MPa 0.36m³/min 0.4~0.6MPa 0.36m³/min
Application Materials Applicable for packing granular or particle materials such as chemistry, fertilizer, grain, rice, sand, wood pellets, animal feed, urea, phosphate, PP, PE granules, construction materials, etc.

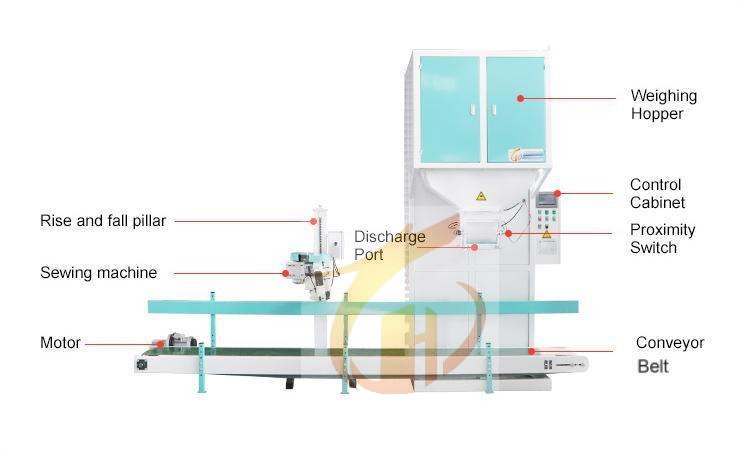

Product specifications

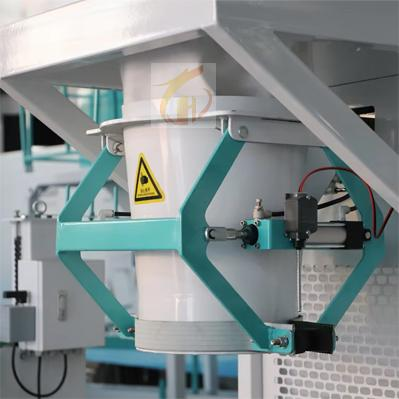

Discharge Port
Discharge Port
*Use AirTAC cylinder as power, longer service life.
*Ring folder bag institutions, make the bag with the feed opening sealed tightly, and can reduce dust spillover.
*Discharge port can be customized to accommodate more bags.

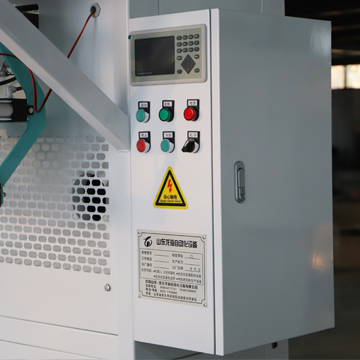

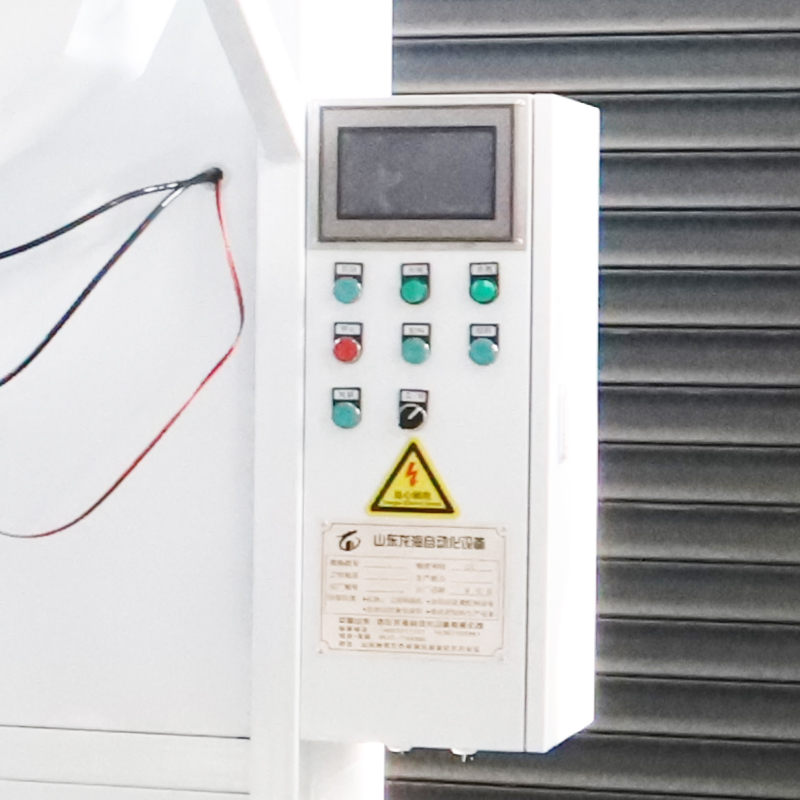

Weighing Controller
Weighing Controller
*Automatic Zero-Tracking function.
*20 recipes can be stored for different weighing capacity.
*5 inch TFT LCD concise operation interface.
*Adaptive optimization algorithm to accelerate working pace and increase accuracy.

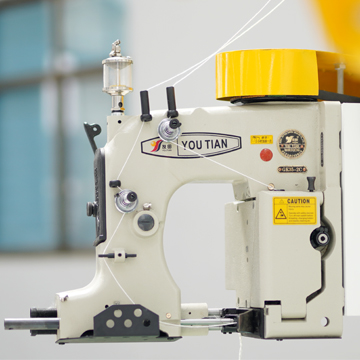

Automatic Sewing Machine
Automatic Sewing Machine
*Suitable for woven bags, kraft paper bags.
*Double thread sewing, Maximum sewing thickness 8mm.
*It detects bags' position by Omron photoelectric sensor and automatically disconnects.
*Can choose other brands: Qinggong, Newlong, Tianpeng.

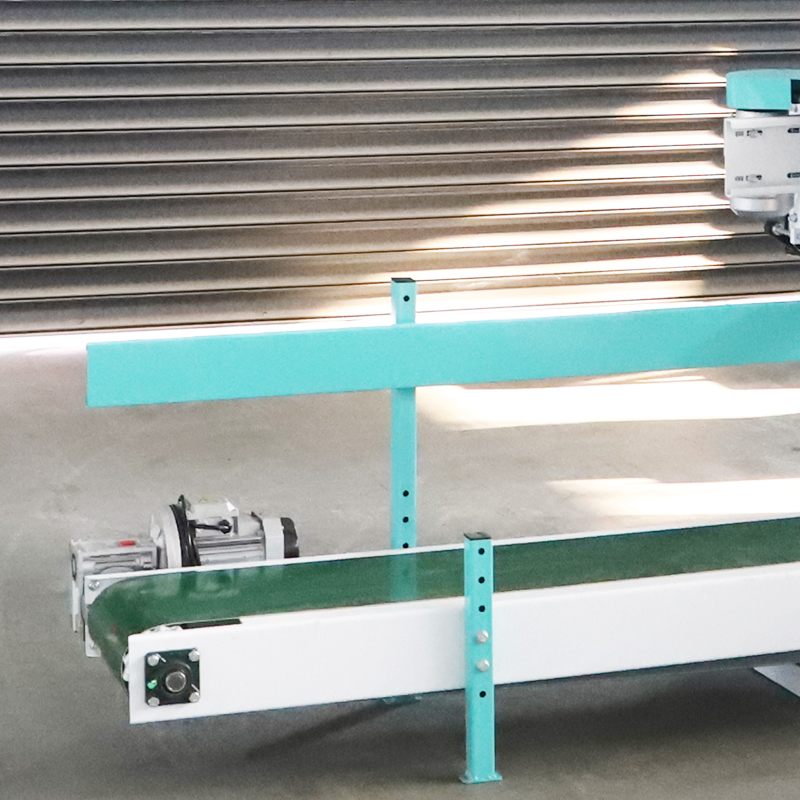

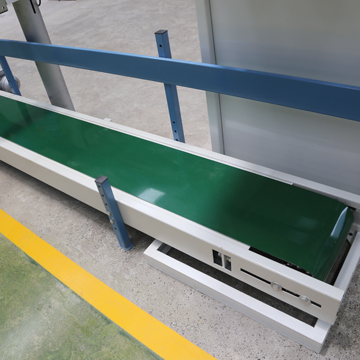

Conveyor Belt
Conveyor Belt
*The power of the motor is 0.37 Kw, brass core motor, more durable.
*The width of the belt is 400mm, the length is 3m.
*Height can be adjusted according to the bag, speed is 5-20 m/min.
Advantage
  • The material contact part is made of 304 stainless steel, more durable.
  • The machine body adopts plastic spraying process, surface is smoother and anti rust.
  • Professional digital instrument, easy to operate, stable performance.
  • Pneumatic control technology, fast speed and high precision.
  • Automatic alarm for out of tolerance, automatic data accumulation.
Optional

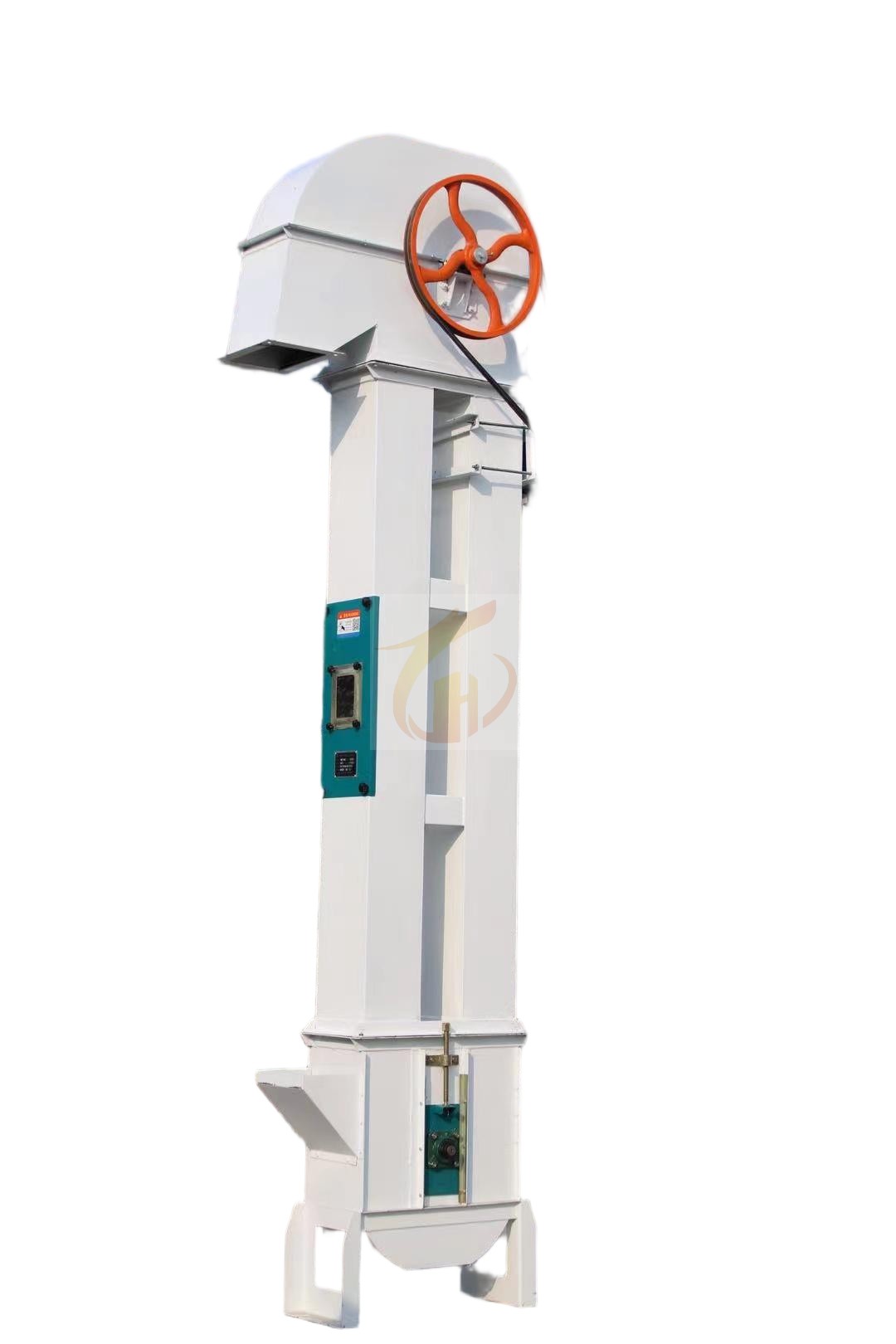

Bucket Elevator
Bucket Elevator

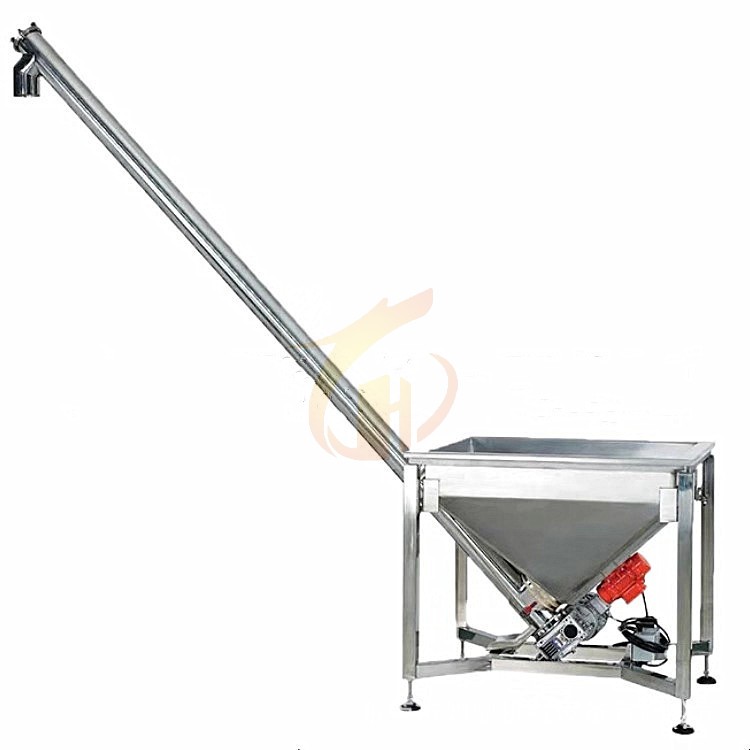

Screw Feeder
Screw Feeder

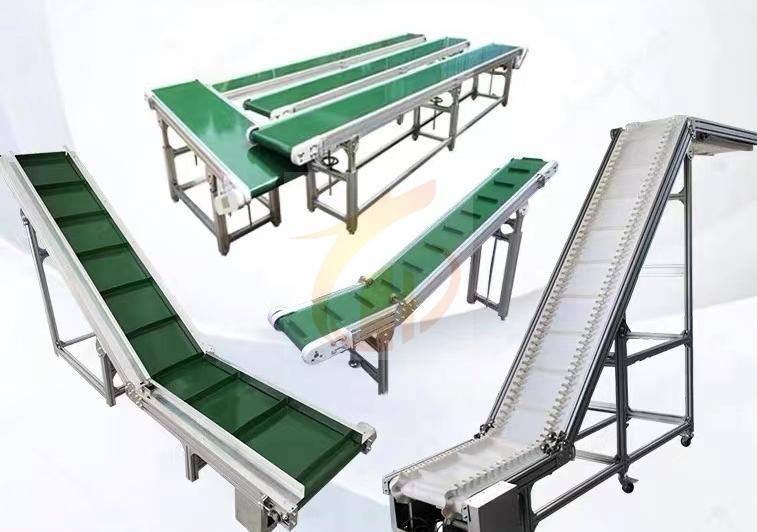

Belt Conveyor
Belt Conveyor

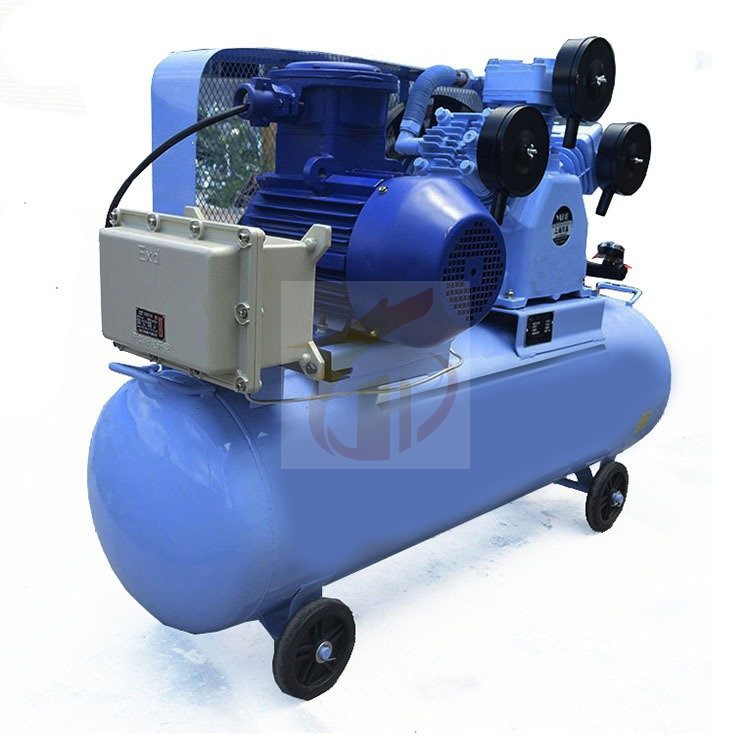

Air Compressor
Air Compressor

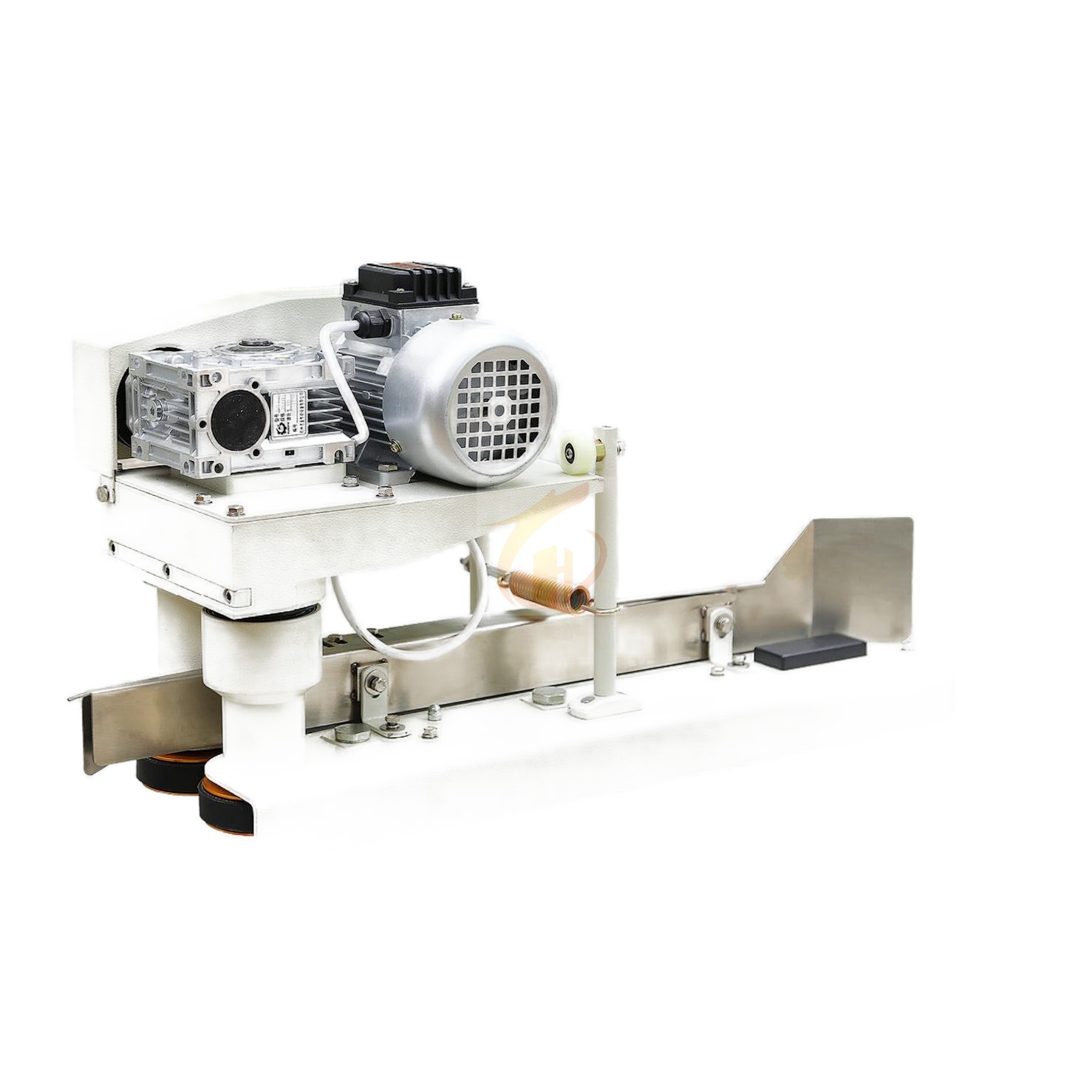

Folding Machine
Folding Machine

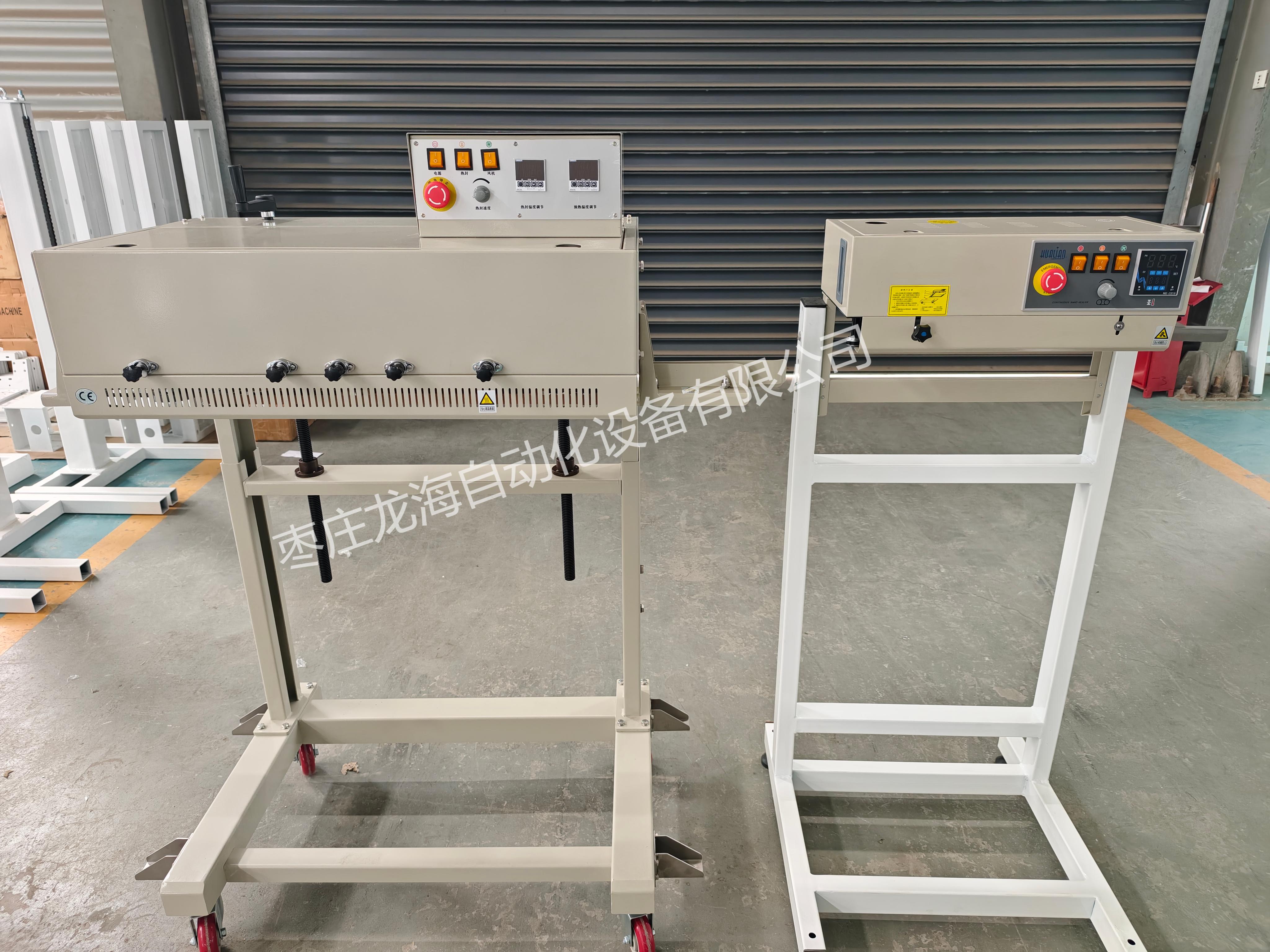

Heat Sealing Machine
Heat Sealing Machine

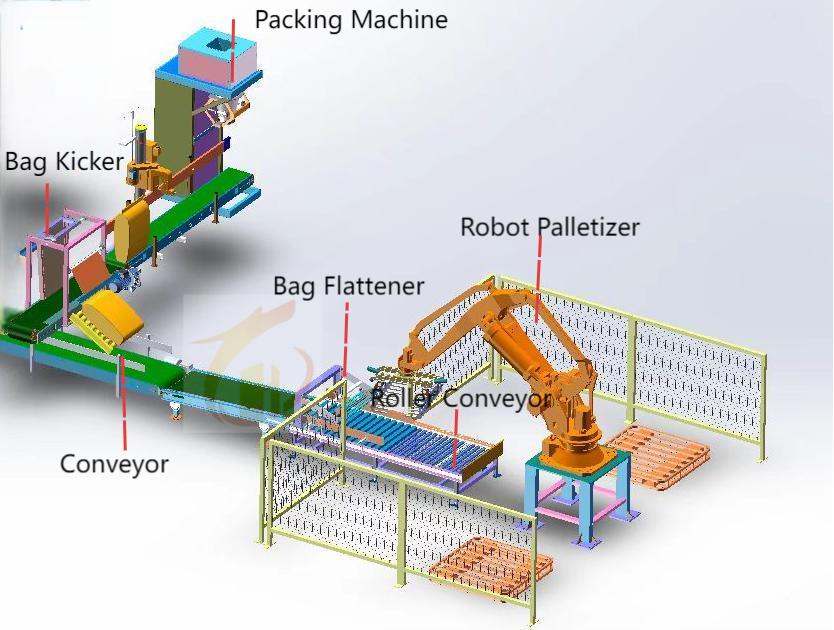

System packaging machine layout
Machine Components
Component 1
Component 2
Component 3

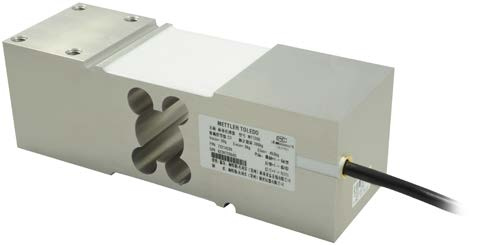

Load Cell
Load Cell

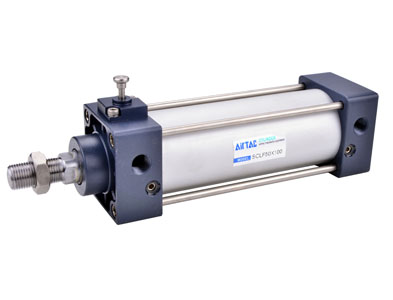

Cylinder
Cylinder

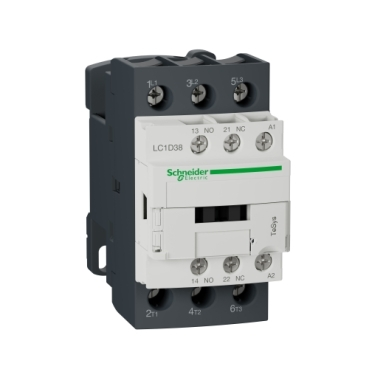

Contactor
Contactor
Component 4
Component 5
Component 6
Switching Mode Power Supply
Switching Mode Power Supply

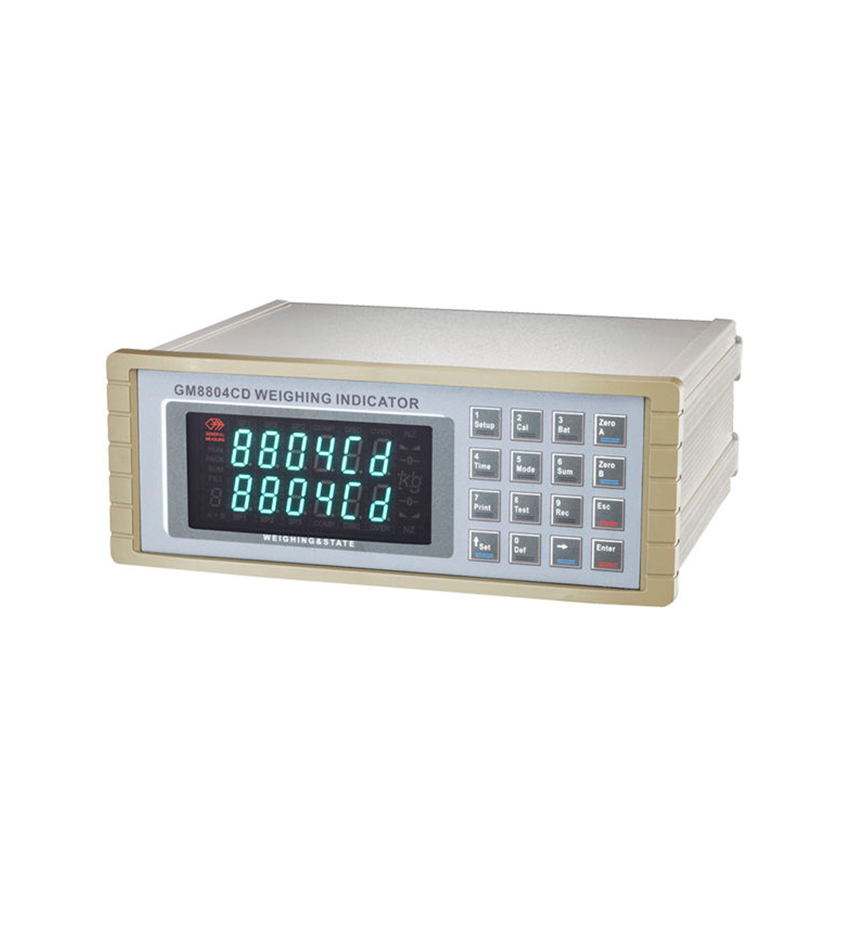

Control Instrument
Control Instrument

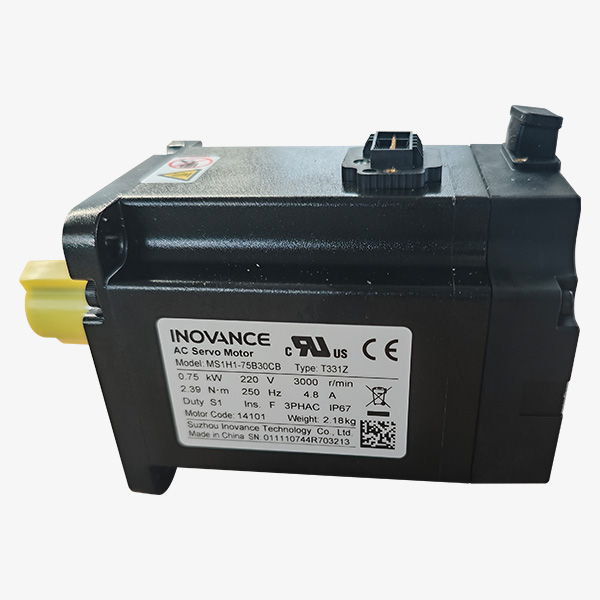

Servo Motor
Servo Motor
Product Display

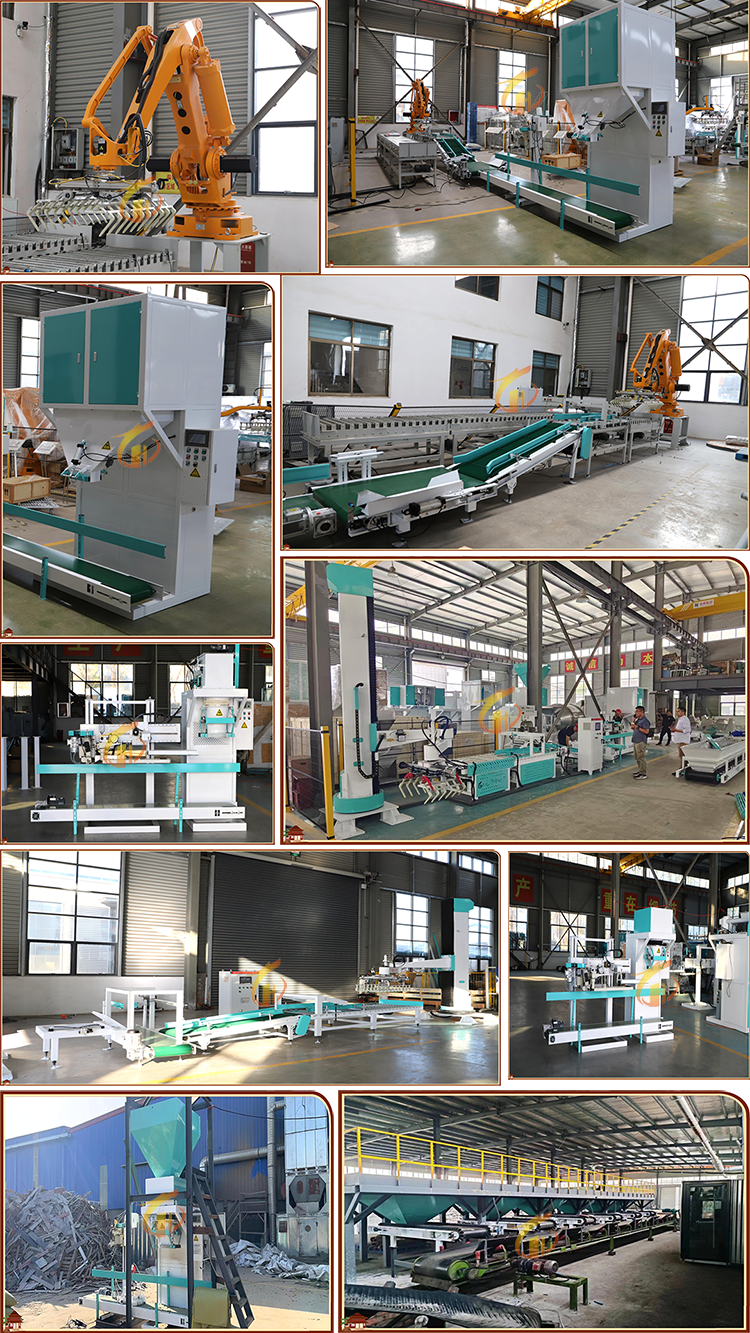

Product display 1

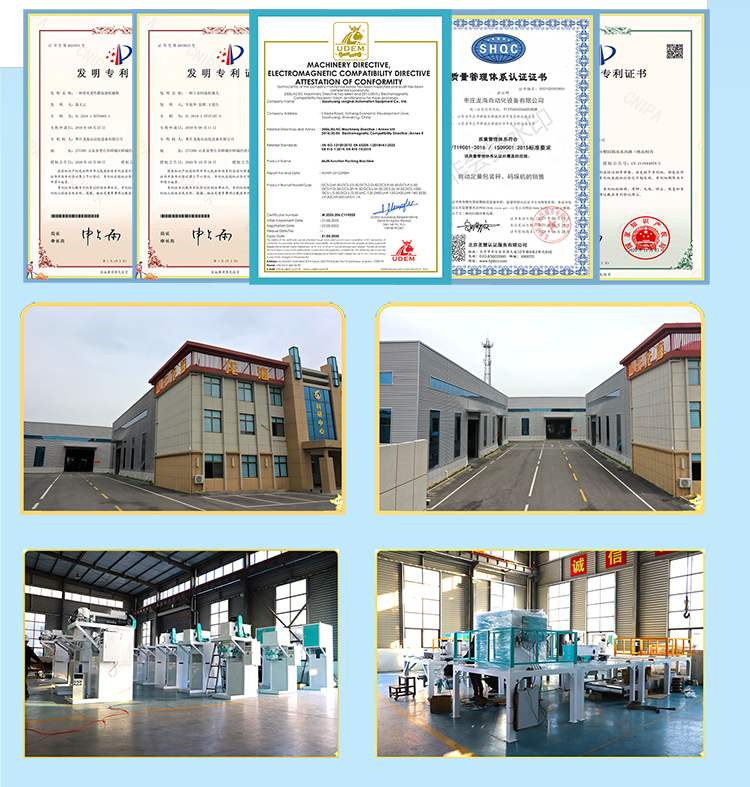

Product display 2
Customers Visit Factory & Exhibition
Customer visiting factory
Packing & Delivery
Packing and delivery shipment
FAQ
Q1: How to choose a packing machine?
A1: Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q2: How to ensure the quality of the machine?
A2: We usually deliver the machine after successful inspection in our factory. We have our own quality control department, before the delivery we have to run the machine for three days without problem. You can send us your materials and we will make a video as long as you want. Or you can arrange a third-party inspection agency.
Q3: How about your delivery time?
A3: Generally, it will take 5 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4: How to Install the equipment?
A4: We will provide manuals and detailed videos to help customers install the machine. If necessary, we will arrange an engineer to the customer's factory to assist.
Q5: What's your payment way?
A5: T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or L/C.
