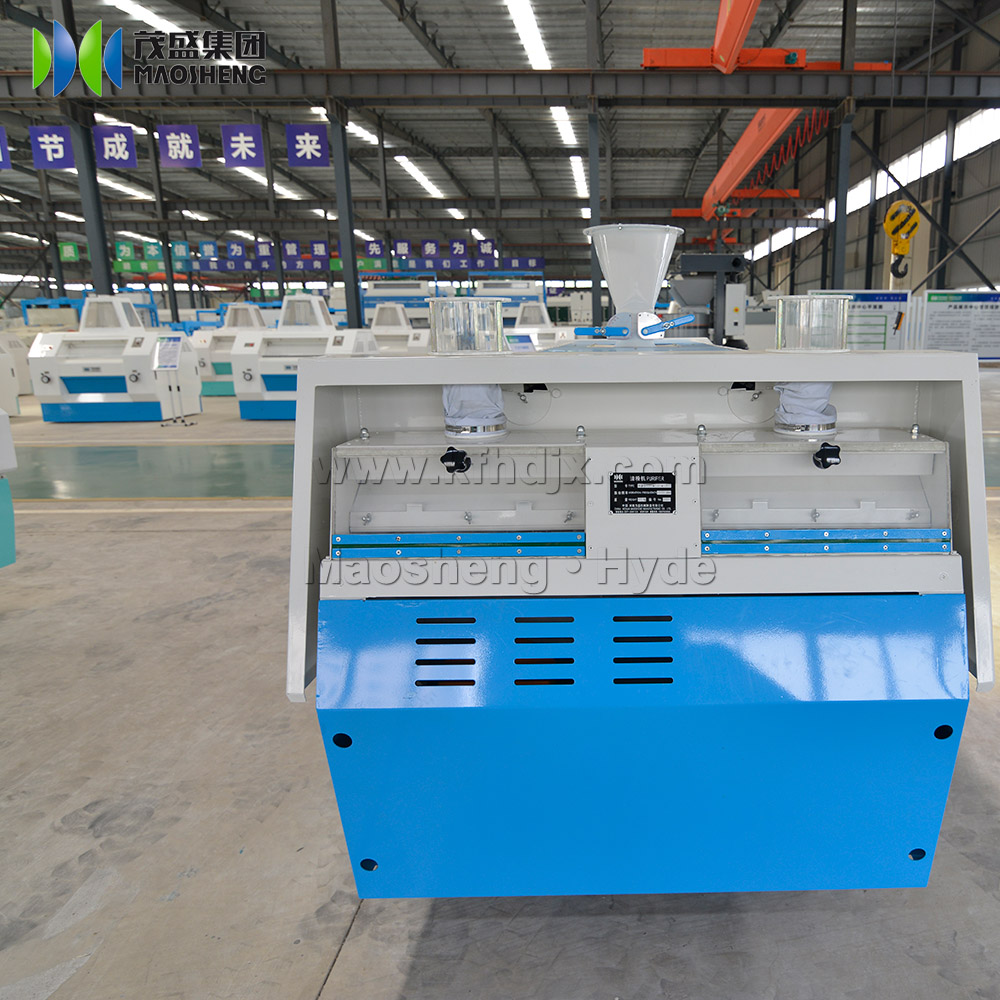

1) Function: The purifier is applied for purifying and grading of semolina and middlings in semolina, flour and maize (corn)/wheat mills.
2) Capacity: 800-3500 kg/h.
The FQFD series powder cleaner is a new product that digests the most advanced technology in the world. It is developed and produced through computer optimization and finalization. The combined action of sieving and airflow is used to select, purify and purify wheat residue, coarse wheat heart, fine wheat heart and coarse flour, so that the materials can be classified according to different qualities and particle sizes, and the bran crumbs are removed, thereby improving the flour quality and flour extraction rate.

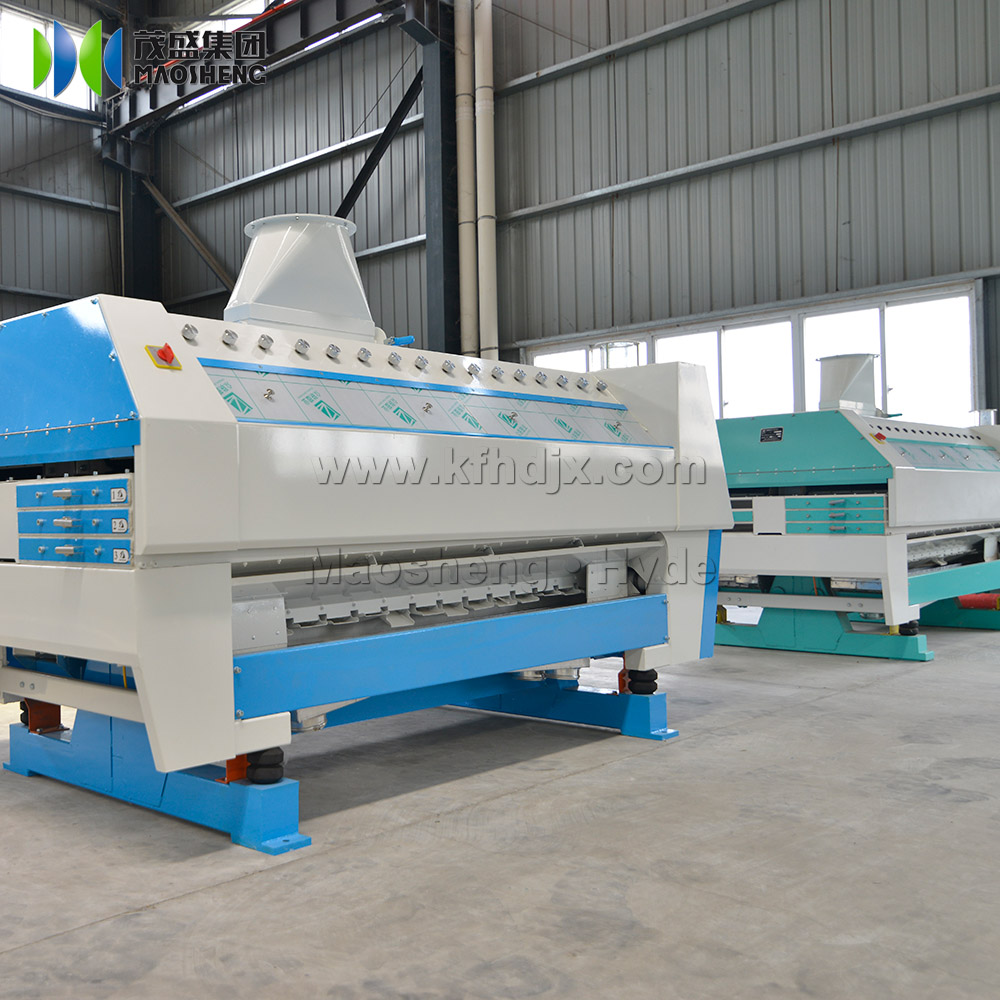

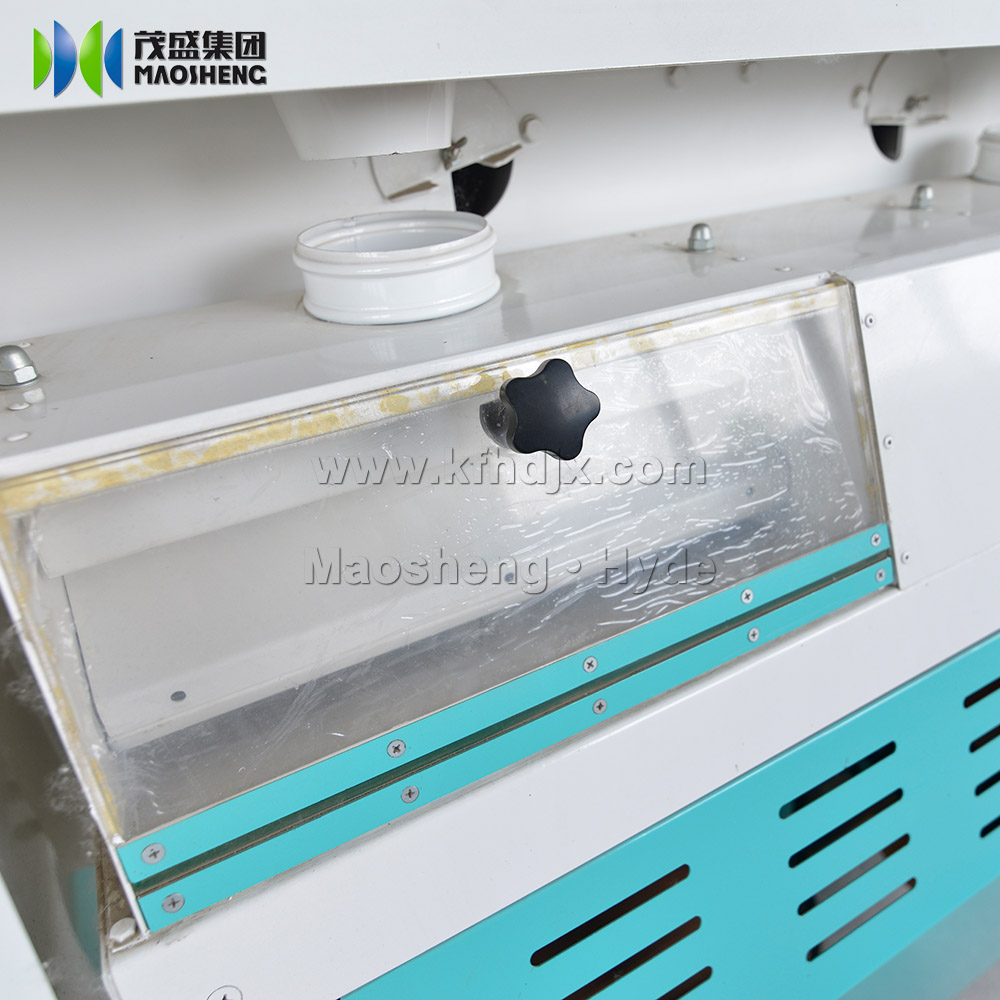

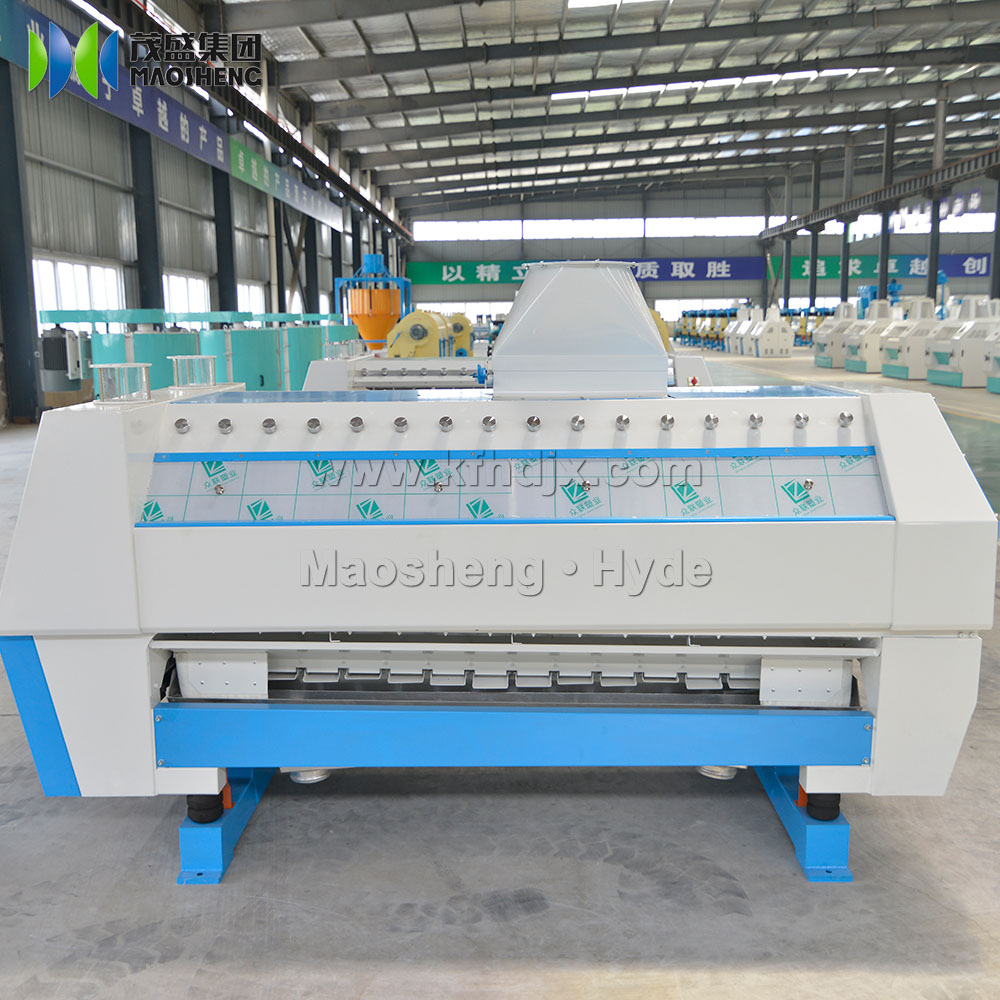

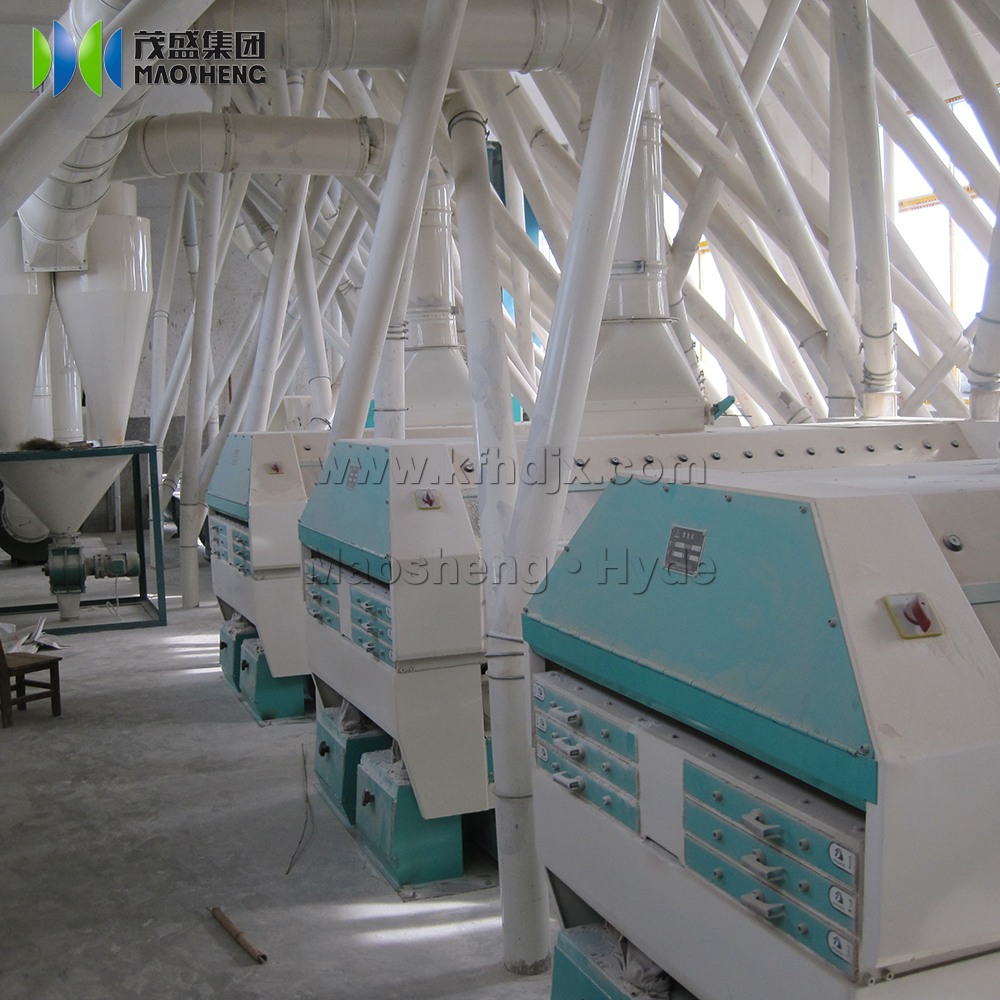

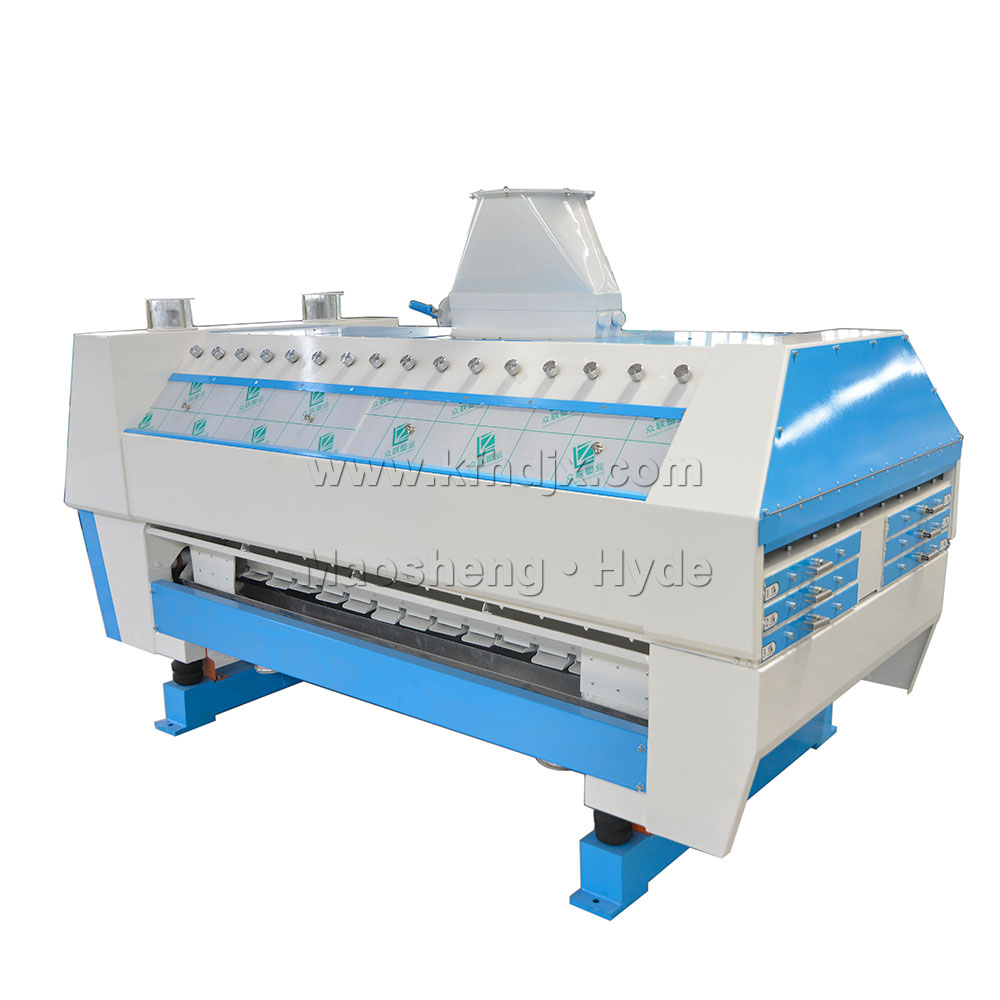

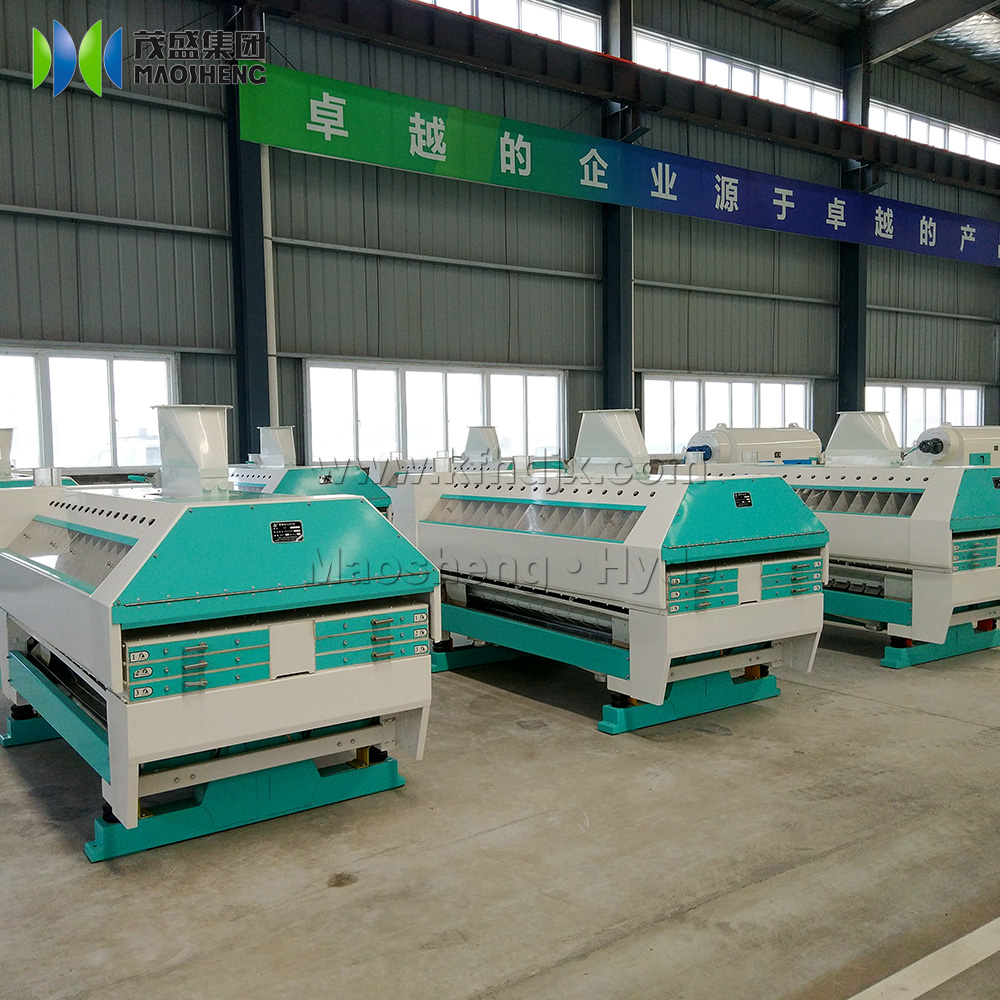

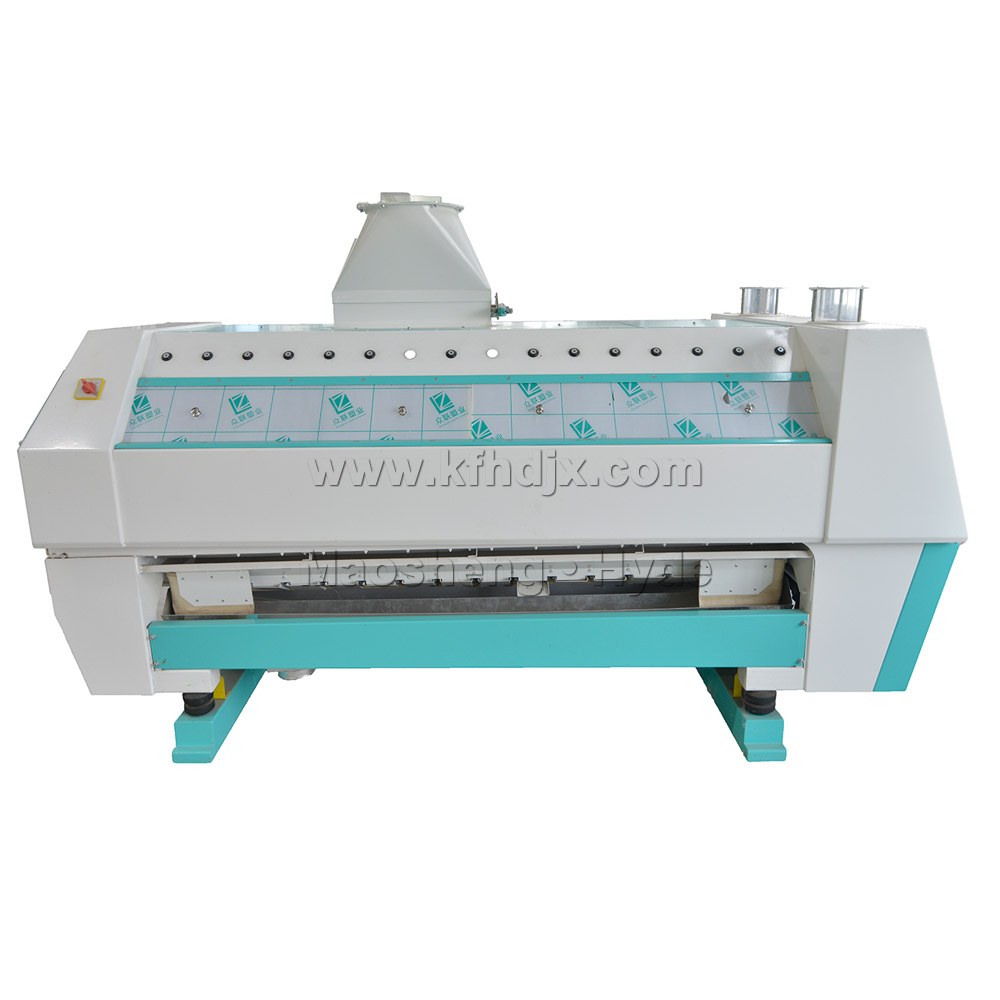

The purifier is designed for separating pure endosperm granular from its mixture. It comprises two independent sieve-decks, each with three ranges of double superimposed sieves. The two sieve-decks are supported by four rubber spring bushes on a steel frame and vibrated by two vibration motors installed at the end of the machine. Independent aspiration is connected on the top of the machine.
The mixture flows into sieve decks and is classified by the interaction of vibration and suction while it is flowing to the end of the machine. The materials then are separated into pure endosperm semolina, endosperm with bran fraction, and pure bran fraction, and are then sent to the next step of the process.

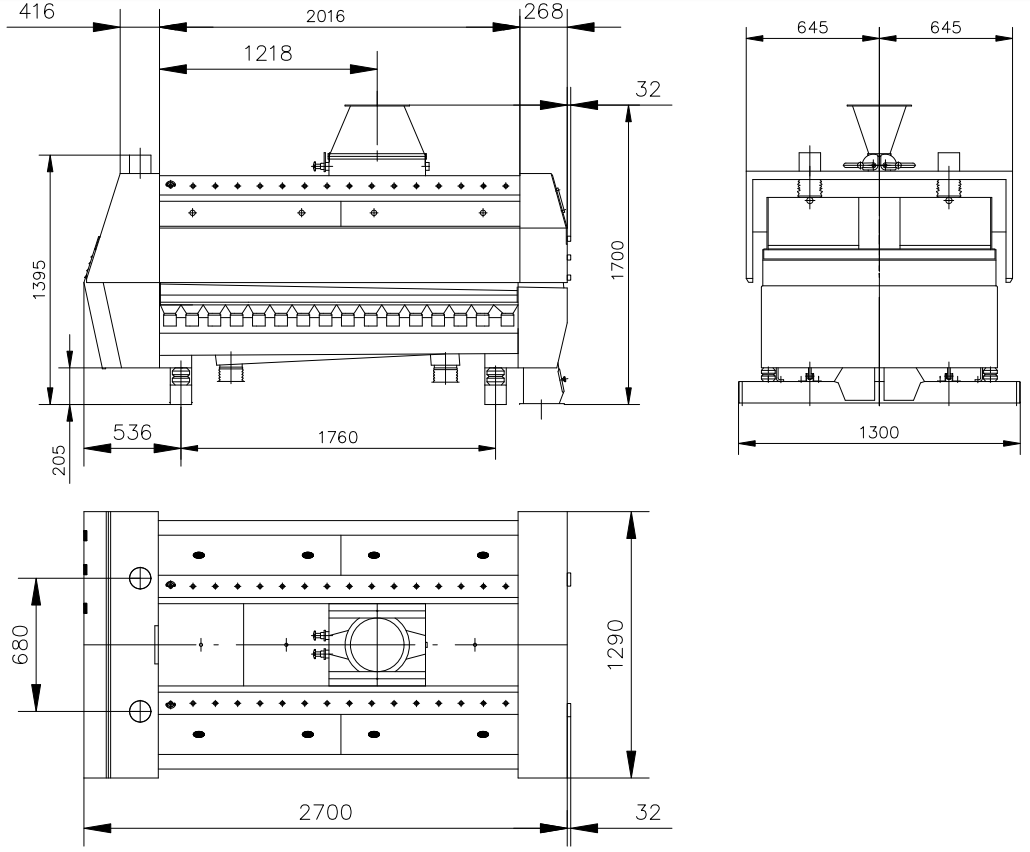

| Type | Capacity (kg/h) | Power (kW) | Air Volume (m³/min) | Weight (kg) | Dimension Size (mm) | |
|---|---|---|---|---|---|---|
| Coarse | Fine | |||||
| FQFD38X2X3 | 800-1200 | 600-1000 | 2x0.18 | 35-65 | 800 | 2190×1085×1510 |
| FQFD49X2X3 | 1200-2600 | 800-1600 | 2x0.18 | 40-70 | 970 | 2700x1300x1700 |
| FQFD60X2X3 | 1800-3500 | 1200-2000 | 2x0.25 | 55-90 | 1100 | 2700x1500x1700 |

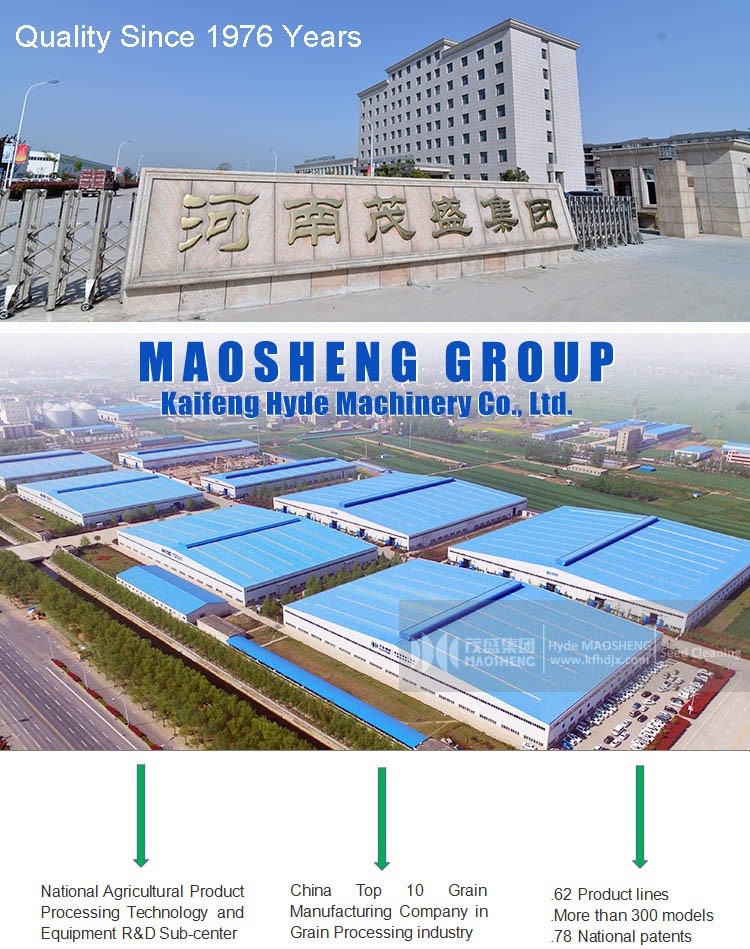

Our manufacturing group has specialized in engineering and equipment manufacturing for grain handling, storage, flour milling and seed processing since 1976.
With 40 years' growth, the group company has become one of CHINA TOP 10 Grain Processing Machinery Manufacturers. In addition, the group hosts a National Grain Processing Technology Research Center.
Established in 2000, our specialized division mainly manufactures a full range of advanced grain and seed processing machines.
To better serve our clients, our group not only imports high-end manufacturing facilities to improve product quality and manufacturing productivity, but also keeps looking for international communication and cooperation. We successfully signed agreements with international partners for machine development in 2009, and established joint ventures with leading European manufacturers in 2013 and 2016.
With decades of effort, our machines have obtained China Top 10, China Famous Brand awards and enjoyed a high reputation in domestic and overseas markets.
We are a member of 13 China national standards DRAFTER committees in the grain industry, holding 79 patents including 4 inventions.
1. Technical Consulting Service: Our wide product range enables us to provide flexible, efficient, and reliable equipment and complete solutions for customers according to different requests and budgets.
2. Facility Visit: Before placing orders, customers are warmly welcome to visit our manufacturing facility.
1. Reliable delivery time.
2. Strict quality control by in-production 100% check and test.
3. User manual and spare parts provided for free.
1. Fast technical guidance for construction, installation, and commissioning.
2. Necessary training for daily maintenance on site.
3. 12 months warranty.
4. Lifelong regular technical service.
5. Timely solutions to problems.
