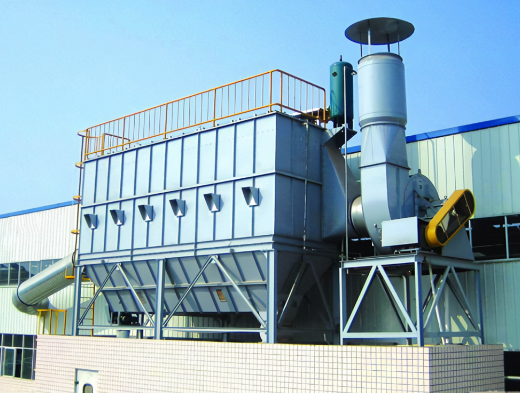

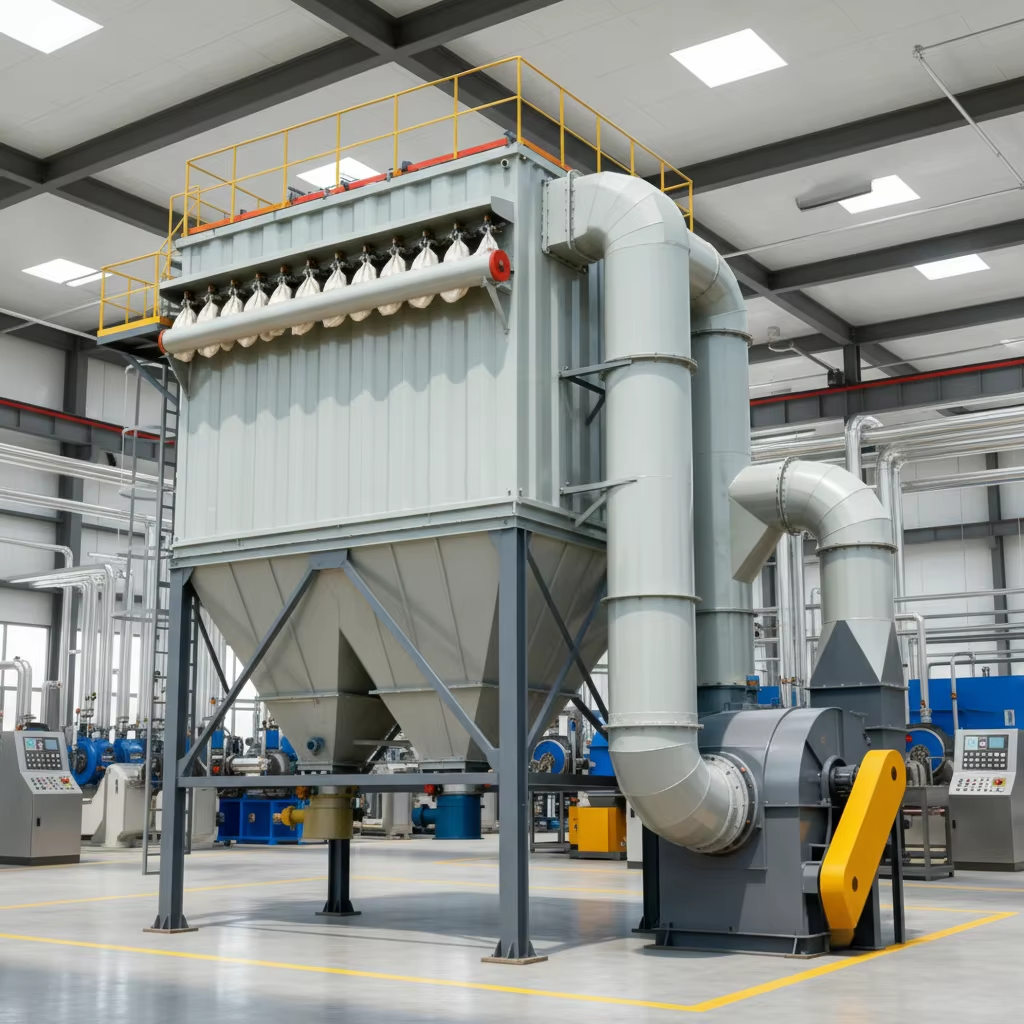

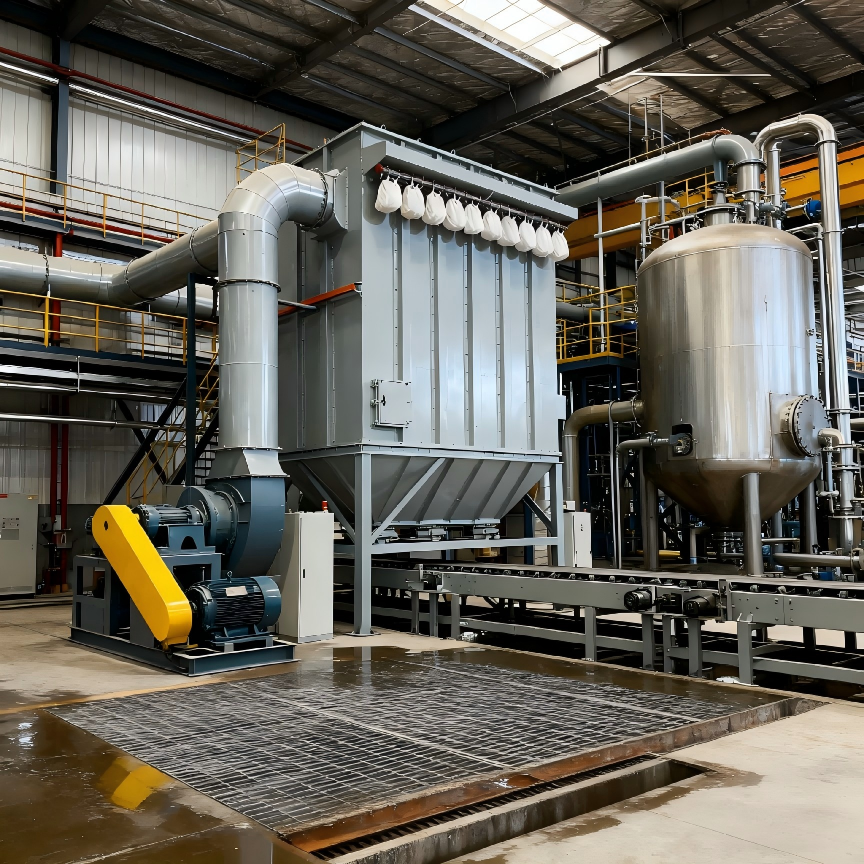

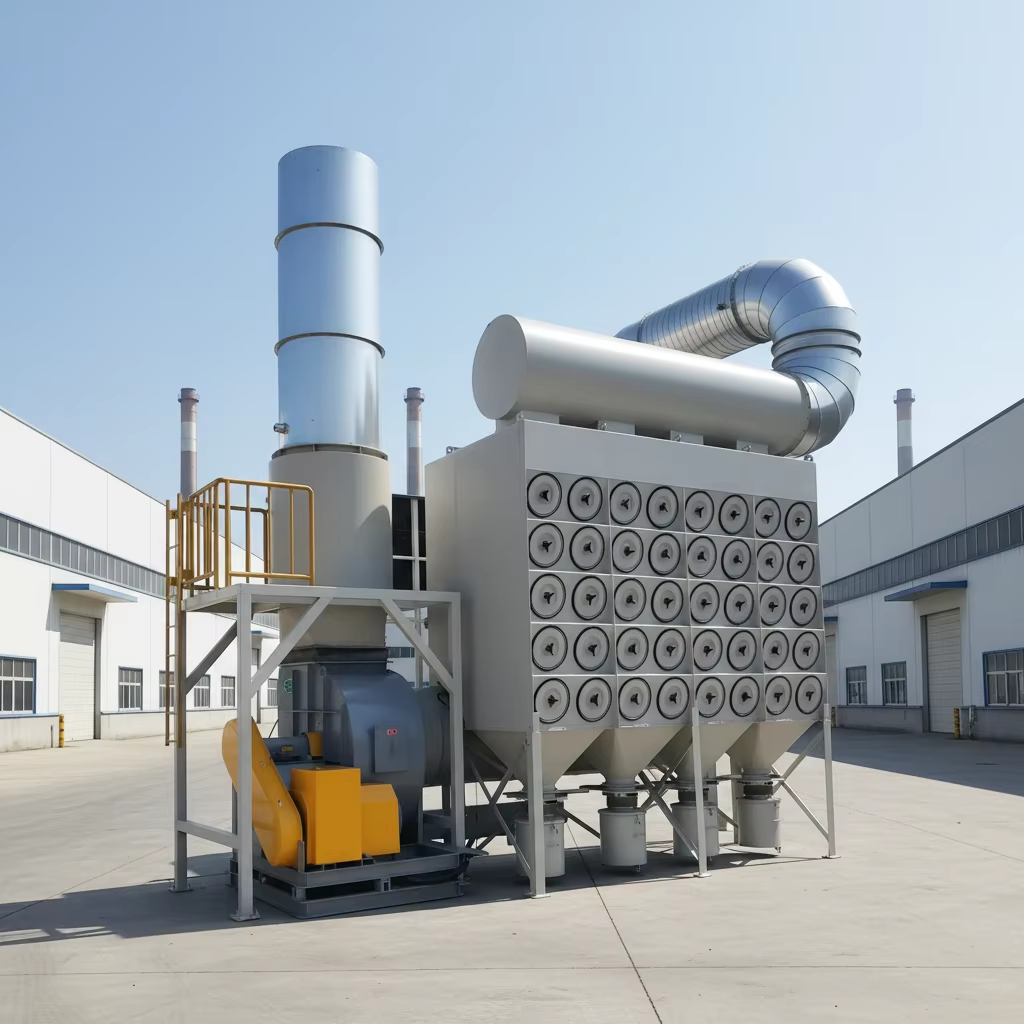

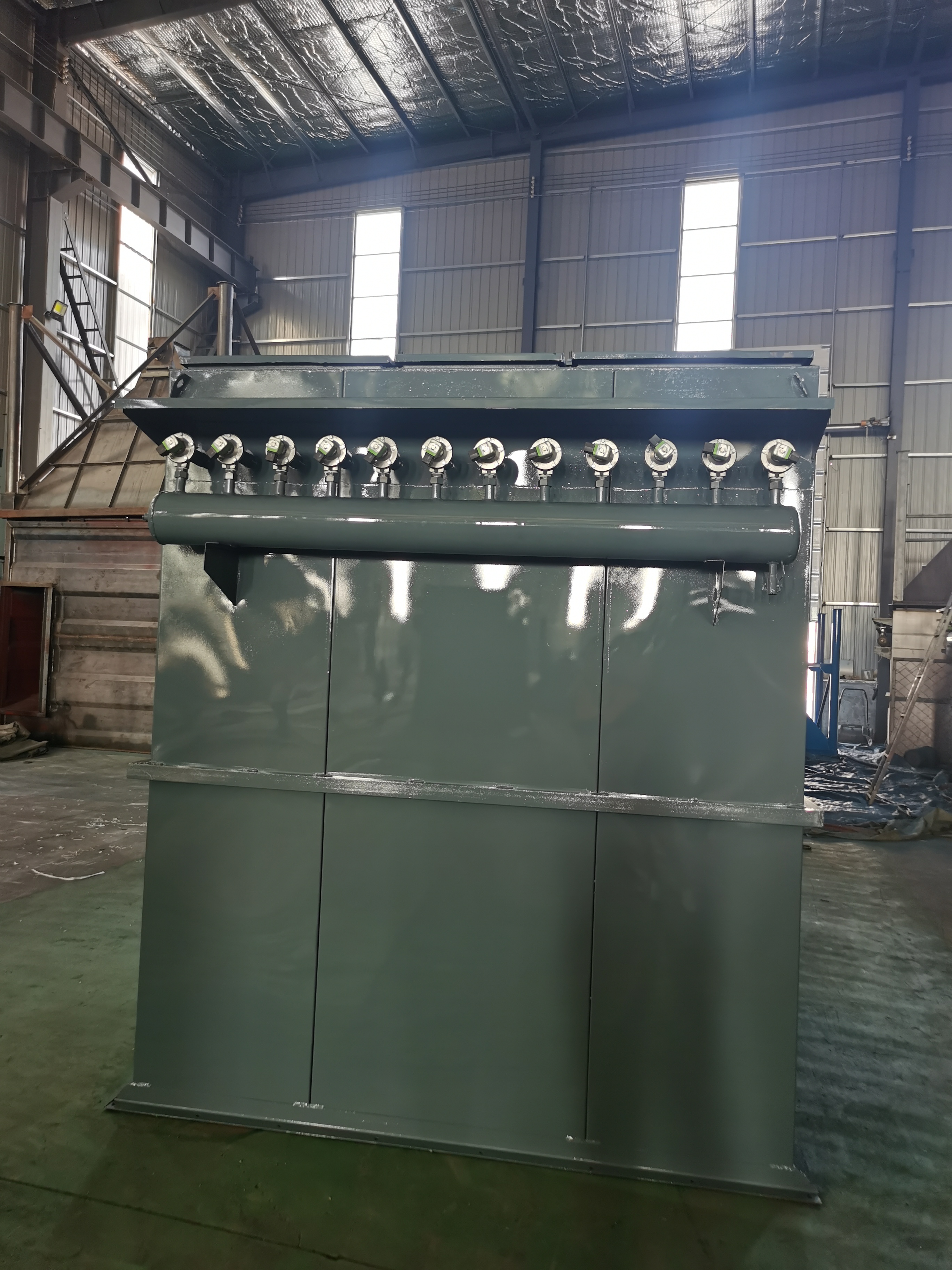

Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System
Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System
Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System
Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System
Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System
1 / 5
Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System
Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System
Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System
Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System
Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System

Purifier Equipment Powder Cleaning Machine with Dust Collector Efficient Wheat Flour Mill Flour Cleaning System

Send Inquiry

Product Description

Product Show
Product Show Image 1
Click to get the discounted price.

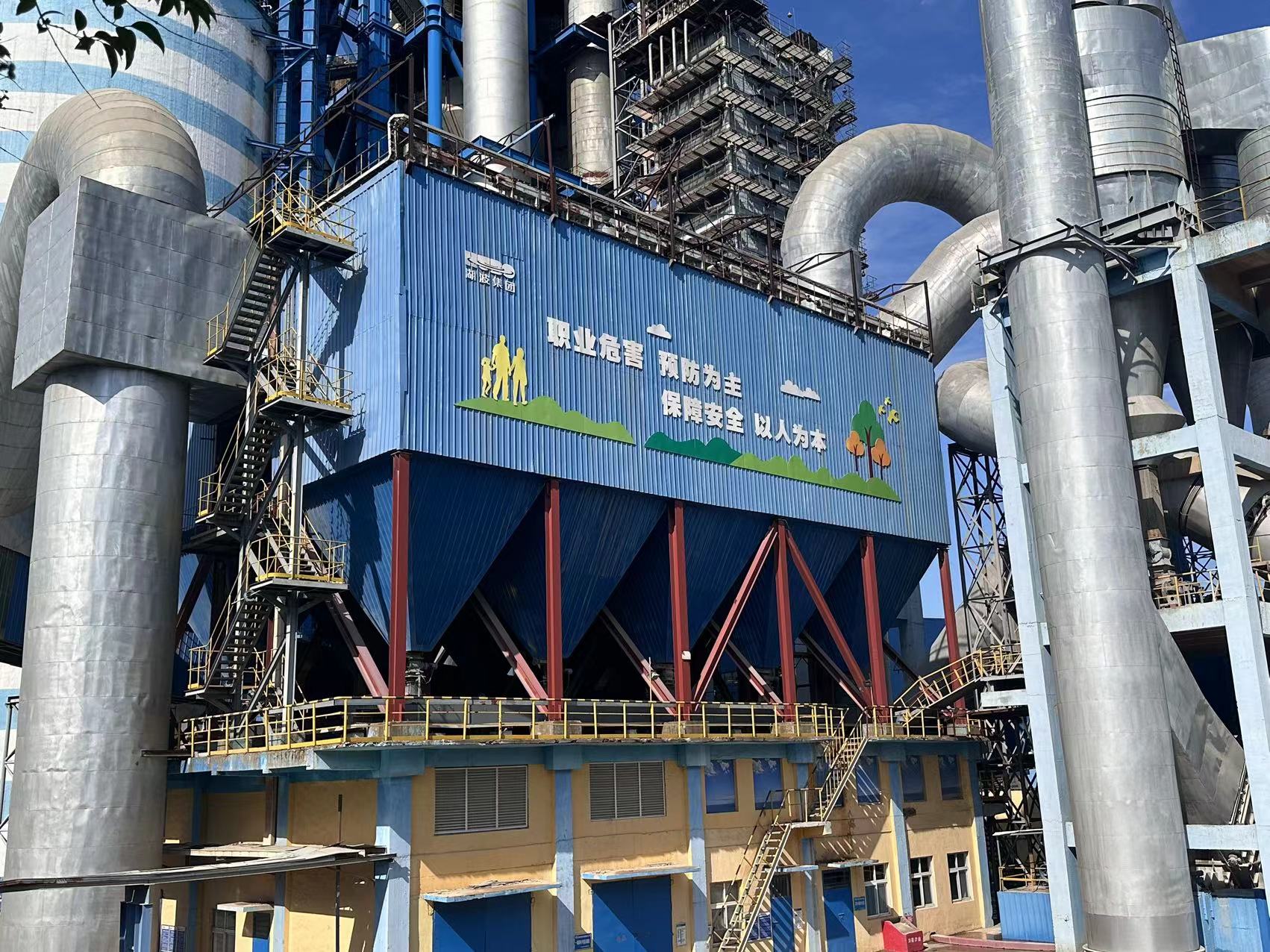

Discounted Price Banner Product Show Image 2 Product Show Image 3

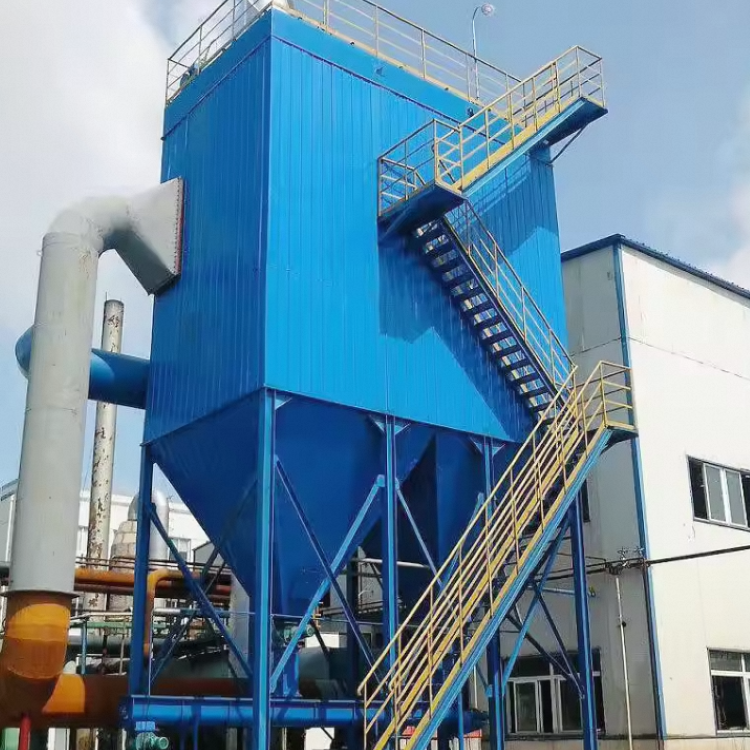

Product Details View 1 Product Details View 2
Item Value
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining, Cement plant, Power plant, Chemical plant, Metallurgical plant, Mining company, Building Material Factory, Rubber factory, Machinery Plant, Boiler plant, Flour mill, Furniture Factory, Glass factory, Asphalt plant
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type 2021 New
Core Components PLC, Engine, Motor, Filter Bag, Blower, Filter Cage, Dust Unloading Valve, Bucket Elevator, Screw Conveyor, Pulse Valve
Condition New
Dimension(L*W*H) Customized
Certification SGS, ISO, TUV Rheinland Certificate
Warranty 1 year
After-sales Service Provided Free spare parts
Product name Baghouse Dust Collector
Usage Filter Industry Dust
Material Customized
Cleaning way Auto Pulse Jet Cleaning System
Dust collection type Industrial Dust Collector
Color Customers' Requirements
To deal with the volume of flue gas 1000-2500000m³/h
Flue gas temperature to allow 70-220℃
Allow the entrance of dust concentration 10-1300g/Nm3
Bearing shell 5000-13000Pa
Resistance movement 1470Pa
Emission concentration ≤10mg/Nm³
Product Detail
Product Detail Main Image

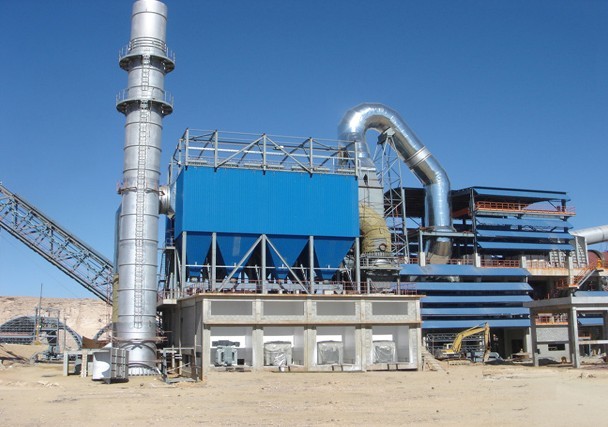

Saudi RCC Project

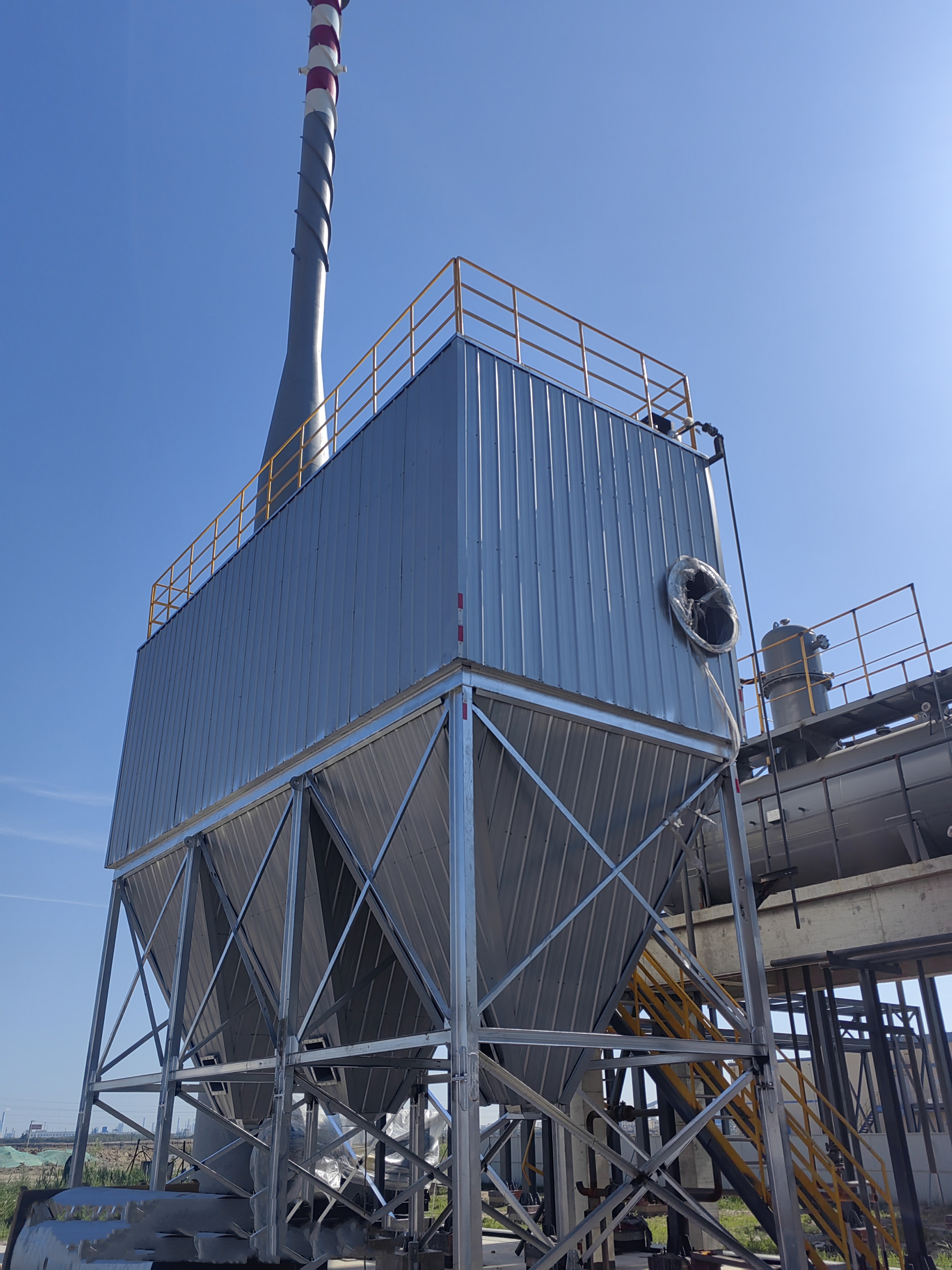

  • 1 The dusty gas enters the chamber from the lower part or side of the box, and the purified gas is collected upwards through the filter bag to the air purification chamber and discharged through the main exhaust pipe.
  • 2 There is an ash hopper under each chamber, and the collected dust is discharged through screw conveyors, star ash discharge valves and other devices.
  • 3 PLC control is adopted, which can set the timed cleaning (according to the time interval) or the fixed resistance cleaning (according to the resistance of the filter bag), and automatically control the opening and closing of the pulse valve and chamber valve.
Saudi RCC Project

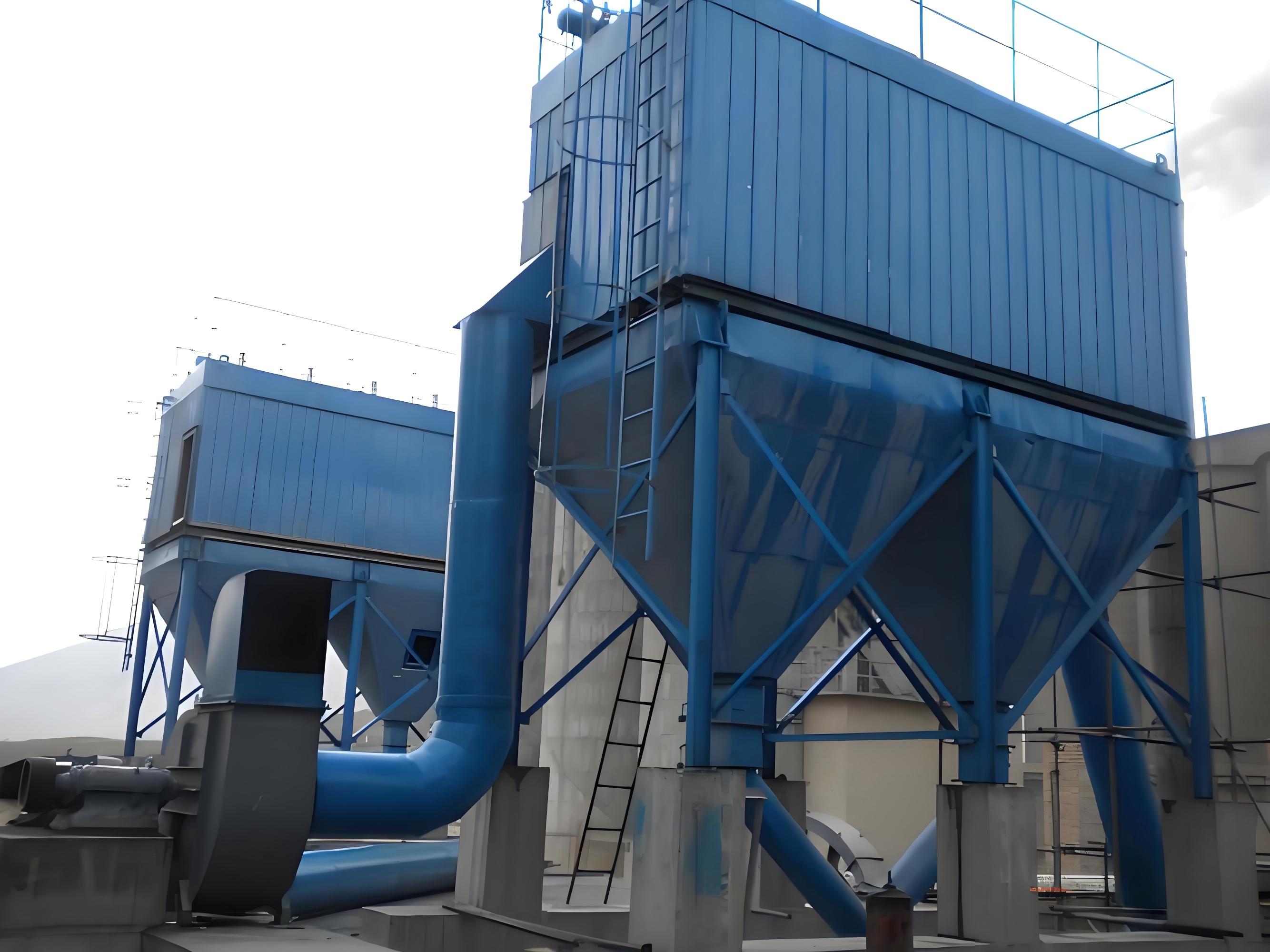

Pulse airbox bag dust collector
  • 1 High dust removal efficiency: The capture efficiency of fine particulate matter (PM2.5) can reach more than 99.9%.
  • 2 Good cleaning effect and long life of the filter bag.
  • 3 The treatment air volume is large and the adaptation range is wide.
  • 4 Stable operation and easy maintenance.
Pulse airbox bag dust collector

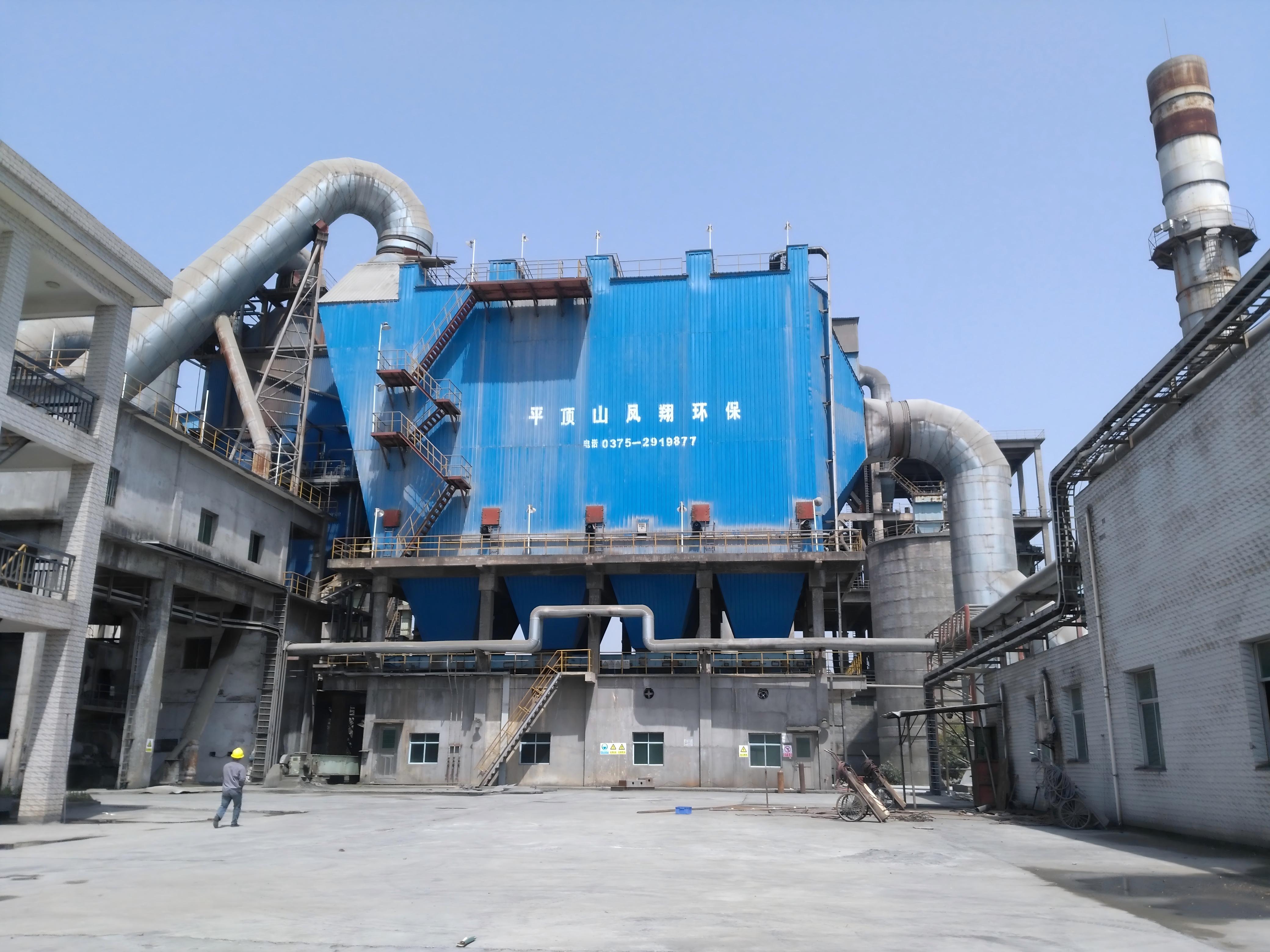

High-voltage electrostatic dust collector
  • 1 Large processing air volume, suitable for large-scale industrial scenarios.
  • 2 High dust removal efficiency and stable effect on fine particulate matter.
  • 3 Low operating resistance and relatively low energy consumption.
  • 4 Adapt to complex working conditions such as high temperature and high humidity.
  • 5 Small maintenance workload and long service life.
High-voltage electrostatic dust collector

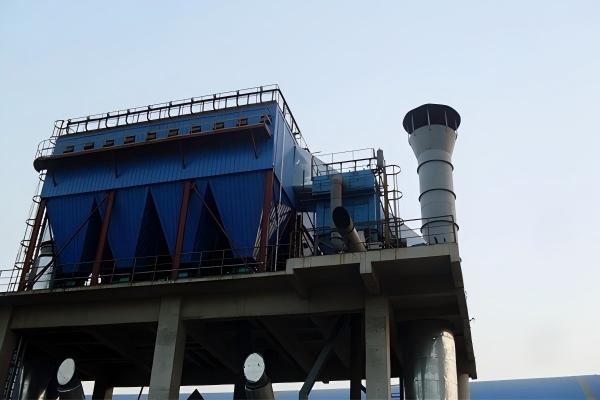

Coal grinding bag dust collector
  • 1 High dust removal efficiency and excellent purification effect.
  • 2 Strong adaptability, capable of handling complex dust.
  • 3 Stable operation and controllable maintenance cost.
  • 4 High safety, suitable for coal grinding environment.
  • 5 Dust can be recycled and reused, and it is highly economical.
Coal grinding bag dust collector
Product Detail Extra View
Our Advantage
Our Advantage 1 Our Advantage 2
About Us
About Us Factory 1 About Us Factory 2
FAQ
FAQ Visual Banner
Q1: How does a Baghouse Dust Collector filter industrial dust?
A: Dusty gas enters the filtration chamber from the lower or side inlet. As it passes upwards through specialized fabric filter bags, dust particles are captured on the bag surfaces, while clean gas escapes through the outlet at the top.
Q2: What is the main advantage of the Auto Pulse Jet Cleaning System?
A: The Auto Pulse Jet Cleaning System uses short, high-pressure bursts of compressed air directed down into the filter bags. This causes the dust cake accumulated on the bags to shed off into the hopper, ensuring stable operating pressure and continuous, high-efficiency system operation.
Q3: Can your baghouse systems handle high-temperature industrial gas?
A: Yes. Depending on your operational requirements, the filter bag materials can be customized to safely handle continuous gas operating temperatures ranging from 70°C up to 220°C.
Q4: What emission concentrations can be achieved with this dust collector?
A: Our high-efficiency systems are designed to meet strict environmental standards, achieving low emission concentrations of ≤10mg/Nm³.
Q5: Which industries are these dust collectors suitable for?
A: They are widely applicable to heavy industries, including cement plants, power plants, chemical processing facilities, metallurgical plants, mining operations, boiler systems, and building material factories.
Q6: What controls the automatic cleaning cycle of the system?
A: The system is operated by a central PLC controller. It can be set to initiate the cleaning cycle either via pre-set time intervals or based on the differential pressure resistance of the filter bags.
