The purifiers (purifier for middlings in maize mills) through methods of vibrate, wind, sieve, with small inclination of sieve surface and the sieve covering set gradually sparse from the materials in way to materials out way, to make the material in the screening surface is flowing and thin gradually, half suspended state fluid. This makes it grade automatically according to the different bulk specific gravity, thus form different materials level with unobvious line.
The materiel is divided into three parts by purifier processing:
| Type | Capacity(kg/h) | Amplitude (mm) |
Screen Angle (°) |
Aspiration Volume (m³/min) |
Power (KW) |
Weight (kg) |
Shape Size LxWxH(mm) |
|
|---|---|---|---|---|---|---|---|---|
| Coarse | Fine | |||||||
| FQFD49x2x3 | 1200-2600 | 800-1600 | 8.5-9 | 1-2 | 40-70 | 2x0.18 | 970 | 2700x1290x1675 |
| FQFD59x2x3 | 1800-3500 | 1200-2000 | 55-90 | 2x0.25 | 1100 | 2700x1490x1675 | ||

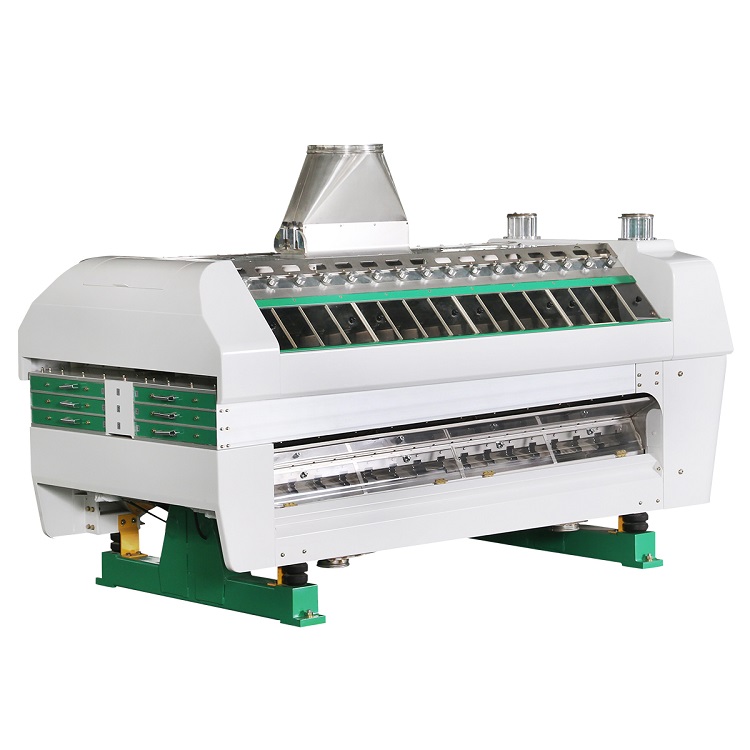

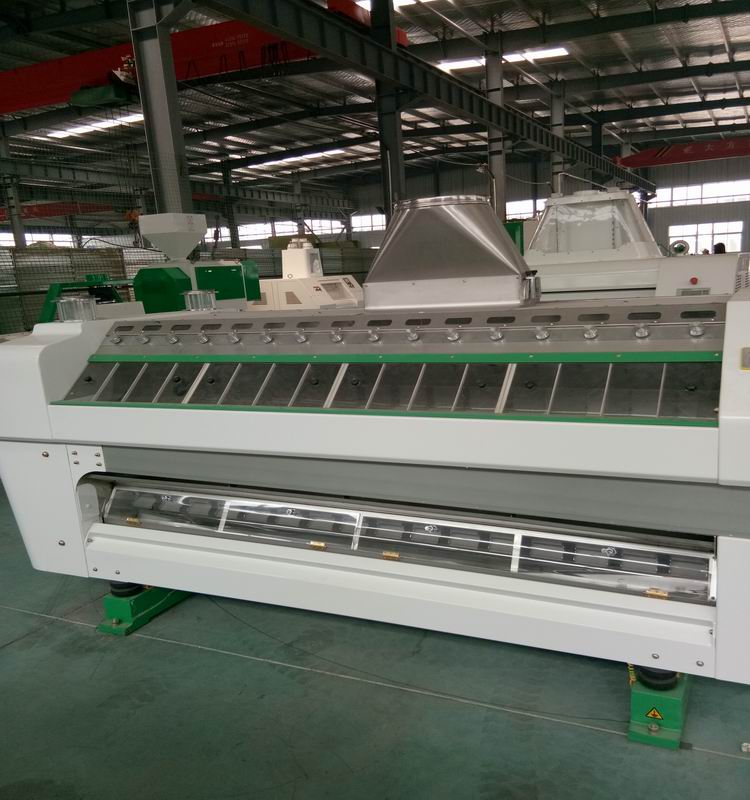

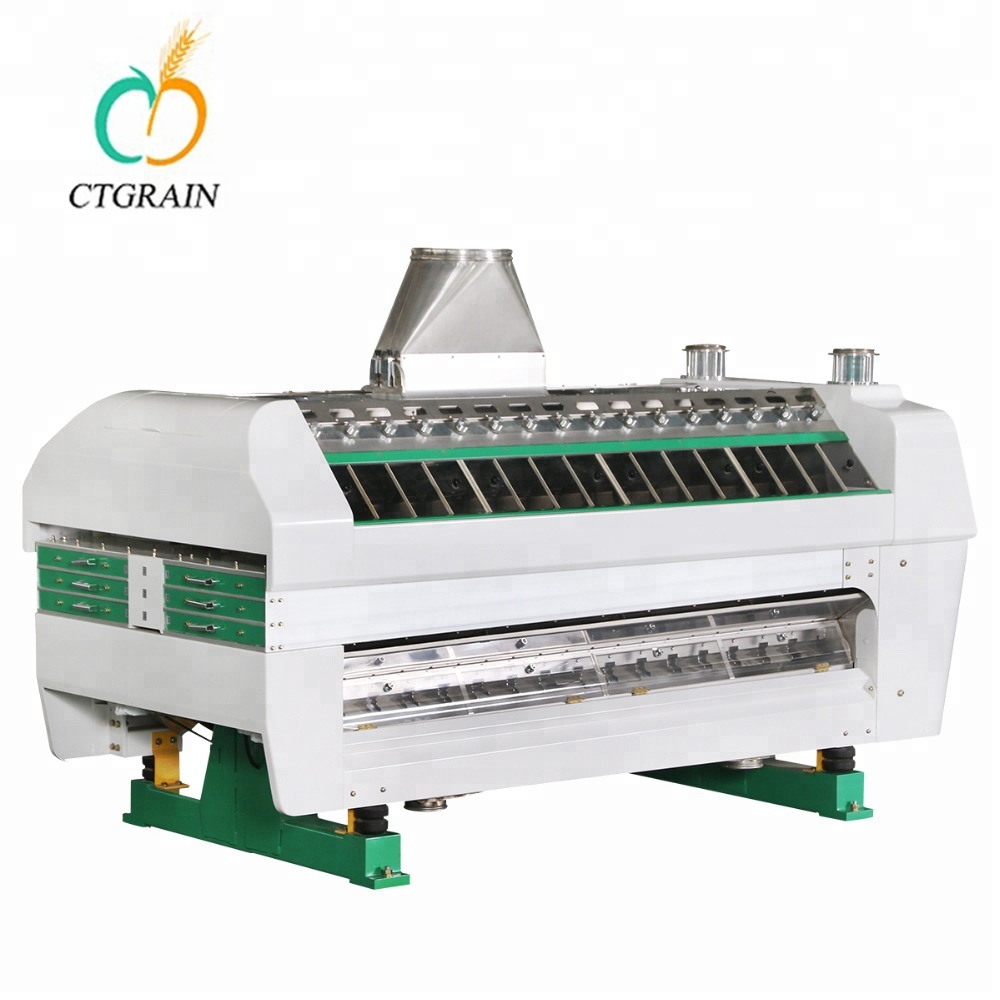

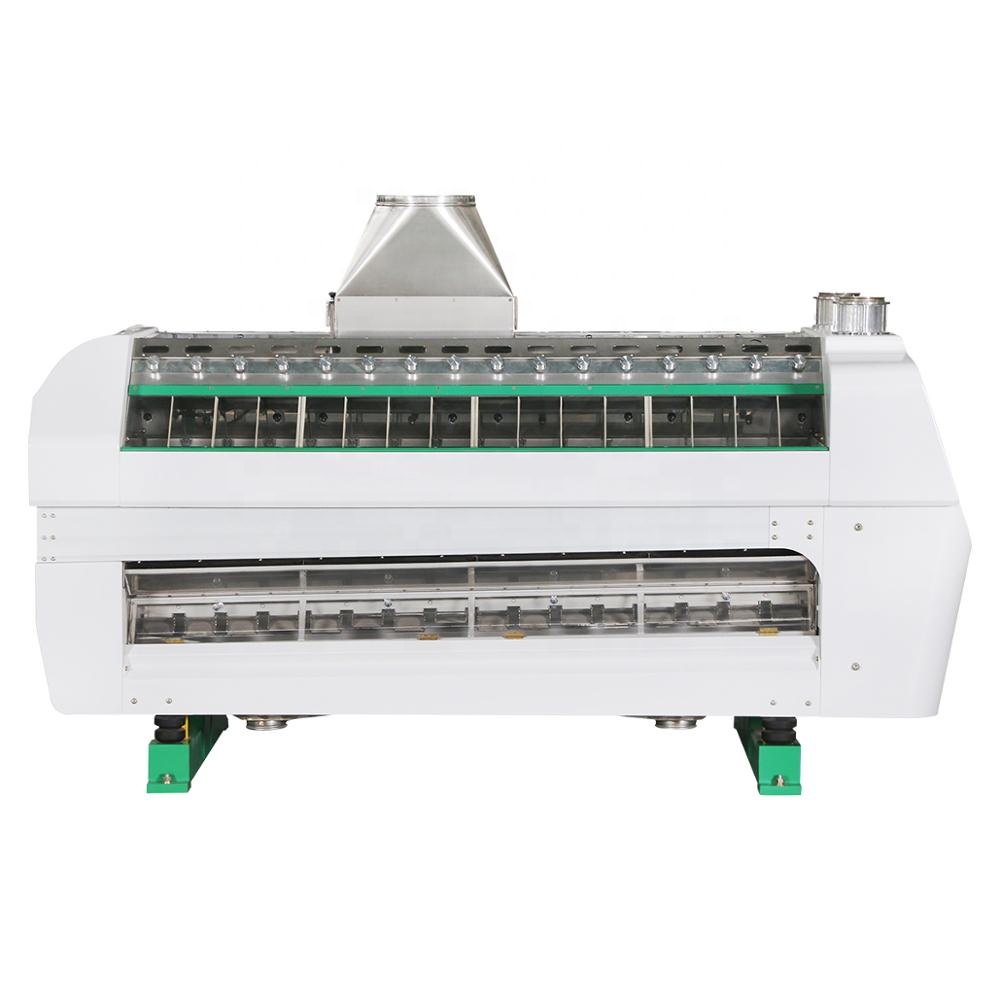

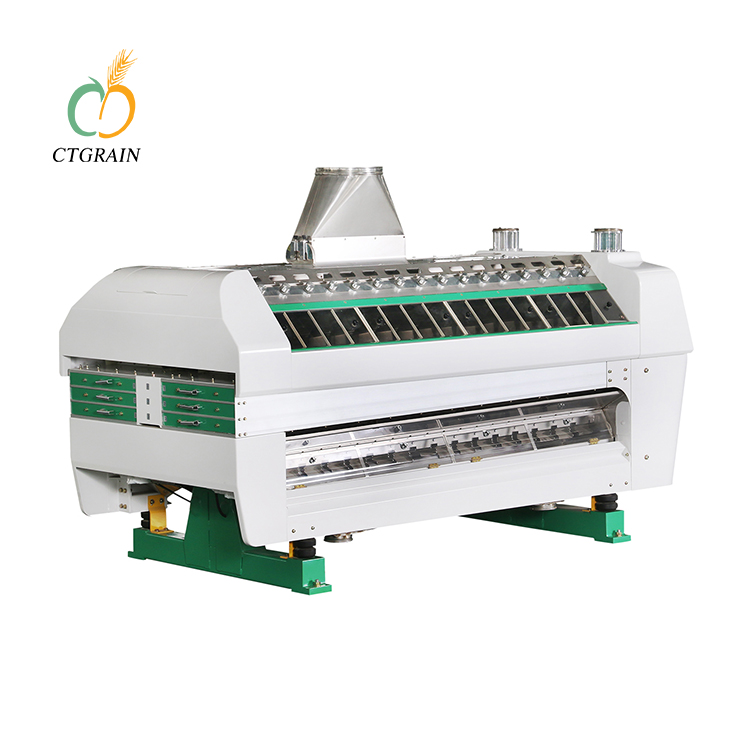

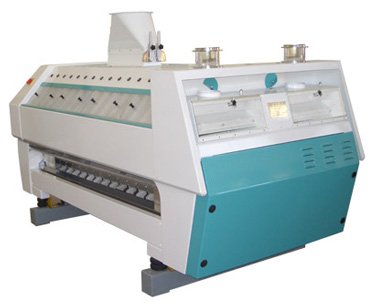

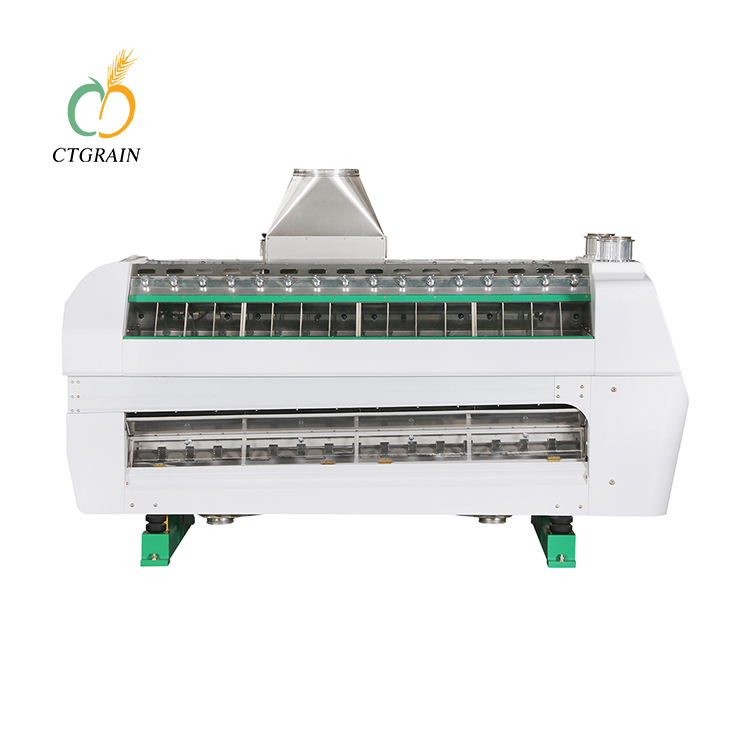

This machine is designed for separating pure endosperm granular from its mixture. It comprises two independent sieve-decks, each with three ranges of double superimposed sieves. The two sieve-decks are supported by four rubber spring bushes on a steel frame and vibrated by two vibration motor which installed at the end of the machine. Independent aspiration is connected on the top of the machine. The mixture flows into sieve decks and is classified by the interaction of vibration and suction while it's flowing to the end of the machine. The materials then are separated to pure endosperm semolina, endosperm with barn fraction, pure bran fraction and then are sent to different next passage.
Are you the manufacturer?
Yes, We are a professional flour milling machine manufacturers.
Will you help to install the machines?
Yes, our engineers can indicate installation, test running, and training local operators. Engineers available to service machinery overseas after-sales Service.
Do you accept small order?
Yes, We accept small order, the MOQ is 1.
How do I make payment for my order?
You make payment by taking the proforma invoice and our bank details, you can use T/T(bank transfer) and L/C to finish the payment.
What's the warranty time?
Our warranty time is 12 months, so you can trust us and the quality of our machine.
