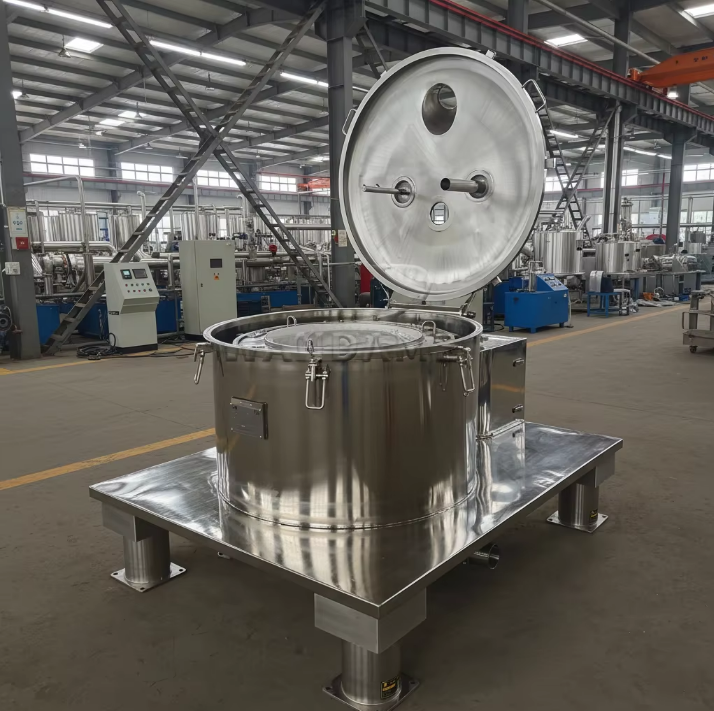

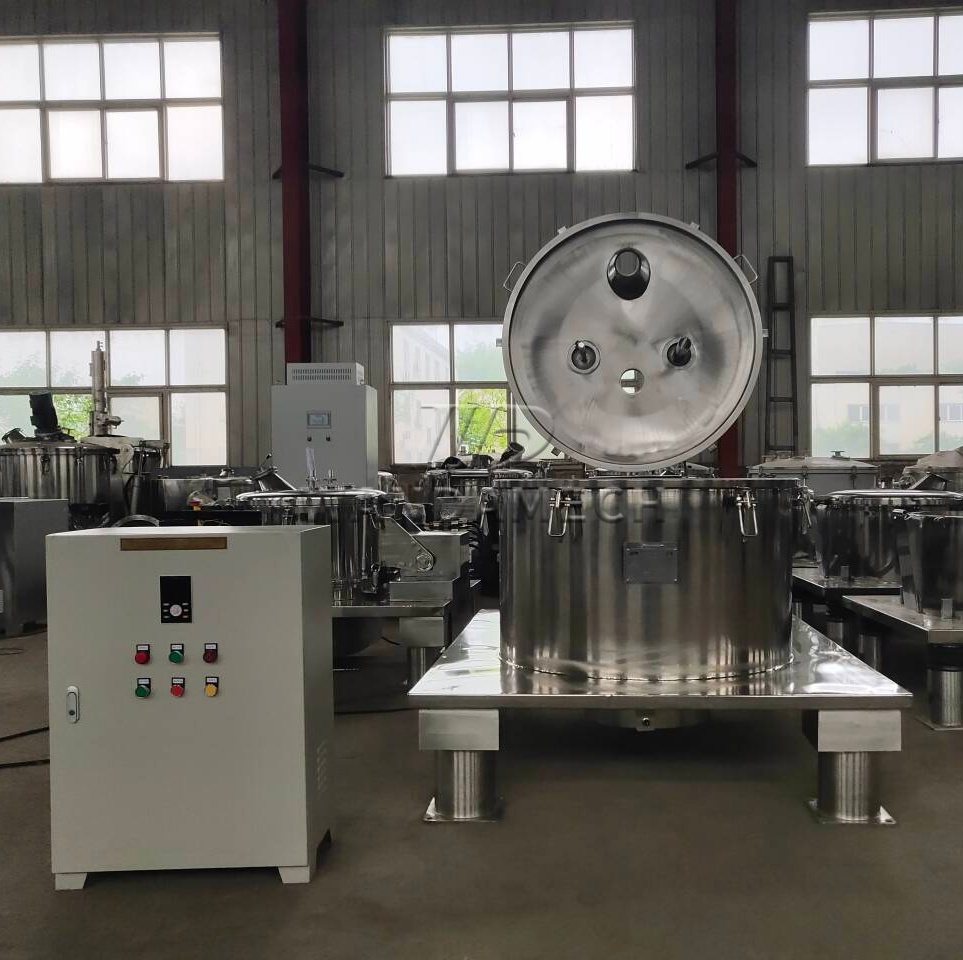

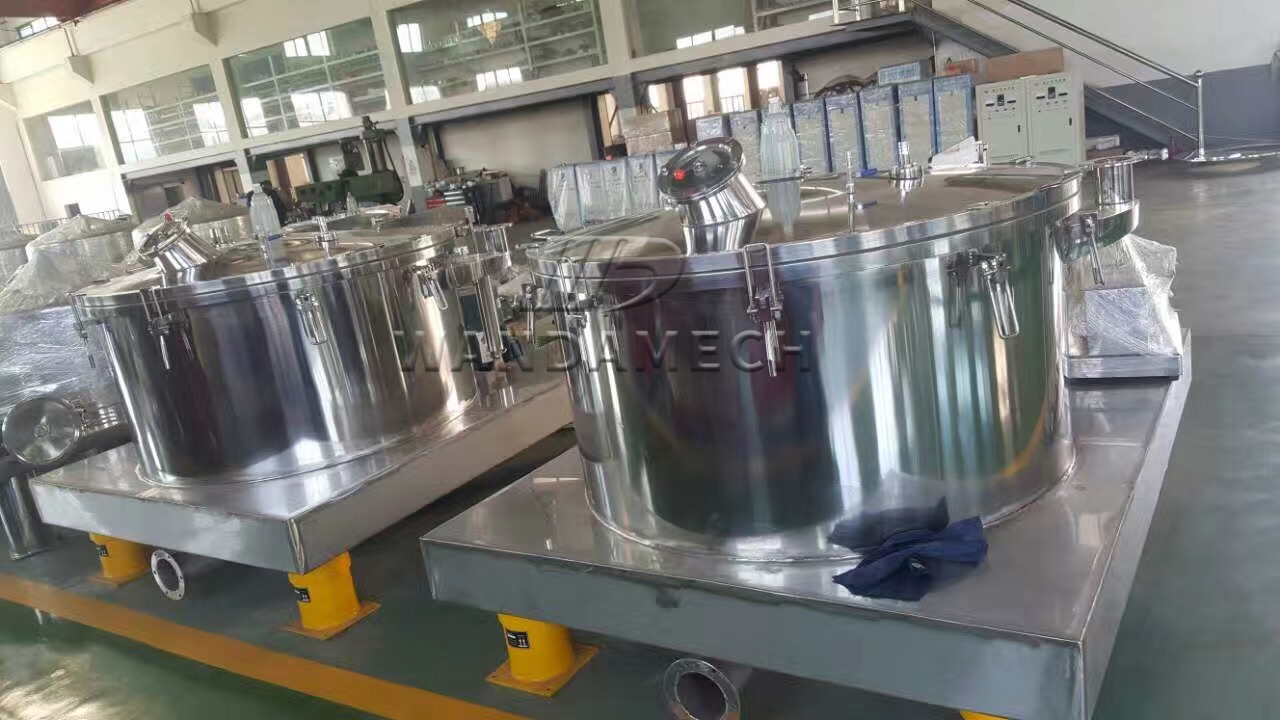

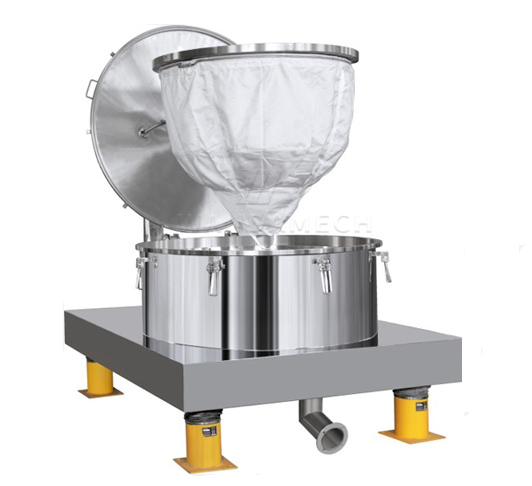

The Flat Bag Centrifuge is a closed structure filtration equipment, which is composed of driving device, body, casing, drum, hanging bag, brake device, clutch and other components. The materials are added into the drum from the upper part. Under the action of centrifugal force field, the liquid phase passes through the filter medium and is discharged out of the machine. The solid phase is trapped in the drum. After the machine is stopped, the liquid blocking plate and the filter bag are lifted out together to the designated place to unload.

• Frequency conversion control is adopted to ensure smooth start and adjustable separation factor.
• It has low labor intensity and high work efficiency.
• The structure design is reasonable, and the sanitary dead angle is effectively eliminated. The transition of structural parts is smooth, and the surface is polished. The external structural parts, fasteners and drum are made of stainless steel. The shell is flip type, which can thoroughly clean the interlayer space between centrifuge shell and drum.
• The frame and the casing are welded as a whole with high bearing strength.
• The frame is of flat structure, which reduces the center of gravity of the machine, and the installation space is smaller. The flat frame can be used as an operation platform, which is more convenient to operate.
• Equipped with liquid damping shock absorber, it can eliminate vibration more effectively and simplify daily maintenance.
• The shell cover is provided with a feeding pipe, a washing pipe, an observation mirror and a lighting hole.
• According to the actual situation, the online cleaning system can be selected to clean the inner wall of the centrifuge shell, the inner and outer surface of the drum, the surface of the liquid collecting tank and other invisible parts of the centrifuge, which meets the GMP specification.

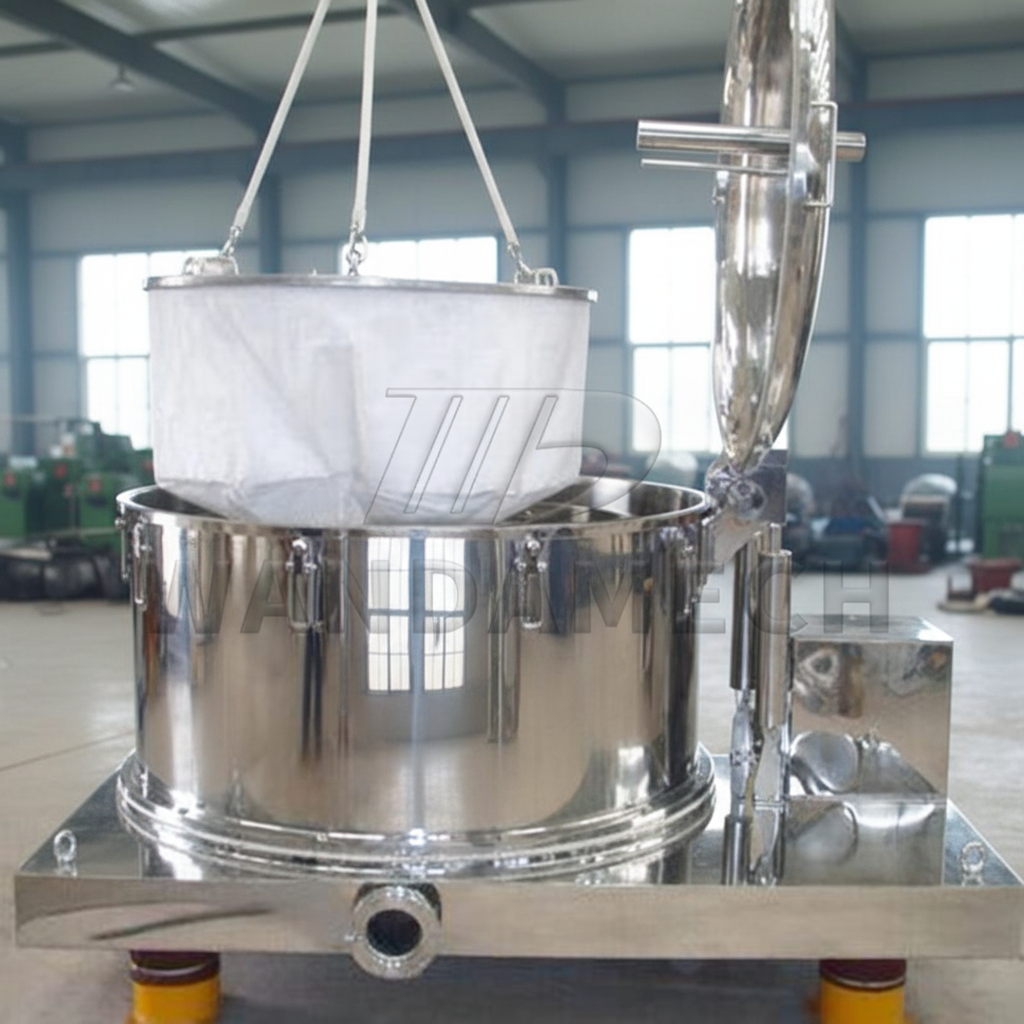

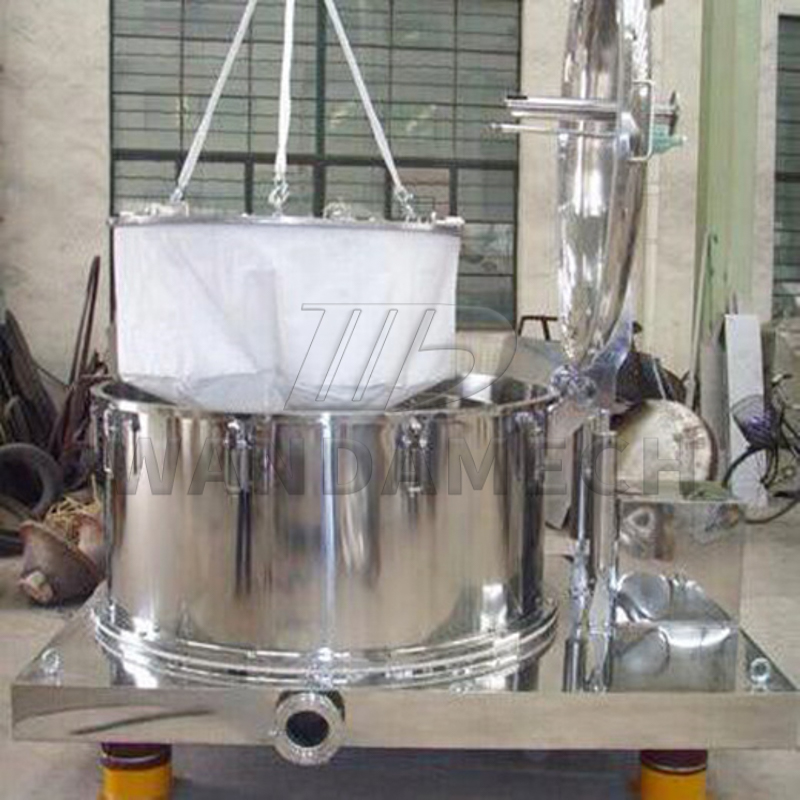

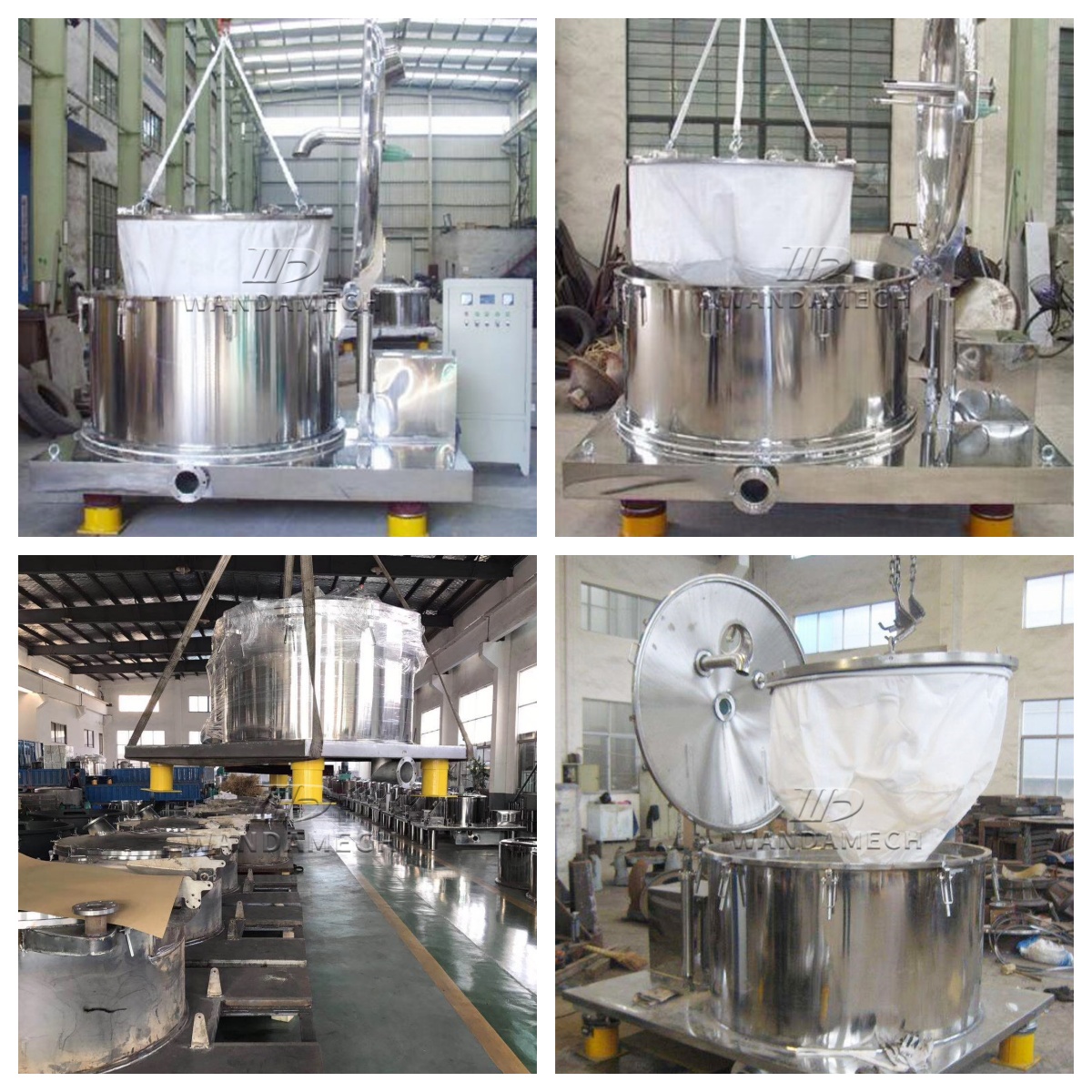

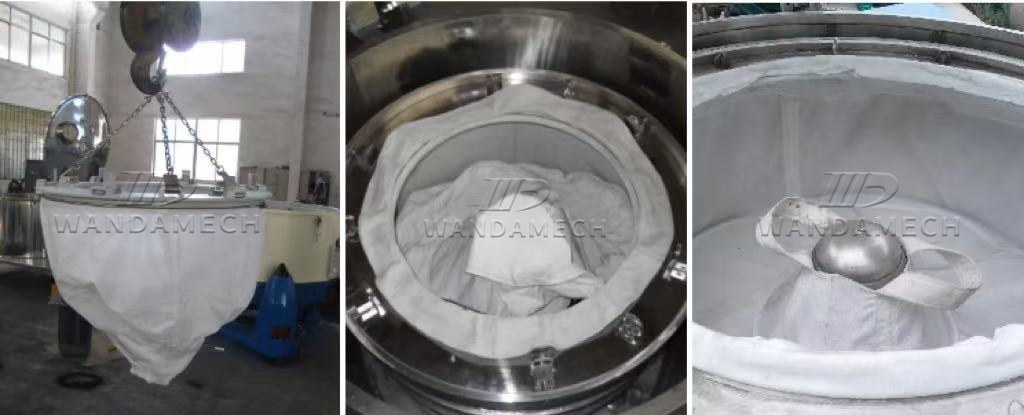

Flat bag centrifuge is a kind of filter intermittent operation centrifuge. The drum baffle plate and the filter bag are fixed together. The baffle plate and the drum are fixed by bolts. After feeding, the solid phase is separated by filtration. The solid phase forms filter cake in the filter bag. Stop the machine to release the bolts and use the electric hoist to lift the filter bag out for unloading, thus forming a working cycle. The cycle can be completed 3-8 times per hour. The drum is started by the transmission part equipped with clutch to generate centrifugal force field. The filtrate injected into the drum is separated through the filter bag lined in the drum, and the filter residue is trapped in the drum. The filtrate is led into the collection container through the liquid outlet pipe. When the charging limit is reached, stop feeding, cut off the power supply, and stop the drum operation with the brake device (the brake unit can be used when equipped with frequency converter) Open the machine cover, lift the filter bag out of the machine body with lifting tools, and discharge, that is to complete a working cycle.

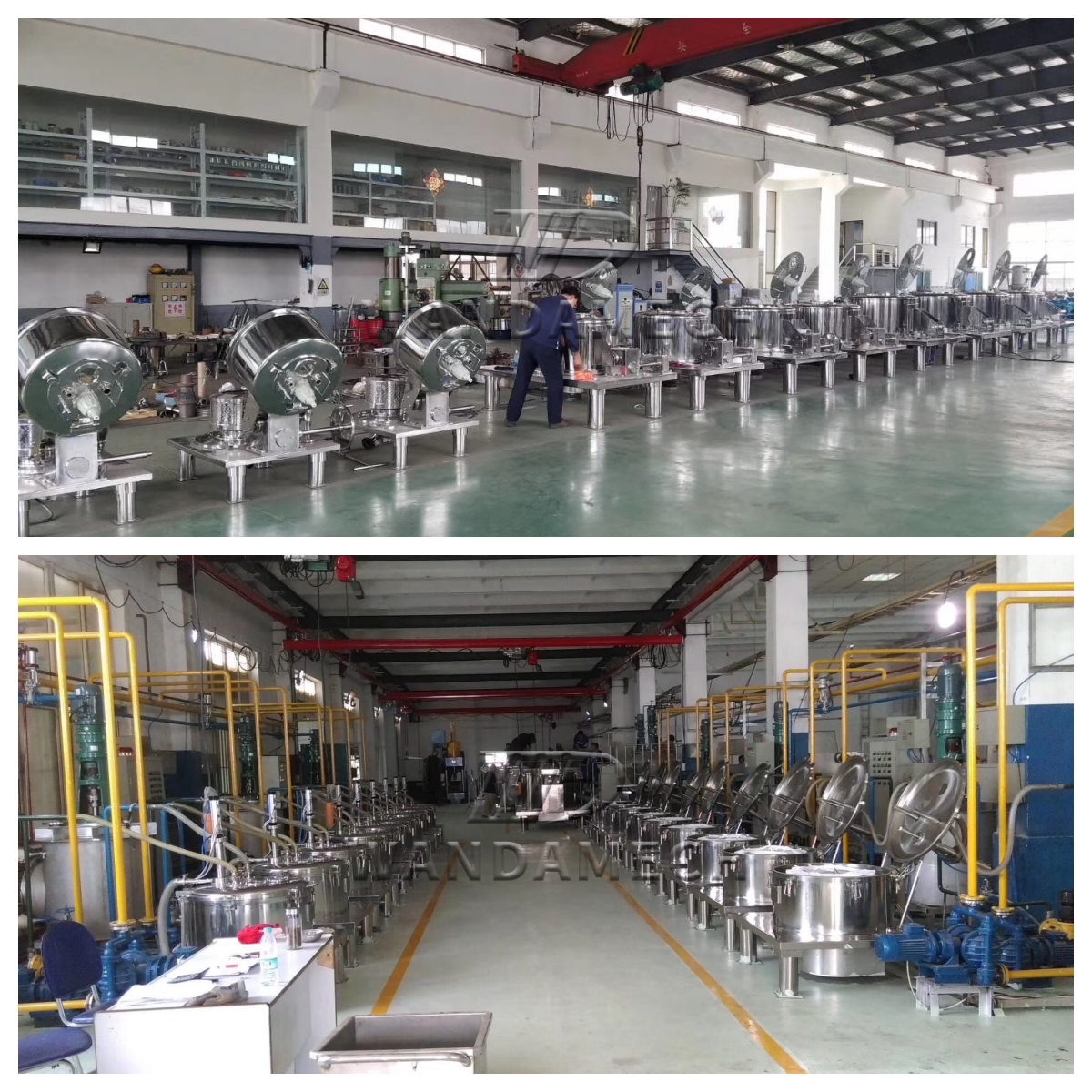

We are specialized in design, development, manufacture and sale of industrial, chemical and packaging machinery. Our products includes tubular centrifuge, decanter centrifuge, disc centrifuge, plate series centrifuge, filter press machine and so on.
