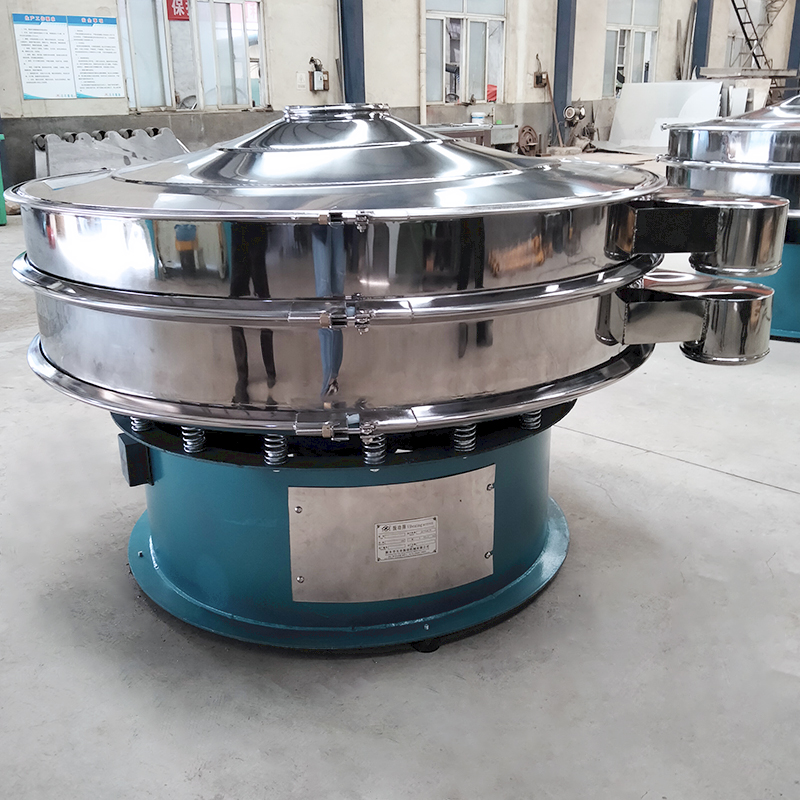

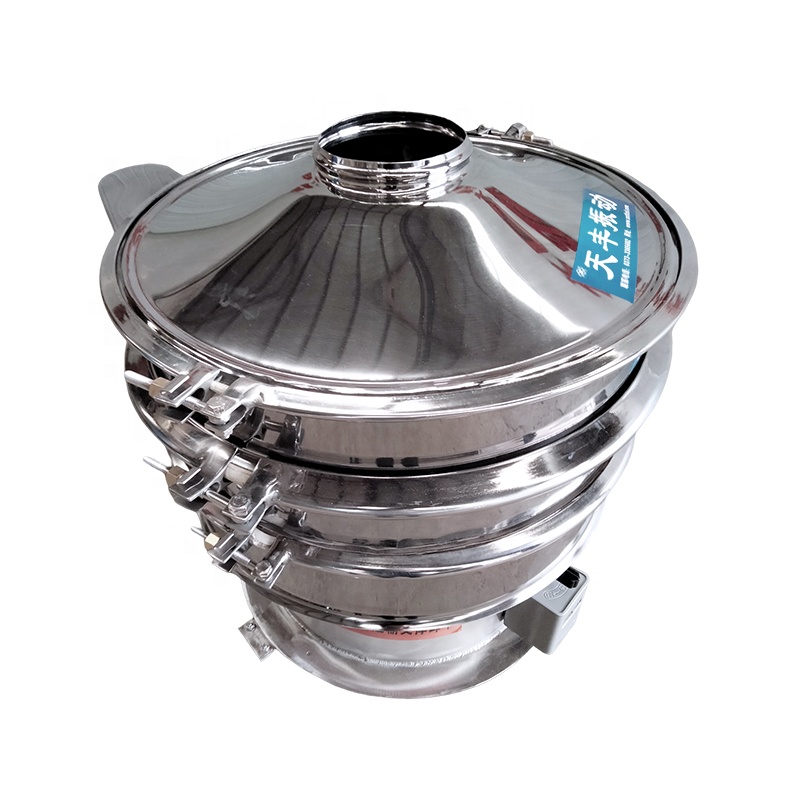

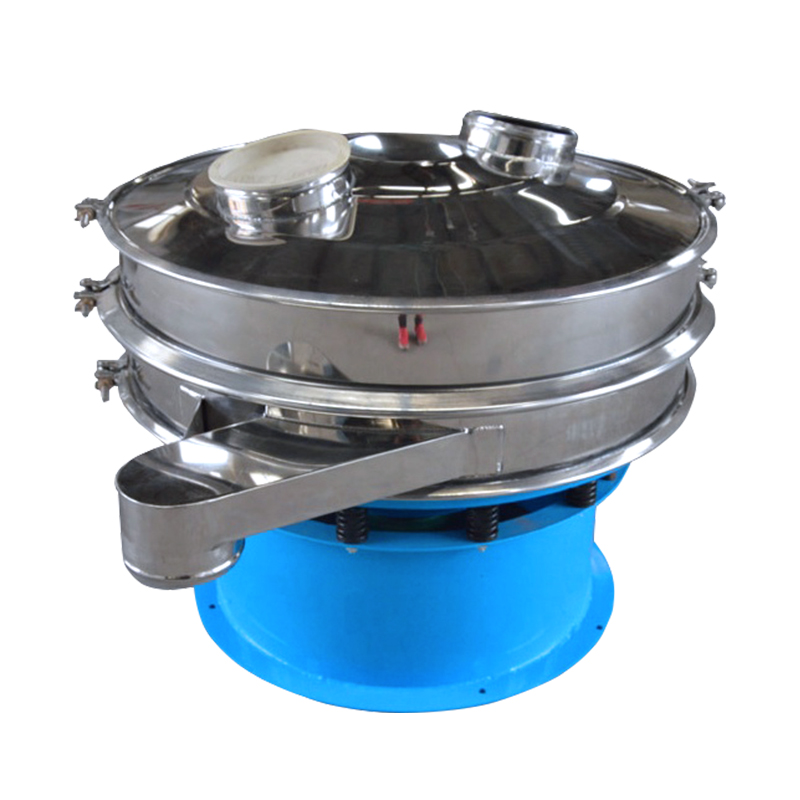

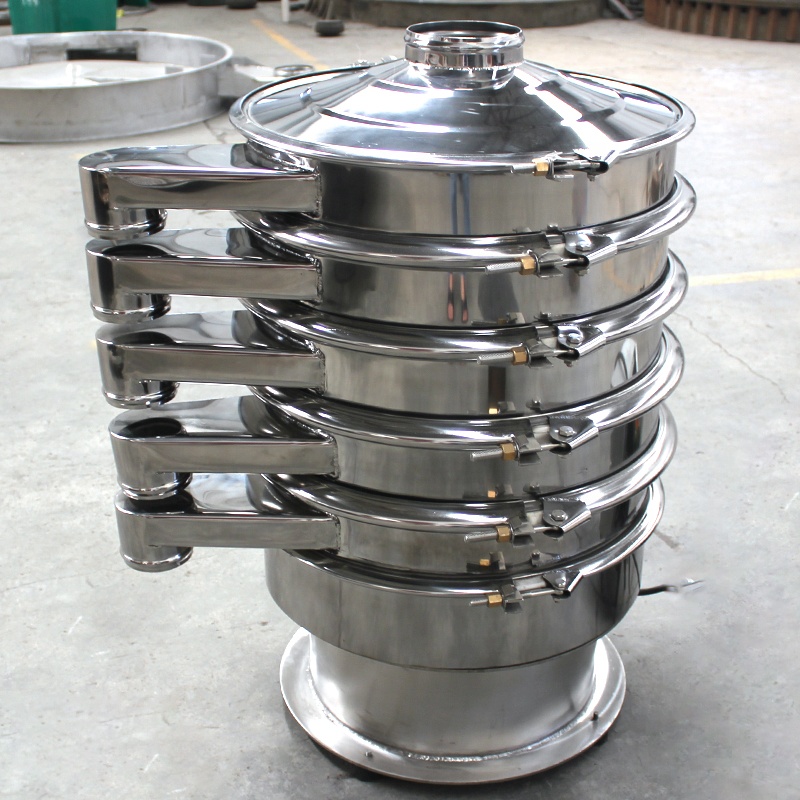

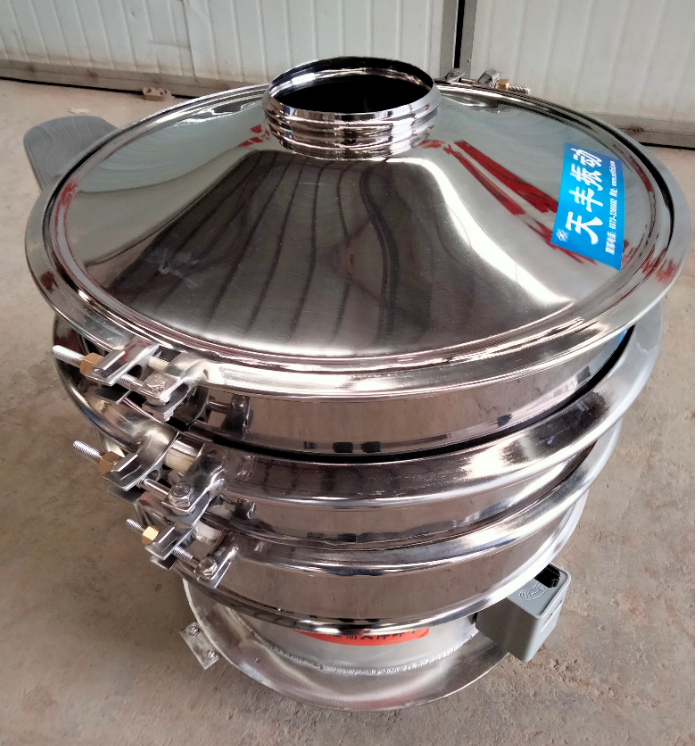

Rotary screen is a brief name of rotary vibrating screen. The rotary vibrating screen is a kind high-precision fine powder screening machine with low noise and high efficiency. It only takes 3-5 minutes to change the screen, and the replace of screen is quick and convenient. The screen adopts fully closed structure, and it can be used for screening and filtering of particles, powder, mucus and other materials. The rotary vibrating screen is excited by a vertical motor. The upper and the bottom of the motor are equipped with eccentric weights to convert the rotating motion of the motor into horizontal, vertical and inclined three-dimensional motion, and then the motion will be conveyed to the screen surface. By adjusting the phase angle of the upper end and the lower end, the movement of the material on the screen surface can be changed very well.

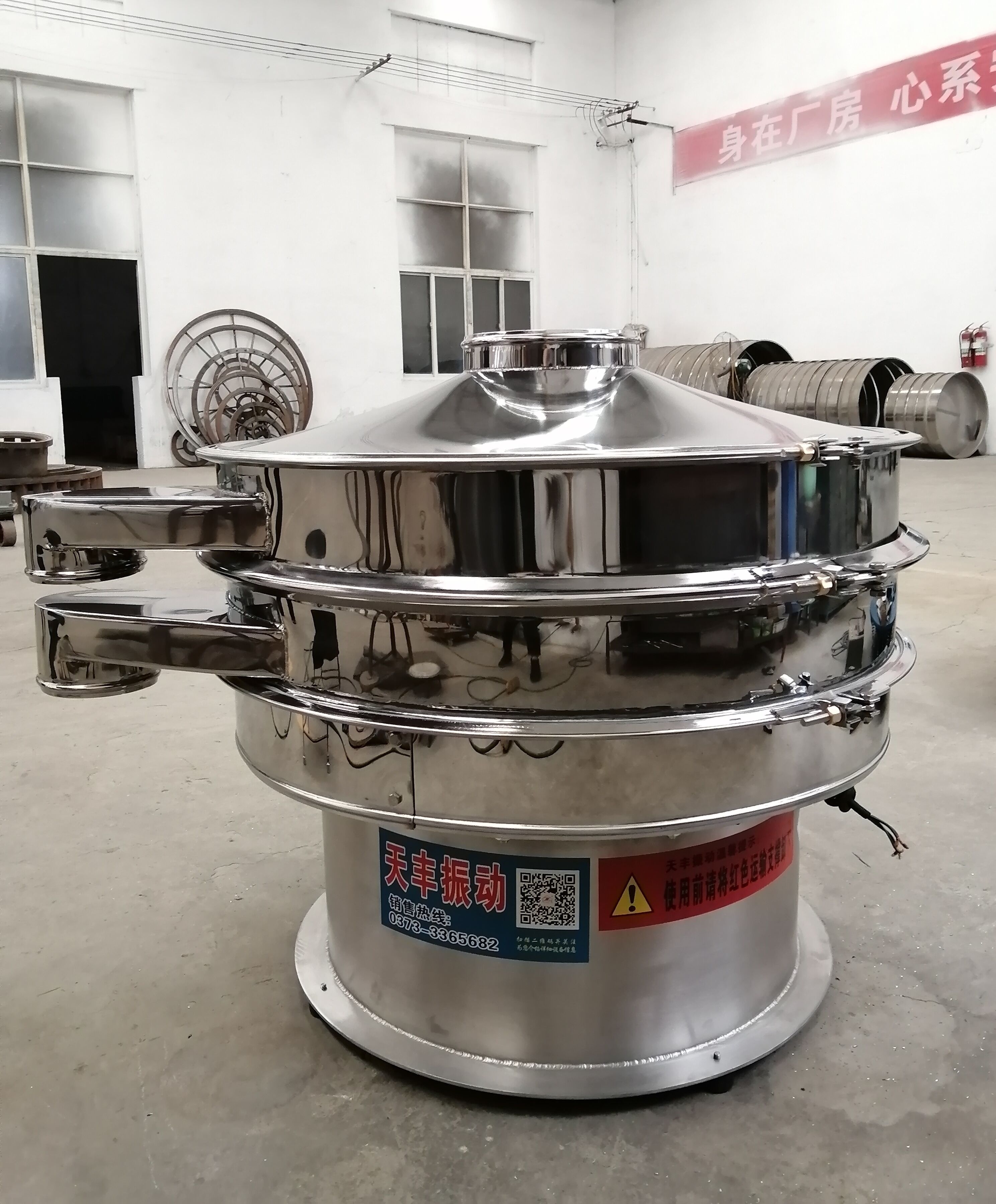

Ultrasonic vibration screener for flour impurity removal

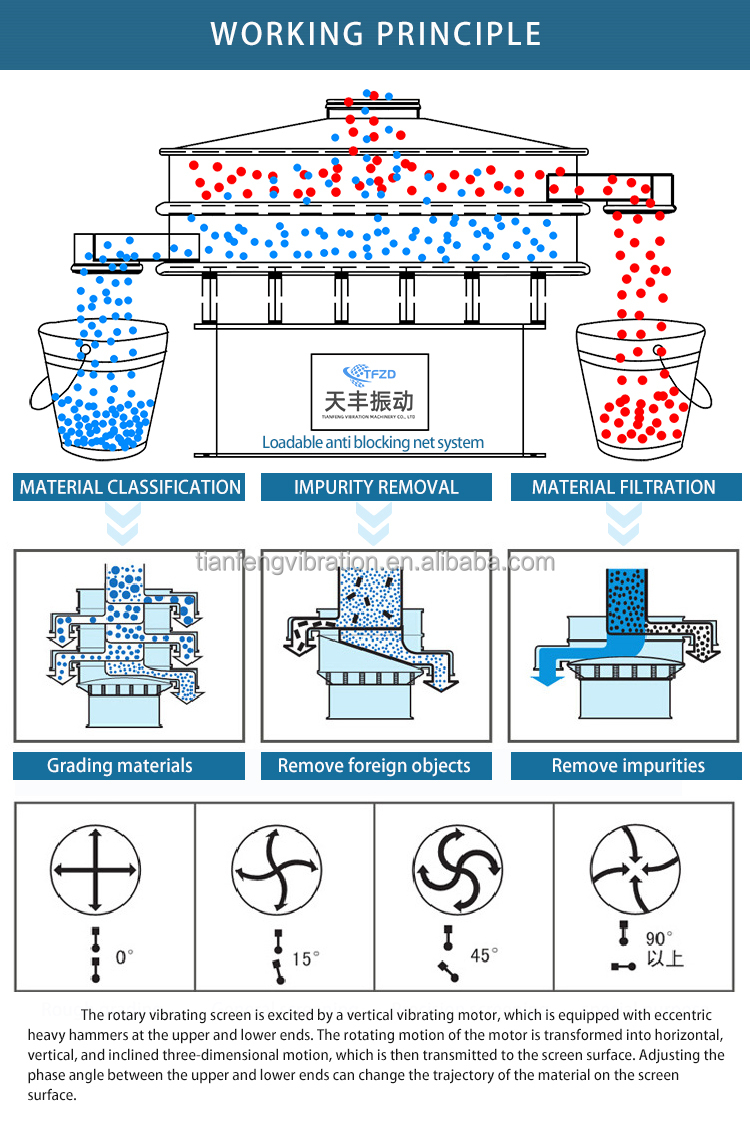

The rotary vibration screen is excited by the unbalanced eccentric weights at the both ends of the vertical vibration motor shaft, or by the eccentric weights at the both ends of the vibrator carried by the ordinary motor. Due to the rotation of the drive motor, the vibrating part of the screen machine moves in three dimensions in the horizontal, vertical and inclined directions. By adjusting the phase angle of the upper and lower weights, the movement track of the material on the screen surface can be changed to meet the best screening effect of various specific gravity materials. Adjusting the counterweight blocks of the upper and lower weights can achieve different excitation forces, so as to achieve better screening weight of materials with different specific gravity and different mesh numbers.

Granular and fine powder ultrasonic vibrating screen machine

Chemical industry: resin powder, pigment, washing powder, micro powder, paint, soda powder, lemon powder, rubber particles, plastic particle, etc.
Abrasives, ceramic industry: alumina, quartz sand, mud, sprayed soil particles, etc.
Food industry: sugar, salt, alkali, monosodium glutamate, milk powder, soy milk, yeast, fruit juice, soy sauce, vinegar, etc.
Paper industry: coating paint, clay mud, black and white liquid, waste liquid, paper-making liquid, wastewater recycling, etc.
Metallurgical industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder, electrode powder, etc.
Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, Western medicine powder, Western medicine liquid, Chinese and Western medicine granules, etc.
Environmental protection: garbage, human and animal excrement, and urine, waste oil, food wastewater, wastewater processing, etc.

Aluminum powder screening vibrating screens with different capacities and diameters

After you place the order and pay the deposit in our company, we will start to arrange the production and contact the ocean freight transportation agency to reserve the position. Two days before the end of production, you need to complete the final payment. Then, we will inform the ocean cargo transportation agent company that it is ready to come to the factory to pull the goods to the port. On the day of delivery, we will send you the factory video and pictures, and mark the corresponding English name of each product and product parts with a marker to prevent you from not knowing what each part is after receiving the goods. At the same time, we will put the English version of the product instructions in the cargo box. We generally select freight forwarders with preferential prices for customers to deliver goods for you. The shipping method can be FOB or CIF. You can also choose EXW, and then contact the goods agent company yourself. About the packaging method and the shipping method, if you have any different idea, welcome to contact us.

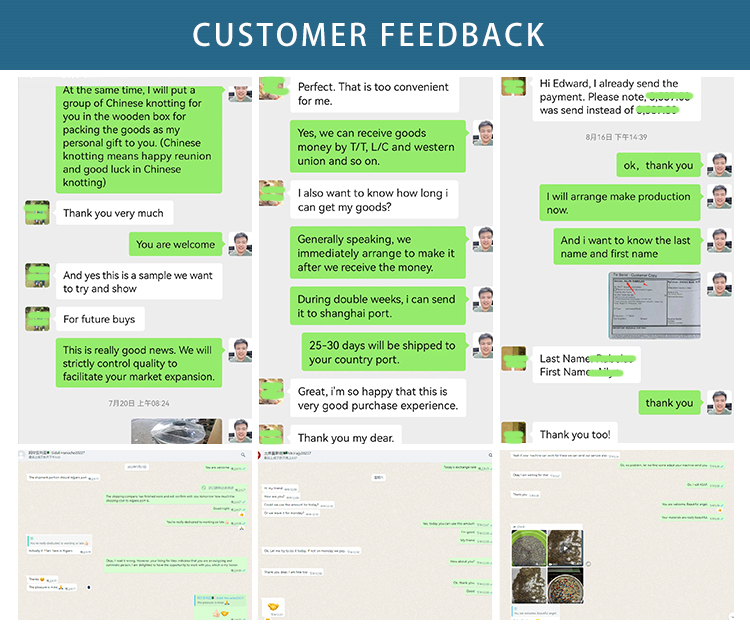

Feedback from users after use - Customers Visits
