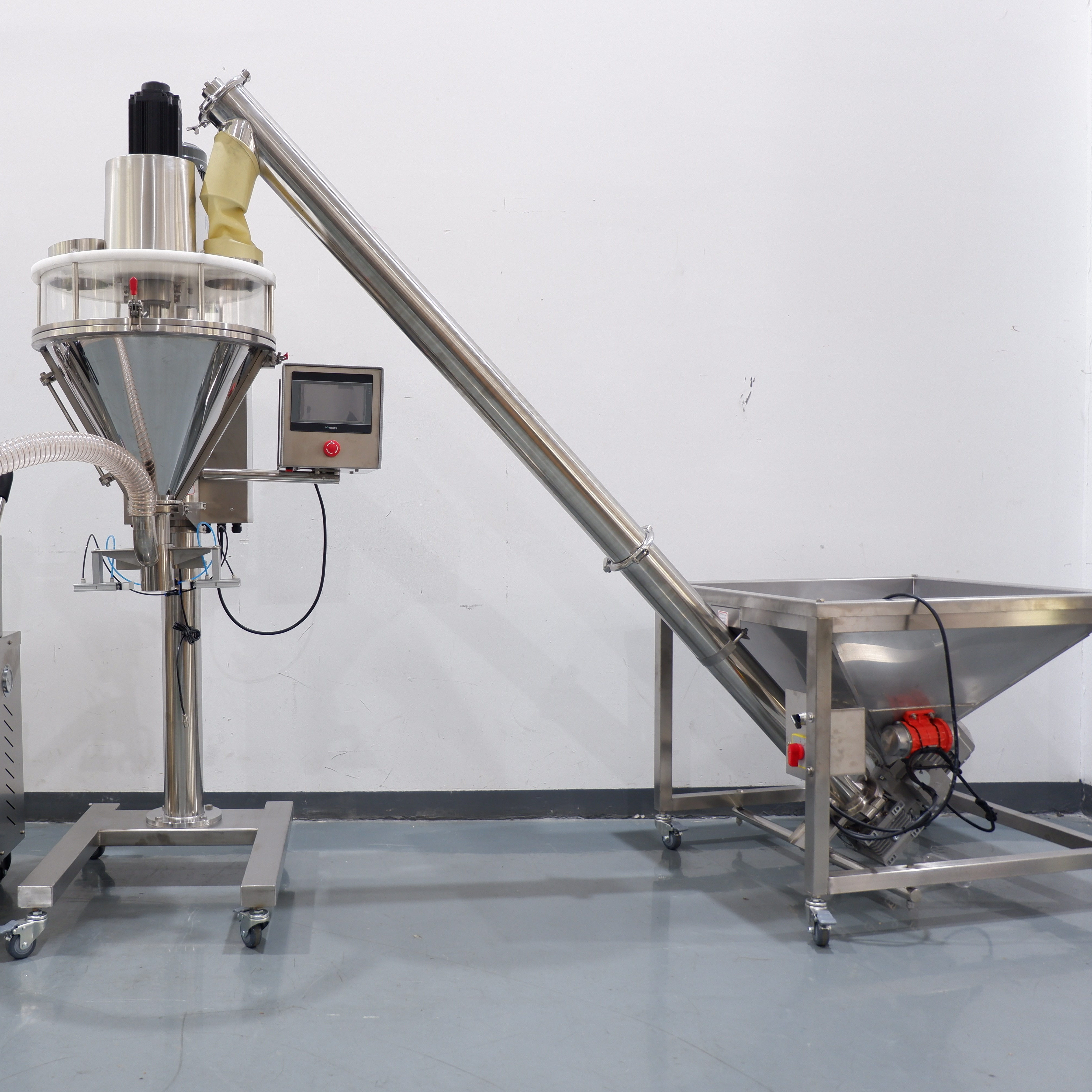

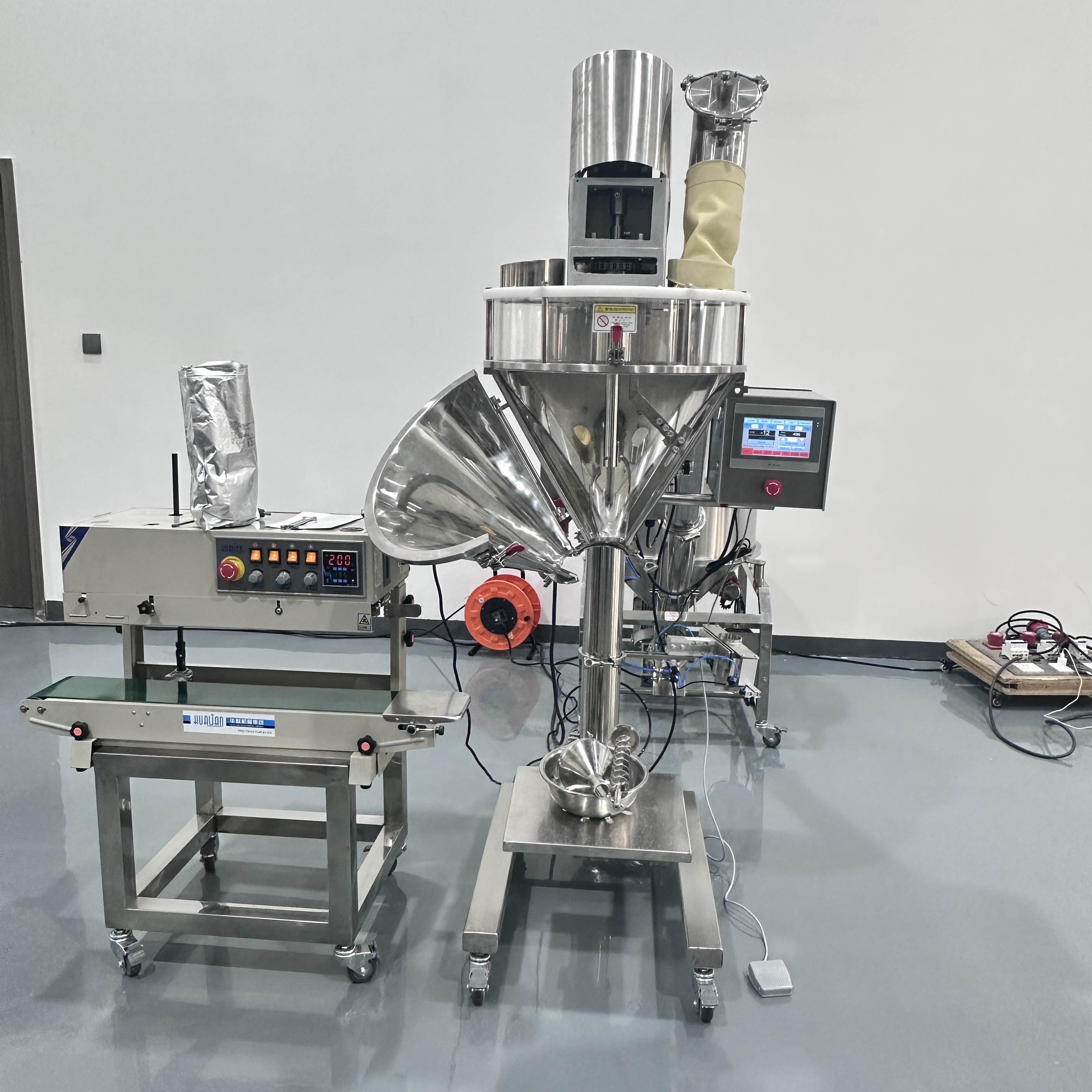

100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine
100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine
100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine
100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine
100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine
1 / 5
100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine
100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine
100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine
100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine
100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine

100g 500g 1000g 2000g Screw Auger Filler Dosing Dispenser Dry Fine Spice Coffee Flour Powder Packing Filling Machine

Send Inquiry

Product Description

Powder Filling Machine Banner
Powder Packing Machine Overview
Machine Overview Detail 1 Machine Overview Detail 2
Machine Side View 1 Machine Side View 2
Machine Structure Detail
Machine Inner Mechanical View

Product Introduce

The powder filling packaging machine is mainly used in coffee powder, flour, yeast powder, sugar, salt, veterinary drugs, premixes, plaster powder, additives, milk powder, starch, seasonings, enzyme preparations, fodder and other powder-like quantitative packing.

Features

✔
The powder packing machine is a machine with mechanical, electrical, optical, instrument in whole one, single-chip control, with functions of automatic quantitative, automatic filling, automatic adjustment of measurement errors and so on.
✔
Working principle: Auger volume or Auger weight.
✔
Fast speed: Adopting spiral blanking, the light-control technology.
✔
High precision: Adopting the servo motor and electronic weighing technology.
✔
Filling volume: Materials from 5g to 5000g can be on the same quantitative packing machine continuously adjustable, by adjusting the electronic keyboard and different models of blanking screw.
✔
Applicable range: Suitable for all kinds of fluidity powder and bags, cans, bottles and other containers powder packing.
✔
The error caused by the proportion of materials and materials level changed can be automatically tracked.
✔

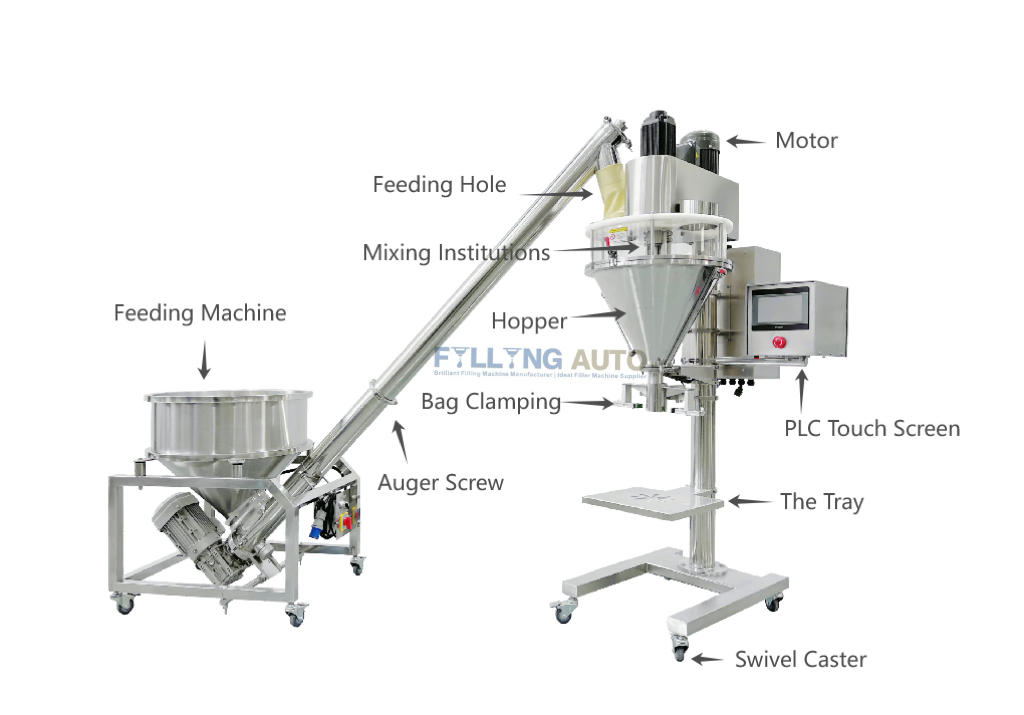

Filling machine hopper capacity is 50L which is an Openable visibility structure design. Not only is it easy to clean, but the concentricity does not need to be adjusted. It is very convenient to adjust the relative position of the stirring and the screw to achieve the best use effect.
✔
Photoelectric-switch control, only requires manual bagging. The pocket is clean and easy to seal.
✔
Parts contacted with the material are made of stainless steel, easy to clean to prevent cross-contamination.
✔

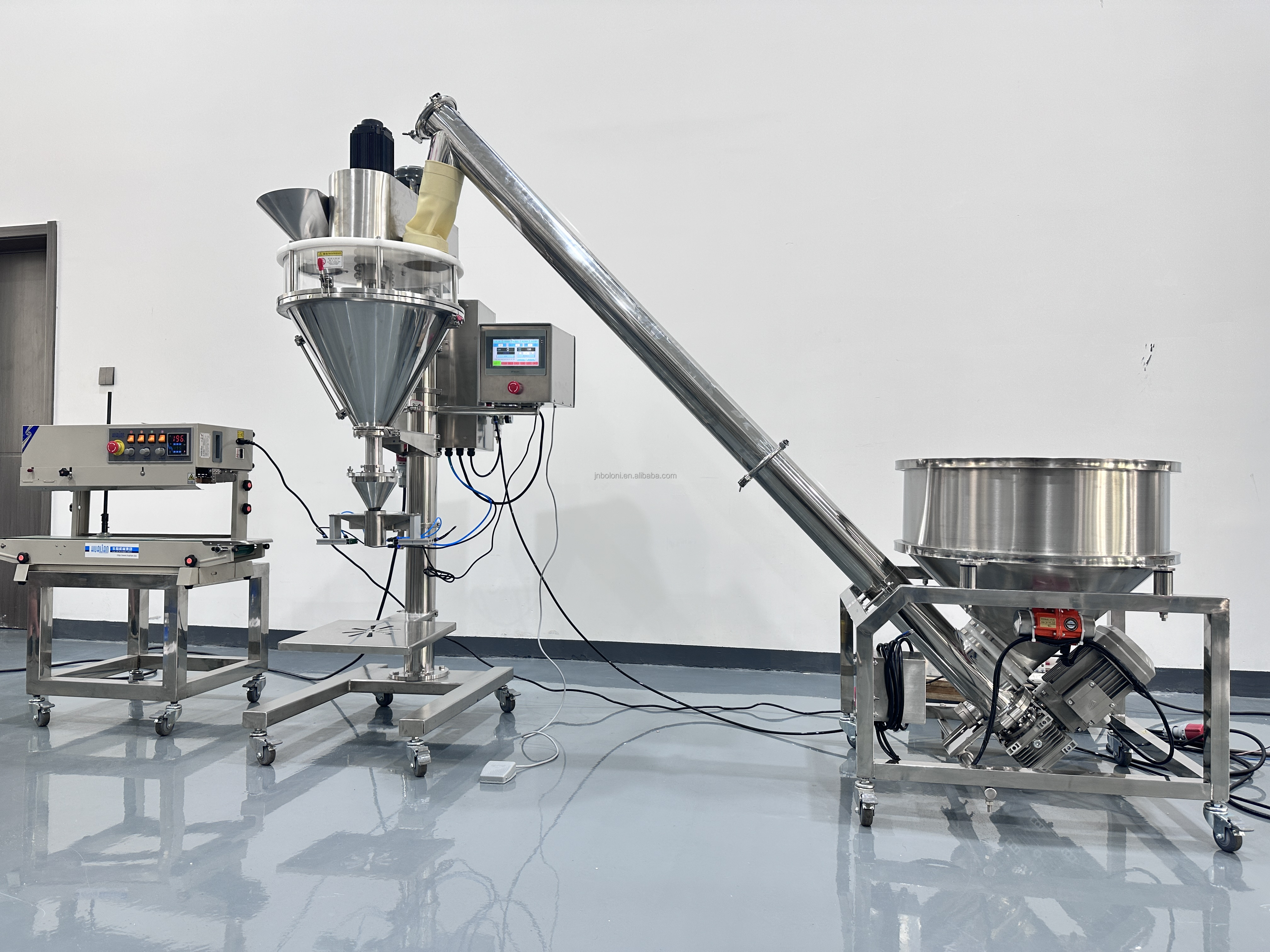

The machine can be configured for an auger feeding device, which is controlled by the sensor.
Auger Feed Mechanism

Technical

Packing volume 5g-5000g
Packing speed 5-15 bags/min
Packing accuracy ≤±1%
Control system PLC
Hopper Can be opened
Machine size/weight 107*69*207cm/206kg
Feeder size/weight 135*89*115cm/120kg
Feeder pipe size/weight 2400×200×400mm/40kg
Controls and Electronics Detail

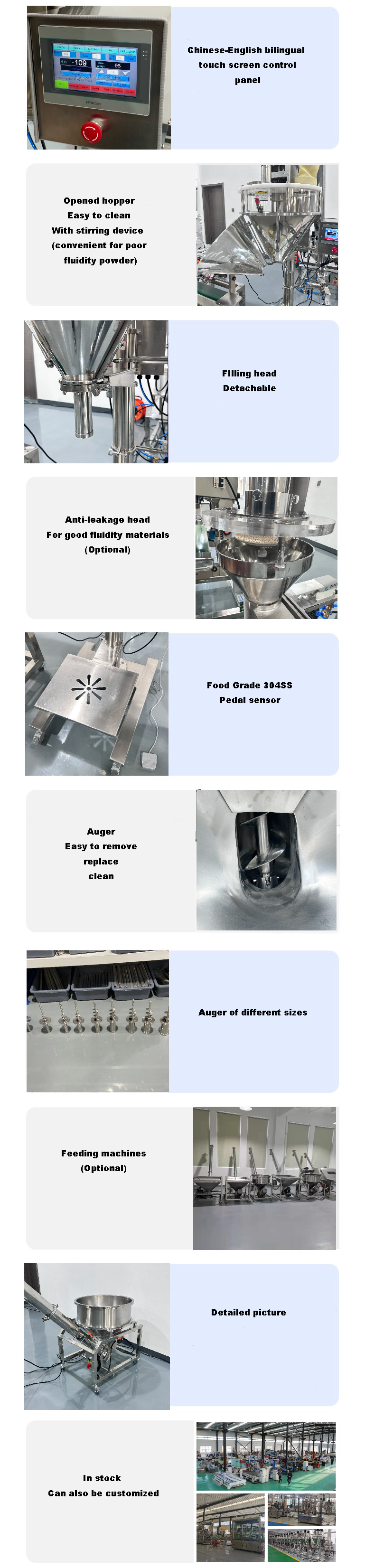

Machine Configuration 1 Machine Configuration 2
Feeder Unit Setup
Production Floor Setup
Details View 1 Details View 2 Details View 3
Application Details 1 Application Details 2 Application Details 3
Factory Operations 1 Factory Operations 2 Factory Operations 3
Finished Packaging Sample

Frequently Asked Questions

What types of powder can this machine package?
It is designed for quantitative packing of all kinds of fluidity powder, including coffee powder, flour, yeast, sugar, salt, veterinary drugs, premixes, plaster, milk powder, starch, seasonings, enzyme preparations, and fodder.
What is the range of the filling volume?
The packaging volume ranges continuously from 5g to 5000g on the same quantitative packing machine, adjustable through the electronic keyboard and different models of blanking screw.
How accurate is the powder filling packaging machine?
The machine boasts high precision using servo motors and electronic weighing technology, achieving a packing accuracy of ≤±1%.
What is the capacity and structure of the filling hopper?
The machine features a 50L capacity hopper with an openable visibility design. This structure makes cleaning easy and eliminates the need to adjust concentricity.
Are the contact parts food safe and sanitary?
Yes, all parts that come into contact with the material are made of high-quality stainless steel, ensuring simple cleaning and preventing cross-contamination.
What control system does this machine operate on?
The machine utilizes a PLC control system integration of mechanical, electrical, optical, and instruments, combined with photoelectric-switch controls.
