| Model | JCY-730 | JCY-520 | JCY-420 |
|---|---|---|---|
| Packing Speed | 20-70 Bags / Min | 20-75 Bags / Min | 20-75 Bags / Min |
| Filling Range | 200 G - 2500 G | 200 G - 1000 G | 200 G - 500 G |
| Film Thickness | 0.05-0.1MM | 0.05-0.1MM | 0.05-0.1MM |
| Max Width Of Packaging Film | 730 MM | 520 MM | 420 MM |
| Air Consumption | 0.5 M³ / Min | 0.5 M³ / Min | 0.5 M³ / Min |
| Power | 5.5 KW | 5.5 KW | 3.5 KW |
| Power Supply | 380V / 50-60HZ | 380V / 50-60HZ | 380V / 50-60HZ |
| Net Weight | 850 KG | 800 KG | 750 KG |
| Overall Dimension (L*W*H) | 1800*1440*1900 MM | 1800*1220*1680 MM | 1500*1035*1850 MM |

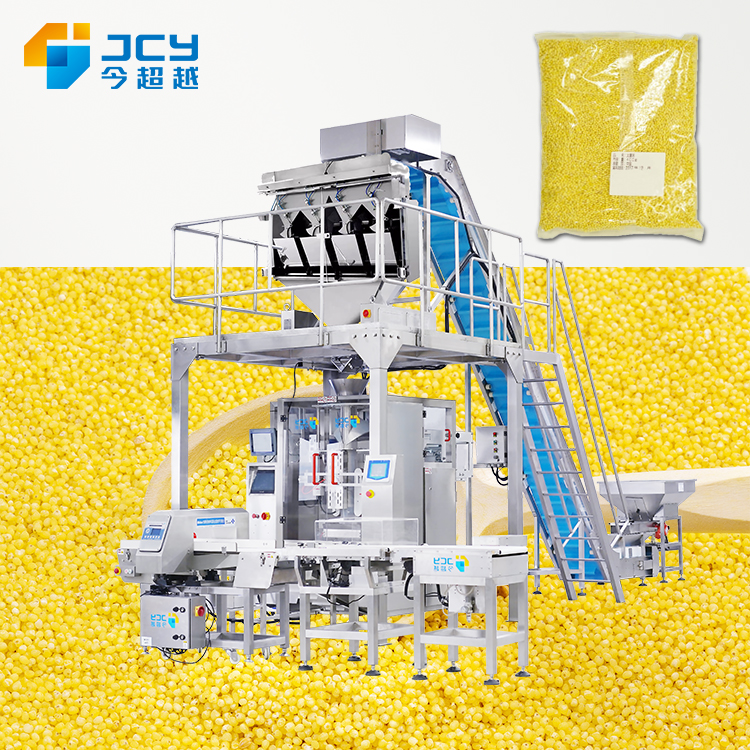

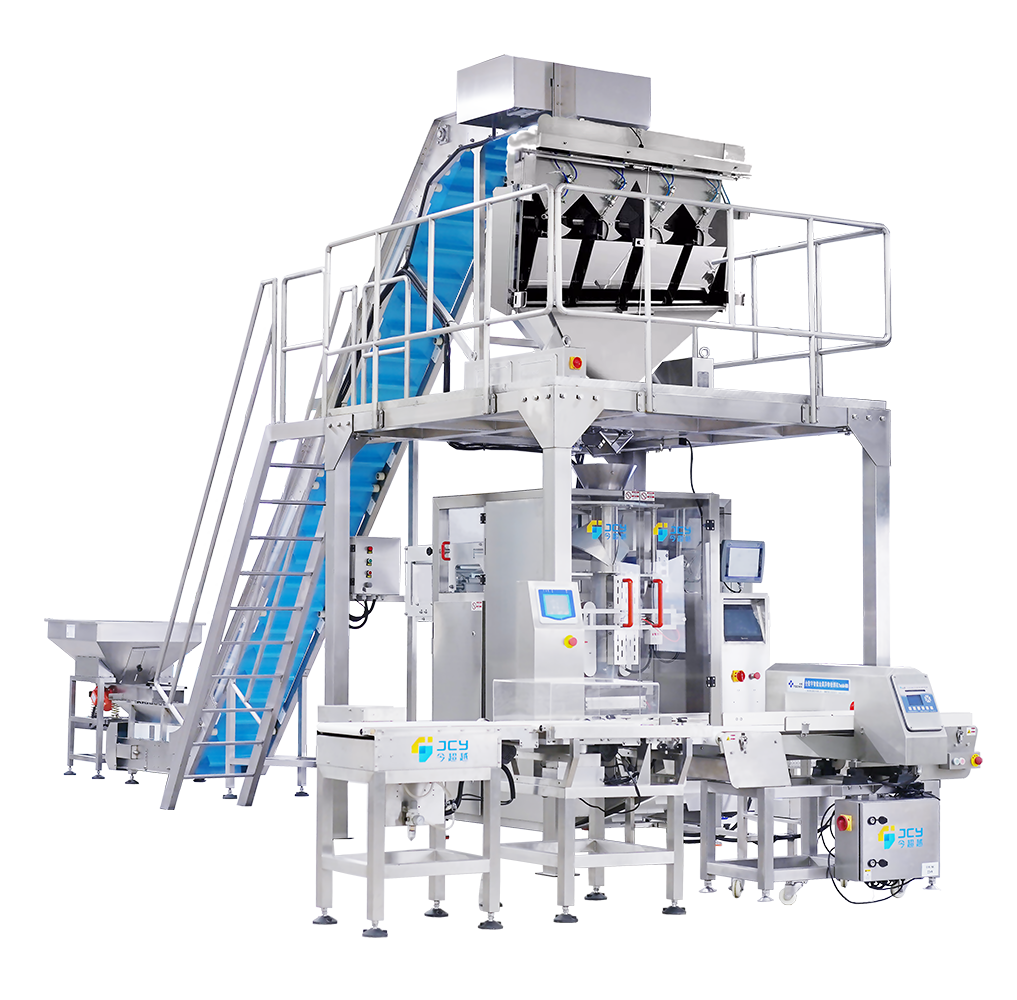

Q1: What types of materials can this linear scale packaging machine handle?
A: The JCY series is designed for uniform powdered and small granular products. Common applications include sugar, salt, seeds, rice, coffee beans, sesame, seasoning powder, and small granular foods.
Q2: Can I package different materials simultaneously with this machine?
A: Yes. The machine features an advanced modular control system that allows you to weigh and combine different materials at the same time to achieve precise mixed product packaging.
Q3: How easy is it to adjust parameters during operation?
A: The parameters can be modified directly on the controller during the packaging process. There is no need to stop the machine, making calibration and adjustment quick and convenient.
Q4: What is the main advantage of the stepless vibration feeding system?
A: The stepless system ensures continuous, uniform feeding. This translates to higher weighing accuracy and accommodates a wider overall weighing range across all models.
Q5: Which model best fits my production needs?
A: The models vary by film width and filling capacity. JCY-420 supports up to 500g, JCY-520 up to 1000g, and JCY-730 up to 2500g. Refer to the parameter table above for precise dimensions and speeds.

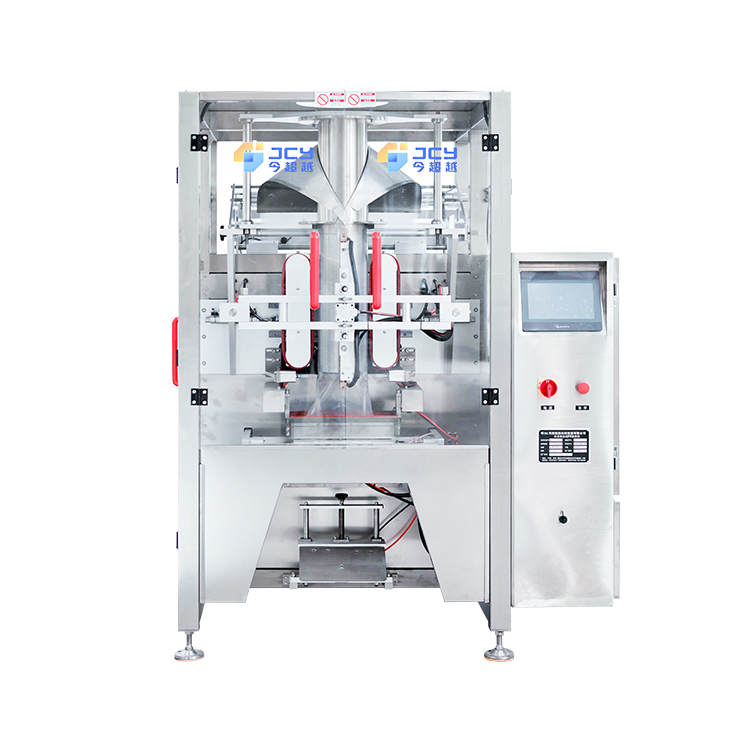

Q6: What film thicknesses are compatible with this vertical packaging machine?
A: This machine operates optimally with packaging films that have a thickness ranging between 0.05mm and 0.1mm.
