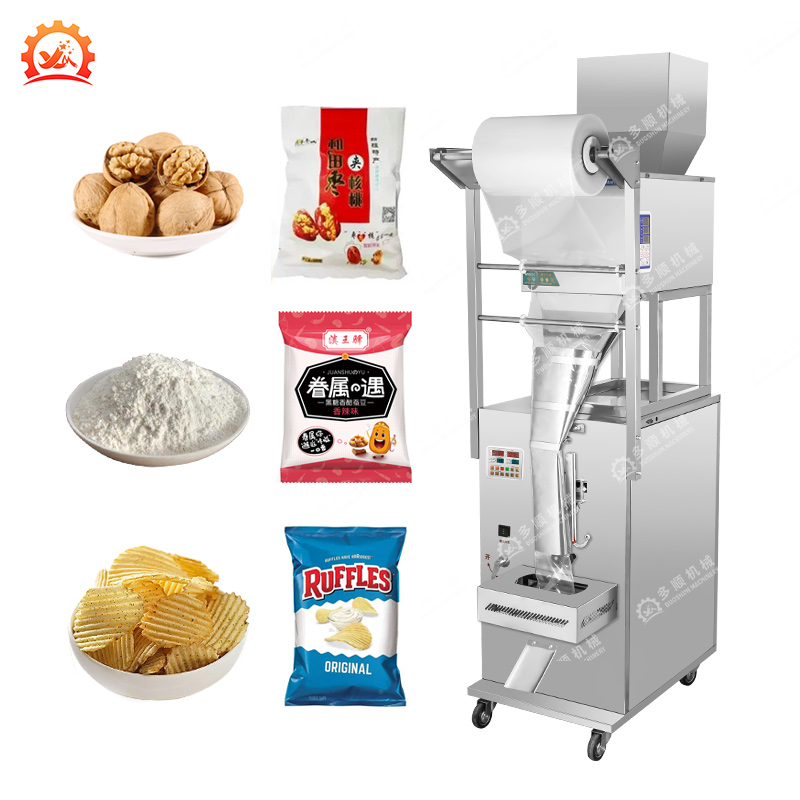

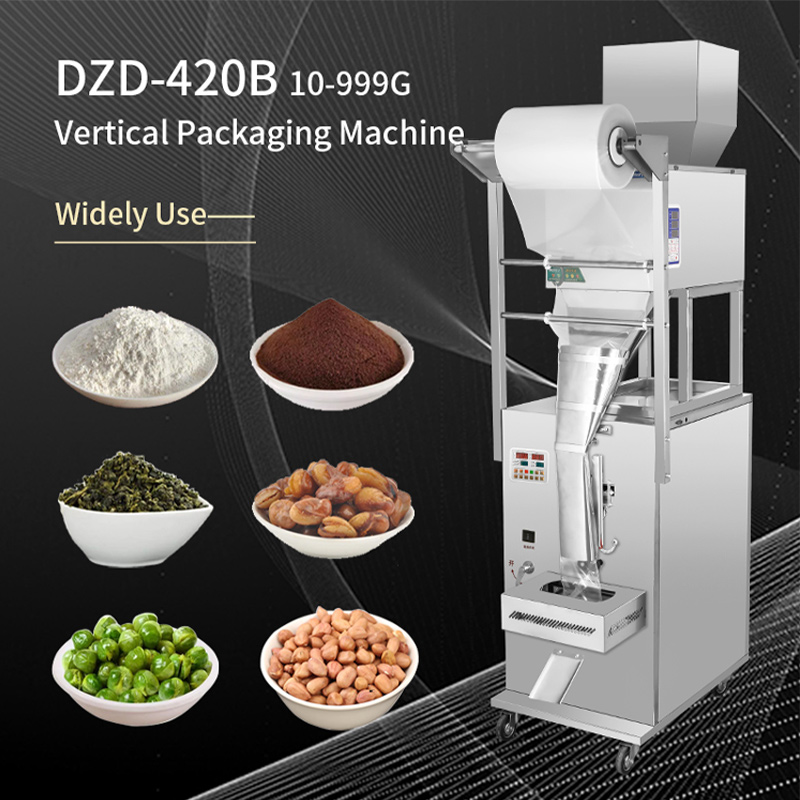

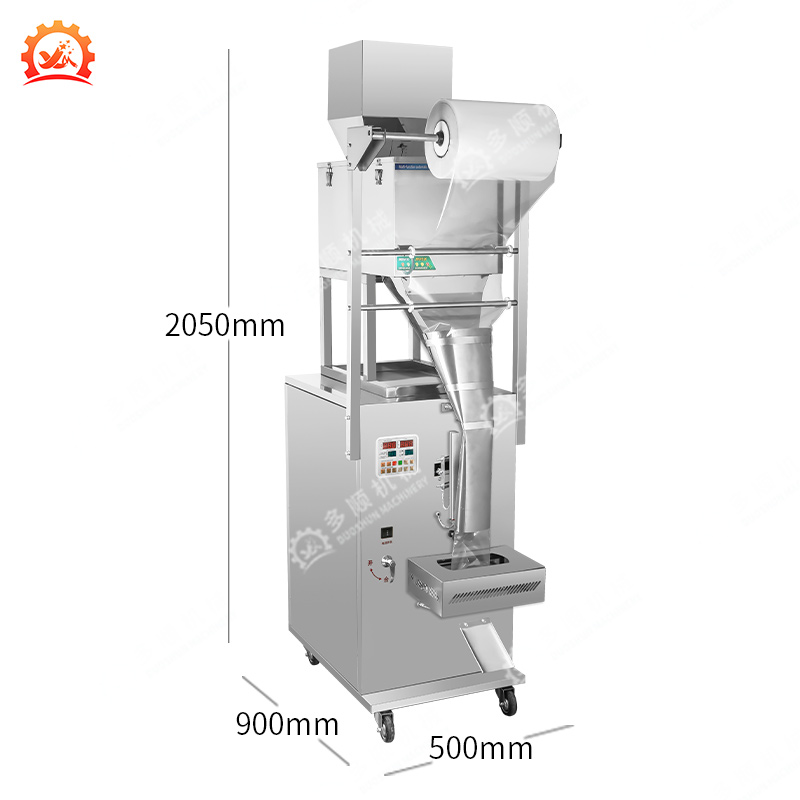

DZD-420B Automatic Weigher China Manufacturer Direct Vertical 500g 1kg Protein Milk Detergent Powder Pillow Bag Packing Machine

Product Description

Factory Banner
Factory Area
More than 20,000 m²
Quantity in Stock
More than 5,000 sets
Team Power
More than 300 employees
Monthly Yield
More than 2,000 sets
Established Time
More than 20 years
Monthly Sales
More than 1,000 sets
Machine Overview

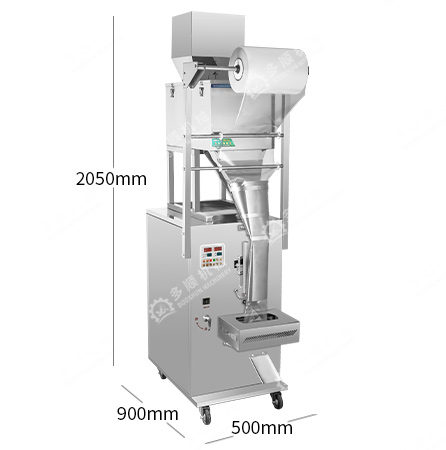

Machine Detail
Machine Model DZD-420B
Application Particle/Powder
Production Capacity 5-20bag/min
Packaging Weight 10-999g
Packaging Length 1-28cm
Packaging Width 7-20cm (Film 16-42cm)
Packaging Accuracy 1-2g
Voltage 220V 50Hz 600W
Machine Weight 90kg
Product Application

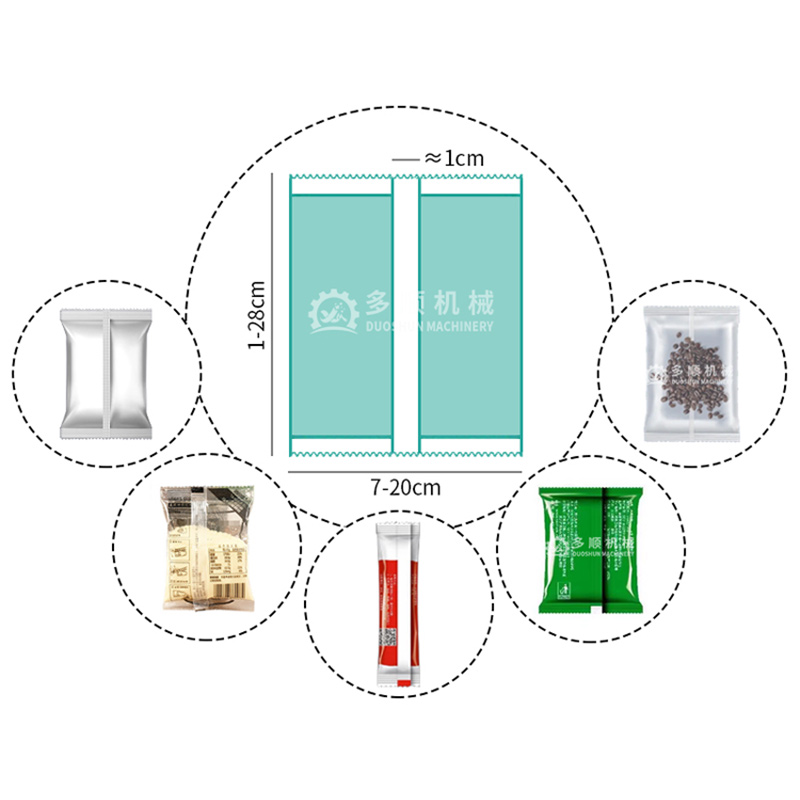

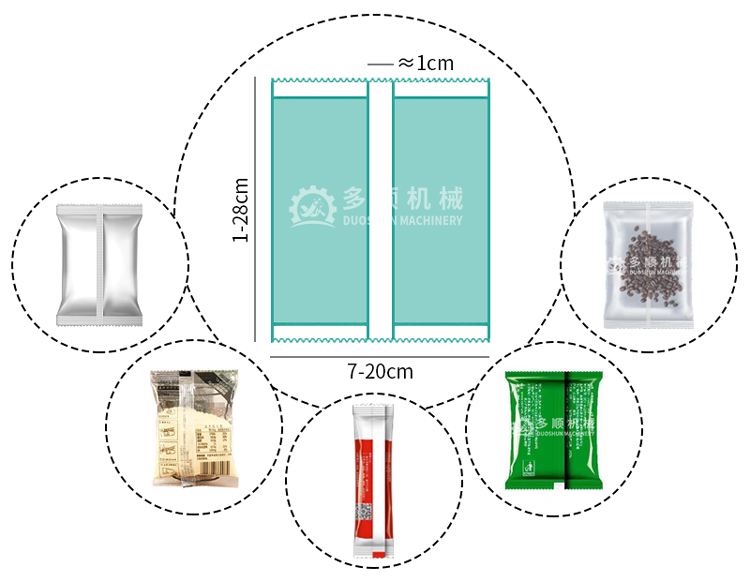

Product Application Area Product Packaging Types
Product Description

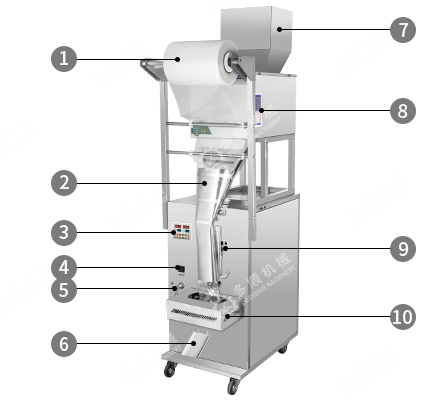

Machine Diagram
  • 1. packaging film
  • 2. former
  • 3. sealing controller
  • 4. switch
  • 5. sealing locker
  • 6. output
  • 7. feeding storage hopper
  • 8. subpackage controller
  • 9. vertical heat-seal
  • 10. horizontal heat-seal
Structure Diagram
Feeding hopper and film

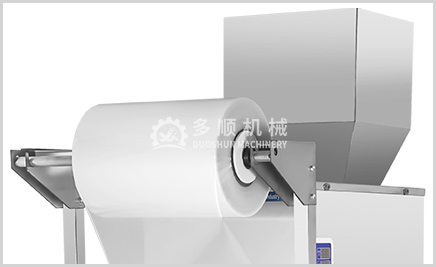

Feeding hopper and film:
Big volume hopper, made of stainless steel, easy to maintain. Various heat sealing film materials can be used in the machine.

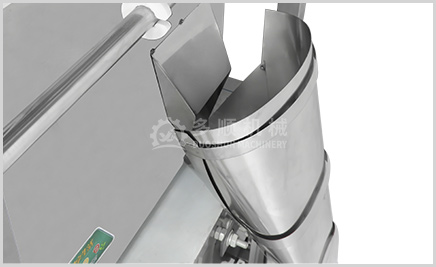

Feeder and Former
Feeder and Former:
Materials come out from the feeder after weighing. The former size can be customized. It determines the width of final product.

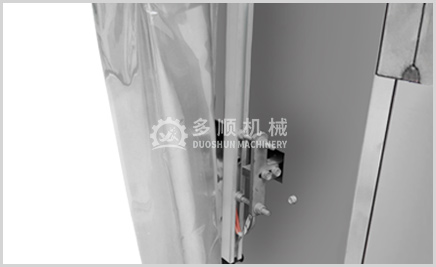

Vertical Heat-seal
Vertical Heat-seal:
Heat seal the side of the pouch automatically. Temperature can be adjusted according to different materials.

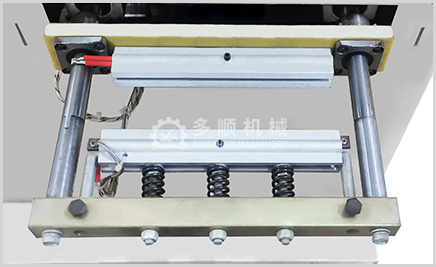

Horizontal Heat-seal
Horizontal Heat-seal:
Heat seal the top and bottom side of the pouch automatically. Temperature can be adjusted according to different materials. Then cut pouches one by one.

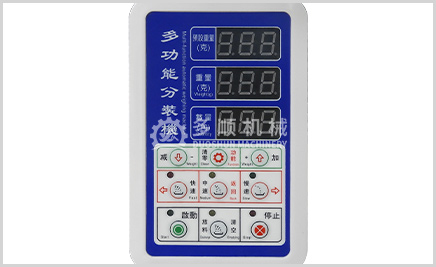

Subpackage Controller
Subpackage Controller:
Control the weight of pouch, automatic and accurate. Adjust the packing speed—slow, middle and quick.

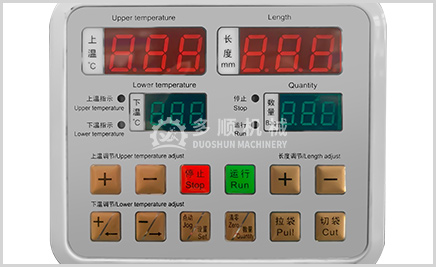

Sealing Controller

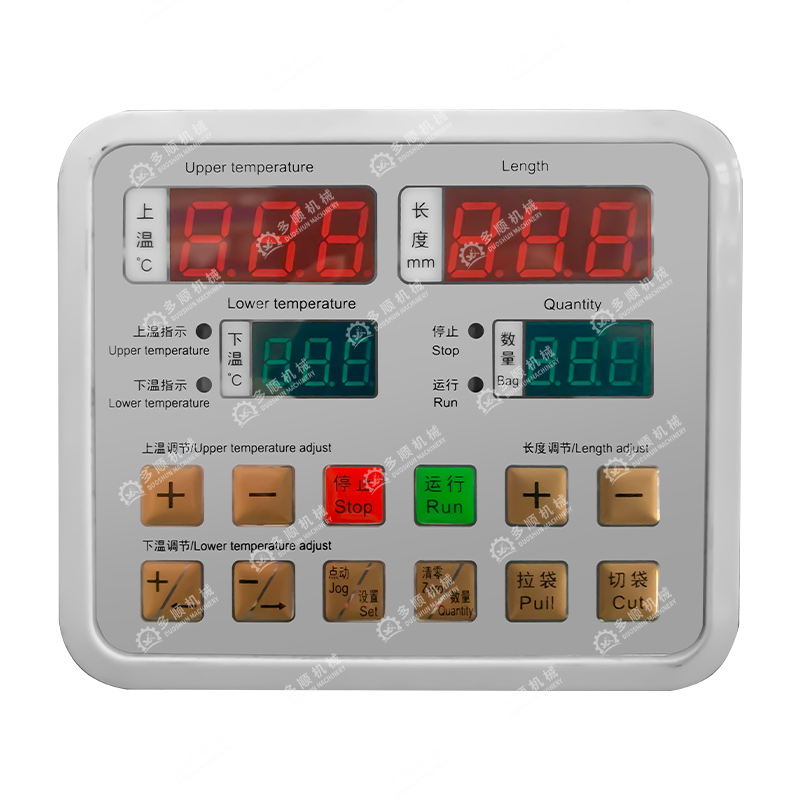

Sealing Controller:
Adjust the length of pouch. Control the temperature of sealing according to differernt packaging film.
Ribbon Coding

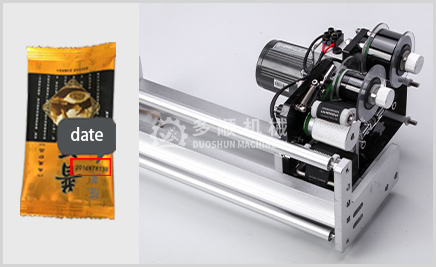

Ribbon Coding: (optional)
Print date and batch number automatically. Printing content can be customized according to actual needs.
Cursor

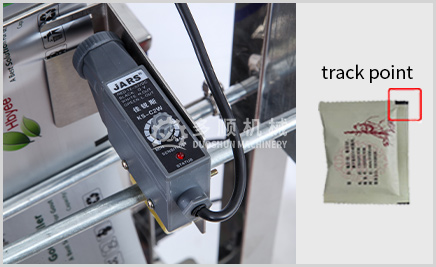

Cursor: (optional)
If the film is blank, no need for cursor. If the film is printed, the cursor help locate the track point, so each picture will be in the right position.
Product Parameter
Product Model DZD-220B DZD-320B DZD-420B
Application Particle/Powder Particle/Powder Particle/Powder
Production Capacity 5-20bag/min 5-20bag/min 5-20bag/min
Packaging Weight 1-20g/1-50g/1-100g 10-500g 10-999g
Packaging Length 1-15cm 1-22cm 1-28cm
Packaging Width 2.25-10cm (Film 6-22cm) 7-15cm (Film 16-32cm) 7-20cm (Film 16-42cm)
Packaging Accuracy 0.1-0.3g 1-2g 1-2g
Voltage 220V 50Hz 500W 220V 50Hz 550W 220V 50Hz 600W
Machine Dimensions 420*520*1600mm 480*680*1730mm 500*900*2050mm
Machine Weight 50kg 70kg 90kg
Optional Cursor/Coder Cursor/Coder Cursor/Coder
Company Profile

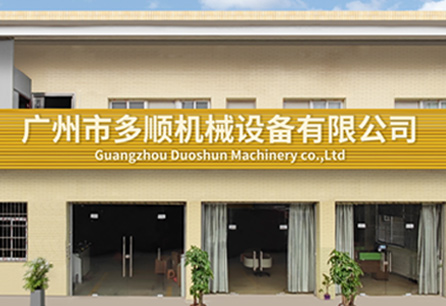

Development Timeline
Development History
- Year 2003 -
Establish the first factory.
- Year 2008 -
Start domestic on-line business.
- Year 2013 -
Start foreign on-line business.
Factory Production Line Machining Operations Inventory and Stock

We are specialized in producing and selling herbal processing and packaging equipment. Most of our equipment are for herb, food and chemical processing industries.

Our factory has been established since 2003. We have various equipment and customization service that meets customers' actual needs, such as mould, voltage, plug, product appearance and so on. We have professional process and strong technical force to ensure customers are provided with best equipment that meets GMP requirements. All our products have passed CE and ISO certification.

We are committed to using science and technology to create better equipment, sincerely welcome domestic and foreign customers to investigate, visit and technical exchange.

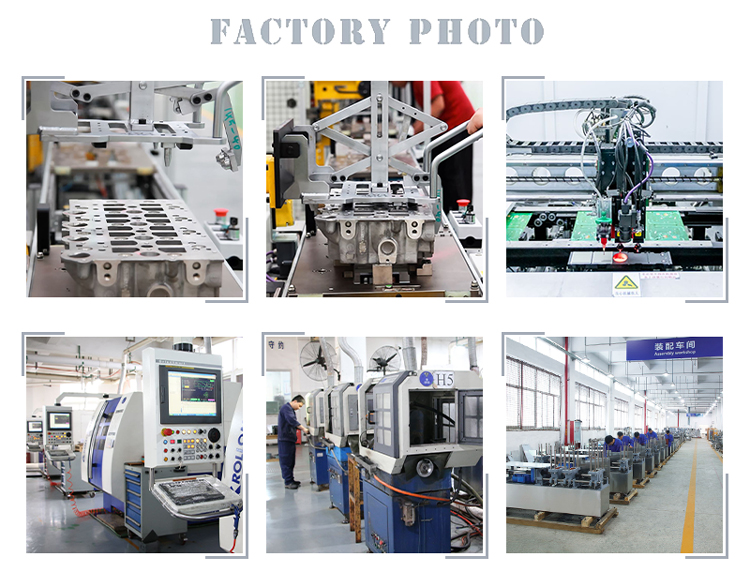

Factory Headquarters
Exhibition and Certification
Exhibition Hall and Certificates
Packing and Shipping
Packing Process and Logistics
Why Choose Us
Why Choose Us Advantages
Ordering Process
Contact Us
1. Contact Us
Express the requirements whether they can be customized.
Custom Machine
2. Custom Machine
Confirm machine voltage, parts, function and so on.
Custom Mould
3. Custom Mould
Confirm product mould size and pattern.
Payment
4. Payment
Deposit or full payment, balance before delivery.
Production
5. Production
Standard machine in stock, custom machine 7-30 days.
Delivery
6. Delivery
Export packaging, sea, air, land for choice.
Footer Banner 1 Footer Banner 2
FAQ
What are your main PRODUCTS?
We produce machines for herb, chemical, food processing and packaging industries.
What is your PAYMENT terms?
  • 1) T/T
  • 2) Alibaba credit order
  • 3) Western union
  • 4) Paypal
  • 5) All kinds of RMB payments
How about your DELIVERY time?
Most of machines are in stock, can be delivered within 3 days. Customized machines usually need 10-30 days to prepare.
Why do I TRUST you?
We have been producing and selling machines for over 20 years. And all our machines have passed CE and ISO certification. You can visit our factory any time you like.
What is your SERVICE?
  • 1. Customization: Most of our machines can be customized.
  • 2. Packaging and delivery: We can pack and deliver the machine according to actual need.
  • 3. Installation:
    • 1) Most of our machines are ready before delivery, no need to install.
    • 2) We provide operating videos and online support.
    • 3) Engineers can be sent to install machines and provide training services.
What is your AFTER-SALE SERVICE?
  • 1) One-year warranty.
  • 2) During the warranty period, any unartificial damaged parts will be replaced free of charge.
  • 3) After the warranty period, spare parts will be provided at a certain cost.
