Cheap Price Paper Bag Packing Machine Wheat Automatic Flour Packaging Machine 2kg Flour Packaging Machine In 500g

Product Description

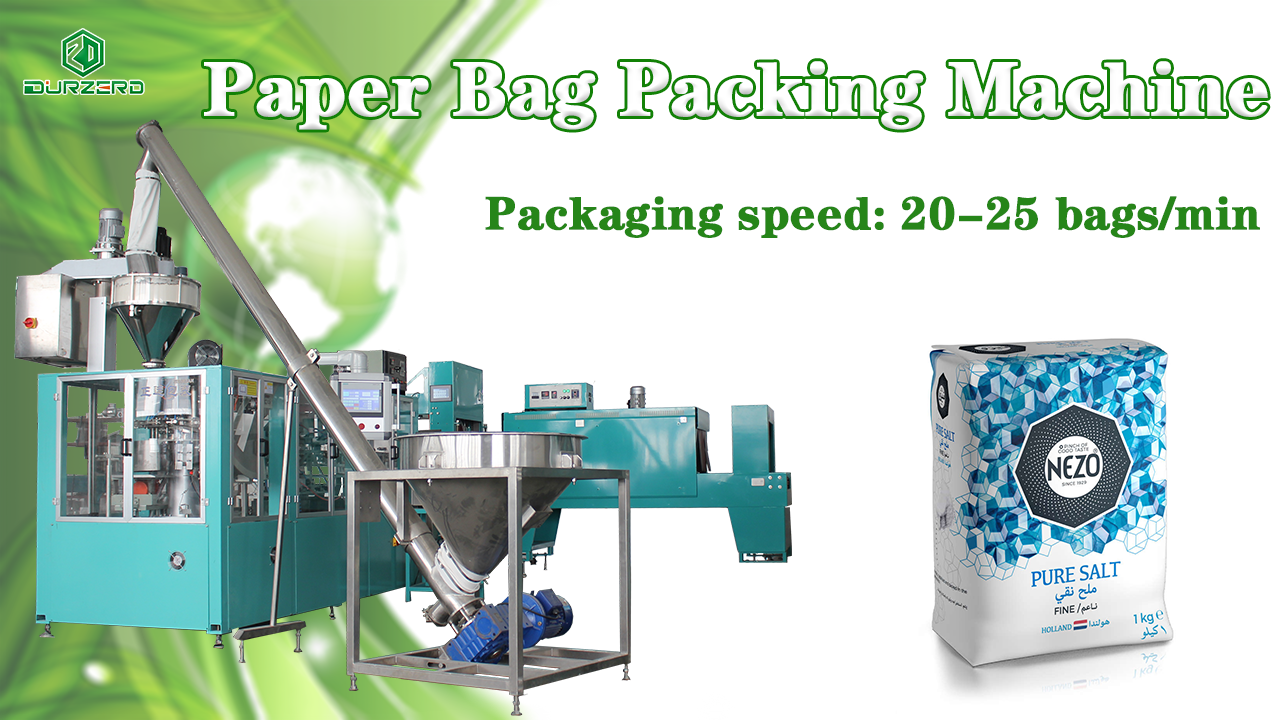

Fully Automatic Paper Bag Packaging Machine Diagram Packaging Equipment Unit
Model / Parameter Bag size Metering range(g) Packaging speed (bags/min) Applicable type of bag
Bag Length(mm) W:80-110mm L:250-350mm 1000-5000 15-30 Paper bag

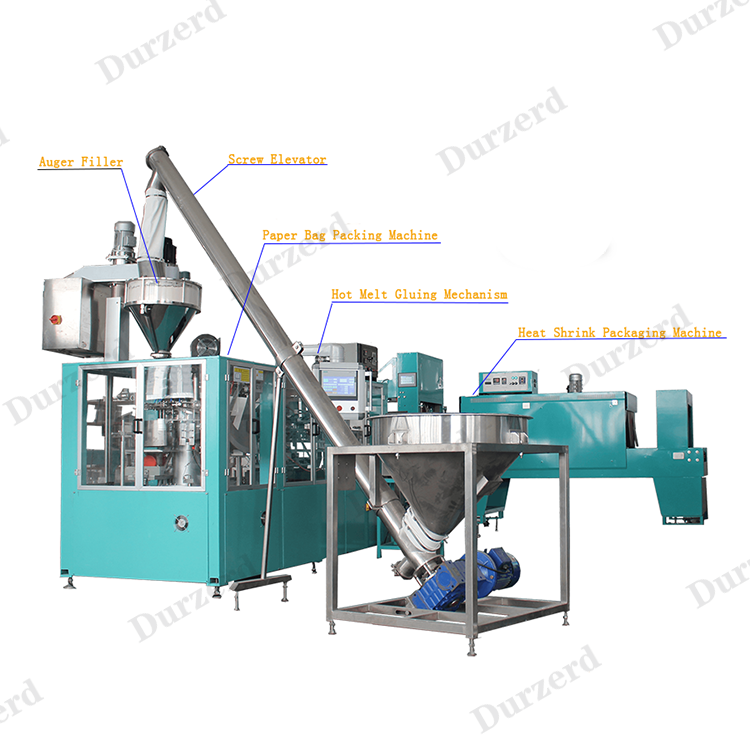

Machine Component Detail Automatic Flow Line Layout

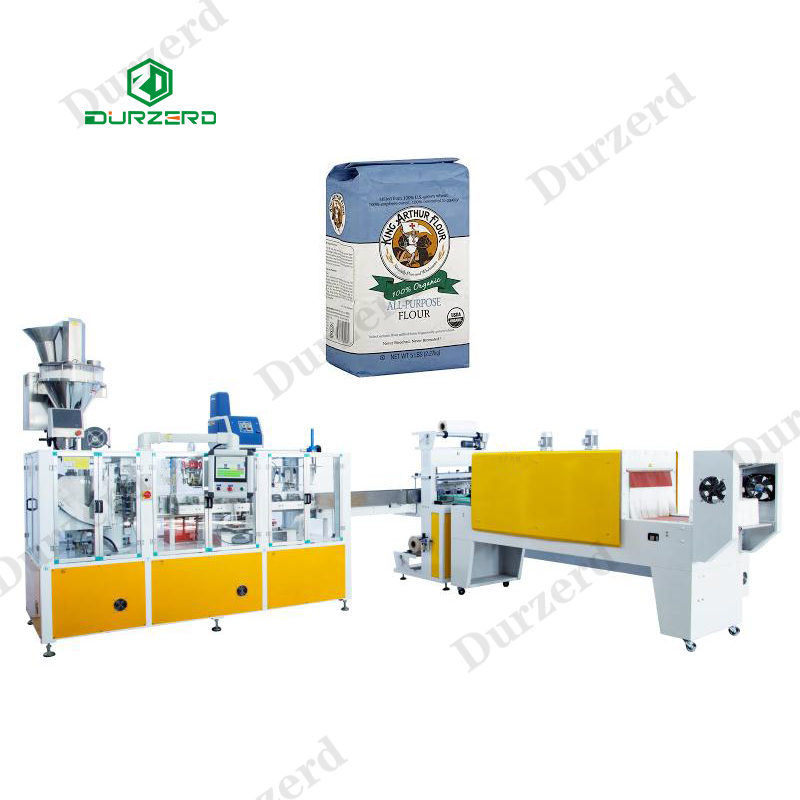

Fully Automatic Paper Bag Packaging Machine

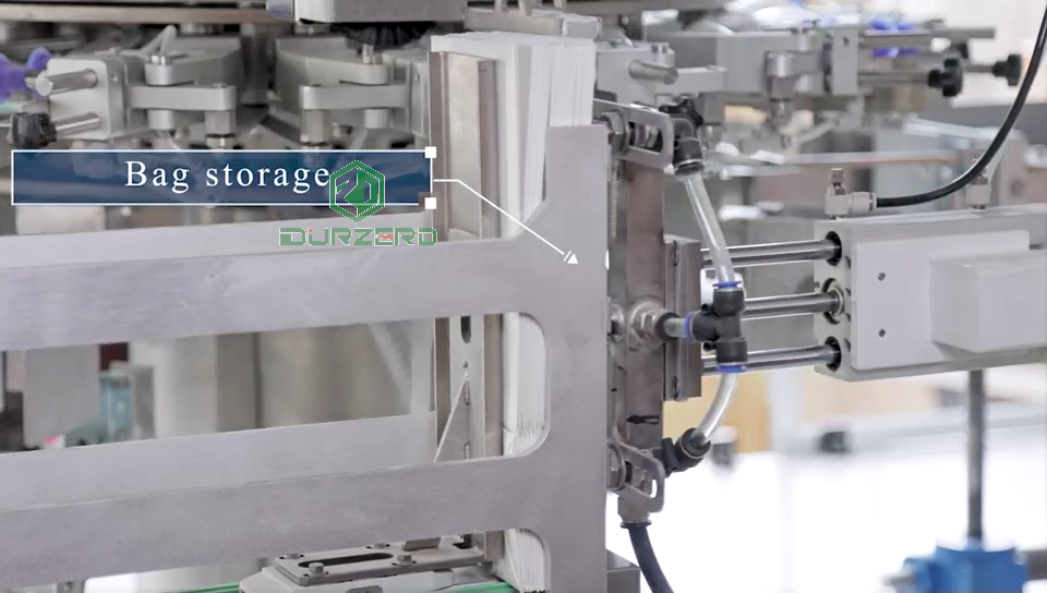

This unit is developed for quantitative packaging of tiny granular and powdery material with paper bags, and can independently complete the works of filling, sealing, metering, bar code recognition, printing, labeling, code printing, code spray coating, code stacking, etc. It is composed of quantitative filling machine, 8-station rotary packaging machine, linear conveying and stacking machine and heat shrink packaging machine through combination. It adopts advanced horizontal bag feeding mode, the bag magazine can store more packaging bags; bag suction and feeding are stable and reliable with high bag feeding efficiency and low loss of packaging material; the pattern of the packaging bag is complete and beautiful and the seal quality is good, thus improving the grade of the product.

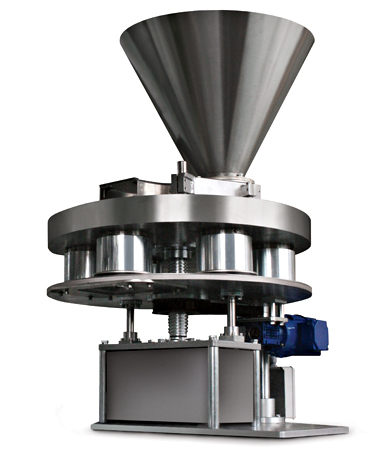

Volumetric Cup Filler Machine
Volumetric Cup Filler Machine
A volumetric cup filler machine is a type of packaging equipment commonly used in the food, pharmaceutical, chemical, and other industries to accurately dispense and fill products by volume. The machine utilizes volumetric cups to measure and dispense a predetermined volume of product into containers, such as bags, bottles, or pouches.

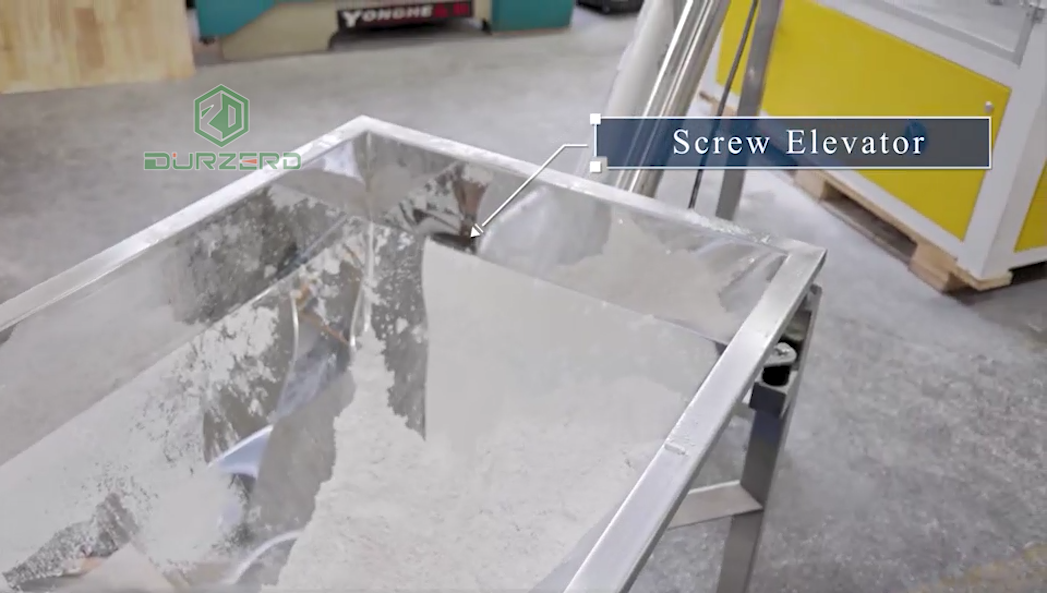

Screw Elevator
Screw Elevator
The central component of a screw elevator is the helical screw blade, which is typically made of metal and is designed with a helical shape to create a continuous spiral that runs the length of the conveyor. This helical blade is responsible for moving the materials along the conveyor as it rotates.
Automatic Sleeve Sealing and Shrinking Machine Layout
Automatic Sleeve Sealing and Shrinking Machine
Automatic sleeve sealing and shrinking machine is an automatic PE film shrink packaging machine, which is suitable for the combination of products without bottom support automatically shrink packaging.
System Controller Interface
Key Features & Technical Advantages
  • Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
  • Automatic checking function: no pouch or pouch open error, no fill, no seal.
  • Safety device: machine stop at abnormal air pressure, heater disconnection alarm.
  • The machine is easy to clean, easy maintenance.
  • The part where touch to the material is made of stainless steel.

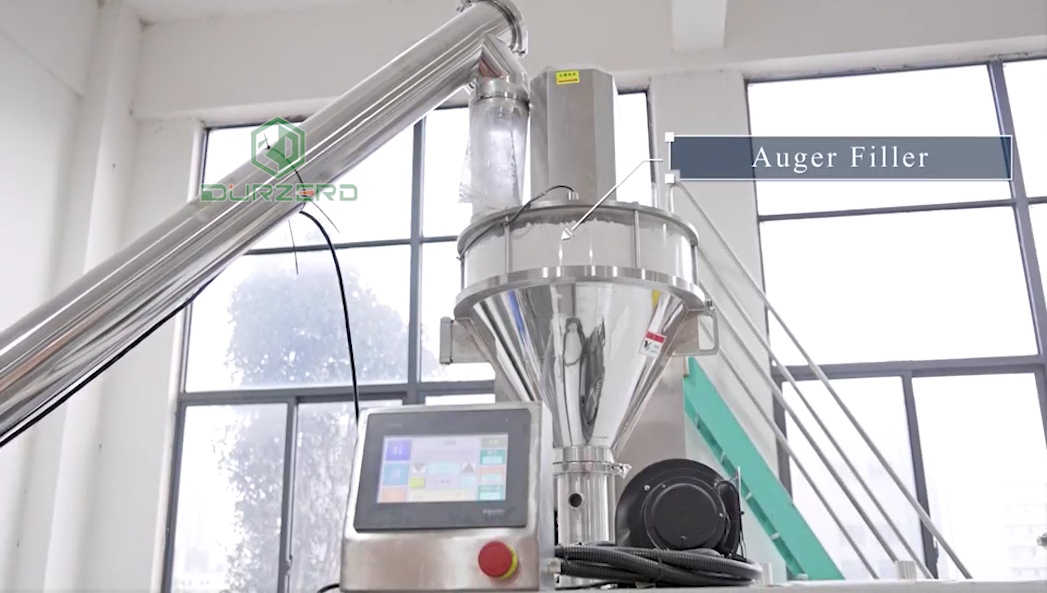

Auger Feed Mechanism
Packaging Application 1
Packaging Application 2
Packaging Application 3
This machine can be equipped with screw auger filler or cup filler. This equipment is specialized in powder ,such as flour, milk power, grape sugar, salt, chemistry condiment, refined sugar, etc.
System Operation Cycle
Packaging Process Stations

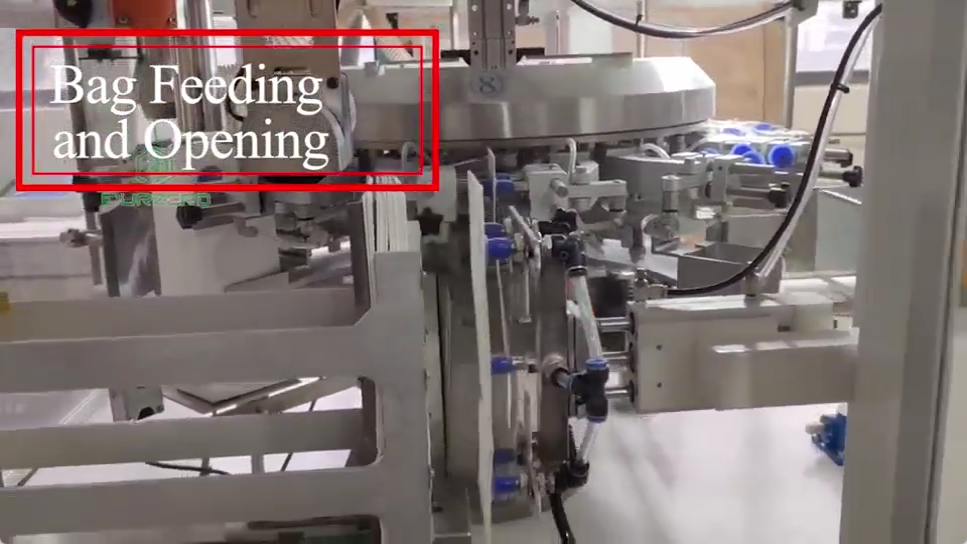

Bag Feeding And Opening
Bag Feeding And Opening

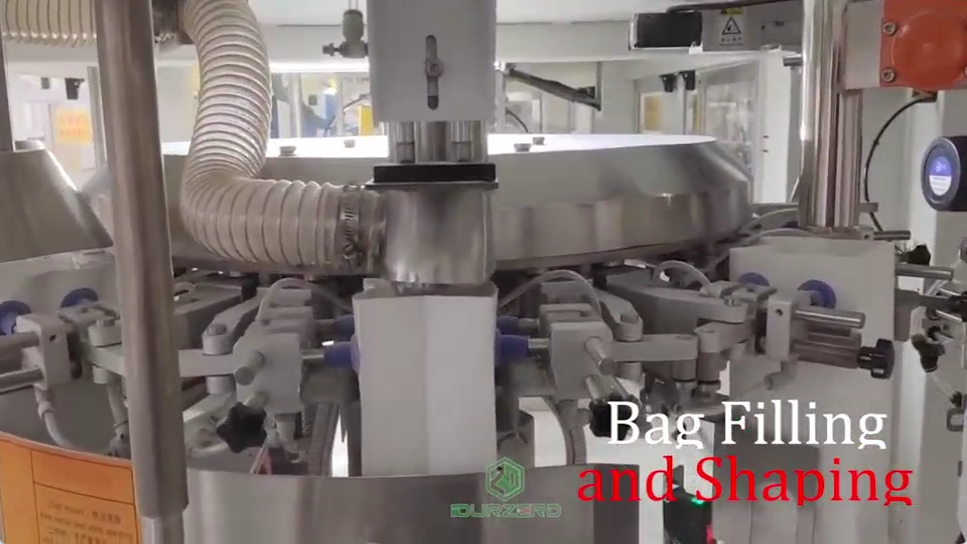

Bag Filling
Bag Filling

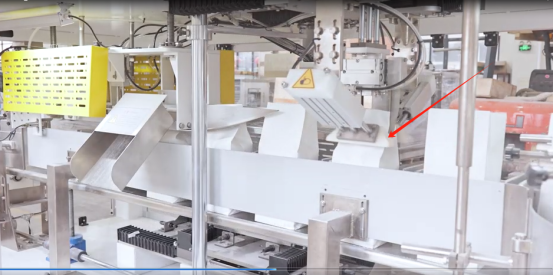

M-edge Forming Mechanism
M-edge Forming Mechanism

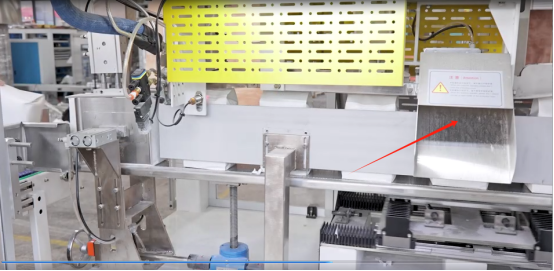

Bag Mouth Cutting Station
Bag Mouth Cutting Station

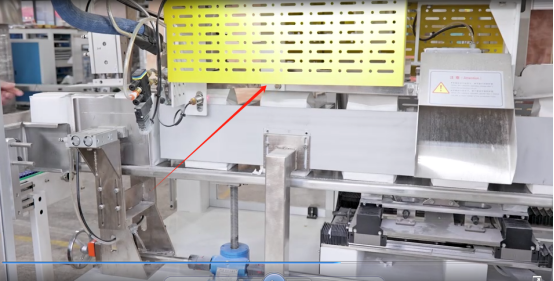

Bag Mouth Sealing & Folding Mechanism
Bag Mouth Sealing & Folding Mechanism

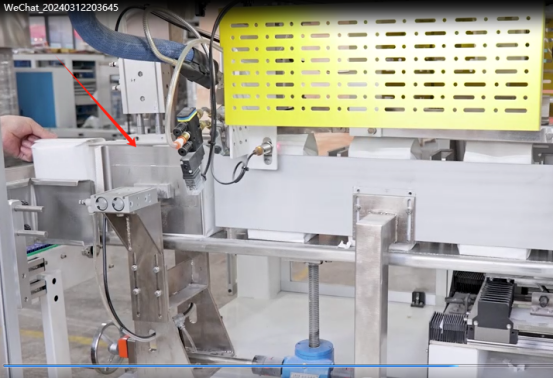

Bag Compaction Mechanism
Bag Compaction Mechanism

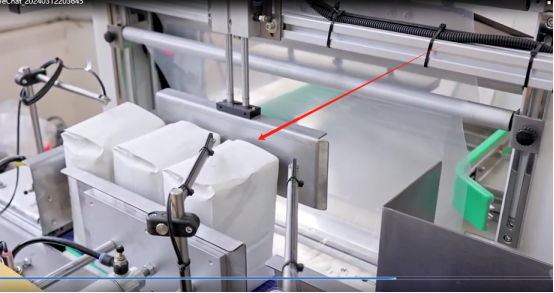

Bag Count&Arrange
Bag Count & Arrange

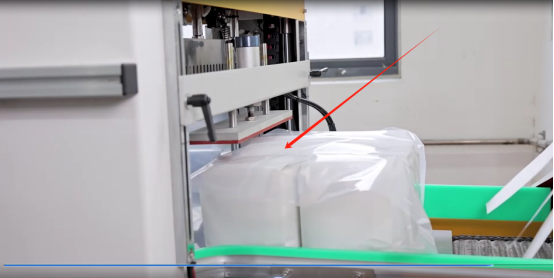

Film Covering& Cutting
Film Covering & Cutting

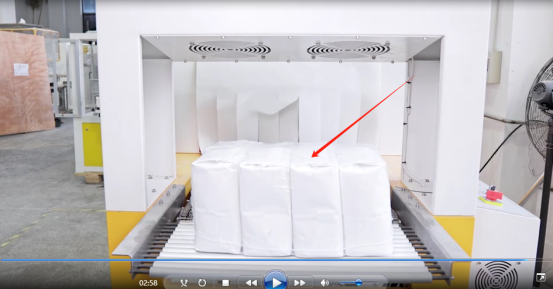

Heat Shrinking wrapper
Heat Shrinking Wrapper
Factory & Production Showcase
Production Process View 1
Production Process View 2
Production Process View 3

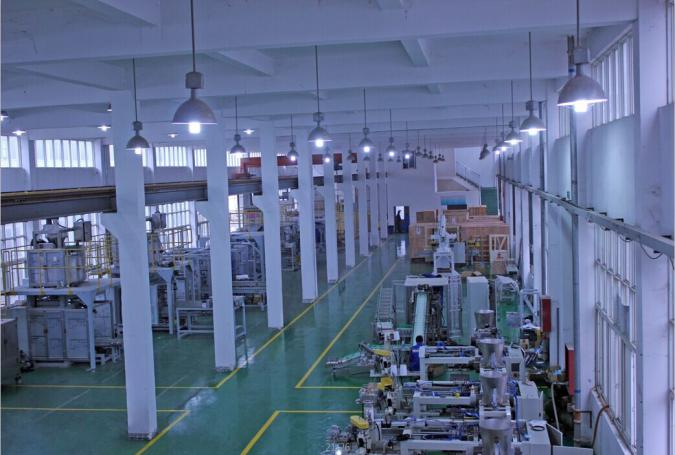

Factory Facility 1
Factory Facility 2
Engineering Diagram 1
Assembly Process 1
Assembly Process 2
Equipment Components
Frequently Asked Questions
Q1 Are you a factory or a trading company?
We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2 How to choose a suitable packaging machine?
Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3 How about the payment way?
Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4 How to ensure the quality of the machine?
We usually delivery the machine after successful inspection in our factory. We have our own quality control department, before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5 How to install the equipment?
We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy.
Q6 What kinds of materials can be processed by this machine?
This equipment is specialized in packing granular and powder materials, such as flour, milk power, grape sugar, salt, chemistry condiment, refined sugar, and other similar products.
