Automation Sachet Powder Packing Machine for Flour Milk Protein Chips Packing Machine

Send Inquiry

Product Description

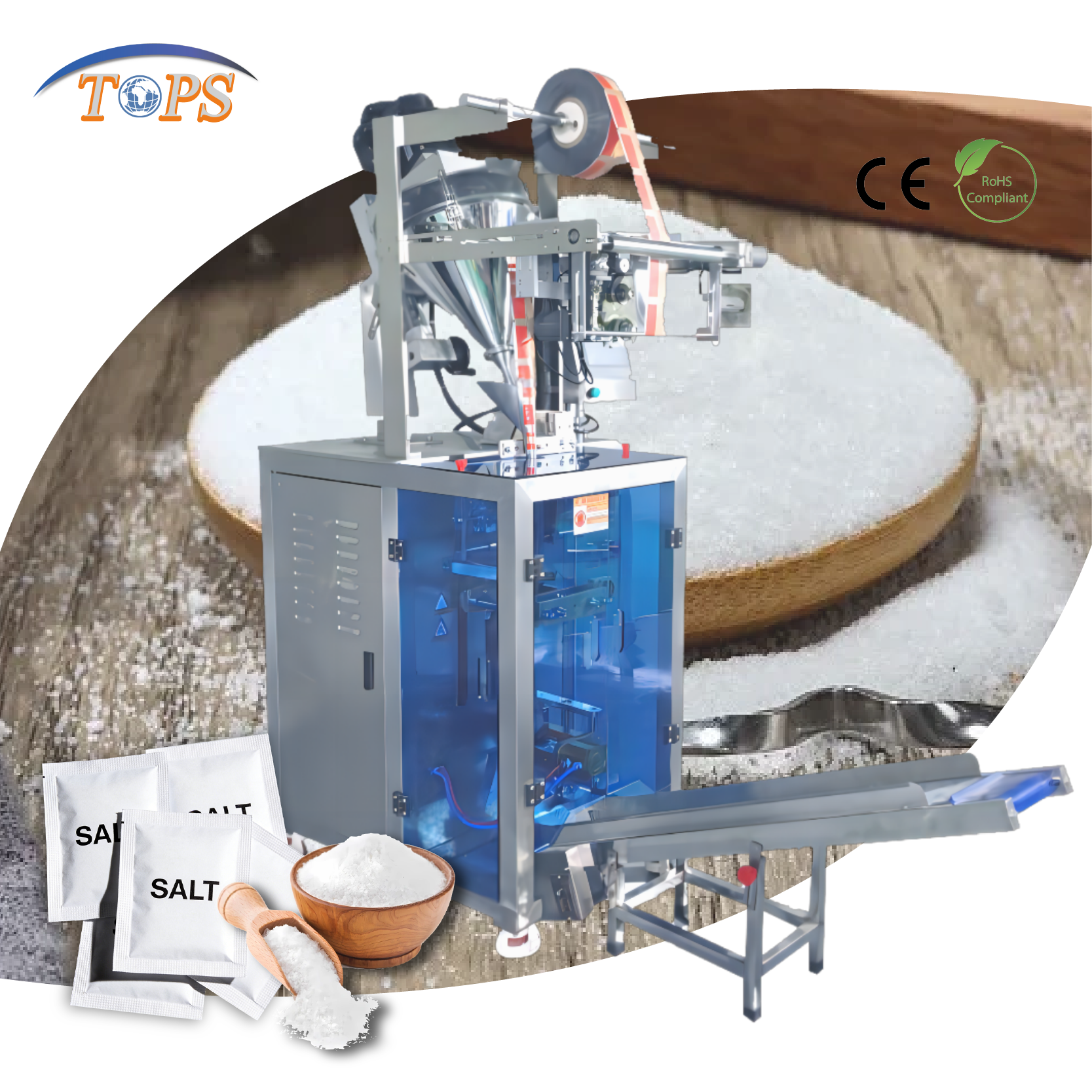

Automatic Sachet Packaging Machine

This series is installed with a powder auger dosing system, capable of packaging powder products such as milk powder, drinking powder, medicine, and chemical powders, etc.

Key Features

Bag-making, measuring, filling, sealing, cutting, and counting are all finished automatically.
Servo film pulling system ensures more accurate sachet specifications.
Equipped with PLC and touch screen for convenient and easy operation.
Temperature-independent PID control, suitable for various packaging materials.
High-sensitivity photoelectric eye color mark tracking makes the sealing and cutting position more accurate.

Optional Configurations:

1. Coding machine
2. Filling devices: measuring cups, auger fillers, scales, or liquid pumps.

Technical Specifications

Parameter	Value / Details
Model	TP-PF-V180
Control system	Touch screen
Hopper	15L
Film width	40-180mm
Dosing type	By auger
Capacity	20-70 bags/ min (Depend on Products)
Packing accuracy	≤ 100g, ≤±2%
Bag width	W20-75(mm)
Bag length	L50-200(mm)
Power Supply	220v 50HZ 1P (can be add transformer)
Total Power	1.8 KW
Total Weight	250kg
Overall Dimensions	1100x820x1600mm

Film Application

Applied film materials: PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+CPP, etc.
Film thickness: 0.05-0.12mm

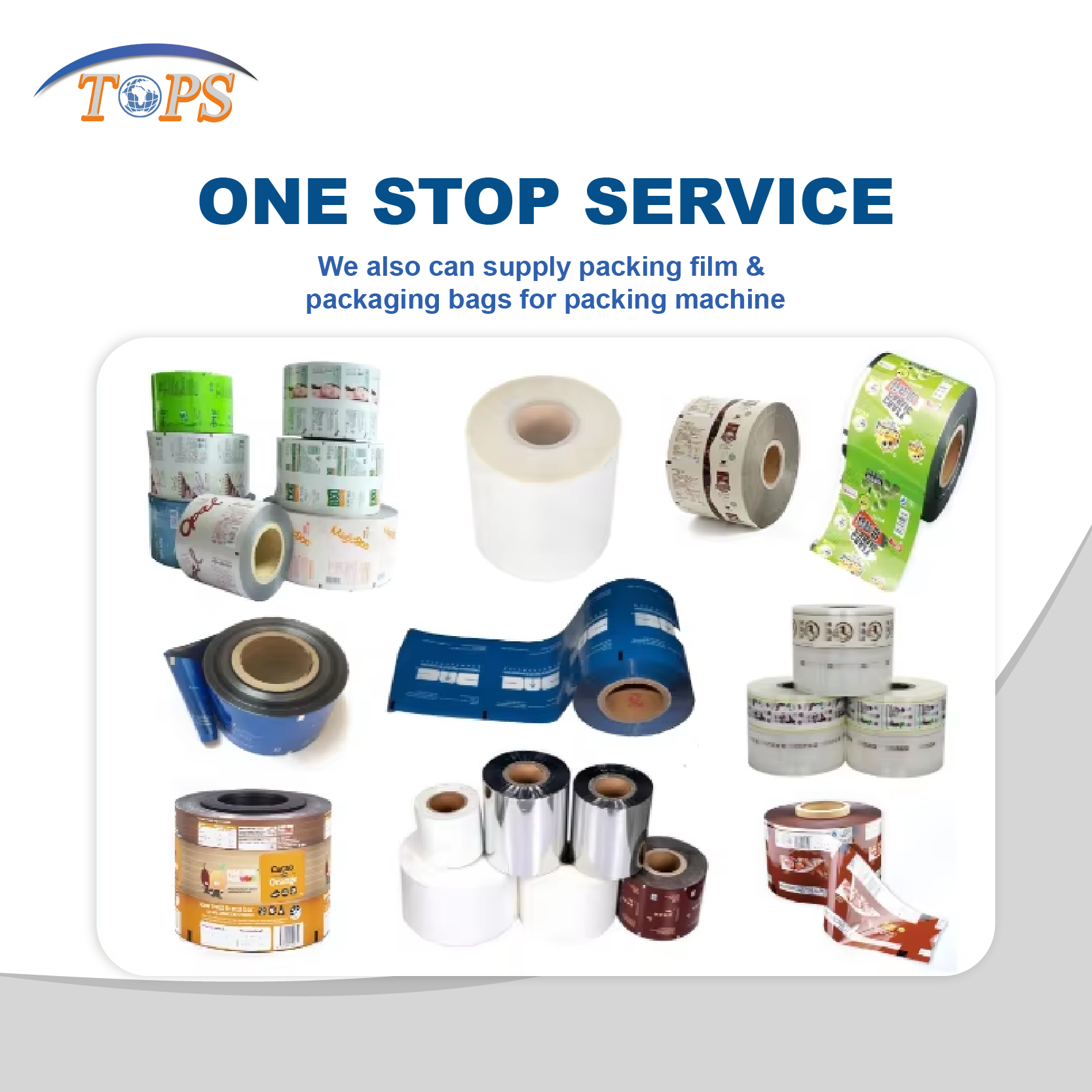

One-Stop Solution

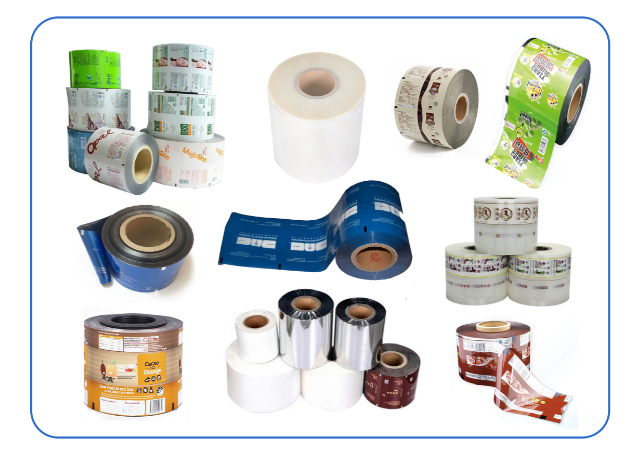

Packaging films and bags are available as a complete package. The composite film is suitable for various automatic packaging machines. Composite films made of different materials offer specific functions, such as aluminum foil film, aluminized film, easy-tear film, easy-peel film, nylon film, PET film, cooking film, boiling film, etc.

Composite films have a wide range of applications across multiple industries using automatic packaging machines.

Main Materials Structure

Surface Material: PET / OPP / PA / PAPER
Middle Material: VMPET / AL / PET / PA
Inner Material: PE / CPP / CPE

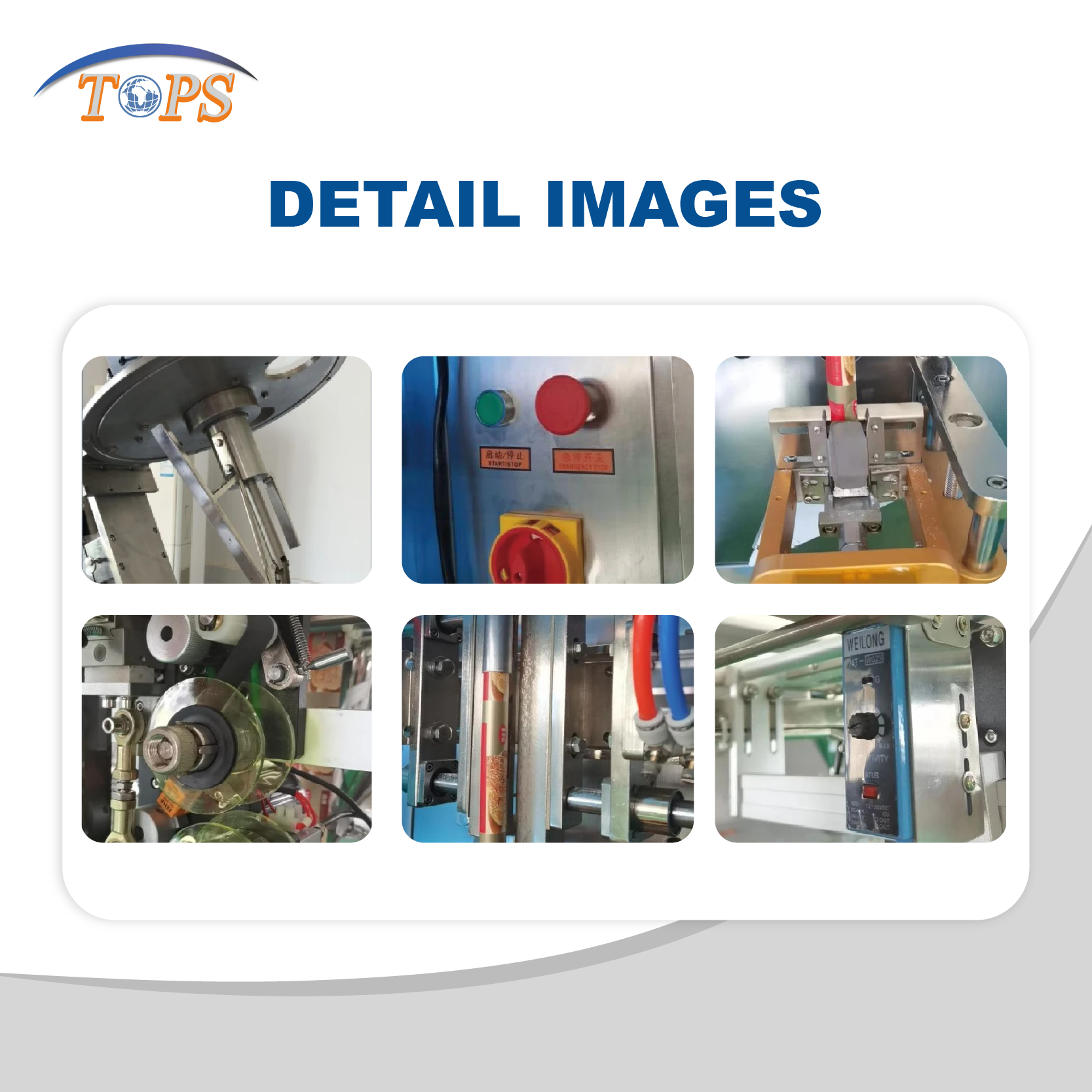

Detailed System Structure

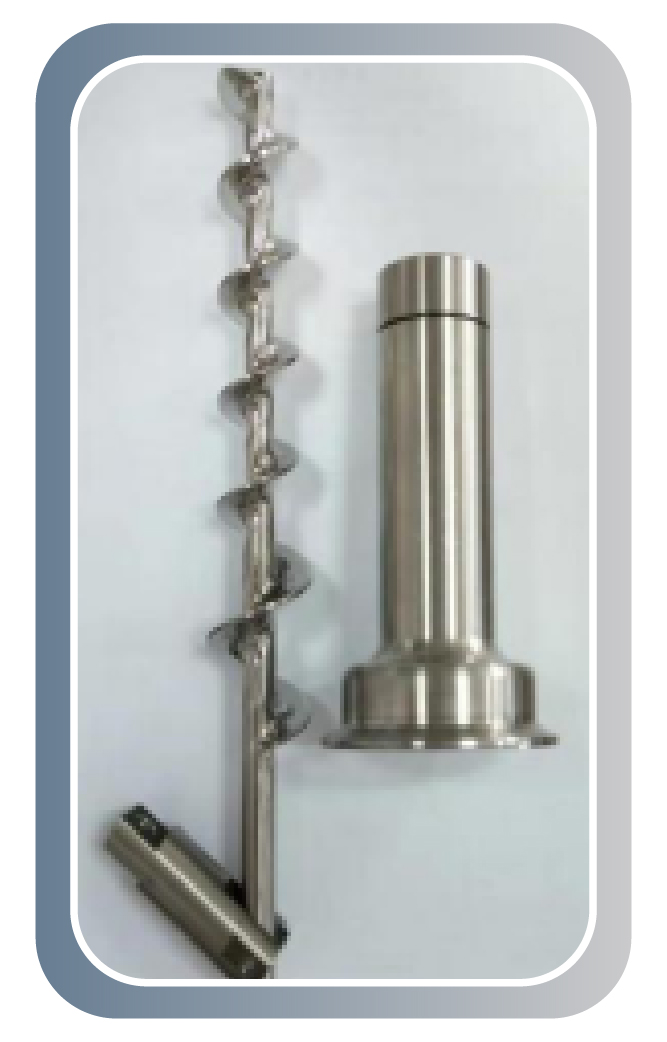

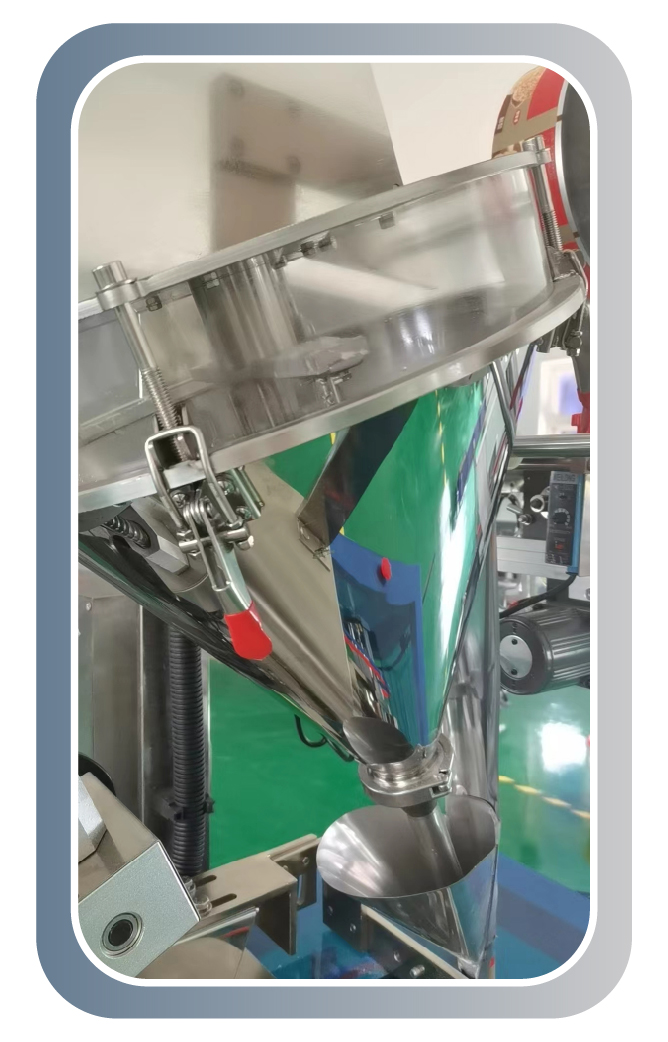

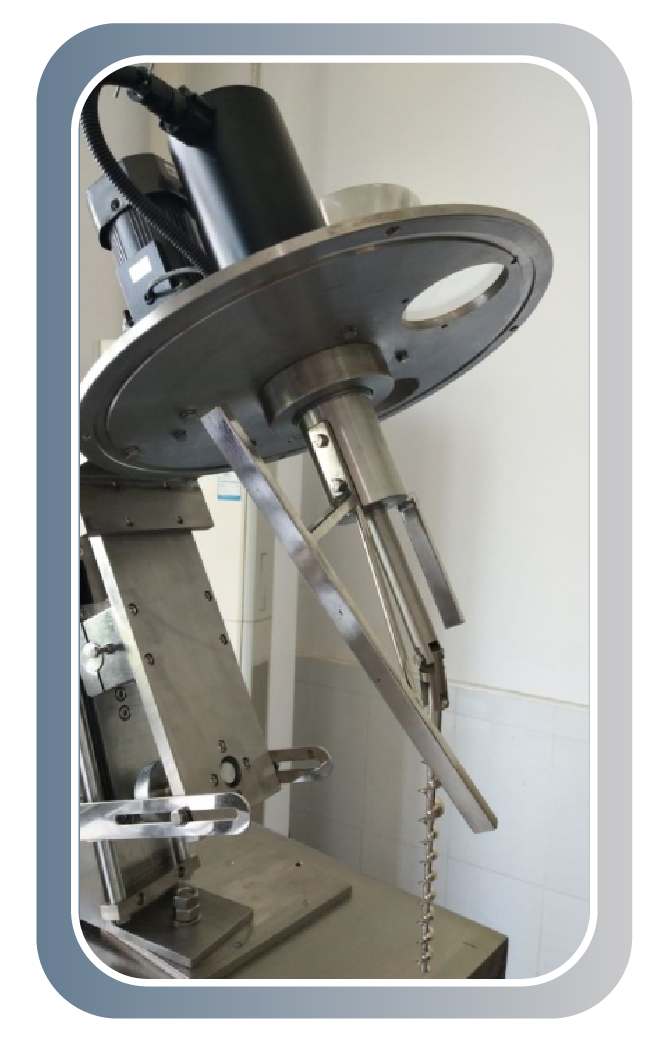

1 Auger Filler System

Powder dosing system - auger filler, controlled by a motor, offers high precision. The system requires no adjustments to other parts for changing bag length, ensuring accurate results.

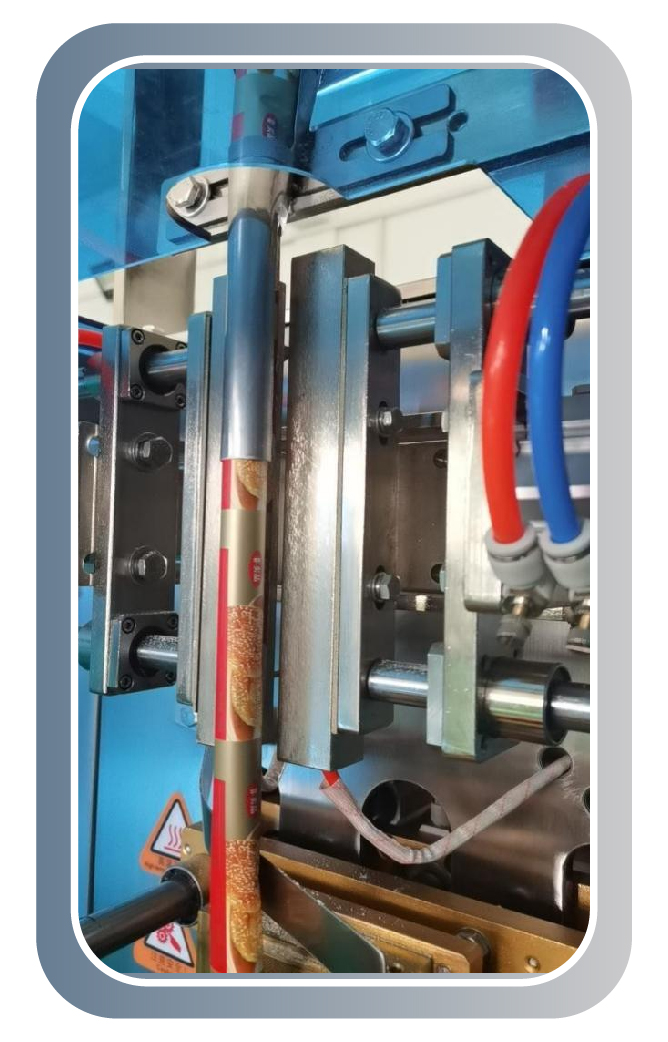

2 Control & Pulling System

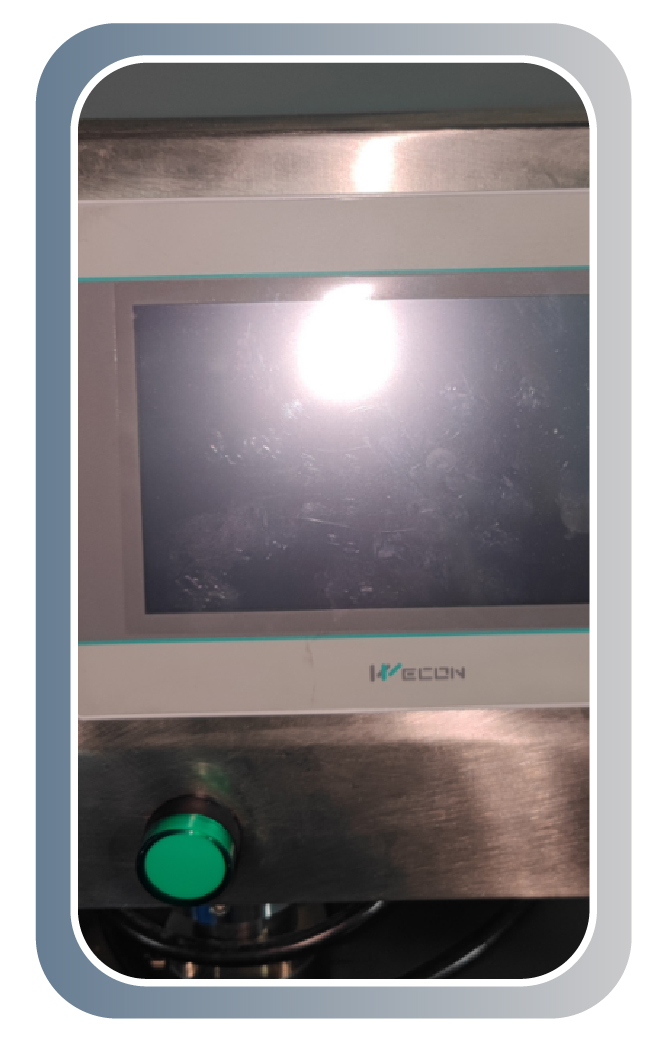

Integrated with PLC and touch screen for convenient and quick parameter setting.

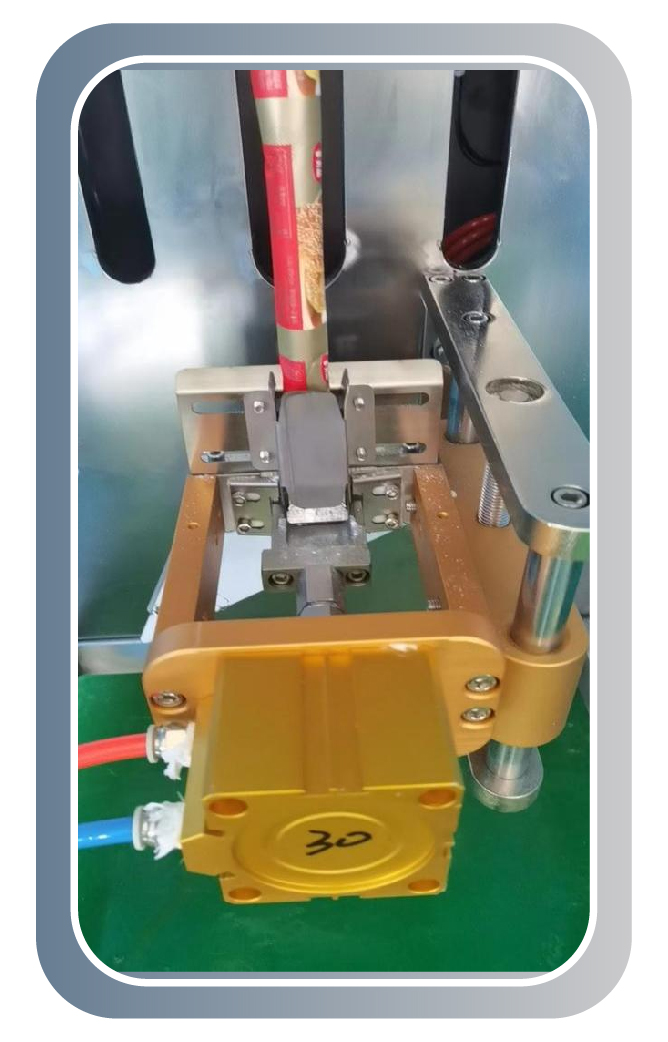

Film pulling mechanism controlled by a high-precision servo motor.

3 Sealing, Printing & Tracking

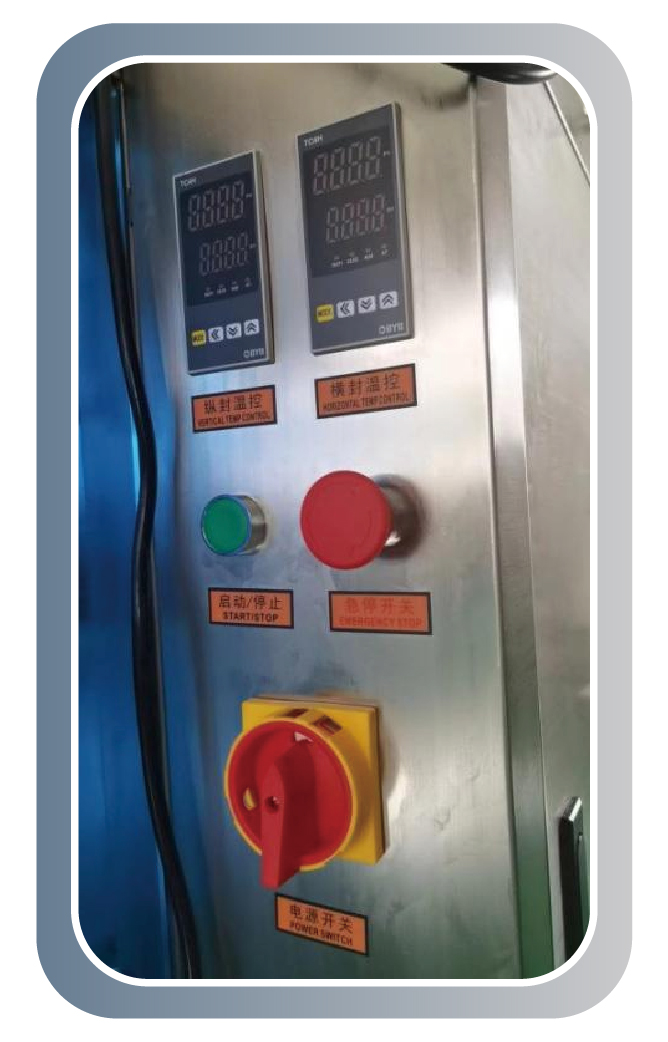

Temperature-independent PID control, suitable for various packaging materials.

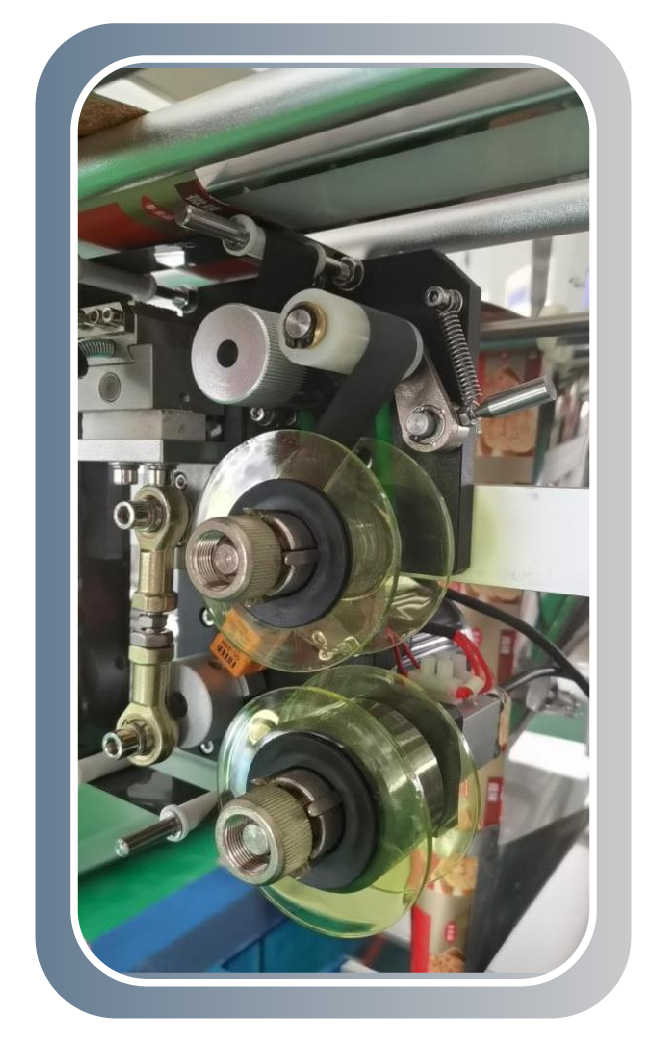

Integrated ribbon date printer.

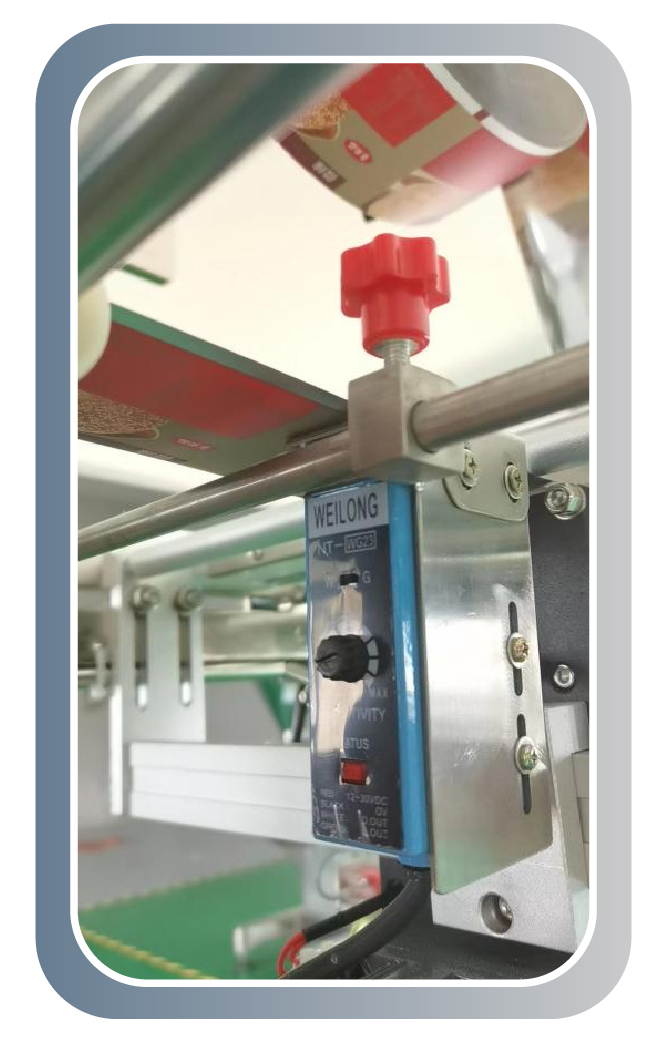

High-sensitivity photoelectric eye color mark tracking, digital input of sealing and cutting position, making the sealing and cutting position highly accurate.

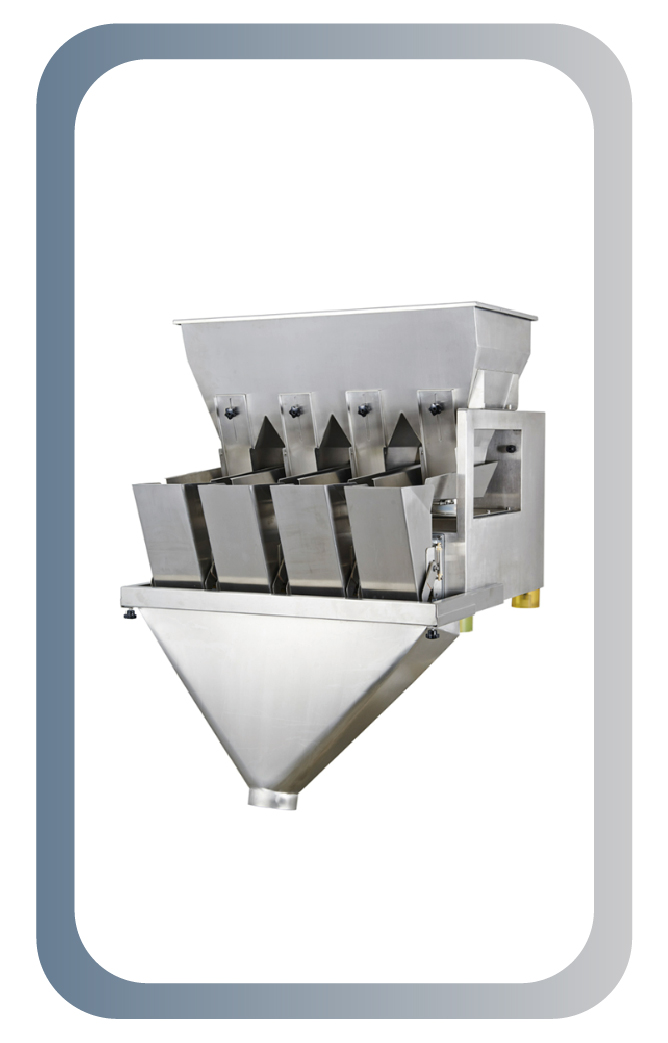

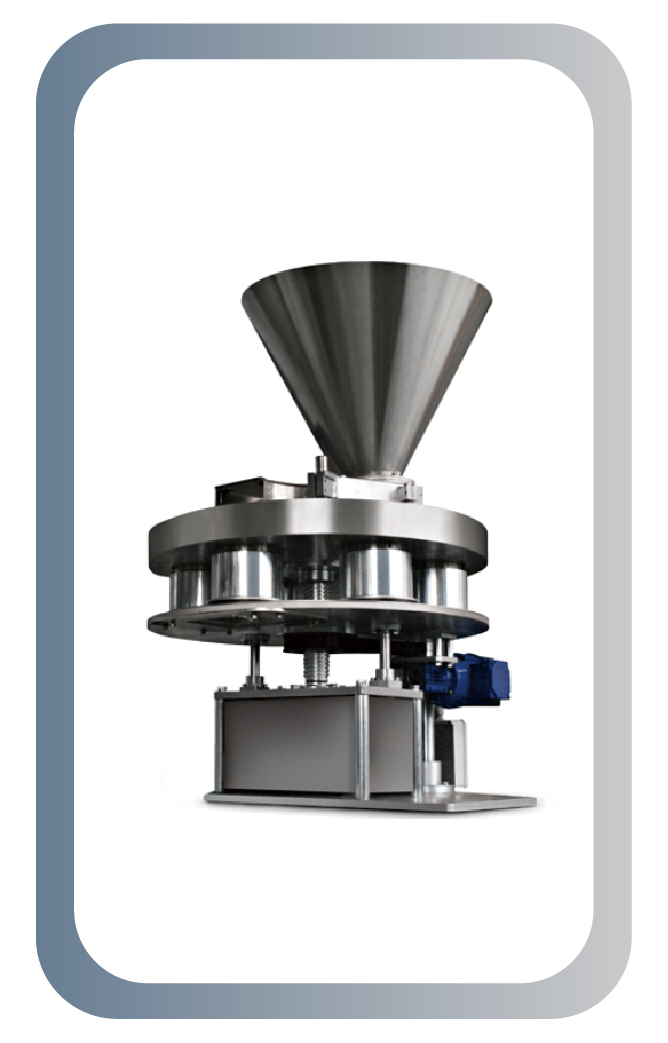

4 Custom Dosing Options

According to different materials, measuring cups, auger fillers, scales, and liquid pumps are optional.

Product Application & Packaging Types

Frequently Asked Questions

What types of products are suitable for this machine?

This series is ideal for packaging various powder products, including milk powder, drinking powder, pharmaceuticals, and chemicals. By utilizing alternative dosing units, it can also accommodate liquids and granules.

What packaging materials can this machine handle?

The machine supports a broad range of heat-sealable composite films, such as PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+CPP, and aluminum foil structures. The recommended film thickness is between 0.05mm and 0.12mm.

How is the packaging accuracy maintained?

We use a motor-driven auger filler system for powder dosing, which ensures high precision. Additionally, a highly sensitive photoelectric eye color mark tracking system ensures precise cutting and sealing coordinates.

What are the bag dimension limitations?

Model TP-PF-V180 supports film widths ranging from 40mm to 180mm. It can produce finished bags with widths from 20mm to 75mm and lengths from 50mm to 200mm.

Does the machine support custom voltage or date printing?

Yes, the standard power supply configuration is 220V 50HZ 1P, but we can integrate a transformer to match your regional power requirements. The unit also includes a built-in date printing device as part of the standard assembly.

What is the production capacity of this machine?

The machine has an output capacity of 20 to 70 bags per minute. The actual speed depends on the physical properties of the packaged product, dosing volume, and bag dimensions.
