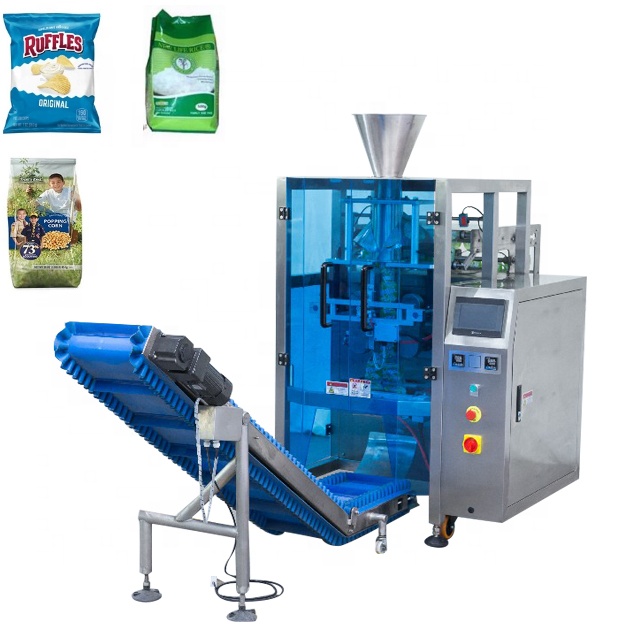

Automatic VFFS Vertical Packing Machine Multi-Function Food Packaging Machine for Milk Powder Beans
Product Parameters
Function and characteristics:
- Humanism design: Easy dismantle, no need for any tools to dismantle the contact parts for cleaning.
- No dead angle: Leaves no product residue, making it highly suitable for the grocery industry. The entire process takes only one person one minute to finish, saving labor with high efficiency.
- Arch breaker device: The hopper is equipped with an arch breaker device to help resolve bridging problems.
- Updated components: Features a polished screw and a side-opening tube.

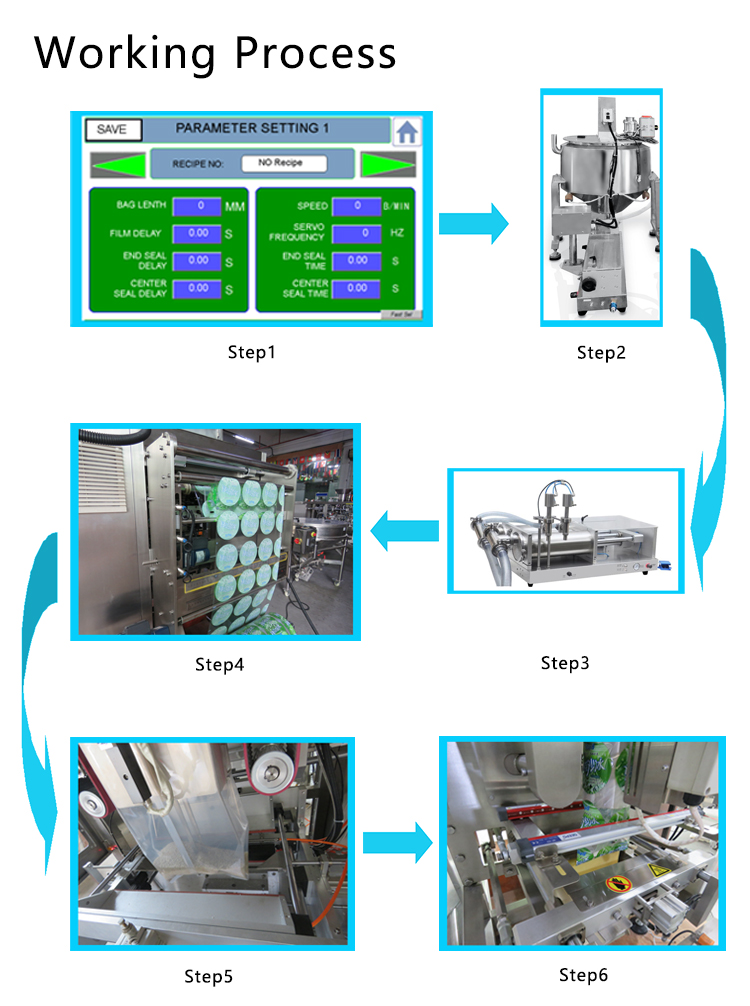

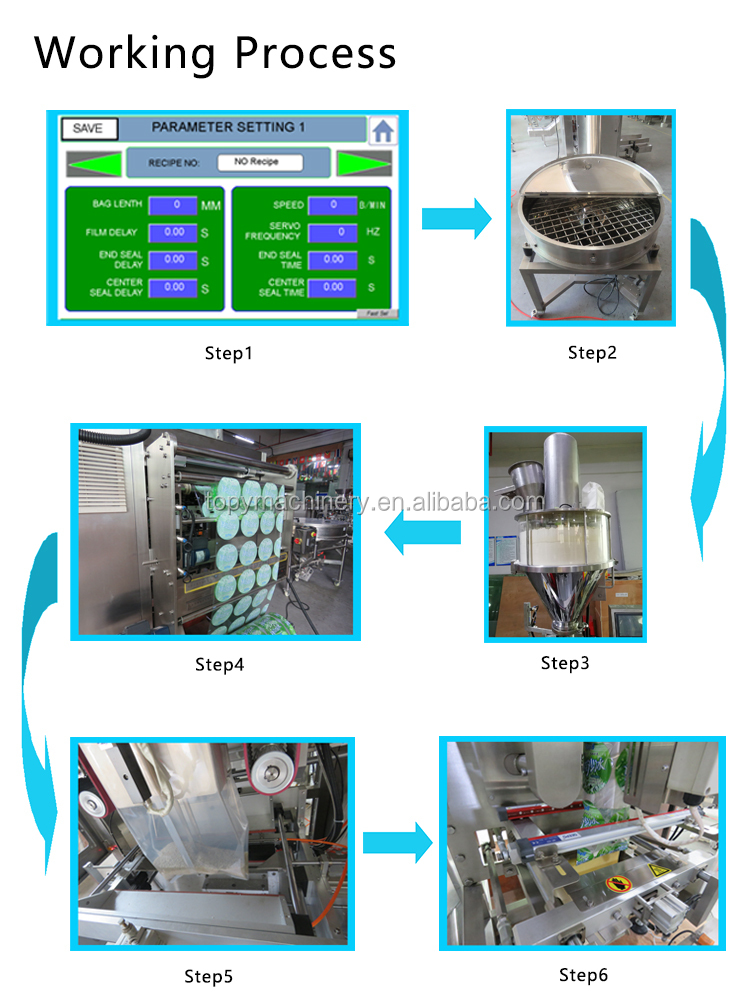

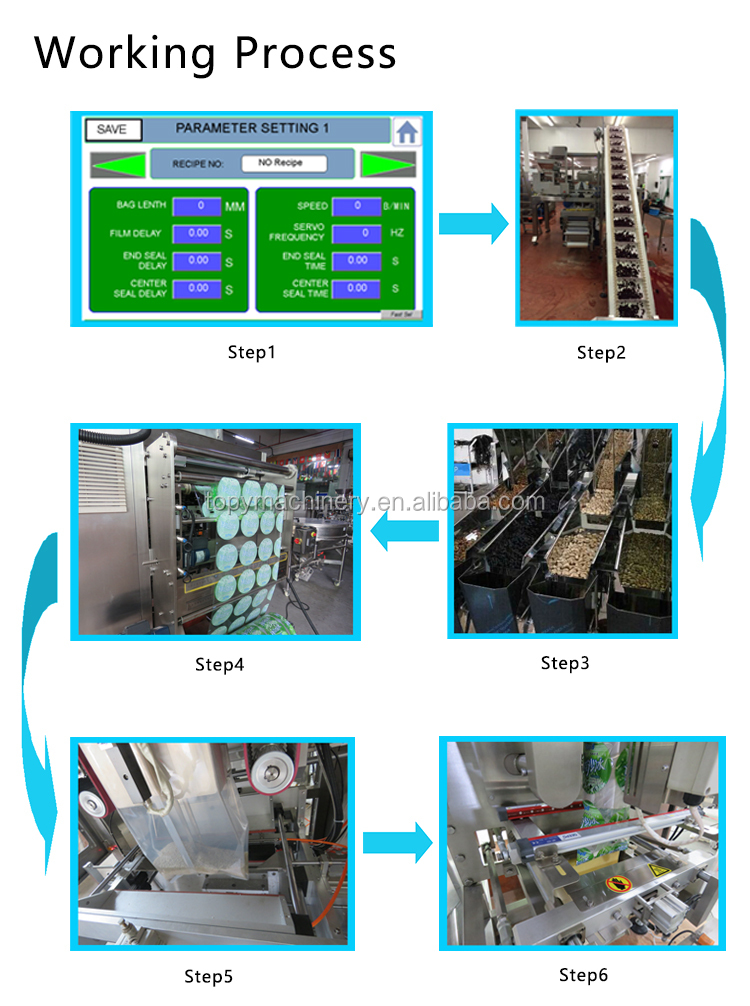

How do the pack machine work?
1
Pour bulk products into the storage hopper manually or automatically.
2
Conveyor sends the items to the doser.
3
Doser will dose the target weight we need.
4

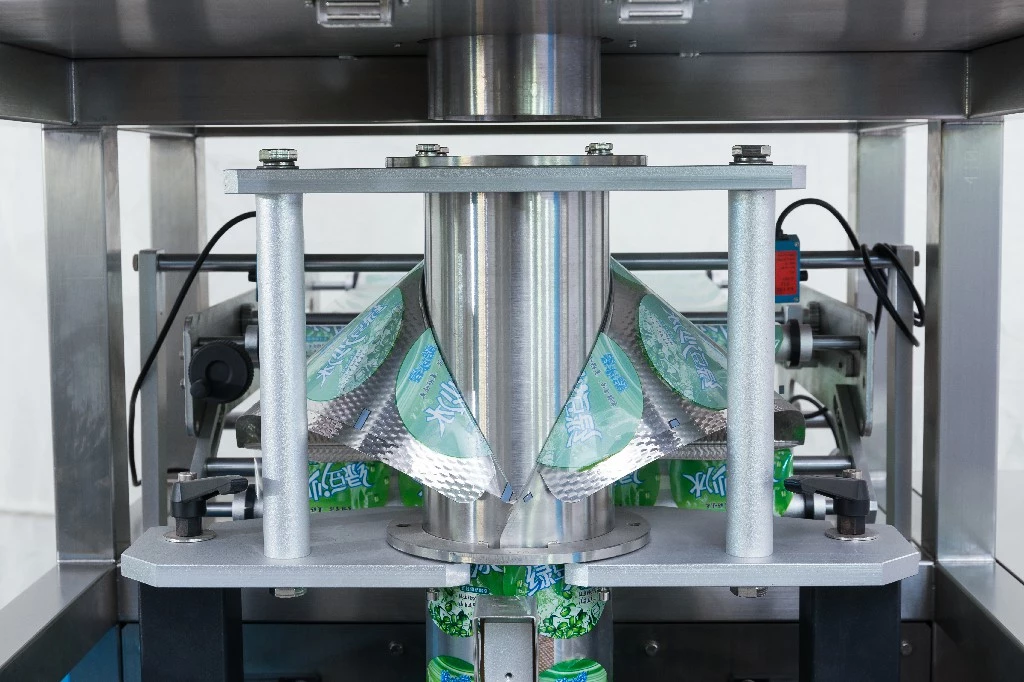

Roll film is formed into the bag shape.
5
Filling machine drops products with the target weight into open bags.
6

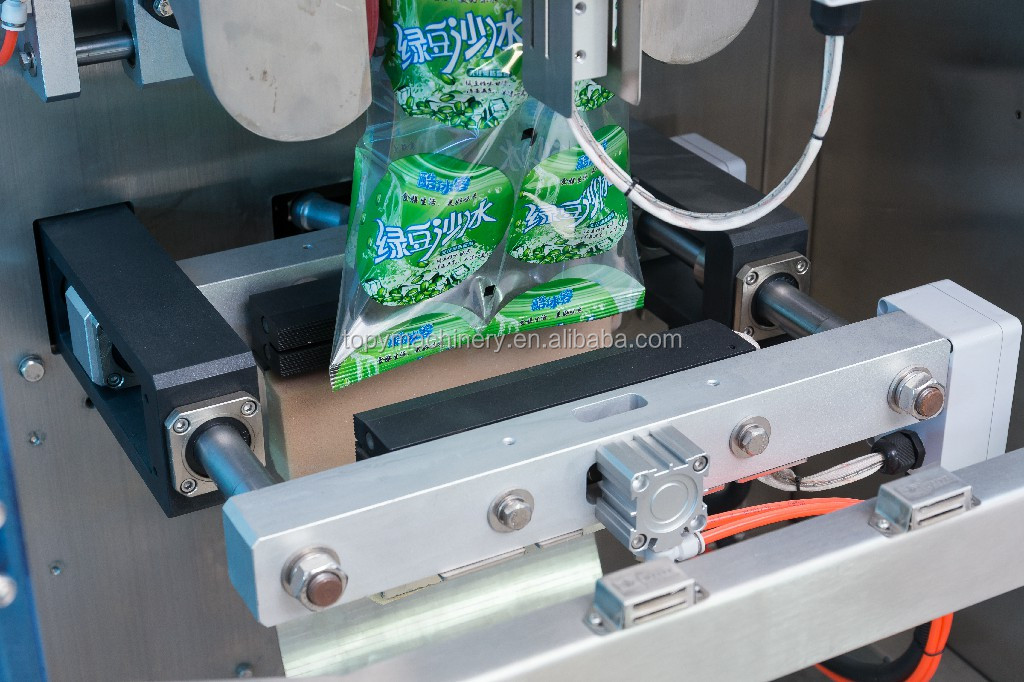

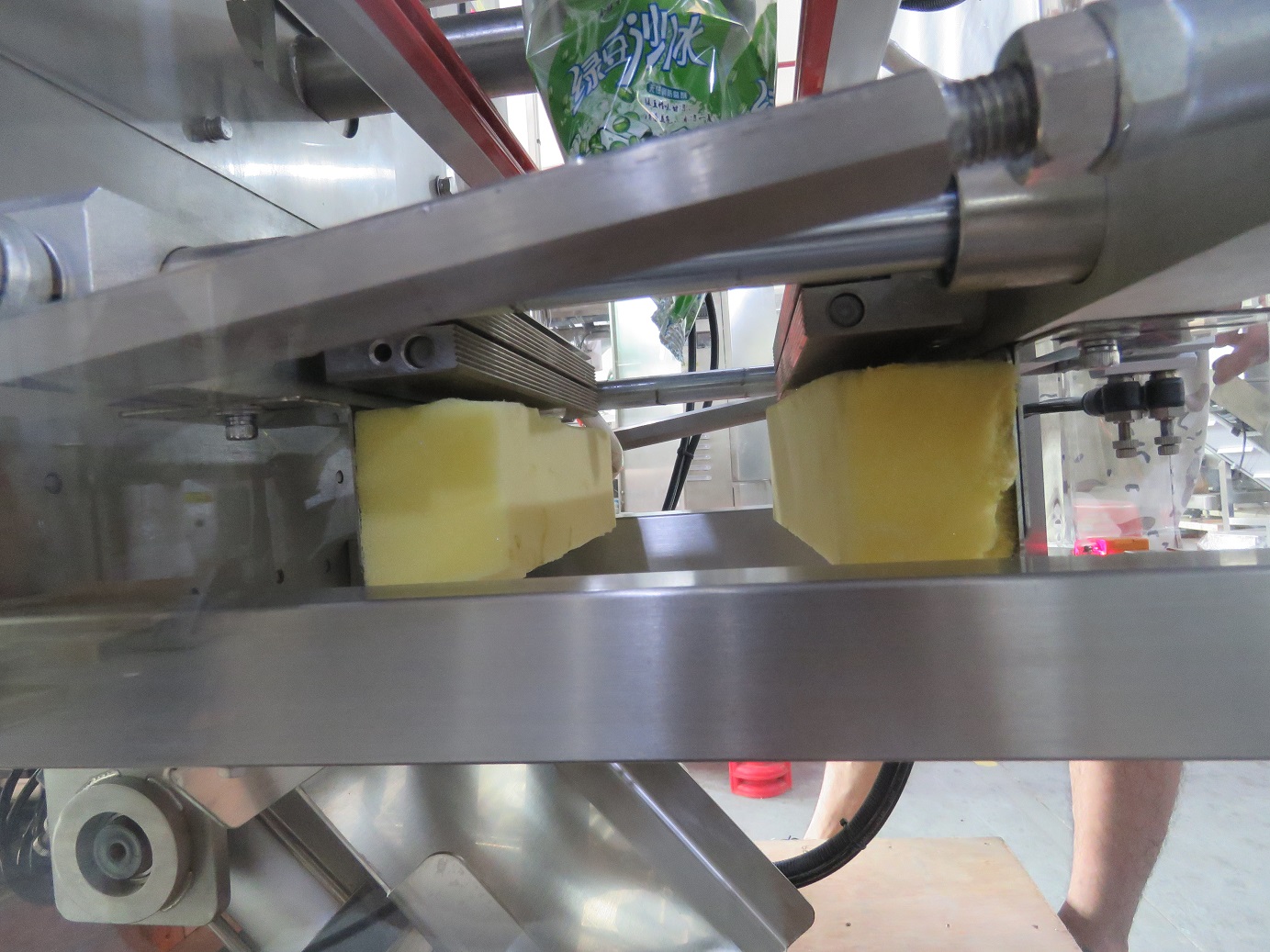

The sealing jaws automatically seal the bags.
Specifications
| Model No. |
TOPY-VP420 |
TOPY-VP520 |
TOPY-VP620 |
TOPY-VP800 |
| Bag Size |
(L) 60-230mm *
(W) 60-200mm |
(L) 100-300mm *
(W) 80-250mm |
(L) 100-380mm *
(W) 100-300mm |
(L) 50-380mm *
(W) 110-400mm |
| Bag Speed |
15-60 bags/min |
15-60 bags/min |
15-60 bags/min |
10-30 bags/min |
| Film Width |
140-420mm |
180-520mm |
220-620mm |
340-800mm |
| Air Consumption |
0.6Mps 0.36m³/min |
0.6Mps 0.36m³/min |
0.6Mps 0.4m³/min |
0.6Mps 0.7m³/min |
| Power Supply |
2.2kw, 220V 50/60HZ |
3kw, 220V 50/60HZ |
4kw, 220V 50/60HZ |
4.5kw, 220V 50/60HZ |
| Packed Dimension |
(L)1430*(W)970*(H)1600mm |
(L)1550*(W)1160*(H)1480mm |
(L)1600*(W)1260*(H)1680mm |
(L)1600*(W)1500*(H)2050mm |

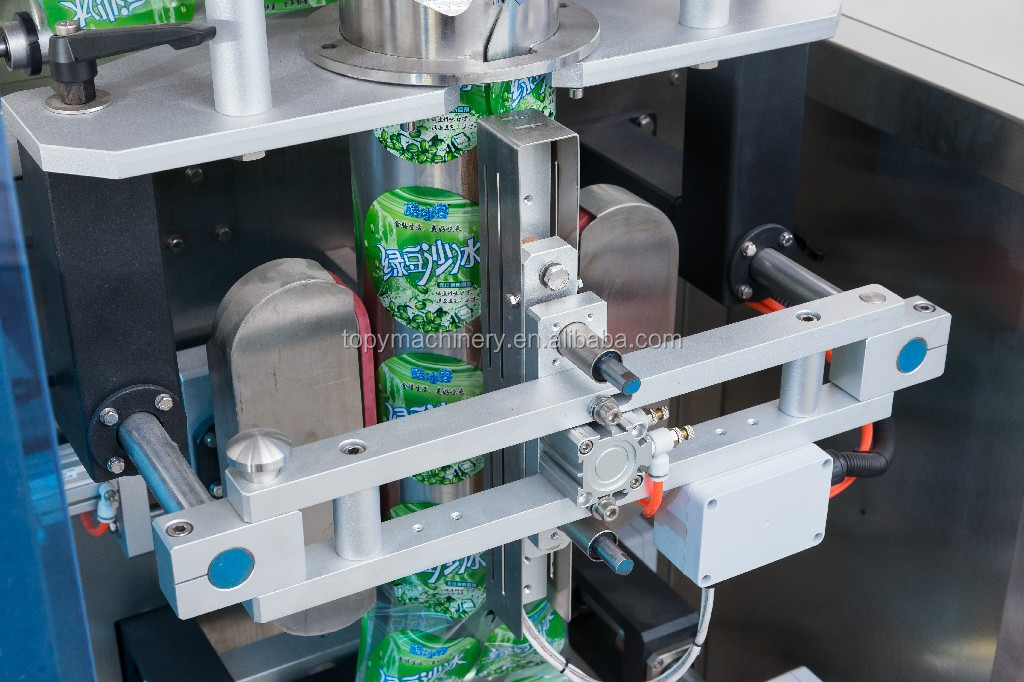

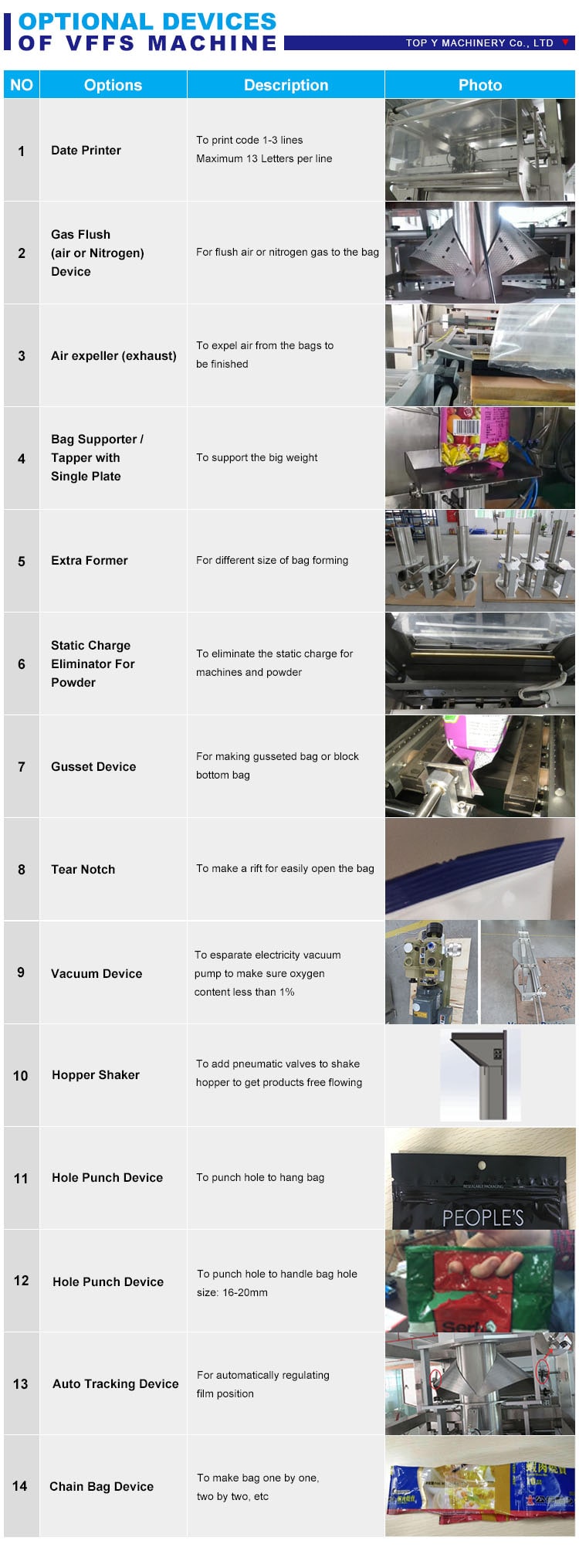

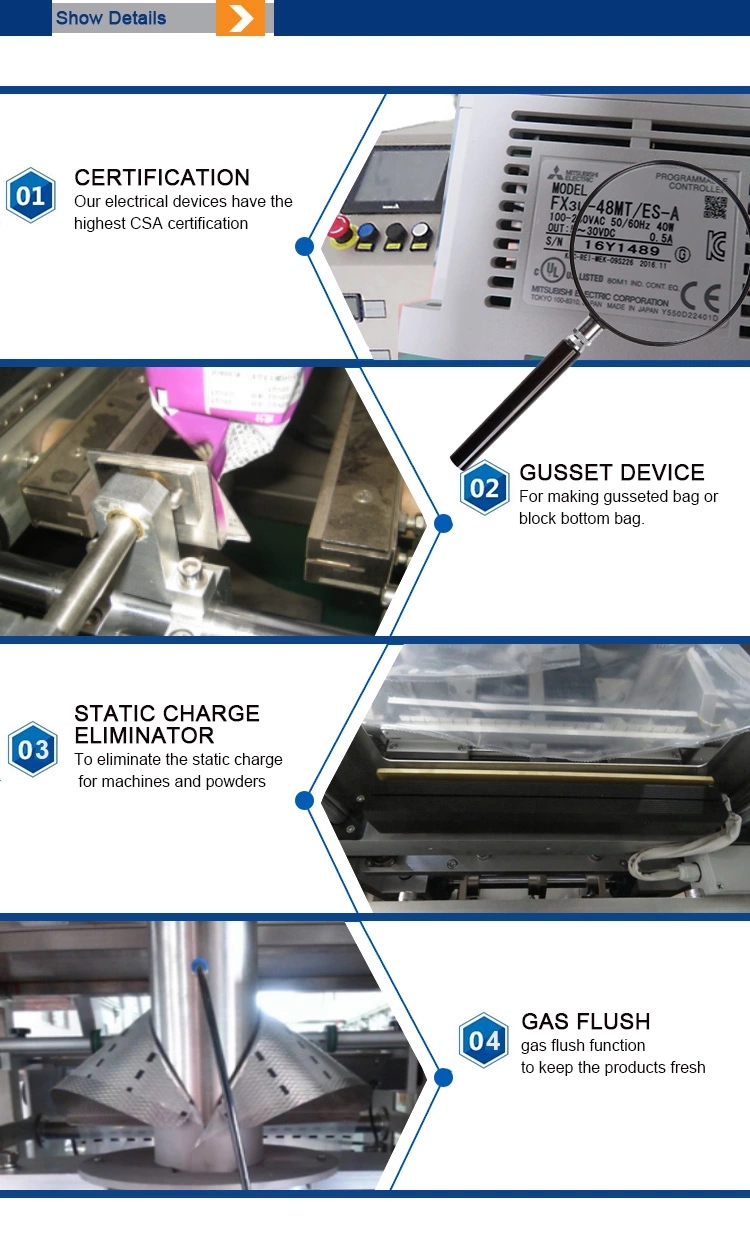

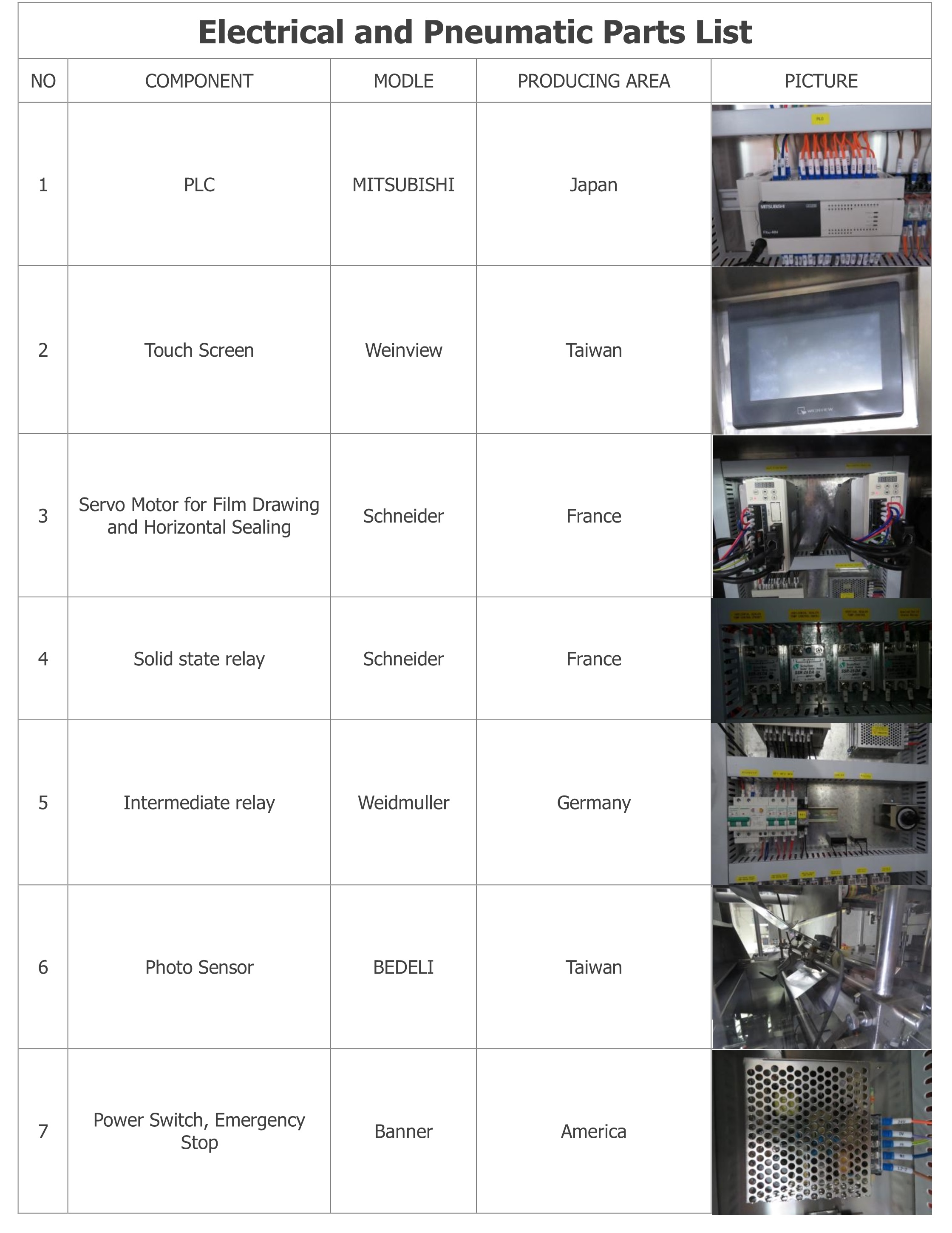

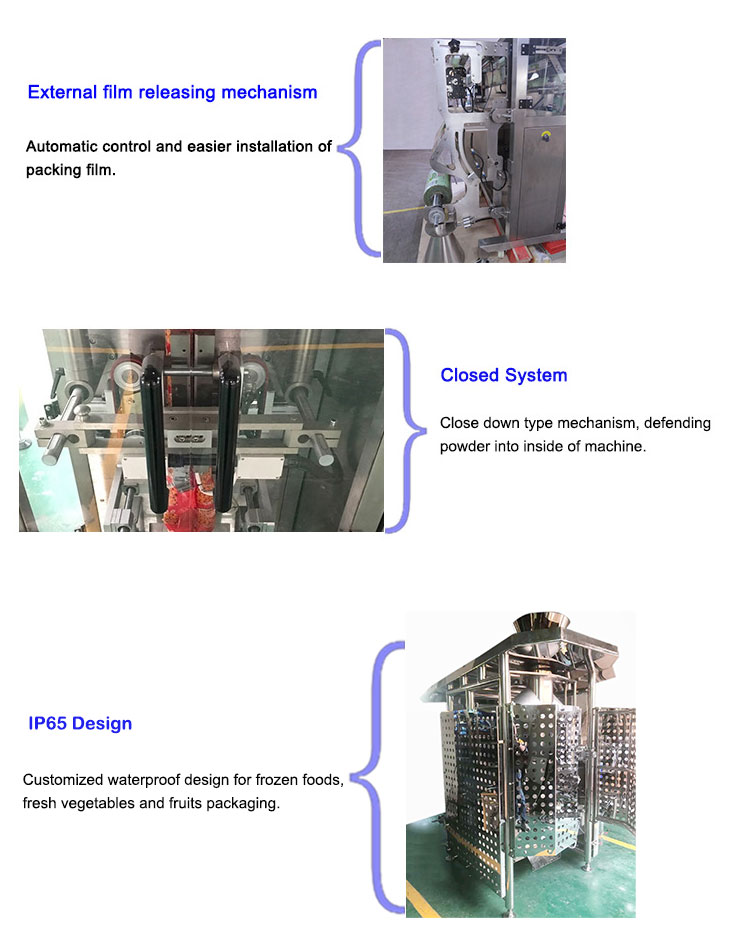

Bagger Machine Device Detailed Picture

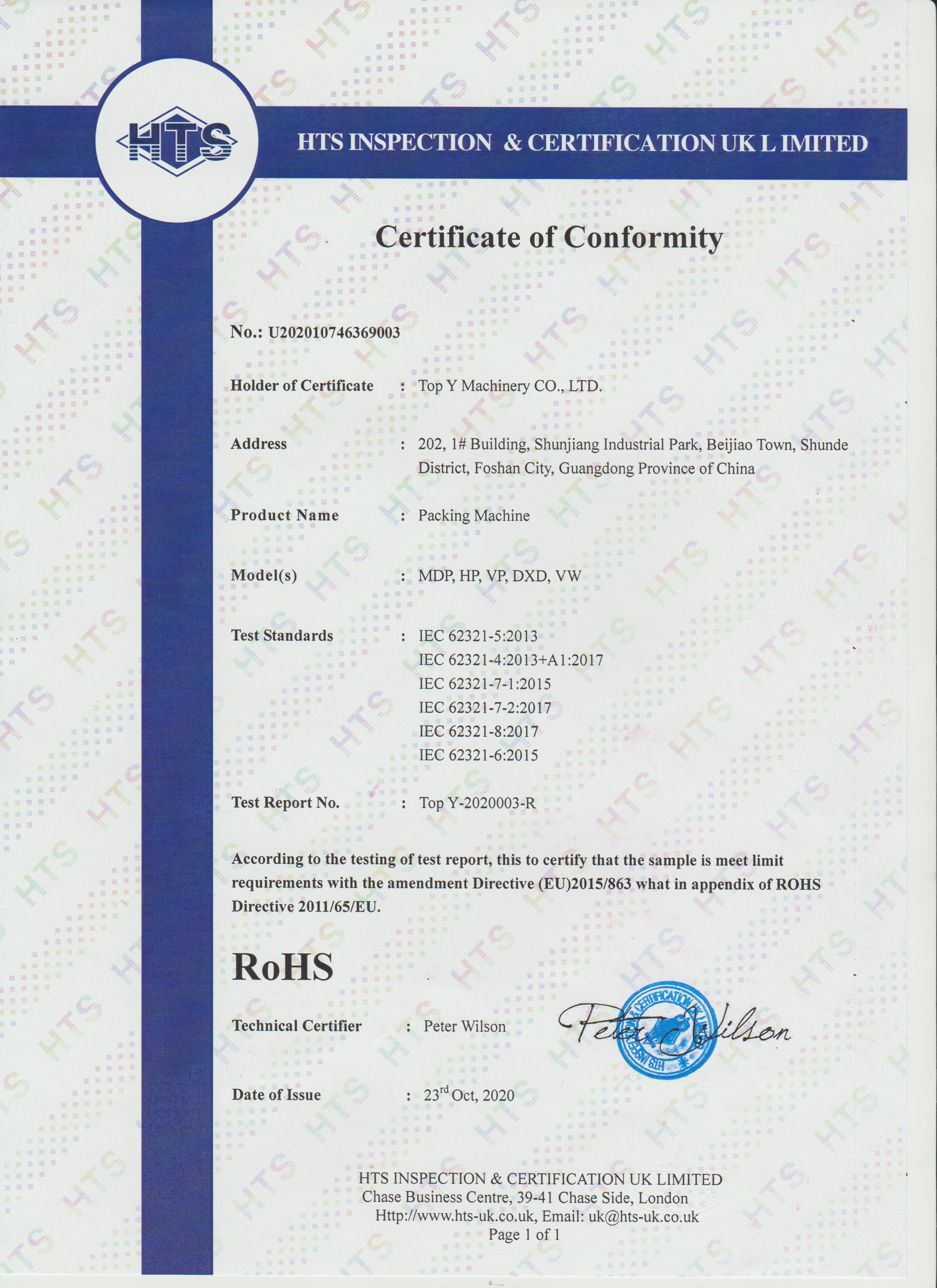

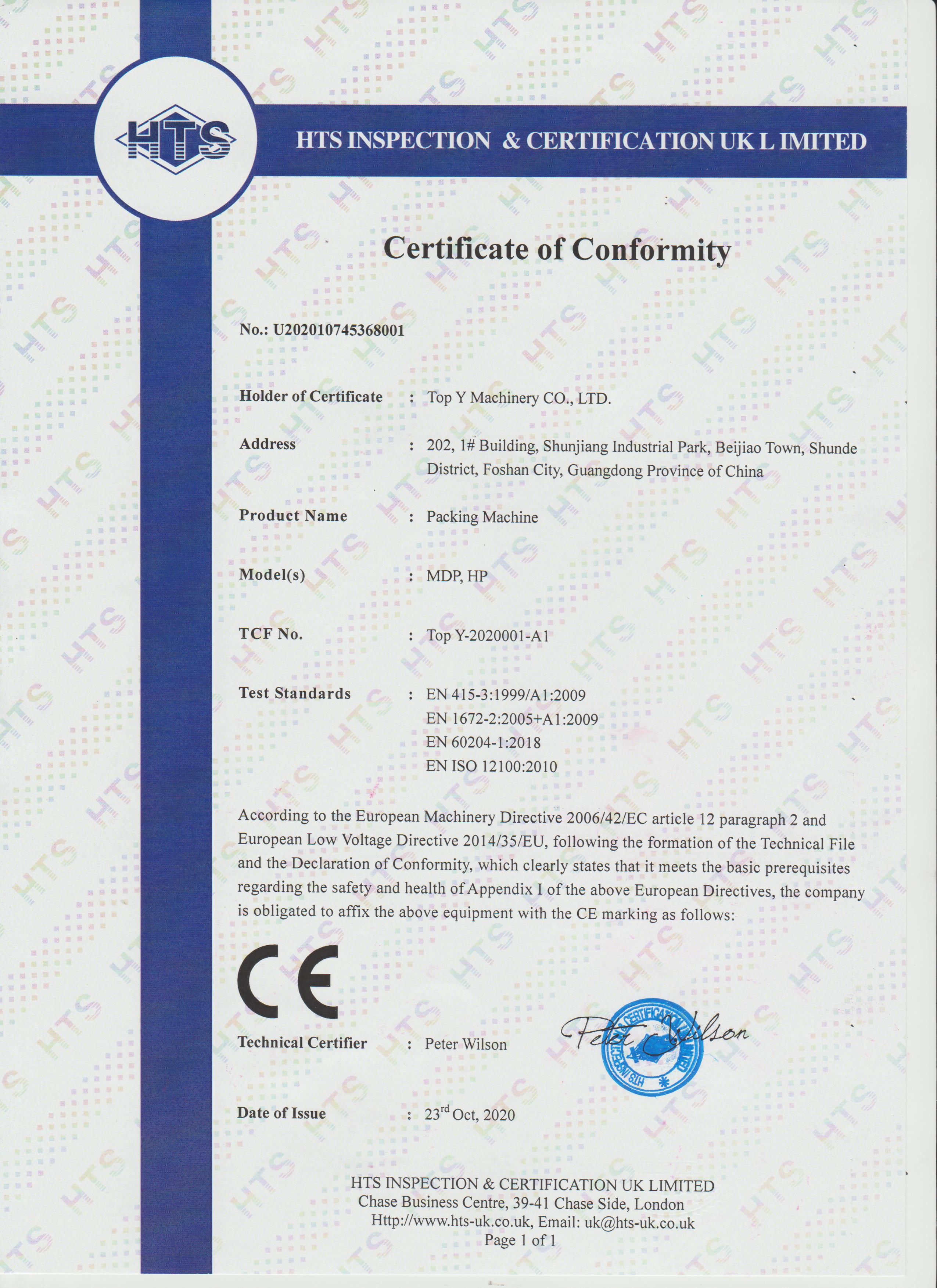

- Certification: Our electrical devices feature CSA certification.
- Gusset device: Designed for making gusseted bags or block bottom bags.
- Auto tracking device: Automatically regulates film position.
- Date printer: Prints code in one or two lines, max 11 letters per line.
- Air expeller: Expels excess air from the finished bag.
- Hole pouch device: Adds a punch hole for easy handling.
- Bag supporter: Designed to support heavier weights.

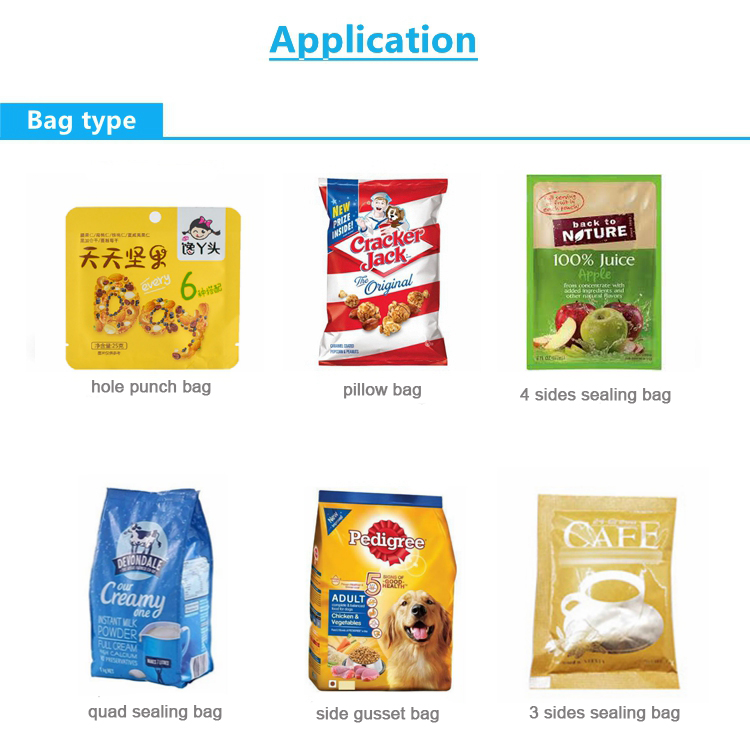

VFFS machine is suitable for all kinds of bags made of plastic roll film, such as pillow bags, side gusset bags, quad sealing bags, and more.
Additionally, by connecting with different weighing equipment, the packaging system can handle various products, including powders, snacks, dried vegetables or fruit, puffed food, liquid sauces, beverages, etc.
Packing Solution
The filling system below is for reference. We will provide the optimal solution based on your product mobility, viscosity, density, volume, dimensions, etc.

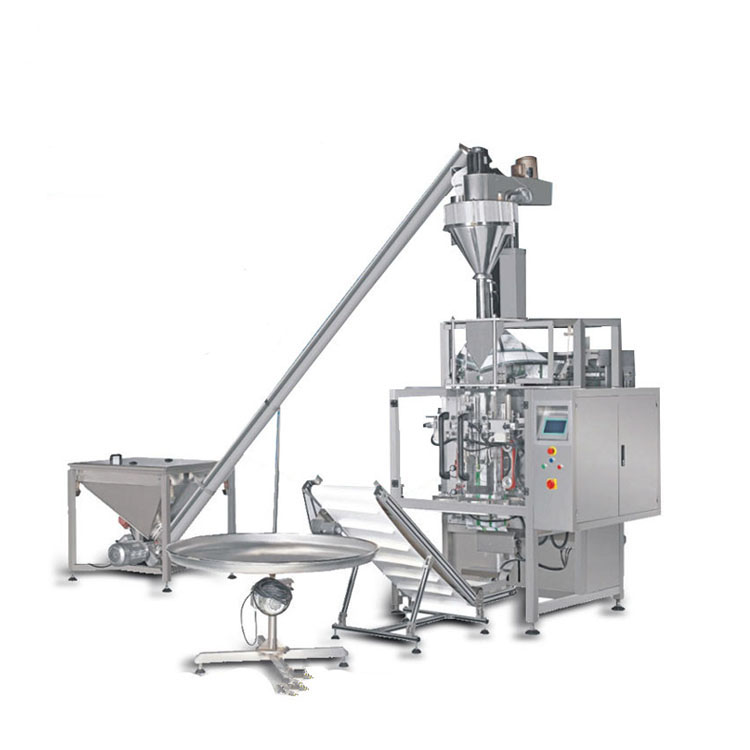

A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, etc.

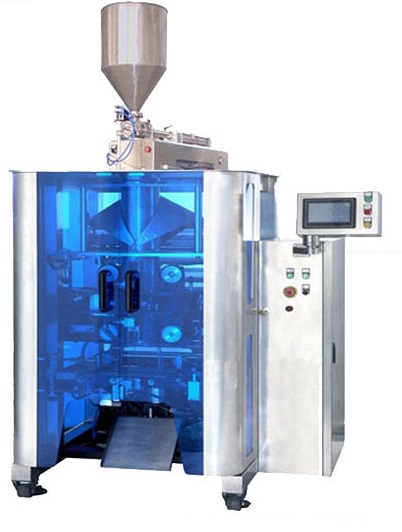

B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup, etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit, vegetables, etc.

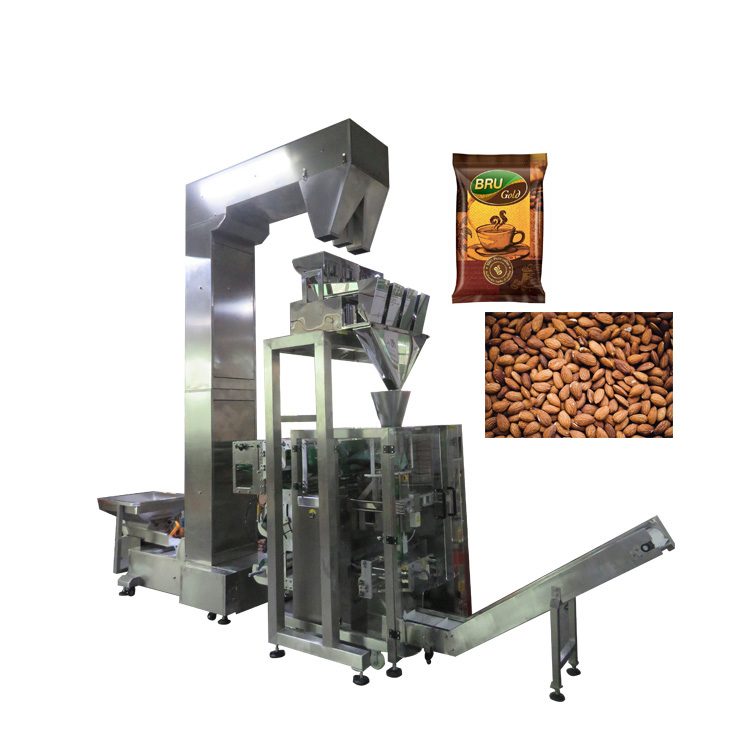

D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemicals, beans, salt, seasonings, etc.
Company Profile
We are an integrated company specialized in R&D, manufacturing, marketing, and providing comprehensive after-sales services backup. Our machinery offerings include:
- VP vertical forming filling sealing machine for roll of film
- Sachet packing machine for small bags
- Powder packaging systems
- Granule packaging systems
- Liquid packaging systems
We also provide turnkey material handling, weighing, packaging, and inspecting solutions for granules, powders, and liquids.
Packing & Delivery
Shipping
- Dispatched within 3-15 working days from payment receipt (based on actual order quantity).
- Tracking number will be provided immediately after delivery. You will receive regular shipping status updates via email.
Packing
All equipment is securely packed in standard plywood cases to prevent damage during transit.
Frequently Asked Questions (FAQ)
Q1
What products do you pack: solid, granule, flake, powder, or liquid?
For liquids, we advise a piston or motor pump. For powders, we advise an auger filler or volumetric cup filler. For solids, flakes, and granules, we advise a multi-head weigher, linear weigher, or volumetric cup filler.
Q2
What are the bag sizes and target weight in each pack?
For our VFFS packing machines, the minimum film width we work on is 120mm, and the maximum film width is 1200mm.
Q3
Does your company work on OEM orders?
Yes, we have a professional design and technical team to handle custom requests and modifications.
Q4
What is the delivery time after the order is placed?
We arrange shipment within 30-35 days for standard machines. Customized machines will require additional days depending on specifications.
Q5
How about the warranty service?
We offer a two-year warranty along with lifelong maintenance support.
Q6
What after-sales support do you provide?
We provide machine running videos, English instruction manuals, spare parts, and tools for installation. Our engineers are also available for on-site client factory support and technical training.
